Description
Description

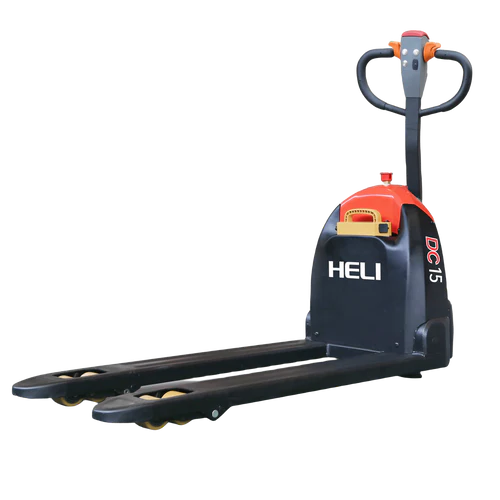

The HELI Electric Walkie Pallet Jack is ideal for moving and lifting items, products, pallets inside your warehouse, supermarket, or workspace. With the perfect design, and high load capacity (up to 3,300 lbs), this jack can get your work done efficiently and conveniently. Now, you don’t need to control the pallet jack manually, instead, you can manage all the tasks through a control panel and buttons. Don’t wait anymore, get it now.
Specifications
| Model | CBD15J-Li2 | |
| Loading capacity | lbs | 3300 |
| Load center | in | 24 |
| Operating type | Walkie | |
| Wheels type | PU | |
| Max. lifting height | in | 7.87 |

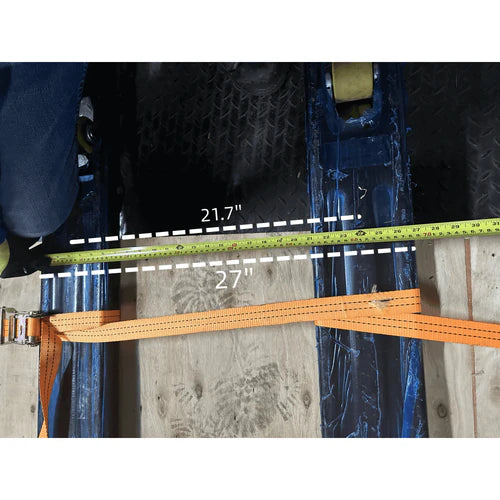

| Overall fork width | in | 21.7/27.0 |

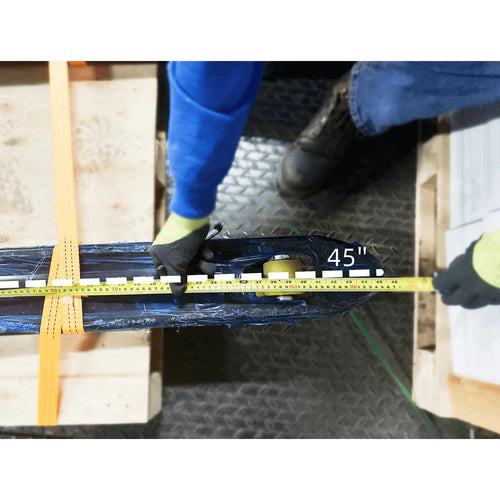

| Fork length | in | 45 |
| Overall length | in | 60.7 |
| Overall width | in | 21.7/27 |
| Overall height (with handle) | in | 44 |
| Min. Turning radius | in | 53.3 |
| Min. Aisle width for pallets 1000x12000 | in | 69.3 |
| Travel speed, laden/unladen | mph | 2.6/2.8 |
| Driving motor | hp | DC 1.0 |
| Battery voltage/capacity | V/Ah | 24/28 |
| Controller | CURTIS | |
| Battery Weight | lbs | 15 |
| Service weight with battery | lbs | 340 |
Features
- This jack is equipped with a 24V/28Ah (1.5 tons) portable lithium battery pack which is easy and convenient for battery
- The emergency reverse device ensures safety.
- The vehicle is simple and dexterous with a steering radius of 1355 mm. It is suitable for ultra-narrow aisle operation.
- Integrated handle design integrating key switch and electric meter is simple and comfortable for operation.
Package Size
- L*W*H (inch): 61*27*44
- Weight (lb): 340
- Please have a forklift or equivalent ready for unloading
