Description
Description

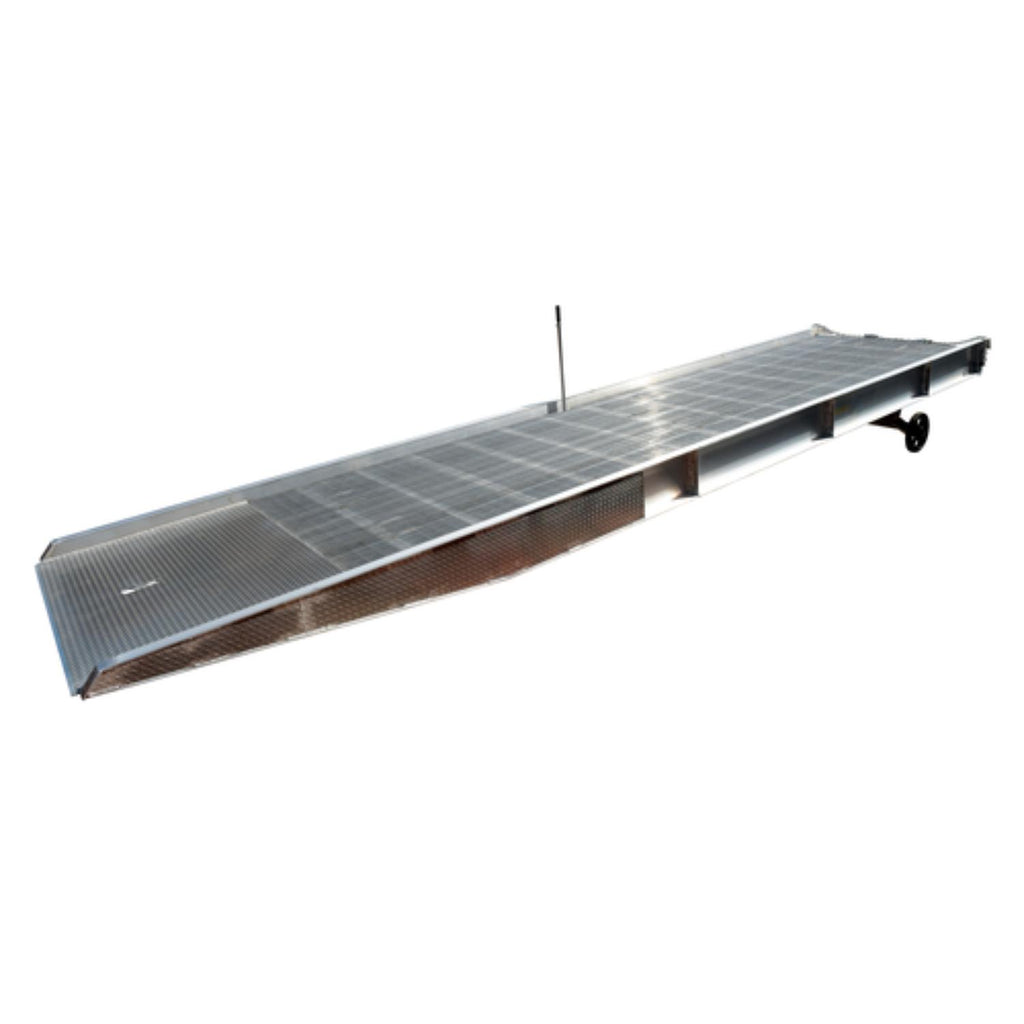

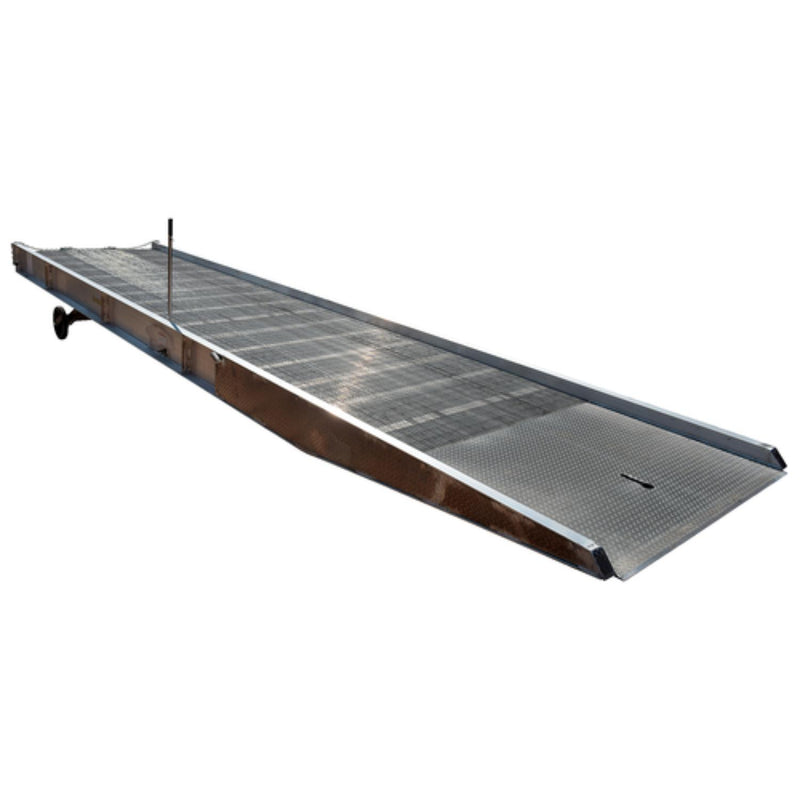

The portable Aluminum Yard Ramp with Aluminum grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Grating is rust resistant aluminum. It includes a hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.
Features
- Aluminum side curbs prevent fork truck run-off
- Overlap style lip with safety chains secures ramp to trailer
- Open grating design allows snow, ice and rain to fall through
- Hand pump hydraulic lift easily adjusts to different dock heights
Specifications
| Specification | Details |
|---|---|
| Overall Width (in) | 74 |
| Overall Length (ft) | 30 |
| Weight Capacity (lbs) | 16000 |
| Maximum Height (in) | 62 |
| Minimum Height (in) | 45 |
| Height Adjustment Method | Hand Crank |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Curb Height (in) | 4 |
| Distance Between Curbs (in) | 66 |
| Wheel Material | Molded on Rubber |
| Wheel Diameter (in) | 18 |
| Wheel Width (in) | 5 |
| Color / Finish | Black |
| Weight (lbs) | 2569 |
| Safety Chains | Yes |
| Tow Bar | Yes |
| Handrail Included | No |
| Additional Contents | None |
| Manufacturer Warranty | 1 Year |
| Usable Lip Support Edge (in) | 13.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
