Description
Description

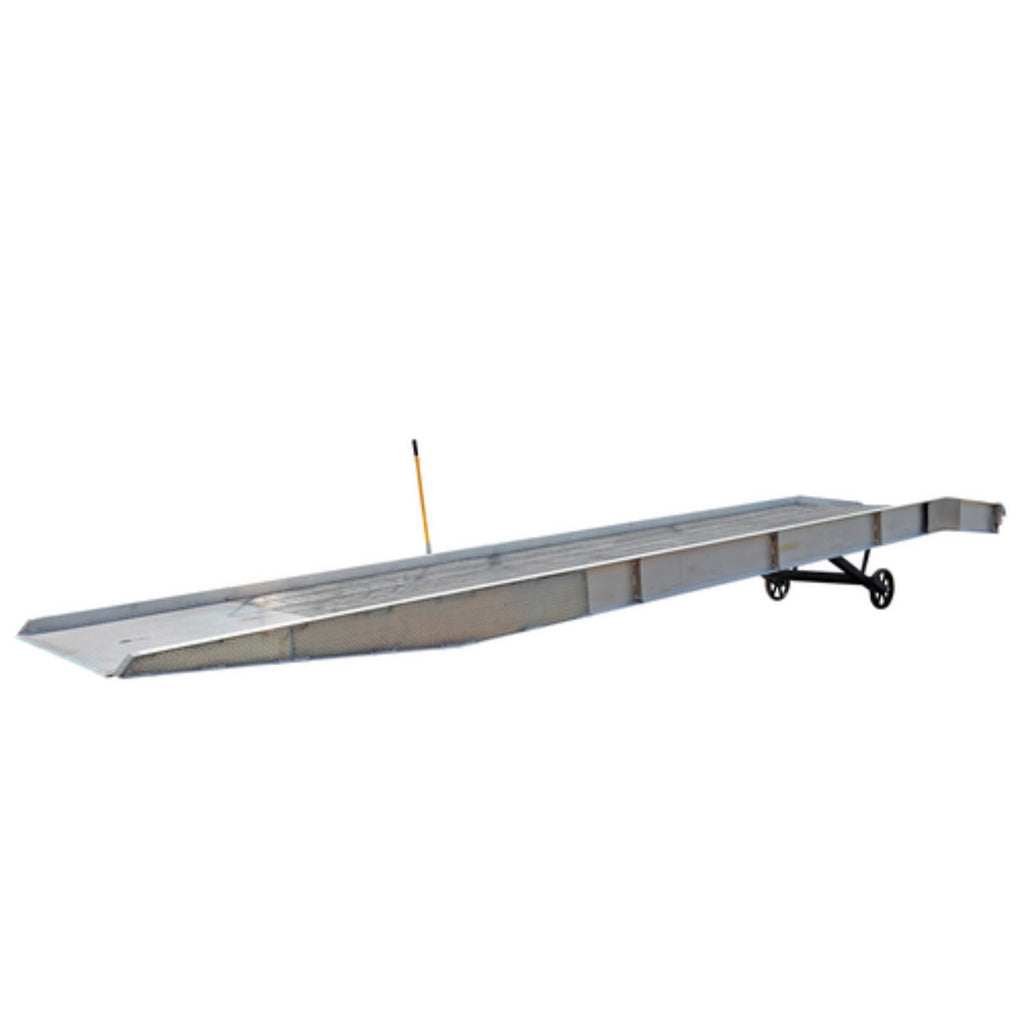

The portable Aluminum Yard Ramp with Aluminum grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Grating is rust resistant aluminum. It includes hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.
Features
- Aluminum side curbs prevent fork truck run-off
- Overlap style lip with safety chains secures ramp to trailer
- Open grating design allows snow, ice and rain to fall through
- Hand pump hydraulic lift easily adjusts to different dock heights
Specifications
| Specification | Details |
|---|---|
| Overall Width (in) | 86 |
| Overall Length (ft) | 36 |
| Weight Capacity (lbs) | 25000 |
| Maximum Height (in) | 62 |
| Minimum Height (in) | 45 |
| Height Adjustment Method | Hand Crank |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Curb Height (in) | 4 |
| Distance Between Curbs (in) | 78 |
| Wheel Material | Molded on Rubber |
| Wheel Diameter (in) | 18 |
| Wheel Width (in) | 5 |
| Color / Finish | Black |
| Weight (lbs) | 3559 |
| Safety Chains | Yes |
| Tow Bar | Yes |
| Handrail Included | No |
| Additional Contents | None |
| Manufacturer Warranty | 1 Year |
| Usable Lip Support Edge (in) | 13.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
