Description
Description

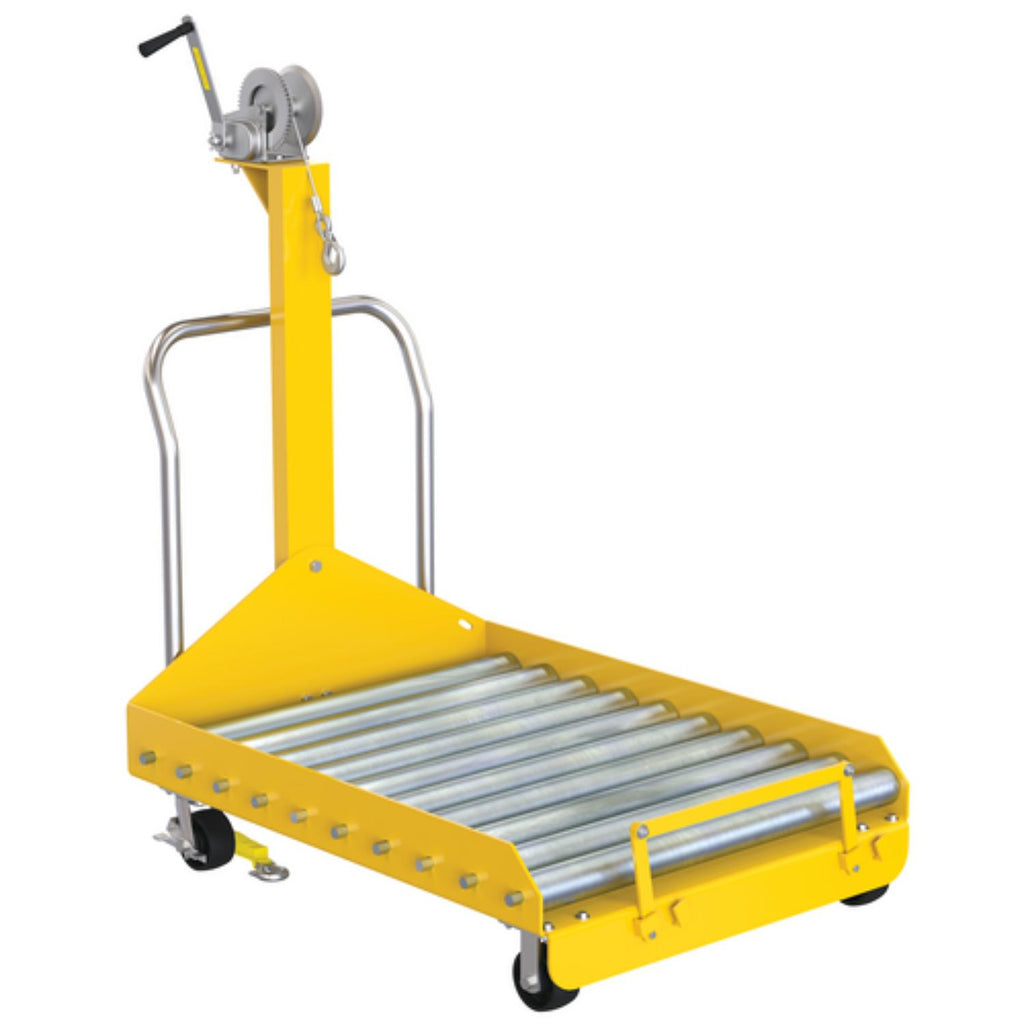

The battery transfer platform with winch is designed to load, unload and transfer fork truck batteries with the use of a fork lift. Features a roller deck for easy battery movement. The front locking safety tabs secure battery in platform. Winch attachment can be installed easily to the battery transfer carts with the supplied hardware. The manual winch is designed to pull battery out of fork truck. The unit has a welded steel construction with a powder coat yellow finish and casters for portability. The cart rolls on glass filled nylon front rigid caster and back swivel casters.
Features
- Platform features a roller deck for easy battery movement
- Front locking safety tabs secure battery in platform
- Welded steel construction with a powder coat yellow finish for durability and visibility
- Platform rolls on glass filled nylon front rigid caster and back swivel casters for portability
Specifications
| Specification | Details |
|---|---|
| Power Source | Manual |
| Overall Height (in) | 54.875 |
| Overall Length (in) | 50.0625 |
| Overall Width (in) | 33.25 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Yellow |
| Frame Material | Steel |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Front Wheel Diameter (in) | 4 |
| Wheel Material | Glass Filled Nylon |
| Platform Length (in) | 40.3125 |
| Platform Width (in) | 31.5 |
| Platform Height (in) | 8.8125 |
| Maximum Platform Height (in) | 8.8 |
| Platform Material | Steel |
| Weight (lbs) | 350 |
| Assembly Required | Partial |
| Additional Contents | For Use With Fork Lift - Includes (10) Platform Rollers - 2-1/2 In. Diameter x 8-13/16 In. Height, (1) 1,200 Lb. Pulling Capacity Winch, (2) Rigid Casters 2 In. Wide, and (2) Swivel Casters 2 In. Wide |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
