Description
Description

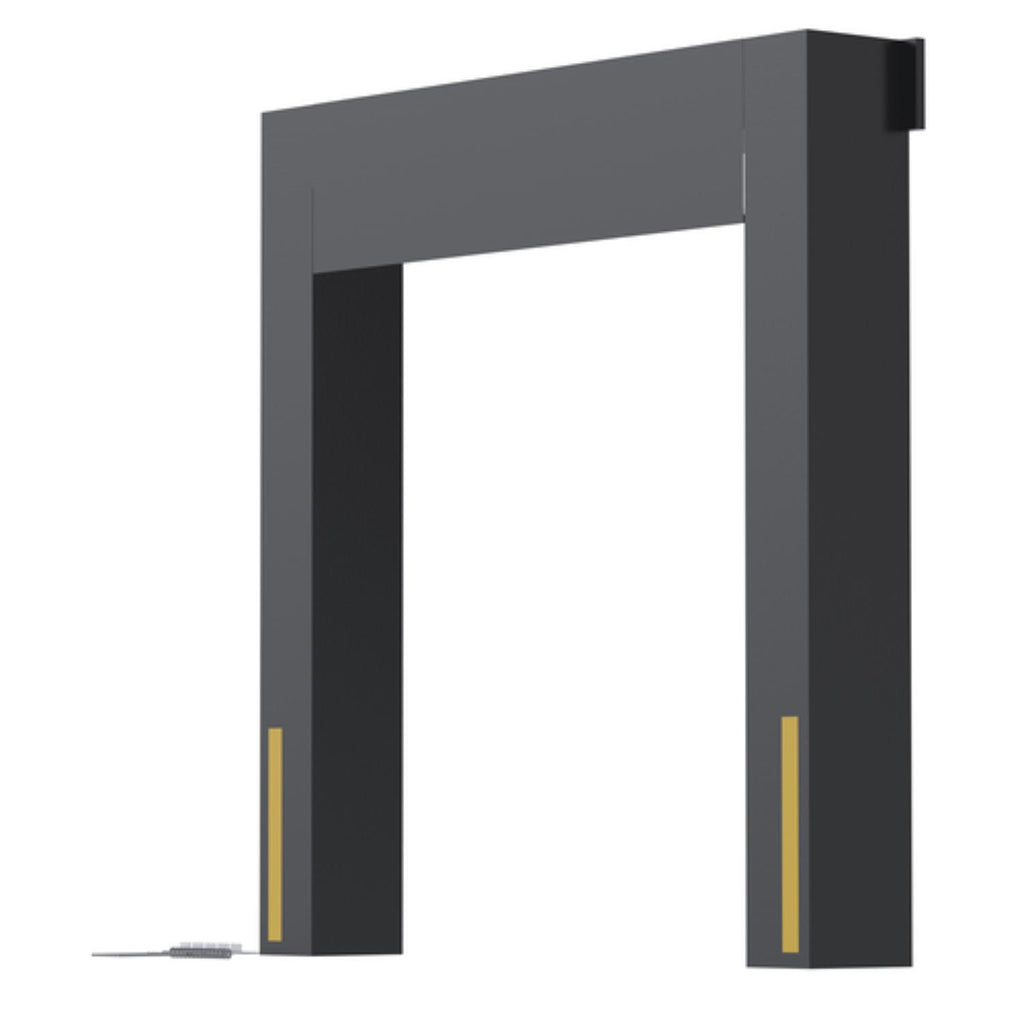

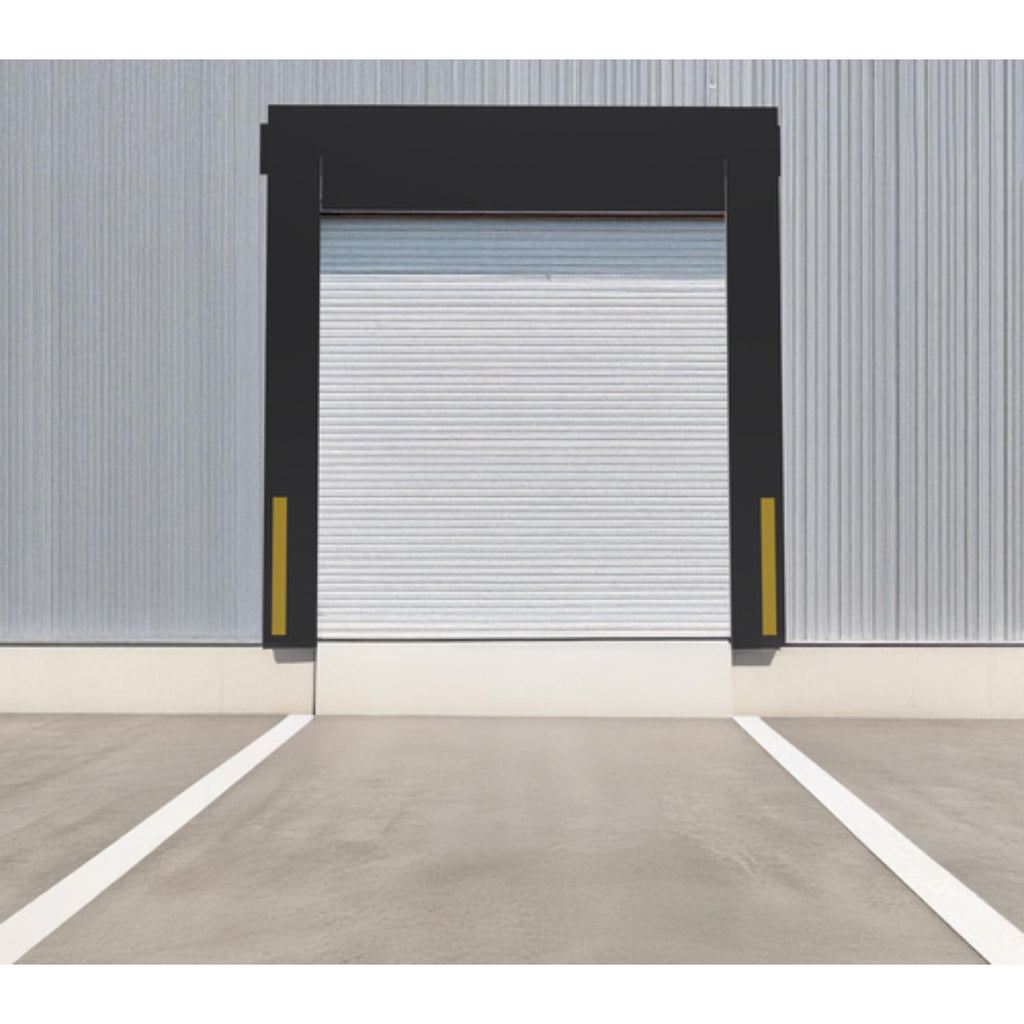

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5") maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet. This unit is non-returnable.
Features
- Three foam-filled pads offer full dock protection
- Maximum compression design offers the maximum protection
- Built-in air tunnels allow air to escape when contacted by a trailer
- Mounting hardware and installation instructions make installation quick and easy
Specifications
| Specification | Details |
|---|---|
| Color / Finish | Black/Yellow |
| Material | Nylon/Vinyl |
| Overall Height (in) | 120 |
| Overall Width (in) | 120 |
| Maximum Projection (in) | 18 |
| Door Width (in) | 96 |
| Door Height (in) | 108 |
| Top Seal Width (in) | 120 |
| Top Seal Height (in) | 12 |
| Side Seal Height (in) | 108 |
| Side Seal Width at Wall (in) | 10 |
| Side Seal Width at Face (in) | 12 |
| Weight (lbs) | 170 |
| Maximum Recommended Compression (in) | 5 |
| Attachment Method | Wall/Loading Dock Door Mounted |
| Mounting Hardware Included | Yes |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
