Description
Description

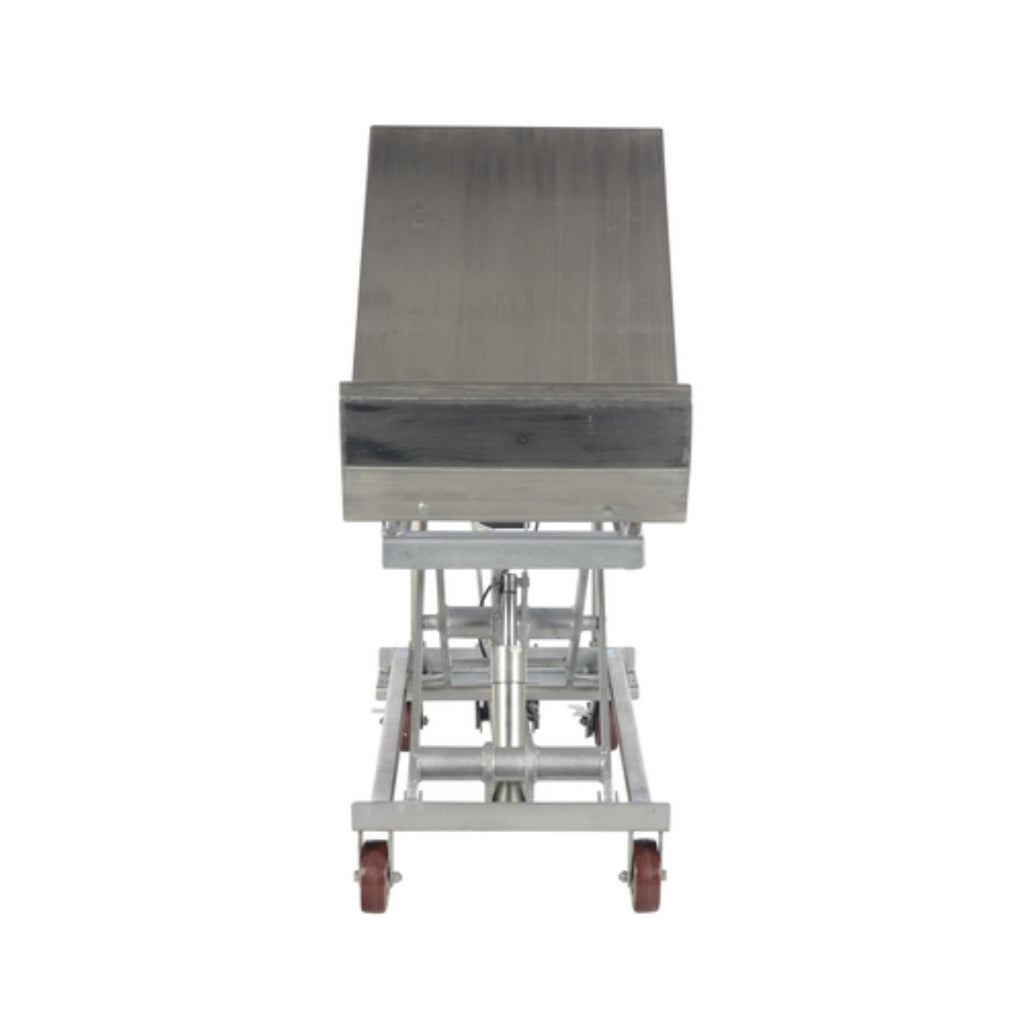

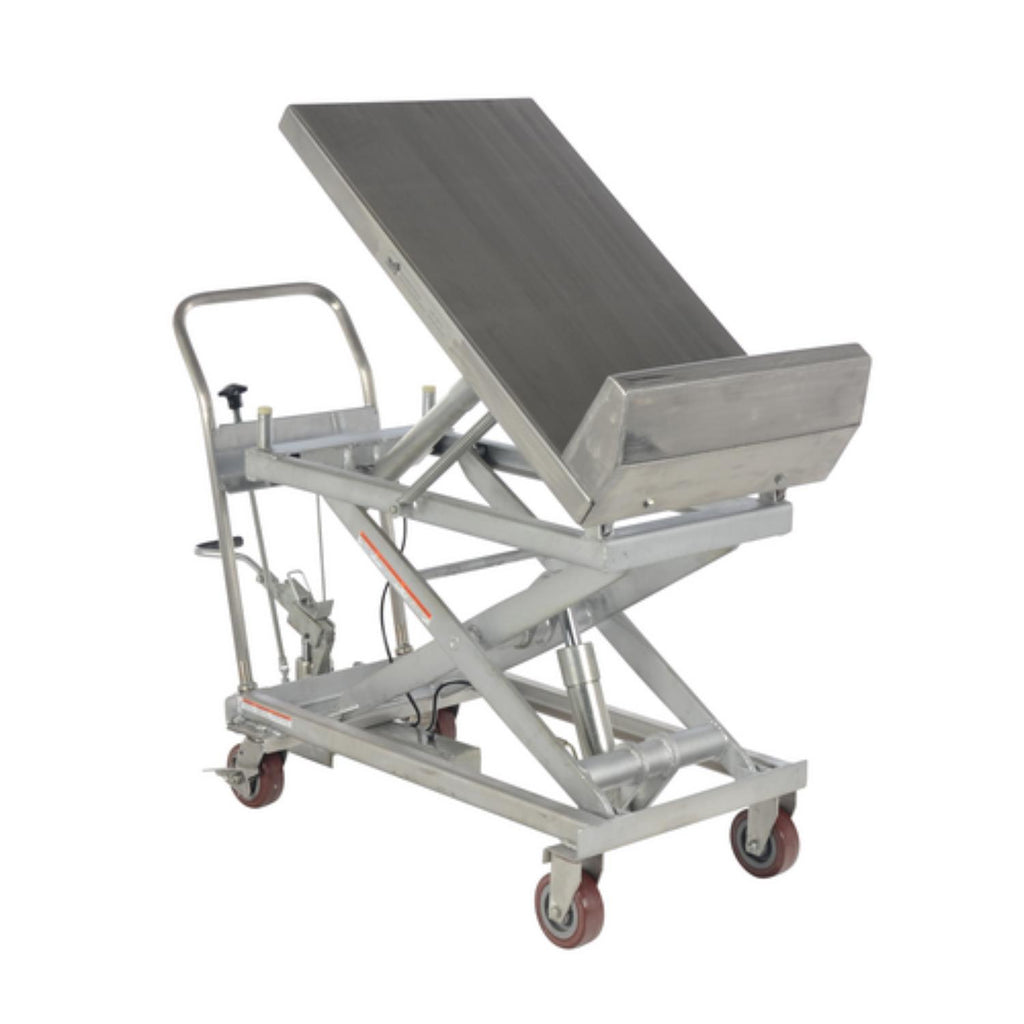

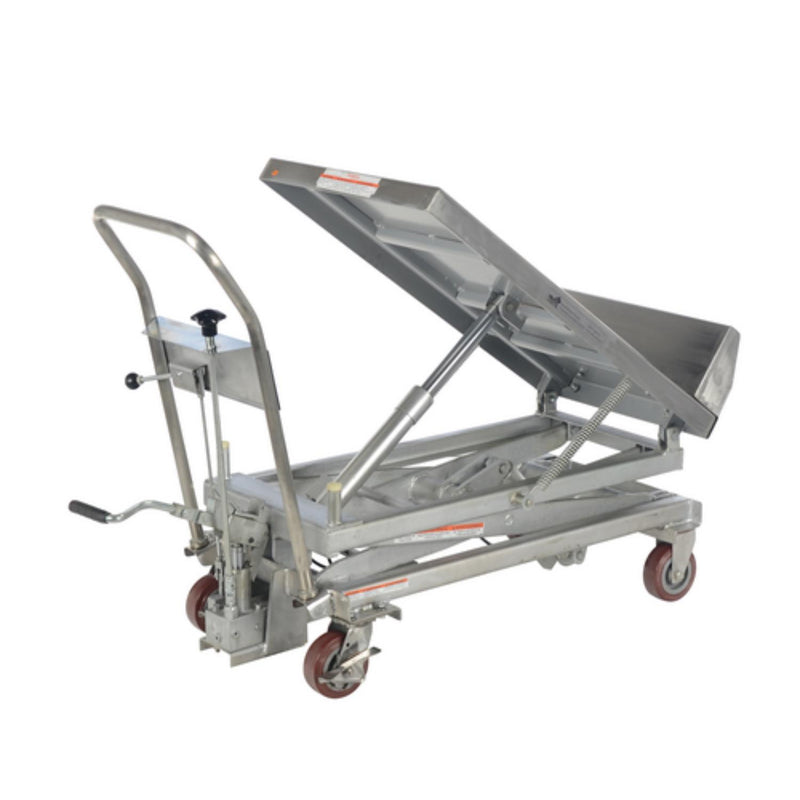

The Lift and Tilt Cart with sequence select has a unique design which allows the user to raise and tilt materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt sequence. The platform includes a retaining lip and four casters that allows the unit to be portable with two rigid and two swivel with brakes. Features an internal safety velocity fuse in each cylinder.
Features
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Overall Height (in) | 26 |
| Overall Length (in) | 49 |
| Overall Width (in) | 22 |
| Platform Length (in) | 33.5 |
| Platform Width (in) | 22 |
| Maximum Height (in) | 34.25 |
| Minimum Height (in) | 17.625 |
| Maximum Travel Distance (in) | 16.625 |
| Maximum Tilt Angle (°) | 40 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Silver |
| Operation Method | Foot Operated |
| Handle Height (in) | 40 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5 |
| Rear Wheel Width (in) | 3 |
| Rear Wheel Material | Poly on Poly |
| Front Wheel Diameter (in) | 5 |
| Front Wheel Width (in) | 3 |
| Front Wheel Material | Poly on Poly |
| Weight (lbs) | 286 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
