Description
Description

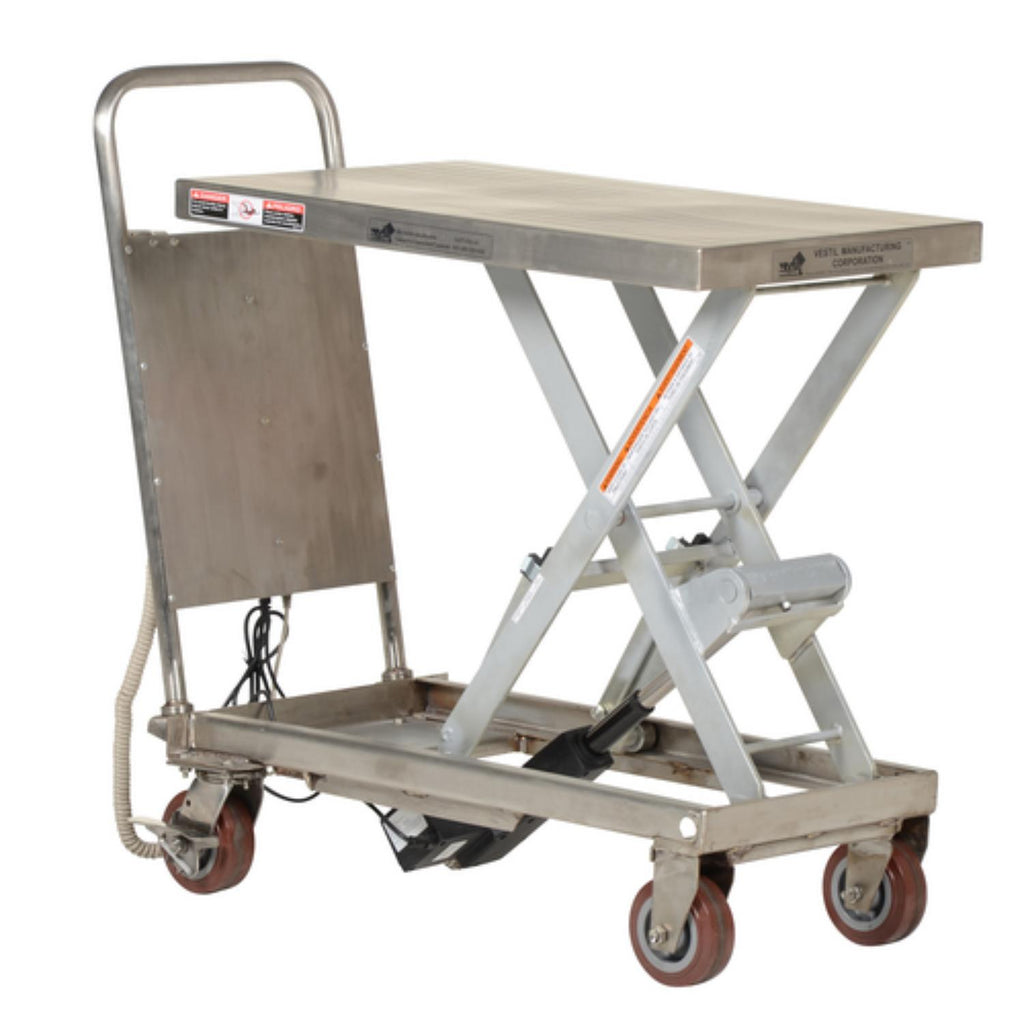

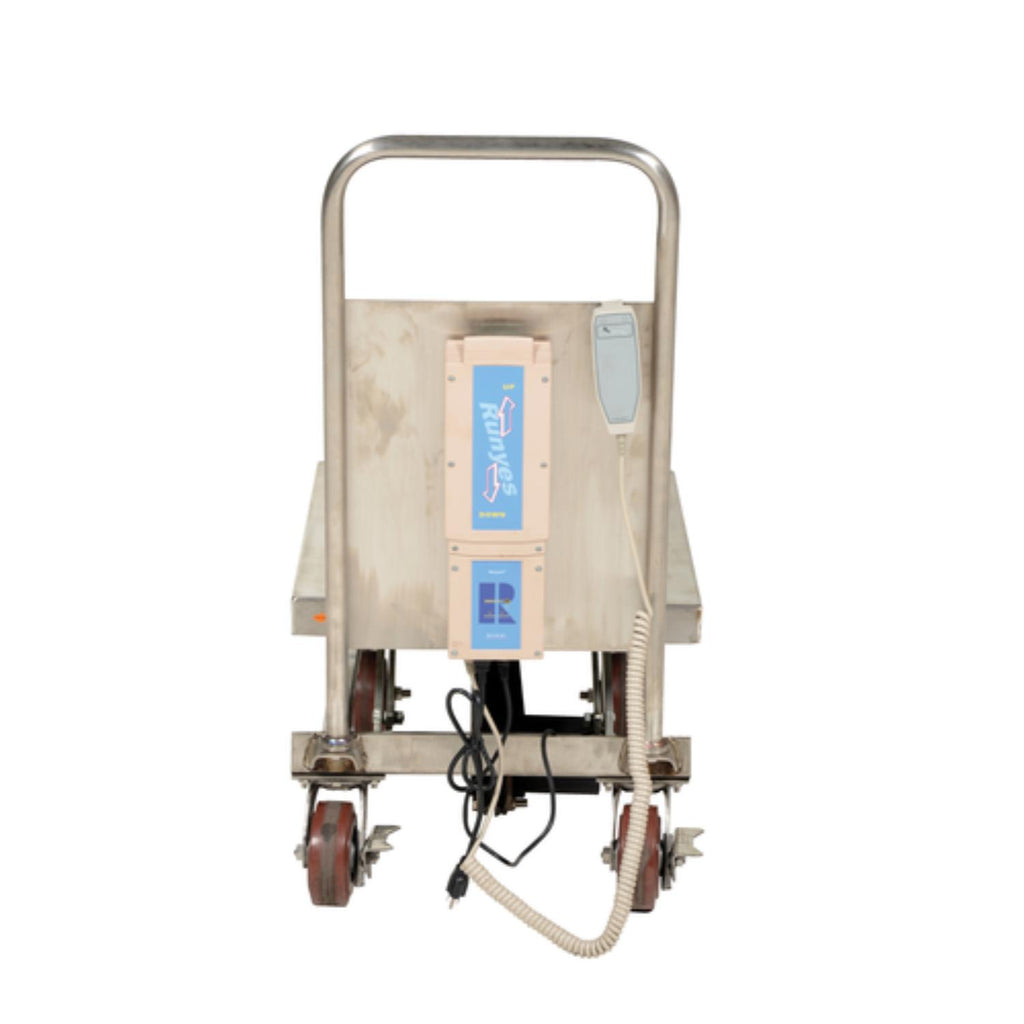

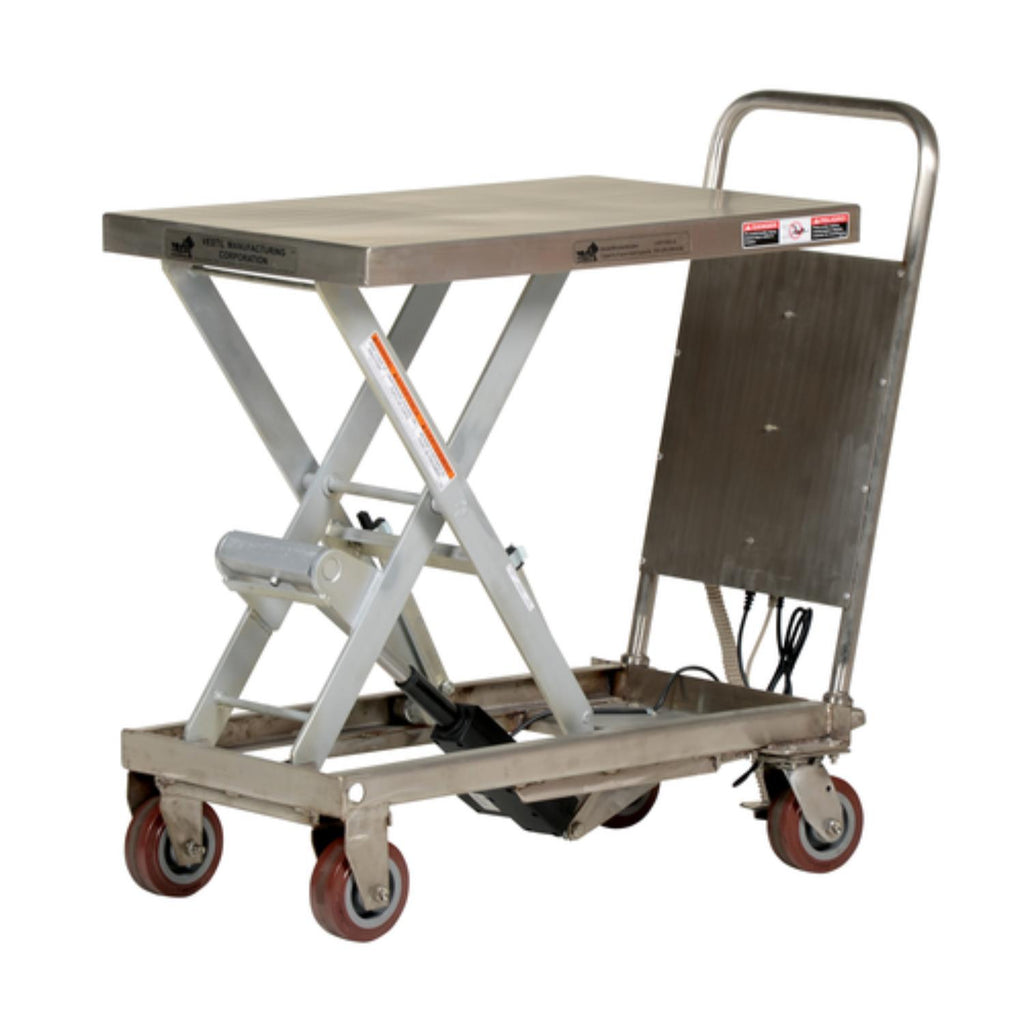

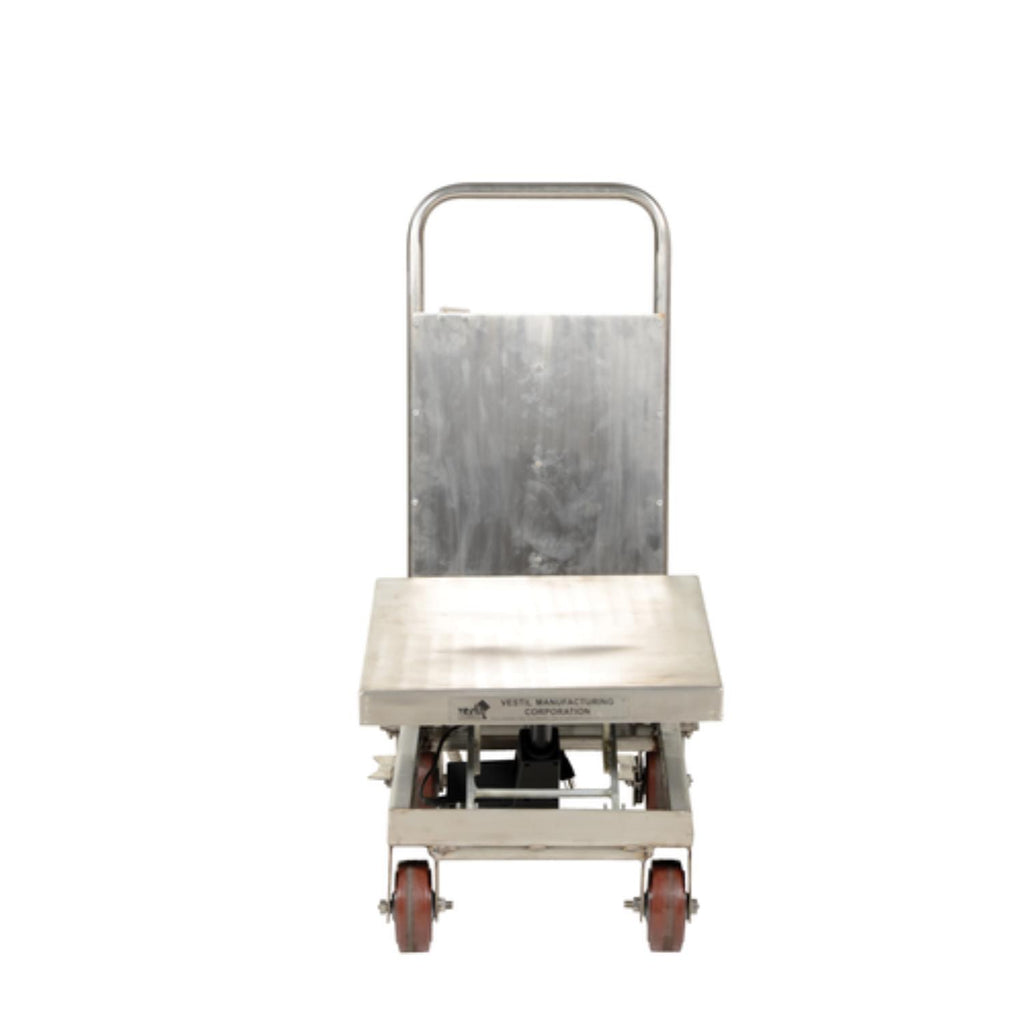

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down- a common problem with hydraulic carts. This linear actuated cart is powered with a DC battery and features an on-board charger. A hand held pendant control connects to power unit with a coil cord. The units rolls smoothly on two rigid and two swivel casters. The platform, handle, base frame, caster brackets, and hardware are stainless steel. The scissor legs are zinc-plated. Battery pack, charger, and hand control are plastic. The linear actuator is plastic with a chrome-plated piston, while the wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.
Features
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
Specifications
| Specification | Values |
|---|---|
| Power Source | Electric - Cordless |
| Platform Length (in) | 32 |
| Platform Width (in) | 19.5 |
| Platform Material | Stainless Steel |
| Maximum Height (in) | 33 |
| Minimum Height (in) | 15 |
| Maximum Travel Distance (in) | 18 |
| Weight Capacity (lbs) | 500 |
| Color / Finish | Silver |
| Weight (lbs) | 159 |
| Frame Material | Steel |
| Scale Included | No |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Battery Charger Included | Yes |
| Voltage (V) | 24 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Poly on Steel |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 44 |
| Overall Width (in) | 37 |
| Overall Height (in) | 38.4375 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
