Description
Description

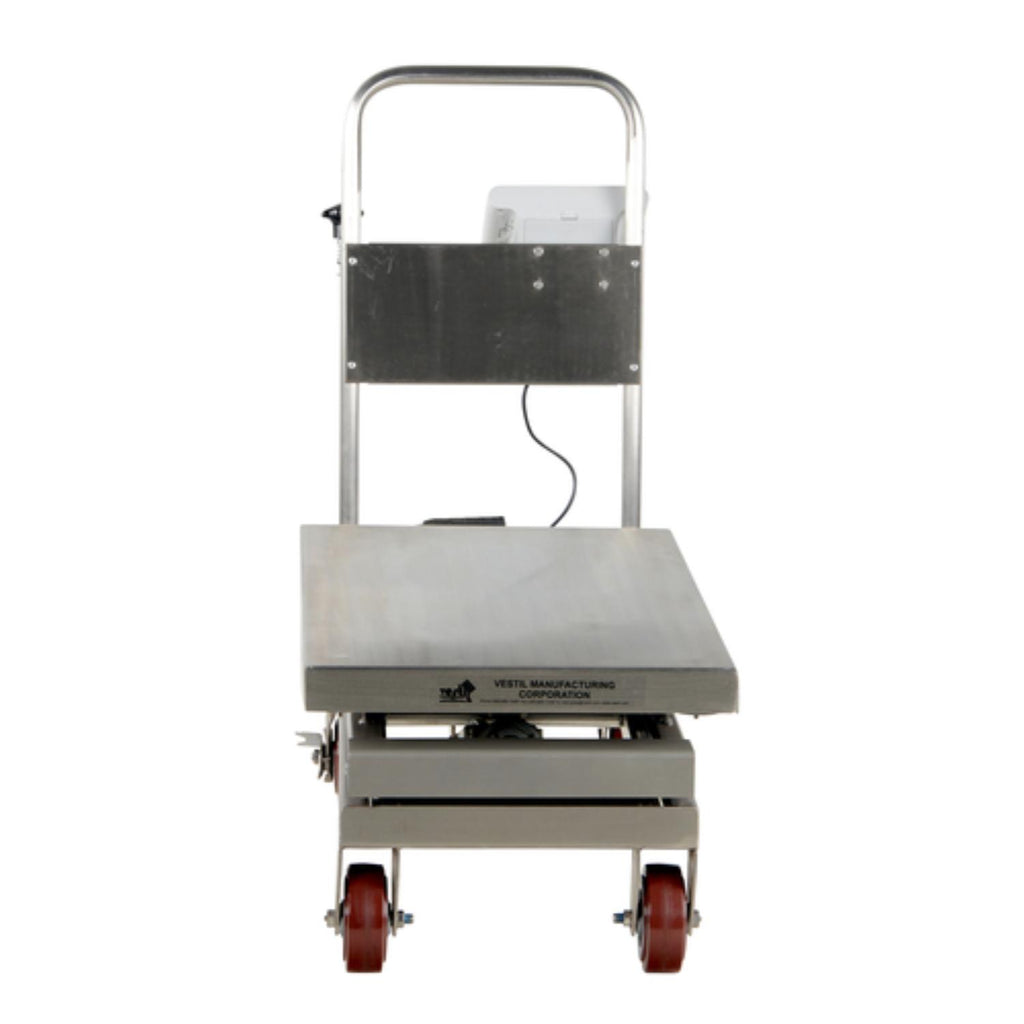

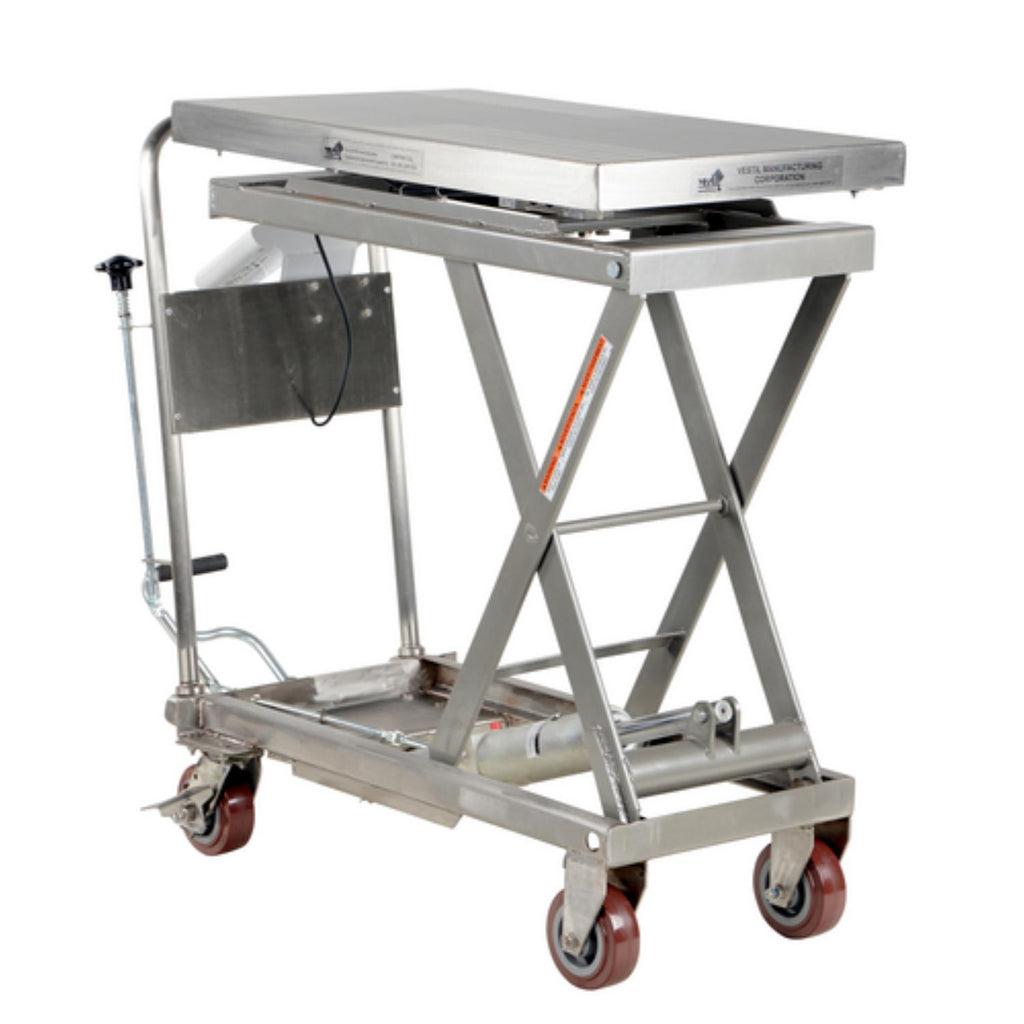

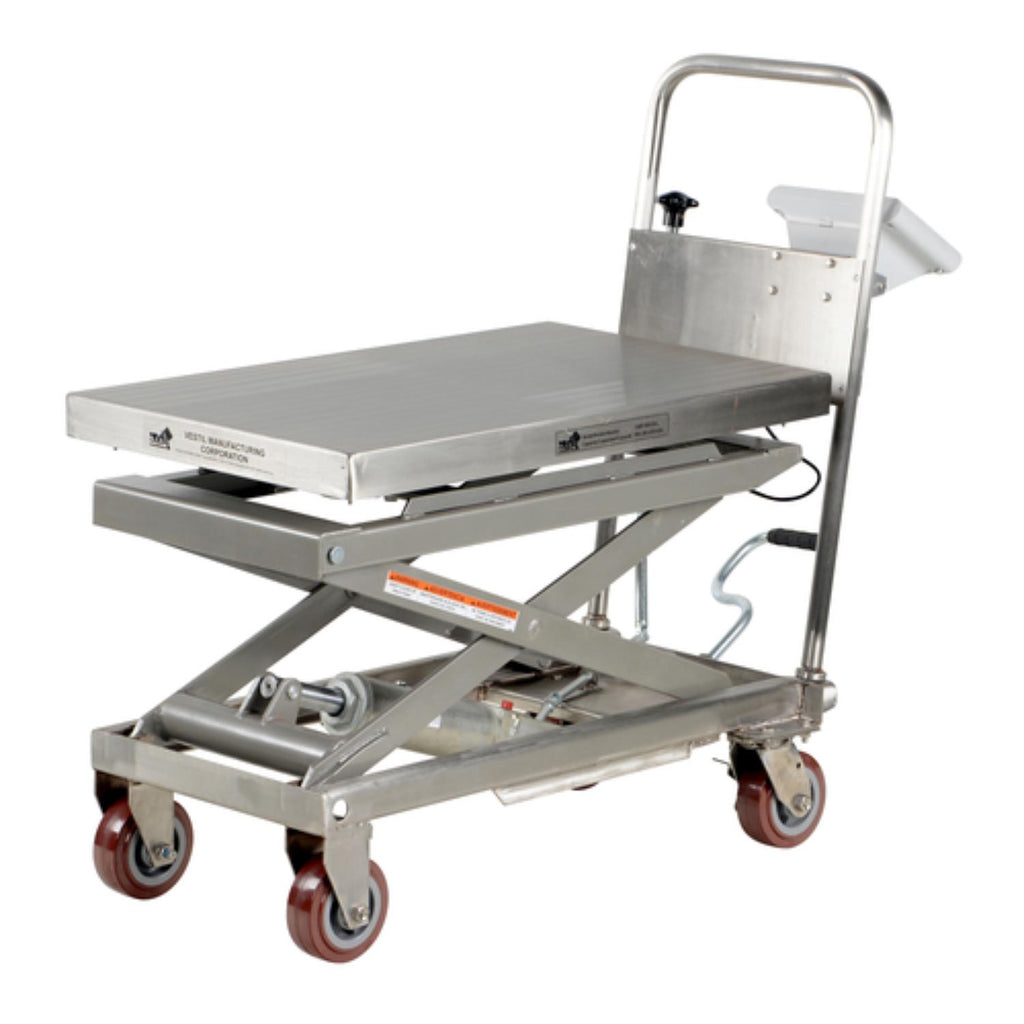

The DC powered Hydraulic elevating cart is ideal for quick lifting and ergonomic material handling. The battery-powered unit allows operators to quickly raise and lower platform. Manual push design gives the user control of cart movement. An included on-board scale gives the ability to weight parts while on the go. Liquid painted yellow.
Features
- Open design allows loading and unloading from multiple sides
- Push button lift and lowering
- 2 Swivel and 2 rigid poly casters

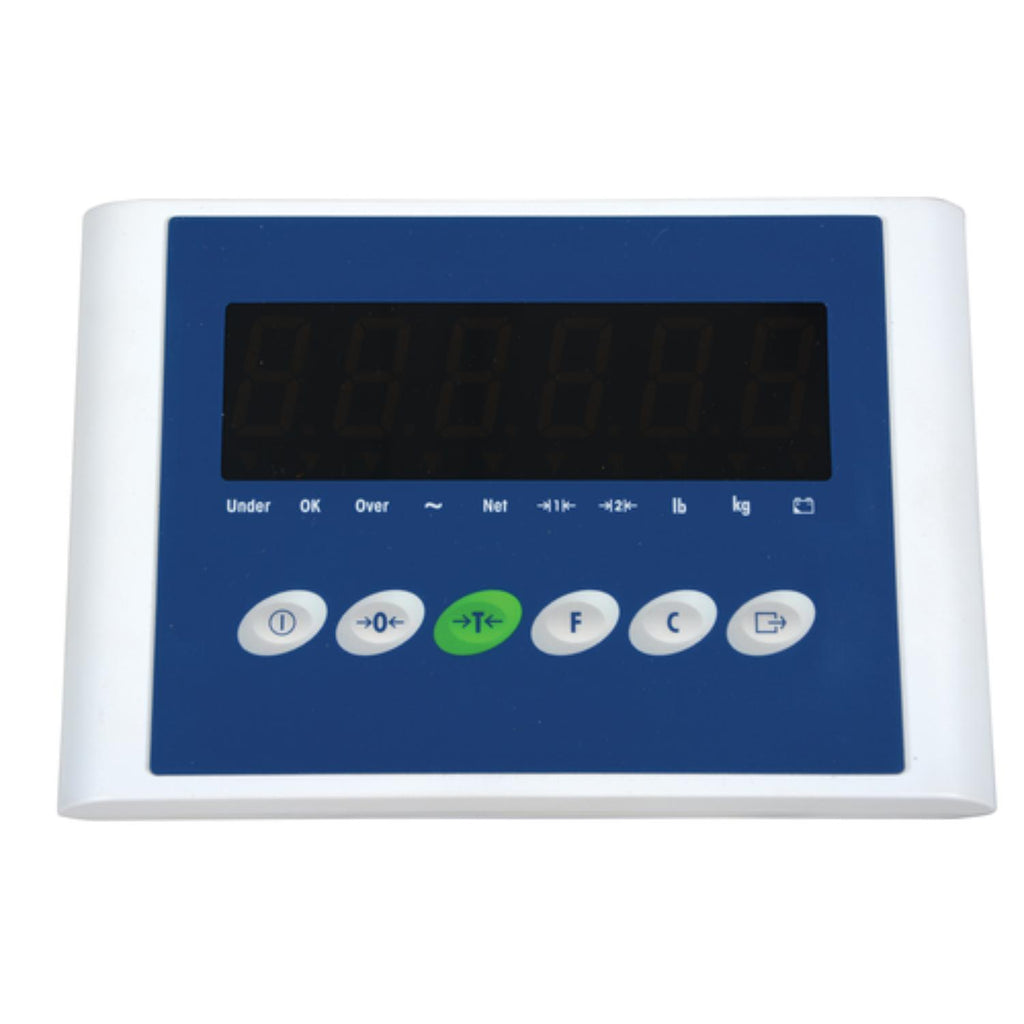

- Large readout display screen
Specifications
| Specification | Details |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 32 |
| Platform Width (in) | 19.5 |
| Platform Material | Stainless Steel |
| Maximum Height (in) | 38 |
| Minimum Height (in) | 14 |
| Maximum Travel Distance (in) | 24 |
| Weight Capacity (lbs) | 500 |
| Color / Finish | Silver |
| Weight (lbs) | 215 |
| Frame Material | Partial Stainless Steel |
| Scale Included | Yes |
| Operation Method | Foot Operated |
| Pump Speeds | 1 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5 |
| Rear Wheel Material | Poly on Poly |
| Front Wheel Diameter (in) | 5 |
| Front Wheel Material | Poly on Poly |
| Additional Contents | Includes (2) Rigid Casters 1-1/2 In. Width, (2) Swivel Casters with Brakes 1-1/2 In. Width, and Built in Scale (Lb Increment Only) 500 lb display capacity - Requires (6) AA Batteries |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 43 |
| Overall Width (in) | 19.625 |
| Overall Height (in) | 39 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
