Description
Description

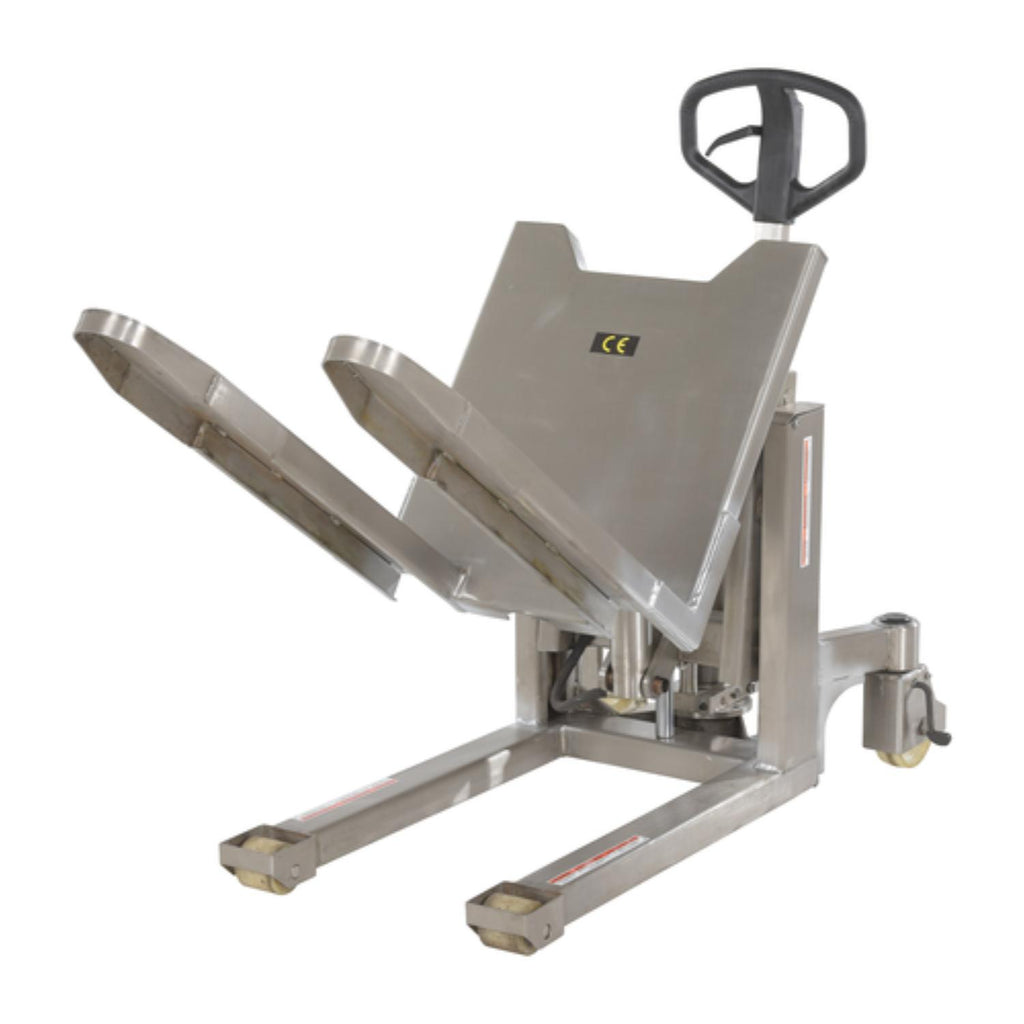

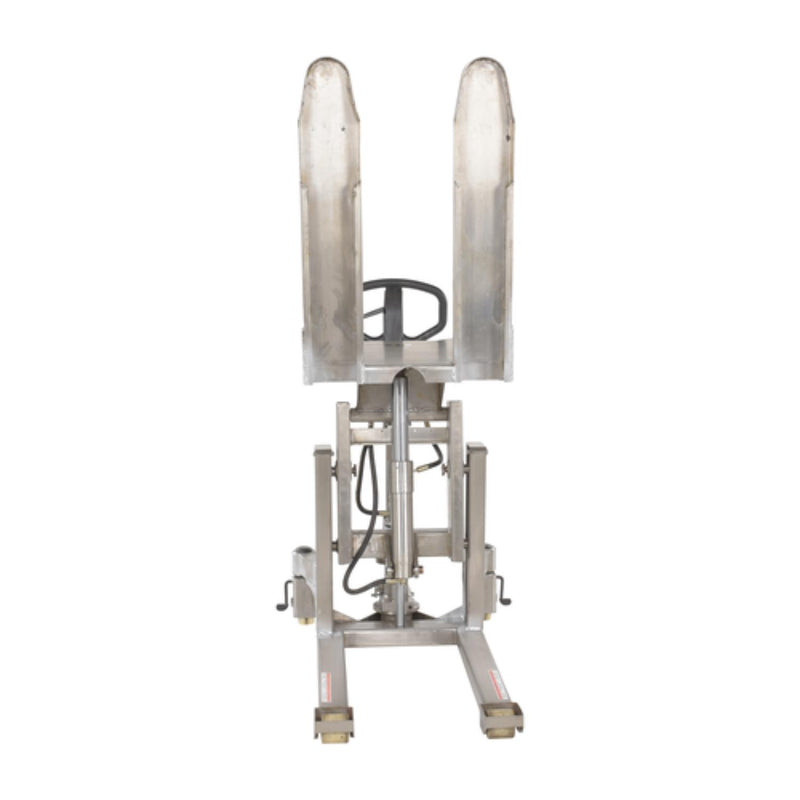

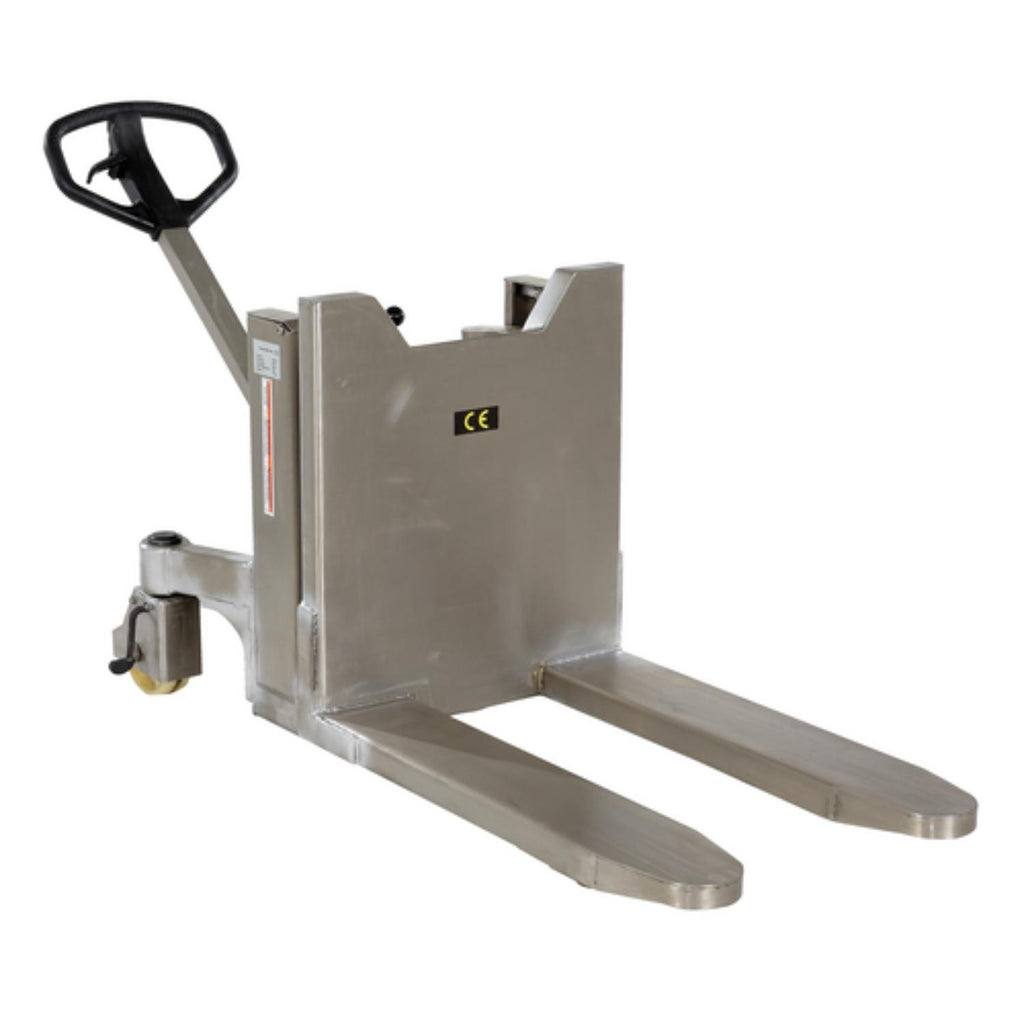

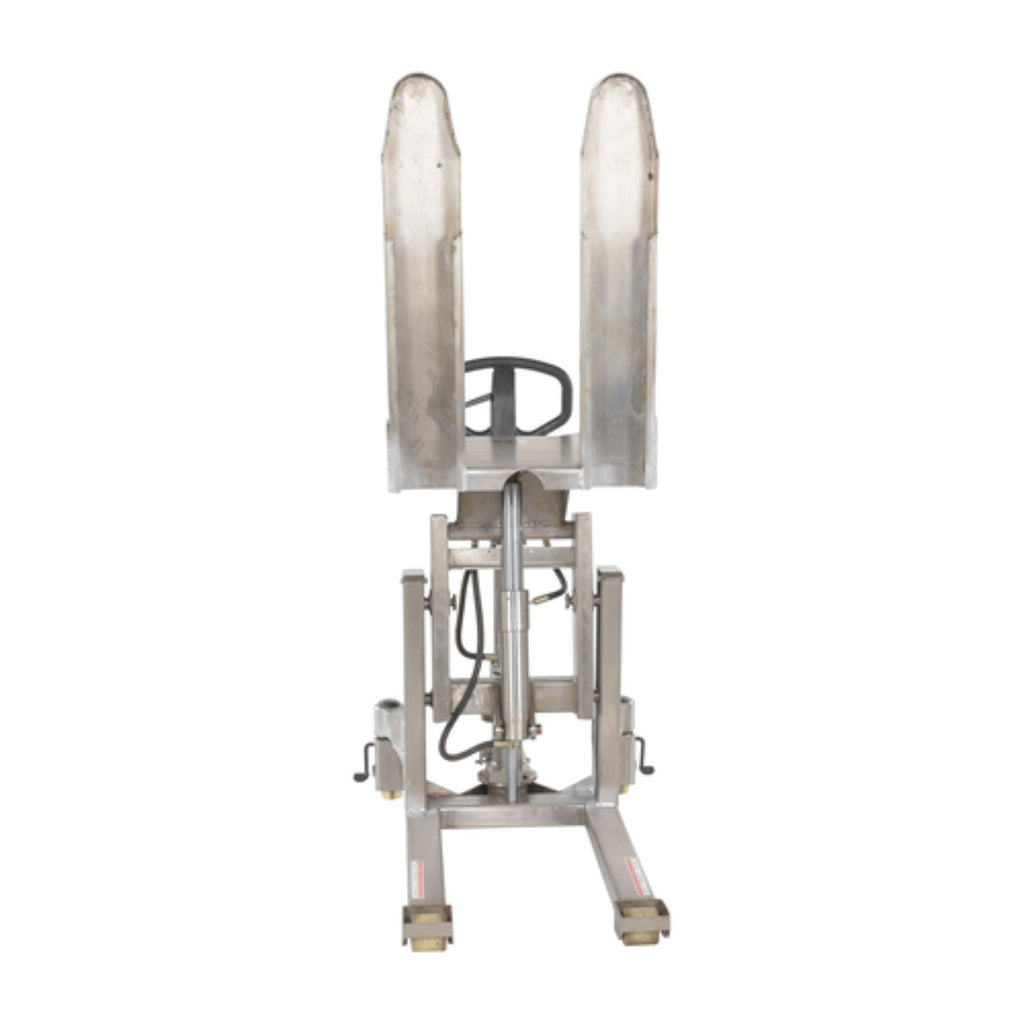

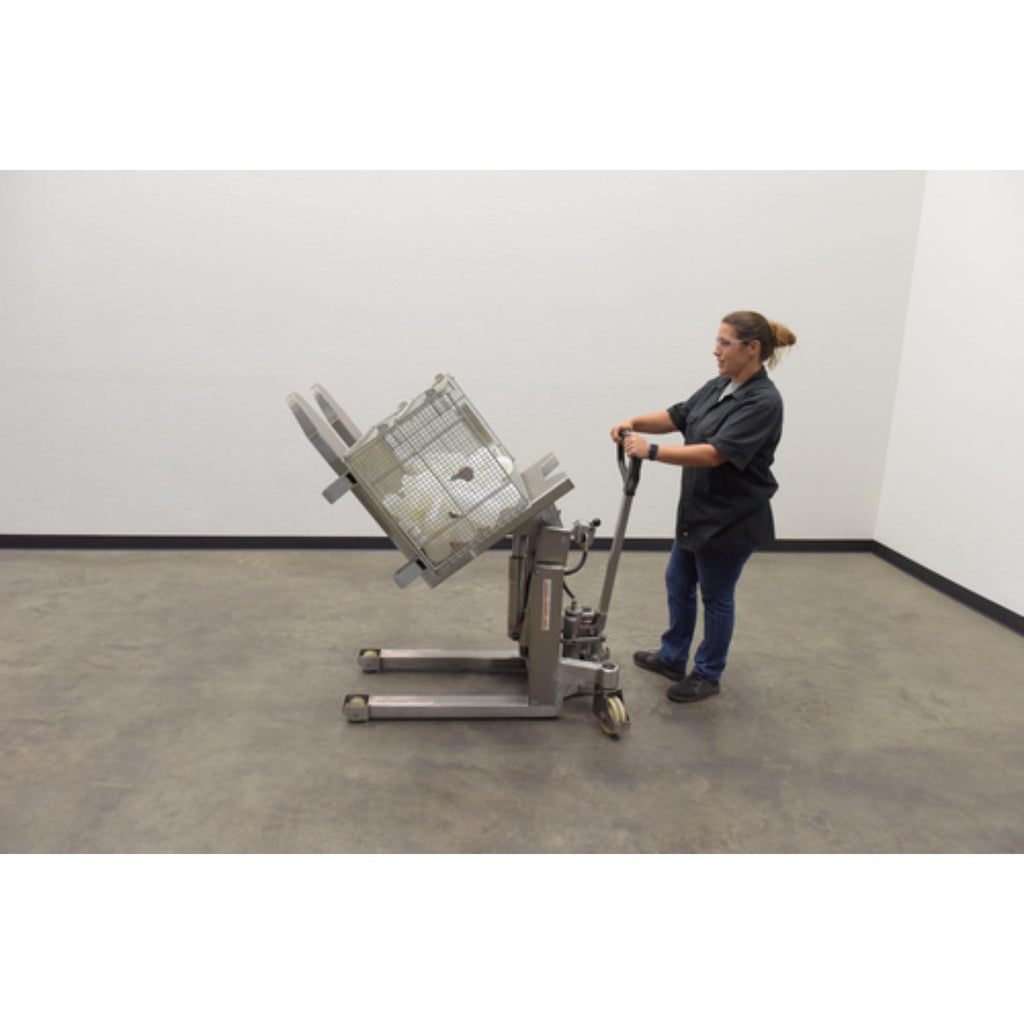

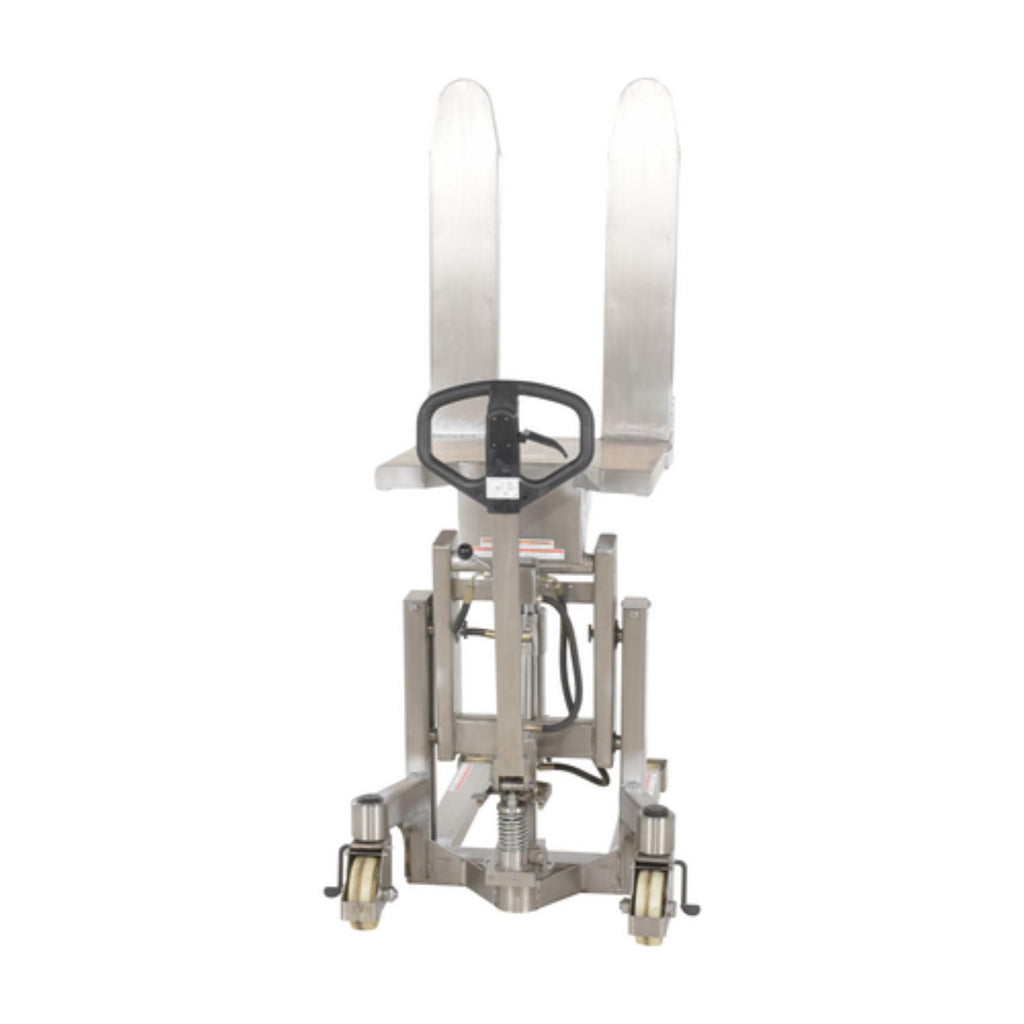

The manual tilt master is great in a variety of settings. Whether it's lifting, tilting, or just transporting; this design is the one for the job. This unit is perfectly manufactured to help maneuver crates, boxes, or pallets with an open bottom. It also provides the user with an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. The lift rolls smoothly on a polyurethane swivel caster with brake and foot protectors. The stainless steel construction provides strength and durability throughout a lifetime of daily use.
Features
- Stainless steel construction for a smooth finish and cleanliness
- Tilt angle allows for better ergonomic access
- Ergonomic push handle folds down when not needed for better access
- Two swivel casters provide smooth and efficient mobility
Specifications
| Specification | Details |
|---|---|
| Power Source | Manual |
| Color / Finish | Silver |
| Weight Capacity (lbs) | 2200 |
| Overall Height (in) | 59.5 |
| Overall Length (in) | 52 |
| Overall Width (in) | 24.25 |
| Maximum Height (in) | 11.25 |
| Minimum Height (in) | 3.5 |
| Maximum Travel Distance (in) | 7.75 |
| Overload Protection | No |
| Battery Charger Included | Not Required |
| Phase | Not Applicable |
| Fork Height (in) | 3.5 |
| Fork Length (in) | 31.5 |
| Fork Width (in) | 6.25 |
| Minimum Width Between Forks (in) | 22 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Width (in) | 2 |
| Rear Wheel Material | Nylon |
| Front Wheel Diameter (in) | 2 |
| Front Wheel Width (in) | 2.5 |
| Front Wheel Material | Nylon |
| Weight (lbs) | 438 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
