Description
Description

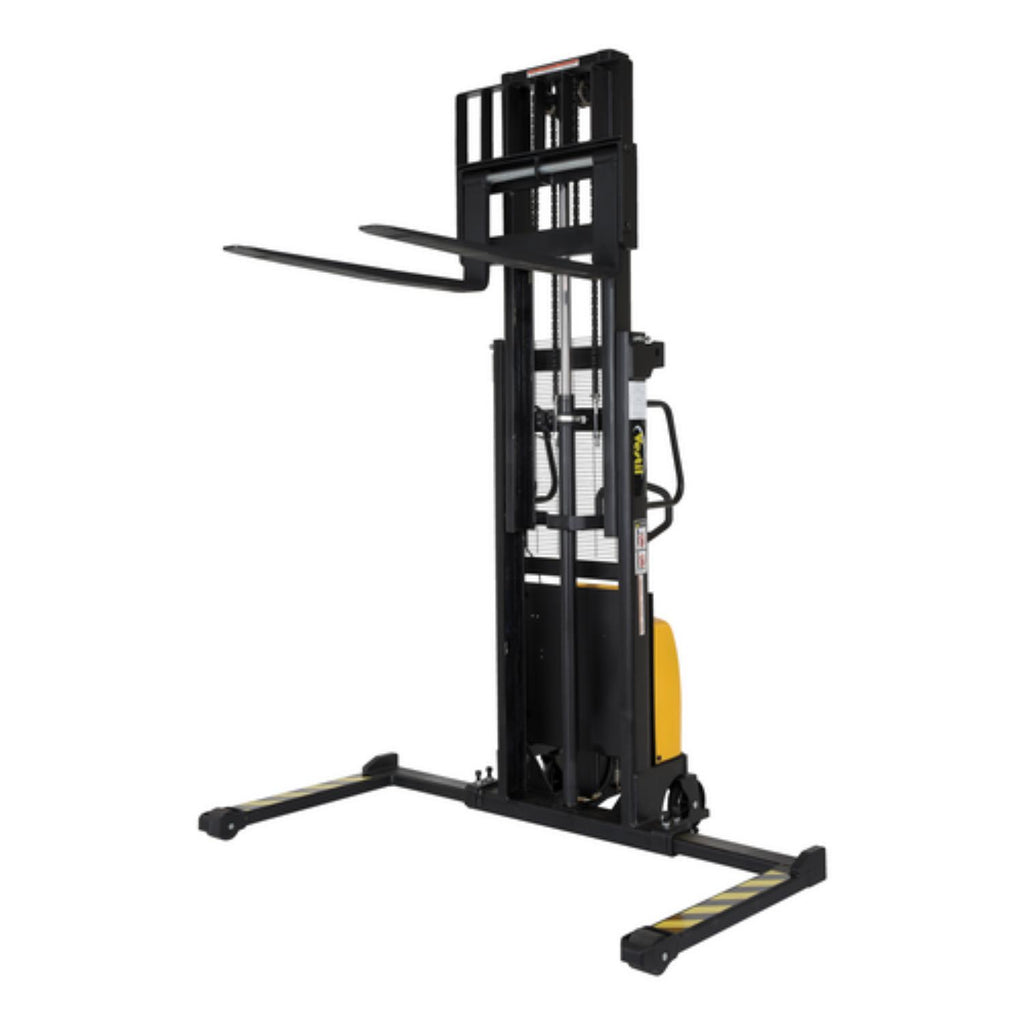

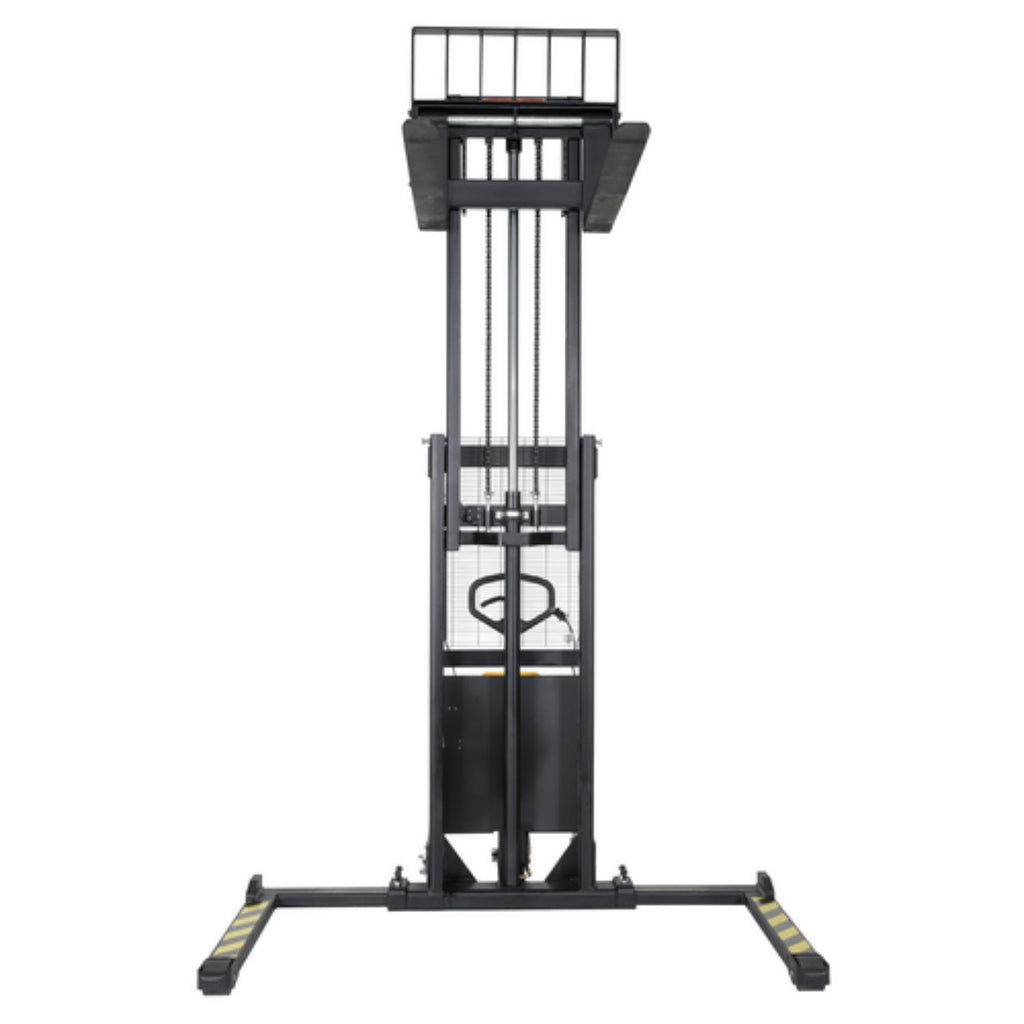

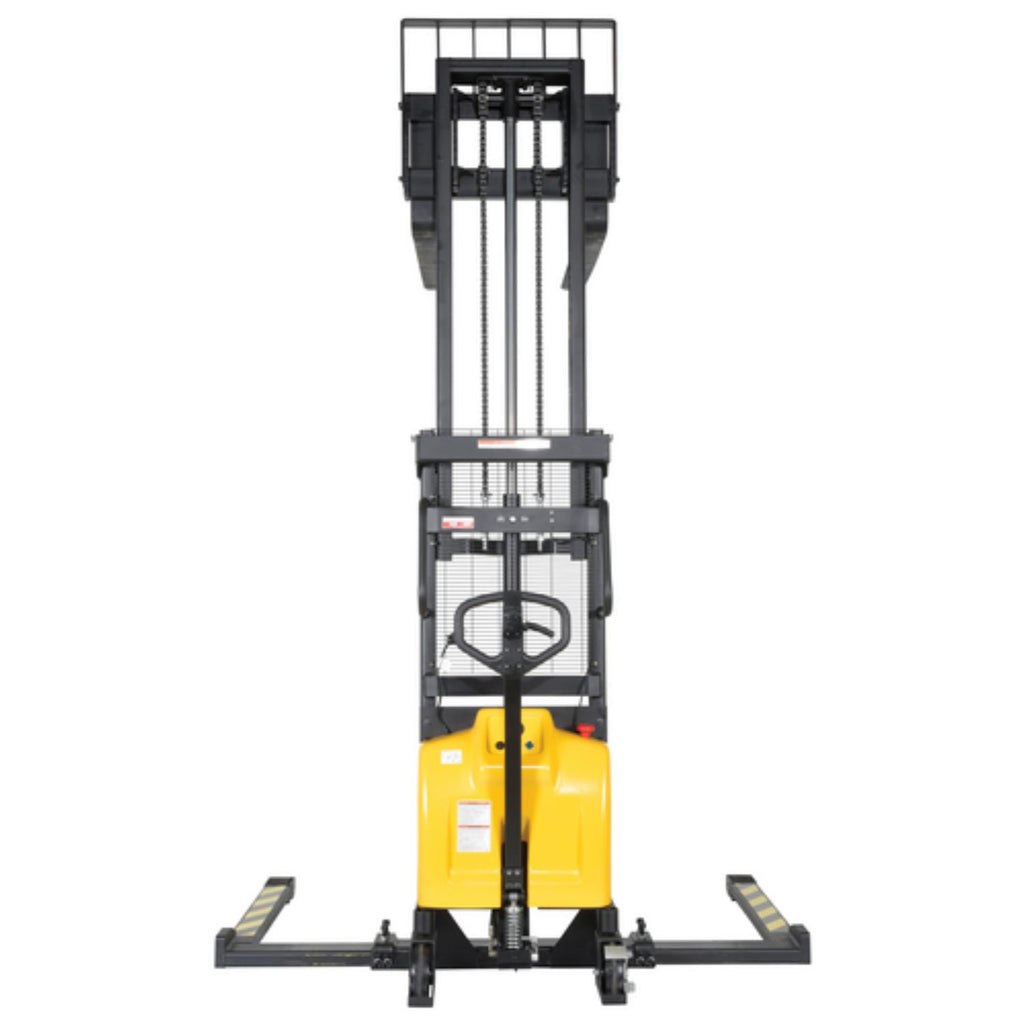

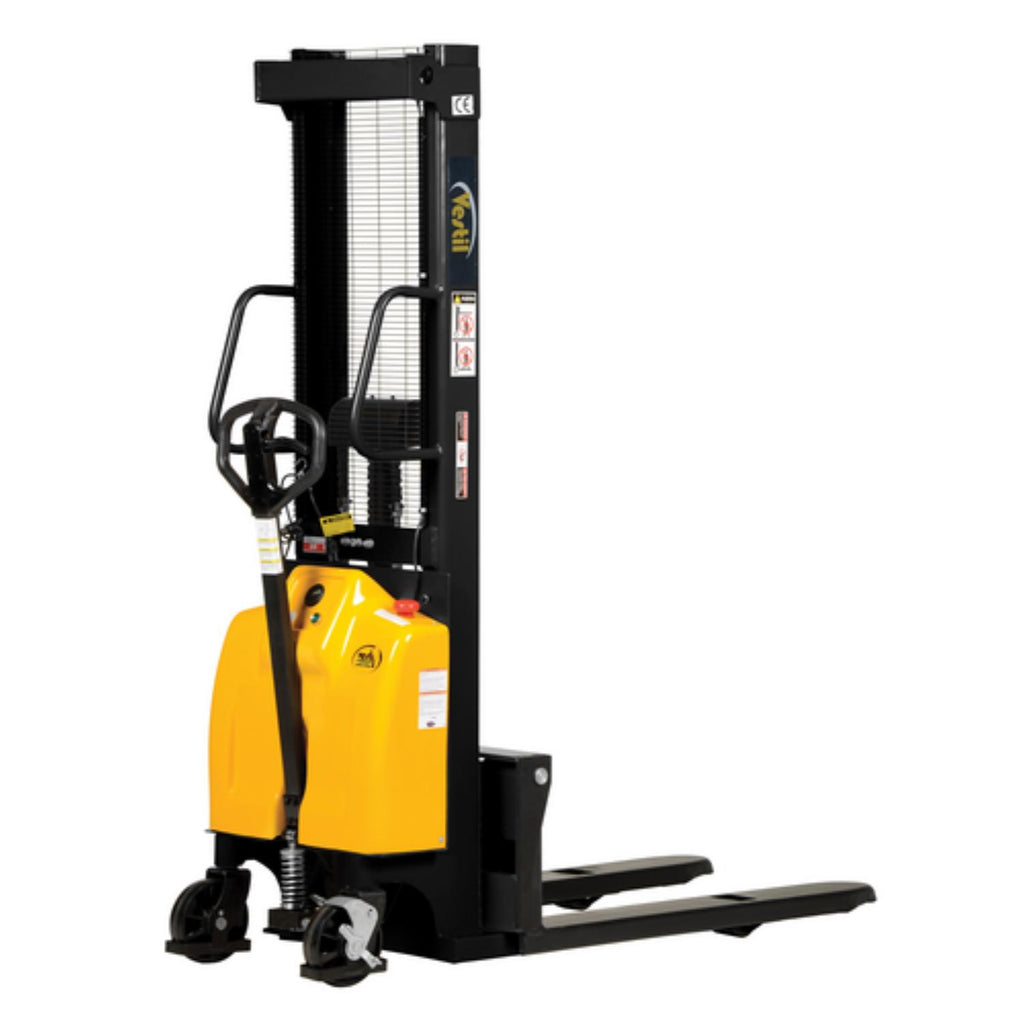

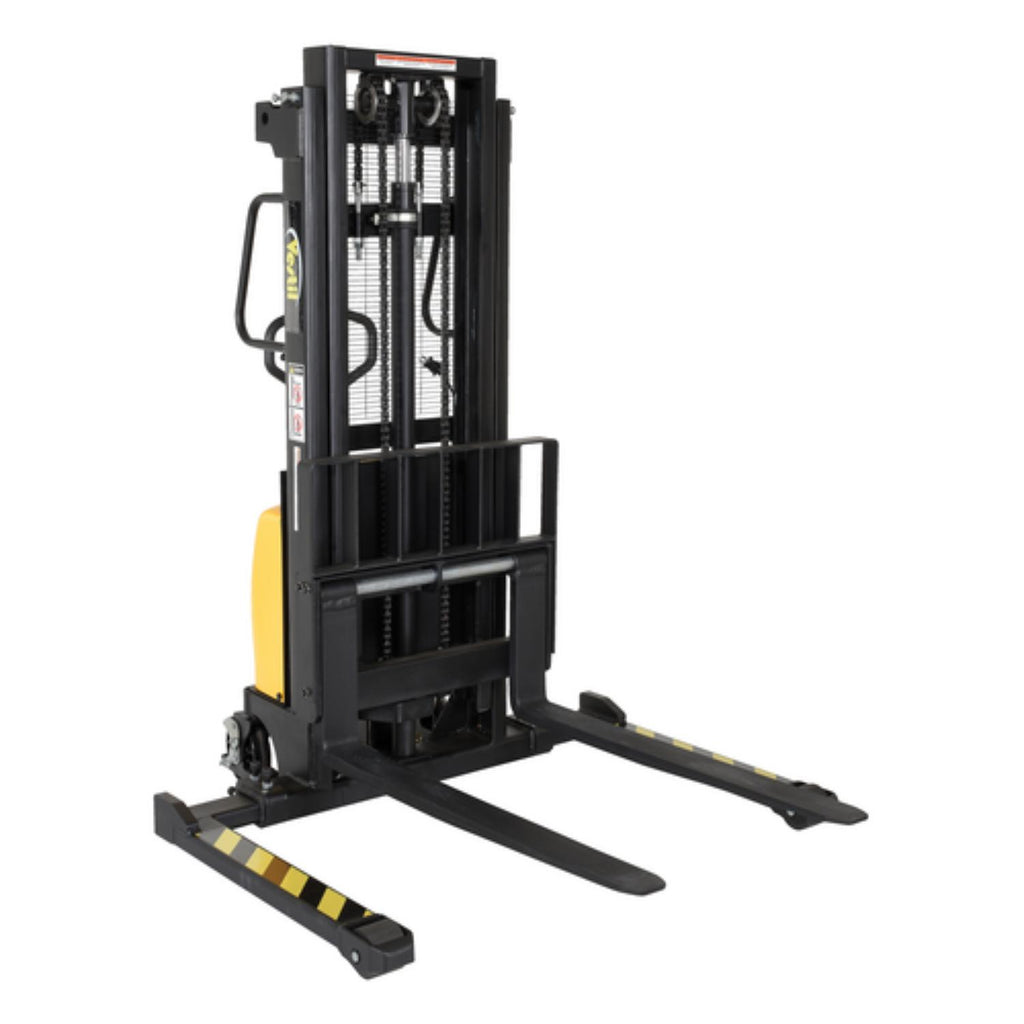

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and a battery level gauge.
Features
- Adjustable forks and legs
- Variable speed drive
- Automatic shut off is applied when handle disengaged
- Rolls smoothly on poly-on-steel steer and load wheels
Specifications
| Specification | Details |
|---|---|
| Power Source | Battery-operated |
| Maximum Lift Height (in) | 118 |
| Minimum Lift Height (in) | 2.5625 |
| Maximum Travel Distance (in) | 115.4375 |
| Weight Capacity (lbs) | 2200 |
| Color / Finish | Black/Powder Coat |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 4 |
| Adjustable Forks | Yes |
| Minimum Width Between Forks (in) | 8.3 |
| Maximum Width Between Forks (in) | 26.75 |
| Adjustable Legs | Yes |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 41.375 |
| Maximum Width Between Legs (in) | 50 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Phase | Not Applicable |
| Voltage (V) | 24 |
| Number of Casters / Wheels | 5 |
| Rear Wheel Diameter (in) | 9.875 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 5 |
| Front Wheel Material | Poly on Steel |
| Weight (lbs) | 1520 |
| Manufacturer Warranty | 1 Year Limited & 90 Days Wearable Parts |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
