Description
Description

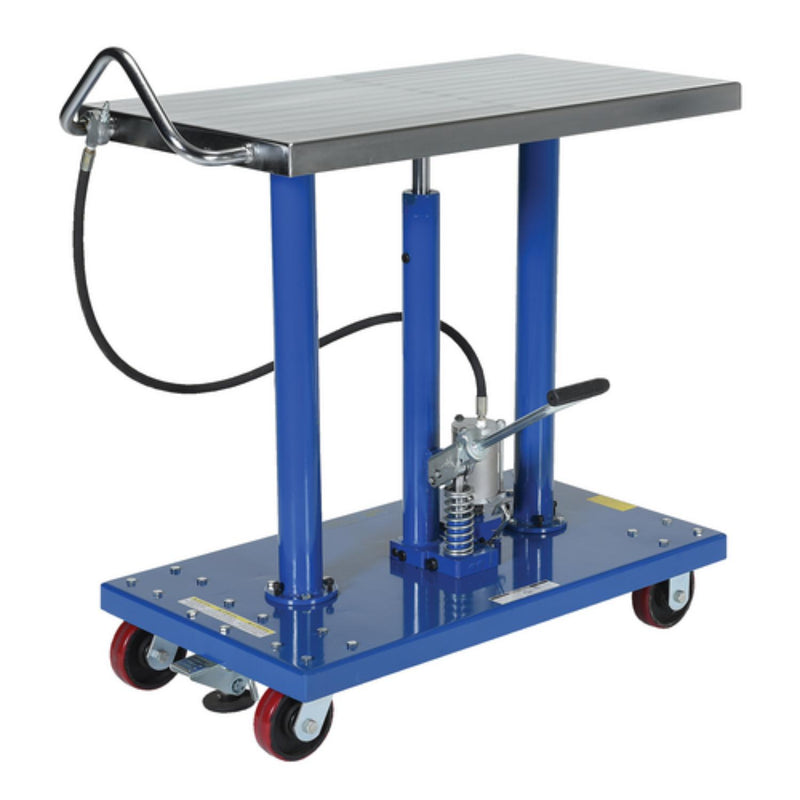

Air-operated hydraulic lift tables are built for heavy duty shop use such as lifting dies and castings, moving machine parts, positioning welder's work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. Posts are telescoping to help stabilize and support loads during operation. Powder coat finish.
Features
- Great for a variety of settings
- Hydraulic lift creates a more ergonomically stable platform
- Powder coated for smooth surface
- Steel construction for durable strength
Specifications
| Specification | Details |
|---|---|
| Power Source | Pneumatic |
| Platform Length (in) | 36 |
| Platform Width (in) | 24 |
| Platform Material | Steel |
| Maximum Height (in) | 54 |
| Minimum Height (in) | 36 |
| Maximum Travel Distance (in) | 18 |
| Number of Posts | 4 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue / Silver |
| Weight (lbs) | 323 |
| Frame Material | Steel |
| Operation Method | Push Button |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Poly on Poly |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Poly on Poly |
| Installation Hardware Included | Not Required |
| Additional Contents | Includes (2) Rigid Casters 1-1/2 In. Wide, (2) Swivel Locking Casters with Brakes 1-1/2 In. Wide; Requires Minimum 1/4 In. Hose Diameter, and a Minimum of 72 to 100 psi |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 42 |
| Overall Width (in) | 24 |
| Overall Height (in) | 36 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
