Description
Description

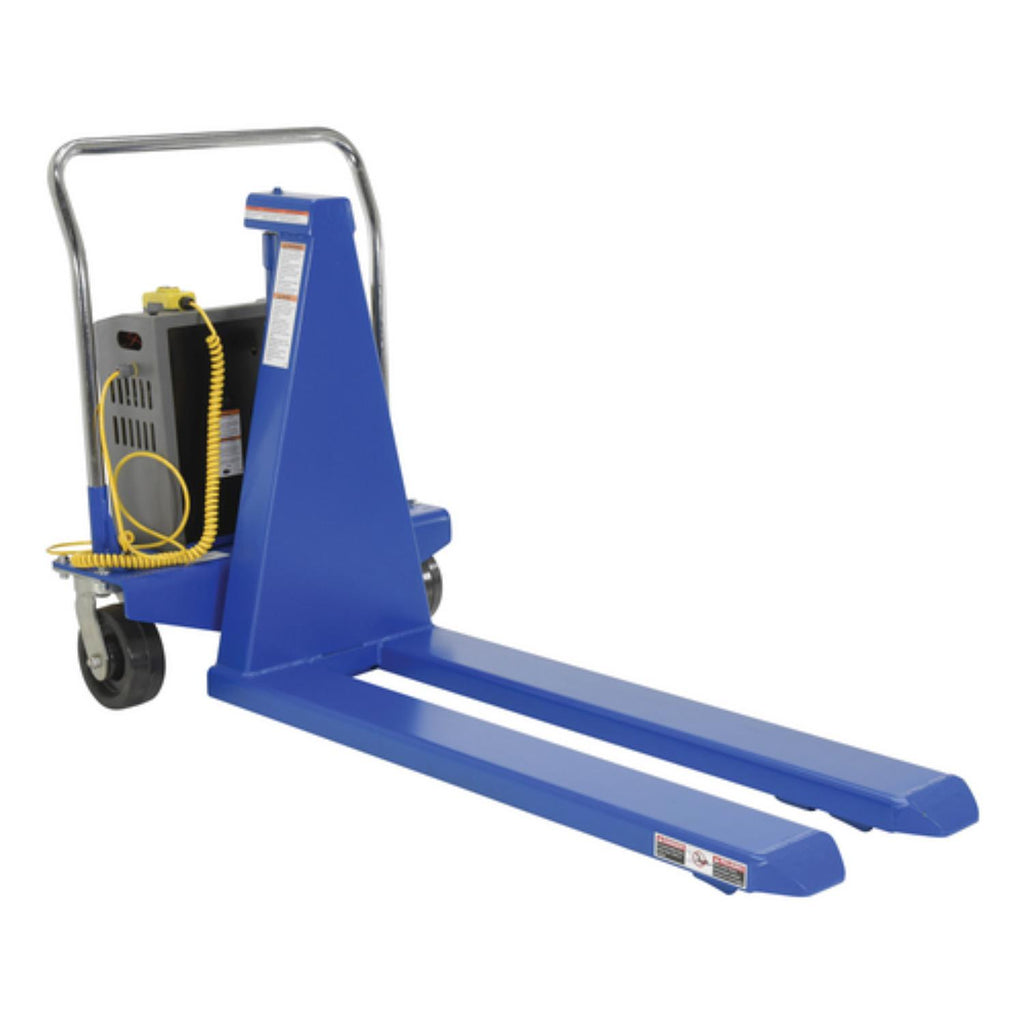

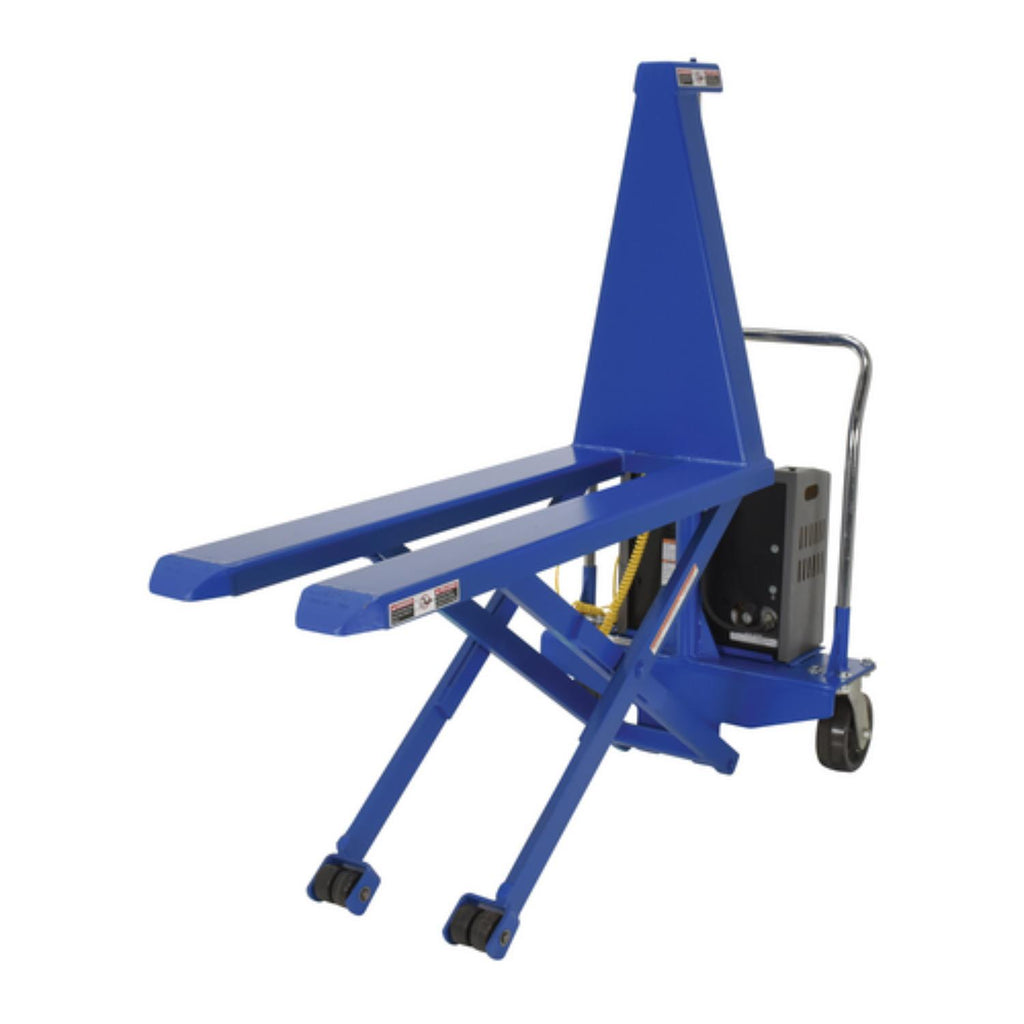

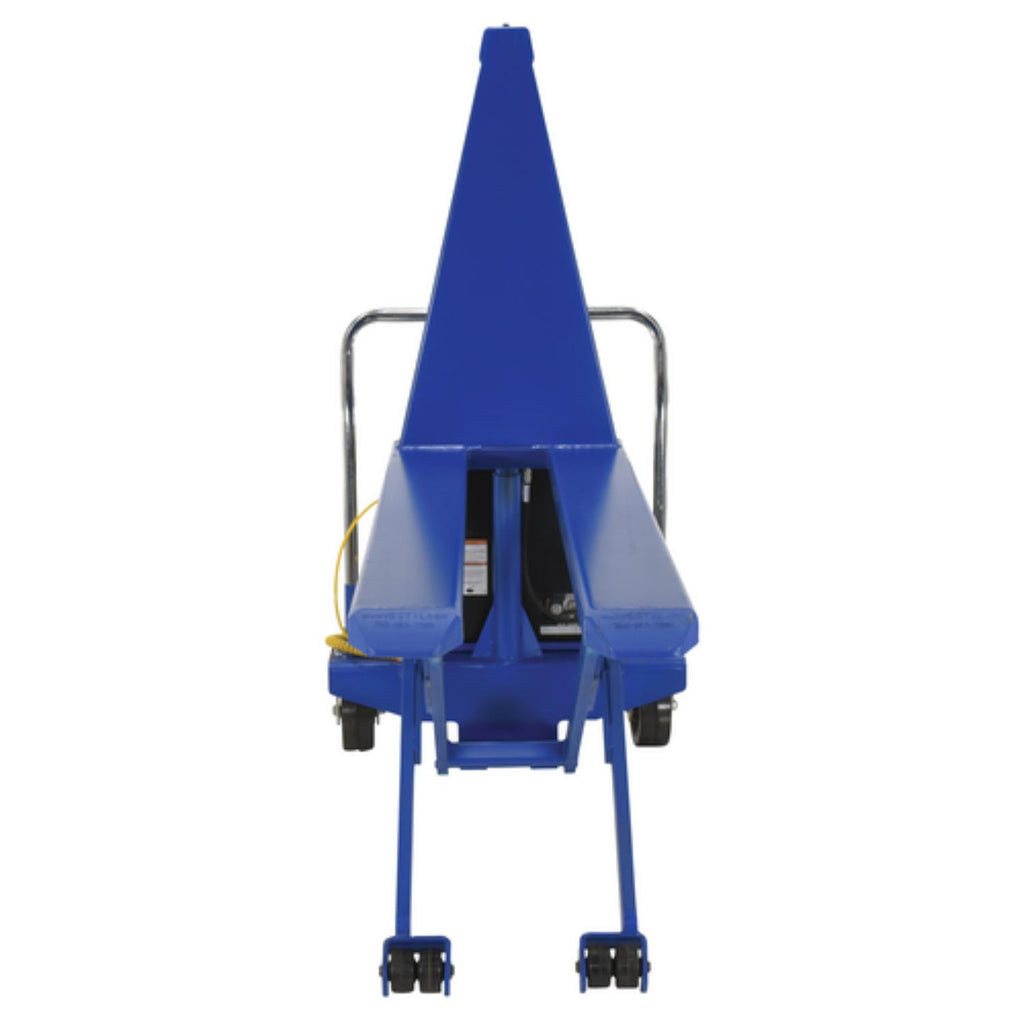

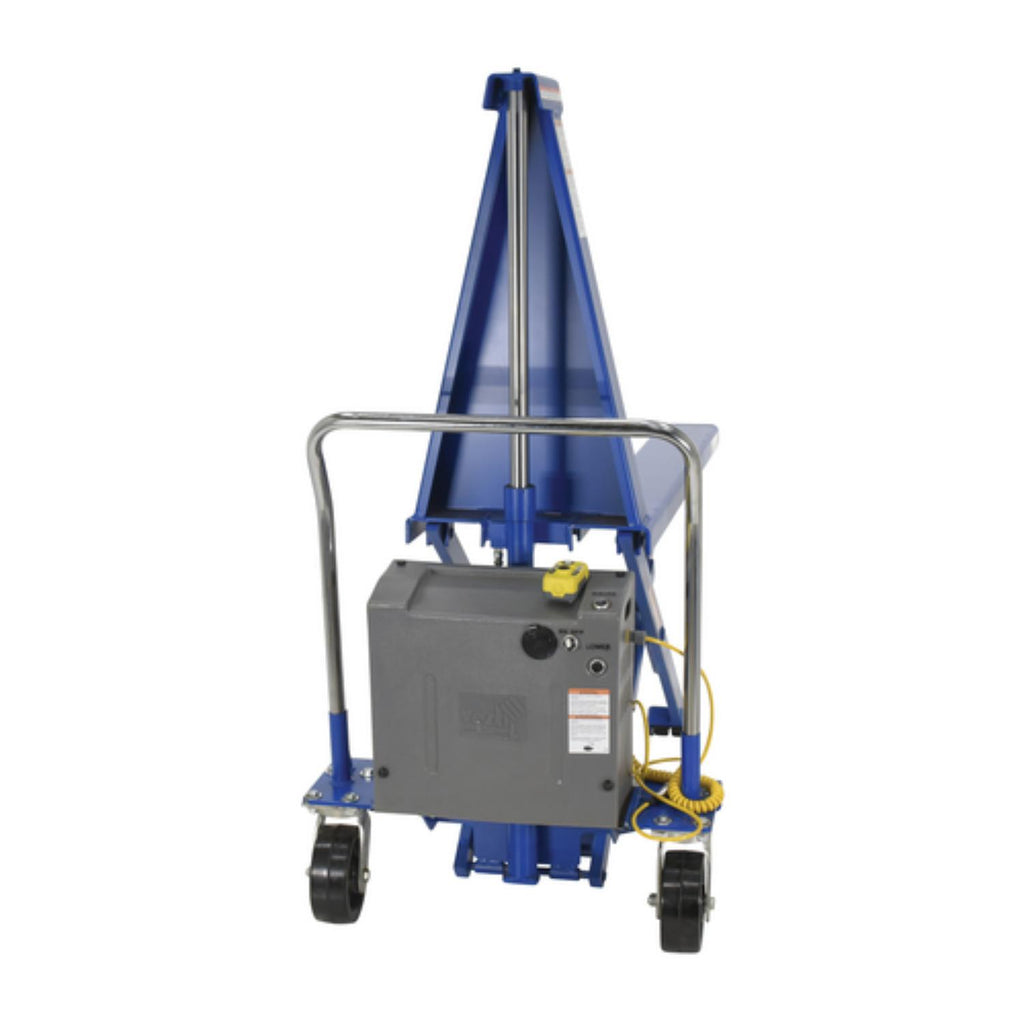

The high rise lift truck increases employee ergonomics and machine efficiency and productivity. It reduces muscle fatigue and body injuries by bringing material closer to actual worker height. It's DC powered with an on-board battery charger standard.
Features
- Increases employee ergonomics, machine efficiency, and productivity
- Steel construction for robust lifting on a daily basis
- Bringing material closer to actual worker height reduces fatigue and injuries
- Unit rolls on phenolic casters for smooth maneuverability
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 41.5 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum | 65.9375 |
| Maximum Travel Distance (in) | 28 |
| Power Source | Electric |
| Voltage (V) | 12 |
| Weight Capacity (lbs) | 2500 |
| Maximum Fork Height (in) | 31.5 |
| Depth (in) | 69.4375 |
| Height (in) | 41.5 |
| Width (in) | 32 |
| Wheel Material | Phenolic |
| Fork Lowered Height (in) | 3.5 |
| Fork Width (in) | 27 |
| Fork Length (in) | 48 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
