Description
Description

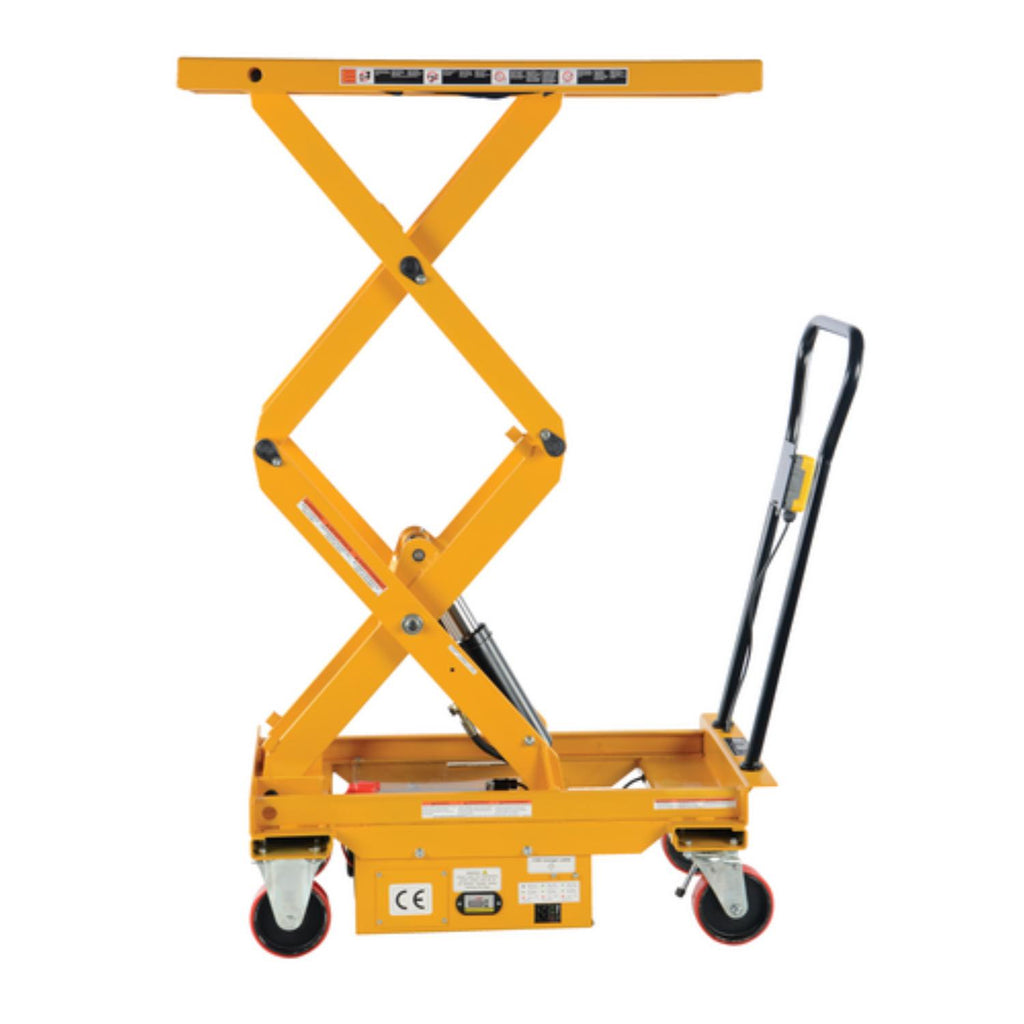

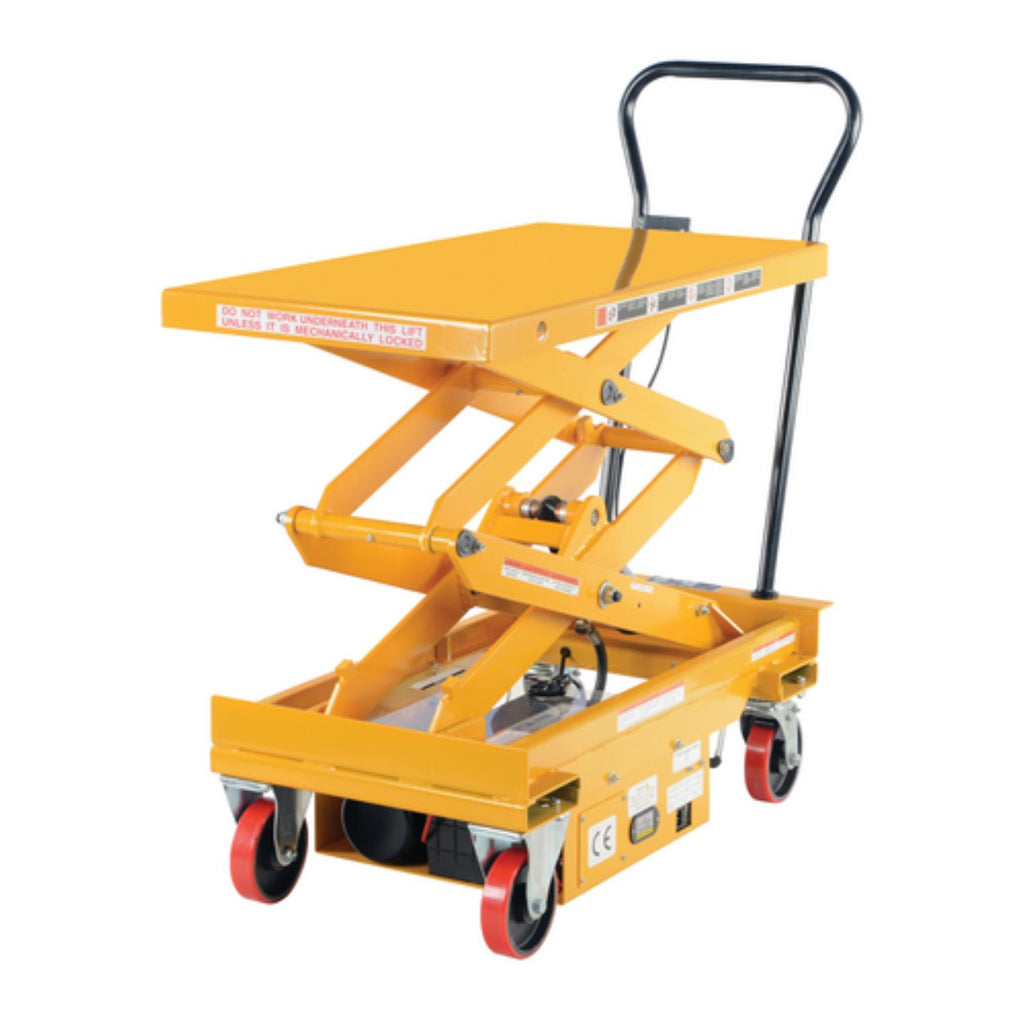

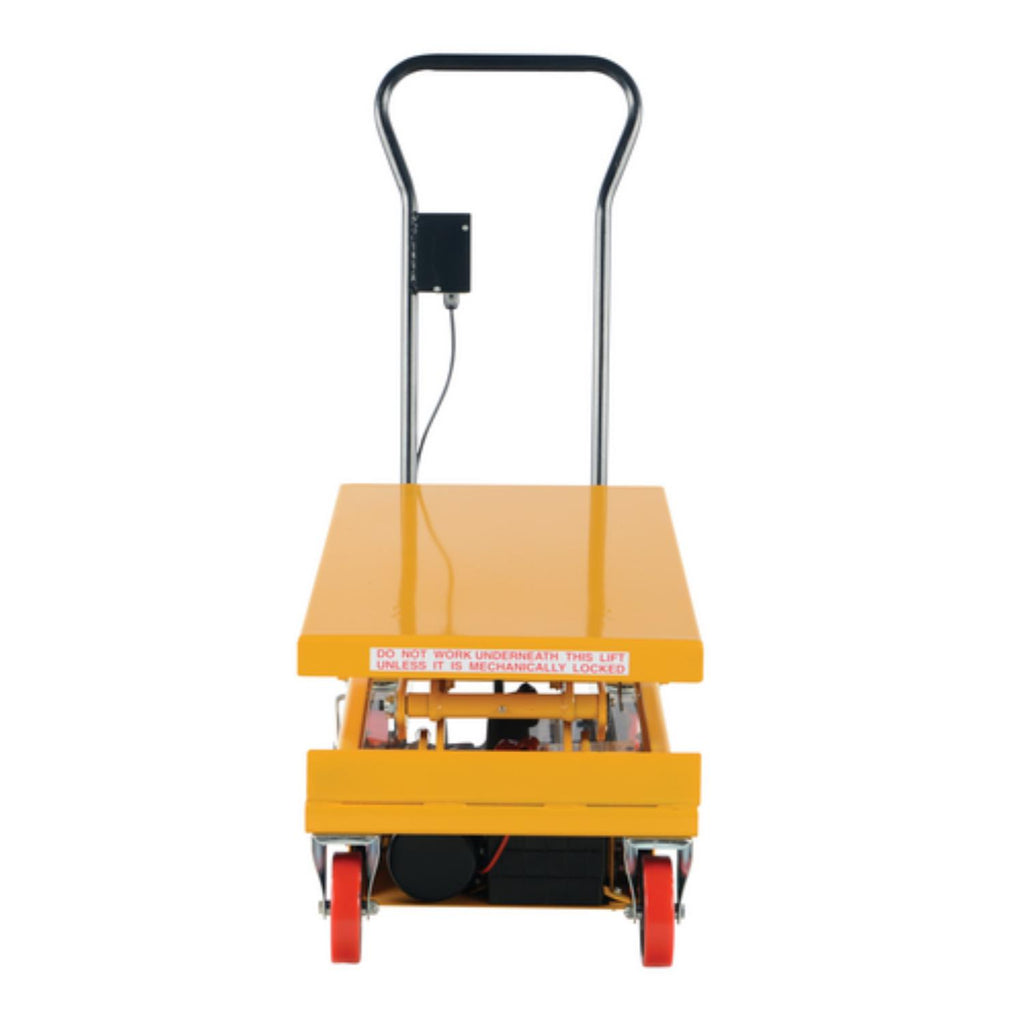

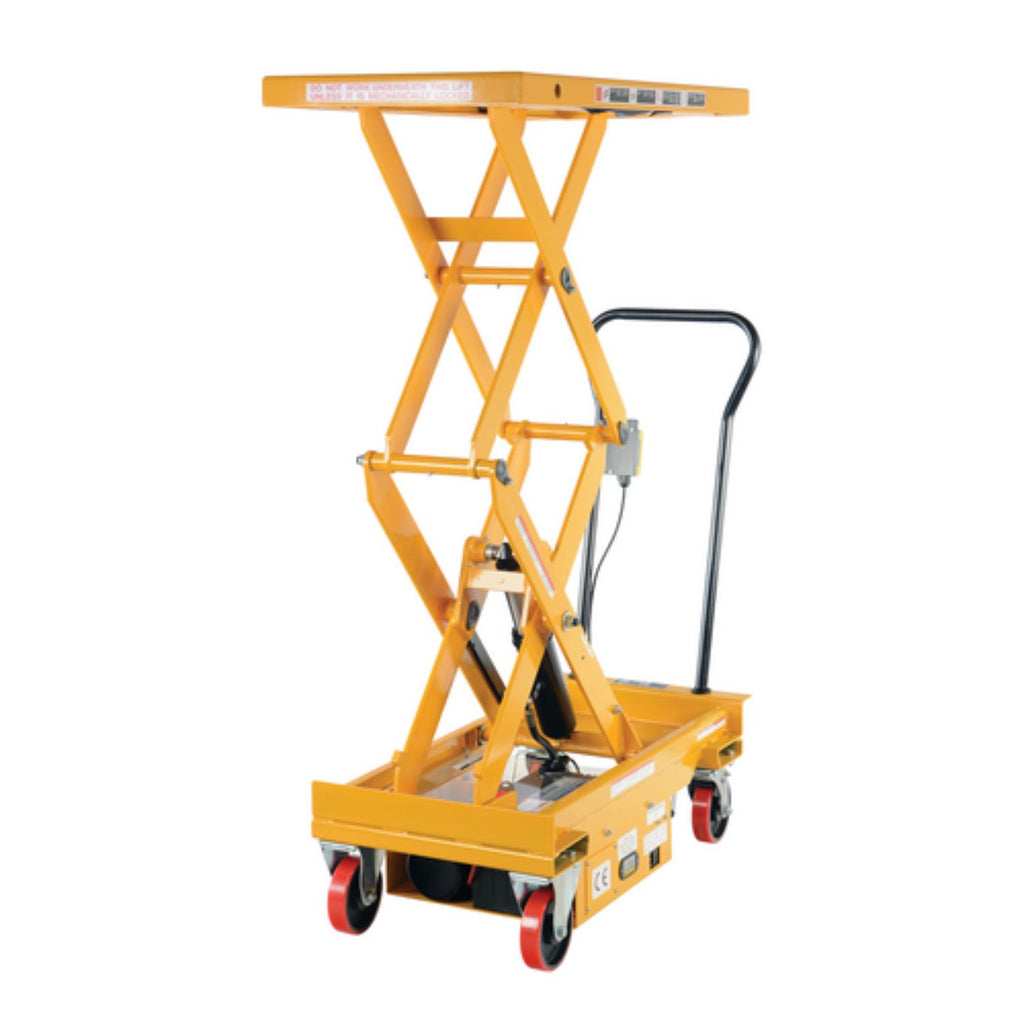

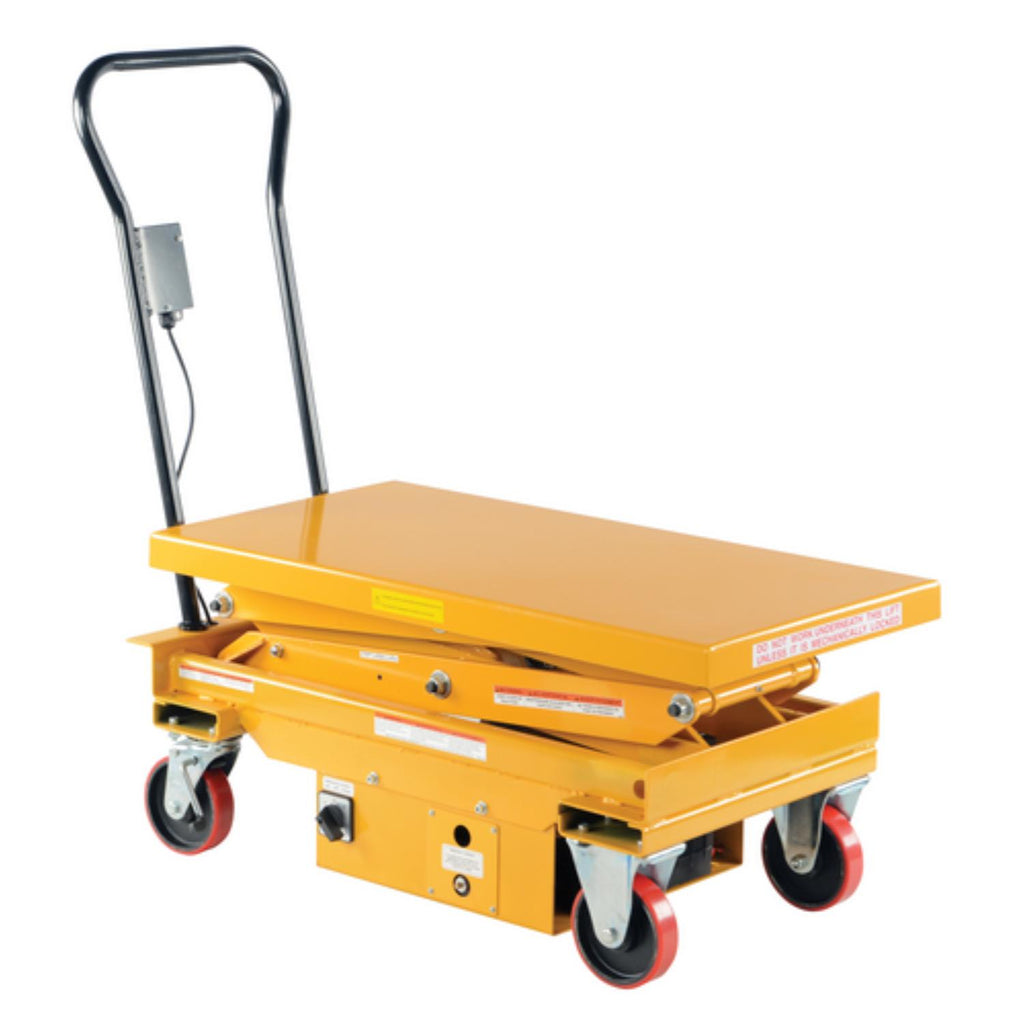

The DC powered Hydraulic elevating cart is ideal for quick lifting and ergonomic material handling. The battery-powered unit allows operators to raise and lower platform with the push of a button. The unit rolls on two rigid and two swivel polyurethane casters. It includes battery, on-board battery charger and battery charge indicator gauge. Features an internal safety velocity fuse in each cylinder.
Features
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
Specifications
| Specification | Value |
|---|---|
| Power Source | Battery-operated |
| Platform Length (in) | 39.75 |
| Platform Width (in) | 20.5 |
| Platform Material | Steel |
| Maximum Height (in) | 63.75 |
| Minimum Height (in) | 19.5 |
| Maximum Travel Distance (in) | 44.25 |
| Weight Capacity (lbs) | 1000 |
| Color / Finish | Yellow |
| Weight (lbs) | 475 |
| Frame Material | Steel |
| Scale Included | No |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 18 |
| Battery Charger Included | Yes |
| Phase | Not Applicable |
| Voltage (V) | 12 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 6 |
| Front Wheel Material | Polyurethane |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 42 |
| Overall Width (in) | 22.5 |
| Overall Height (in) | 46 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
