Description
Description

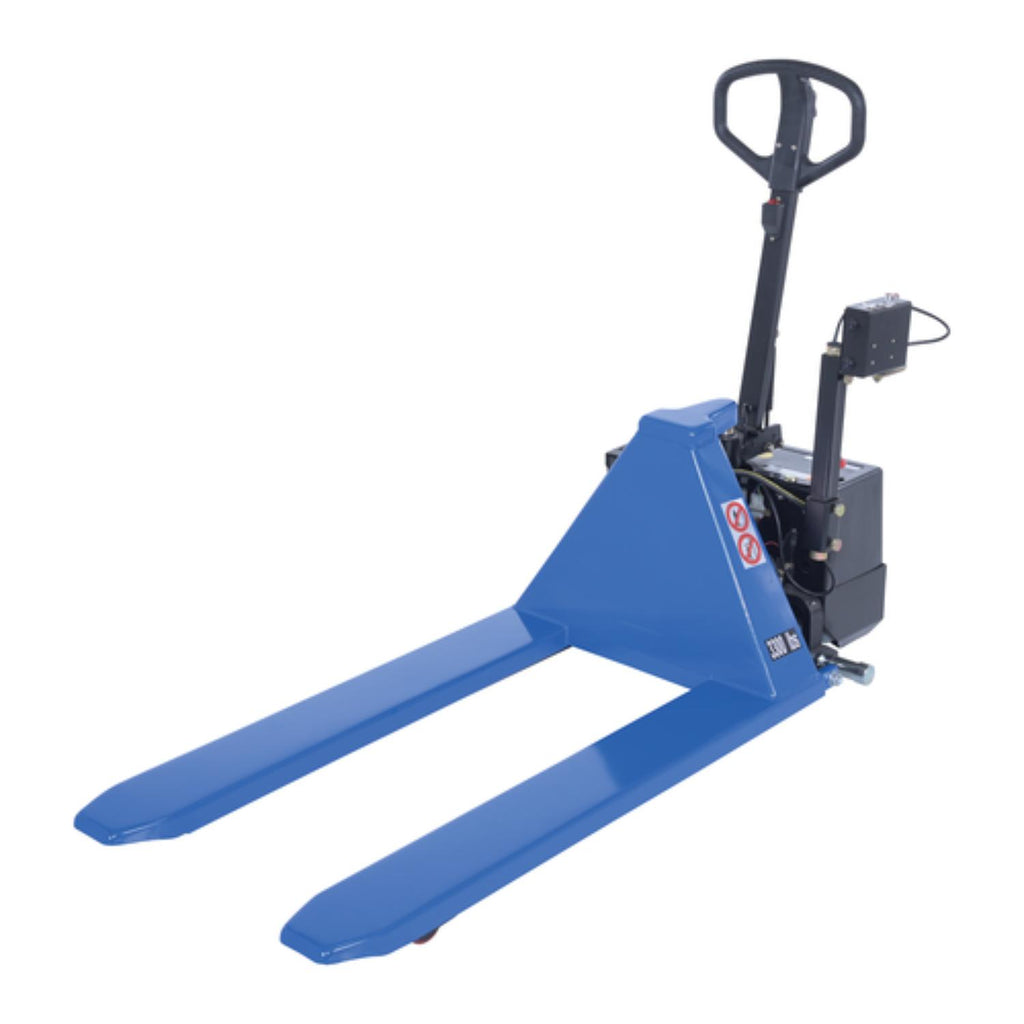

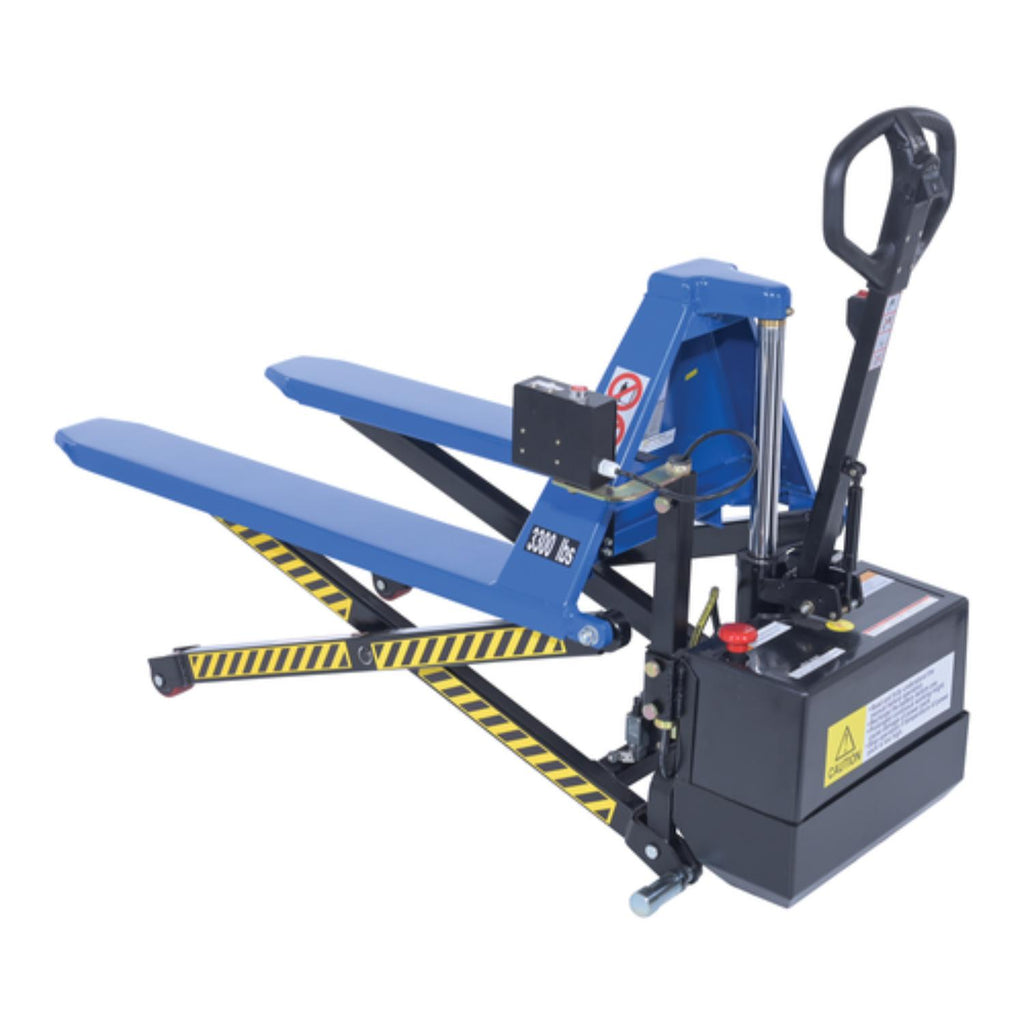

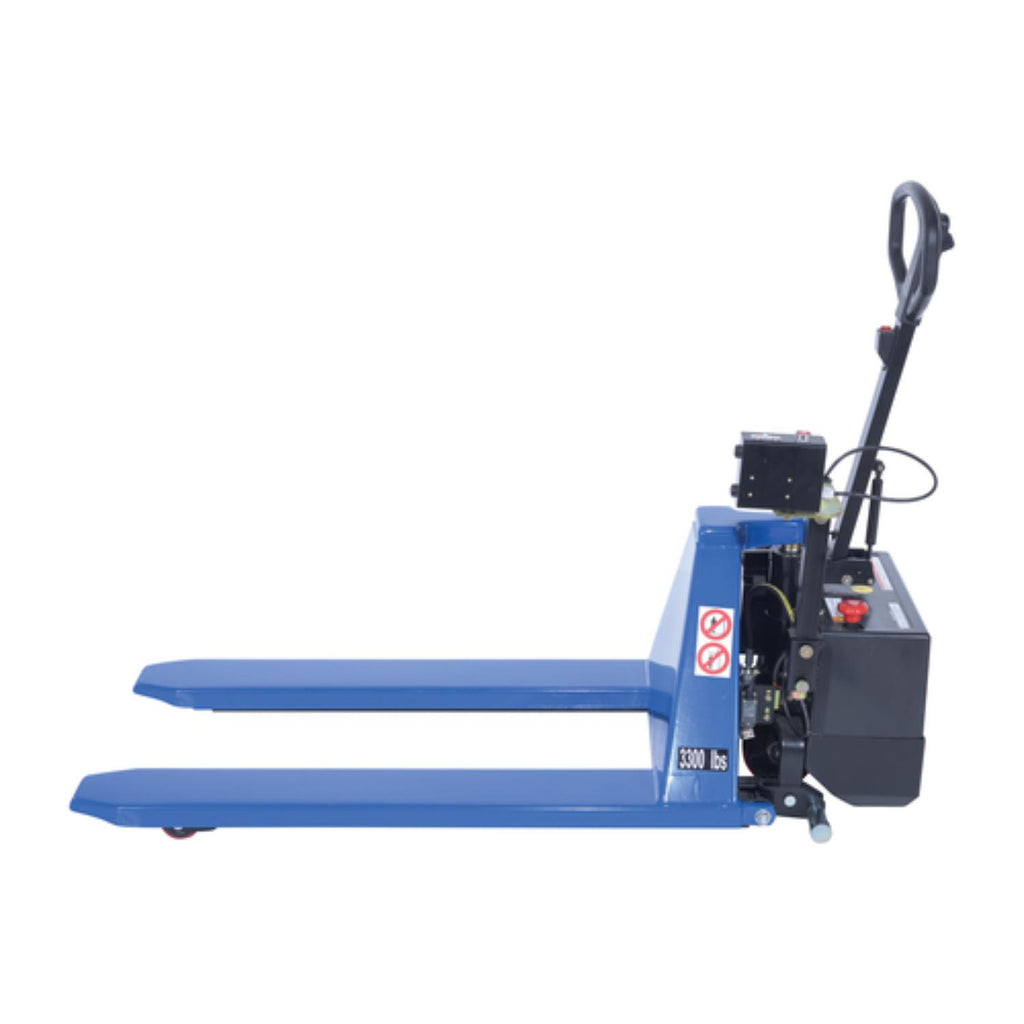

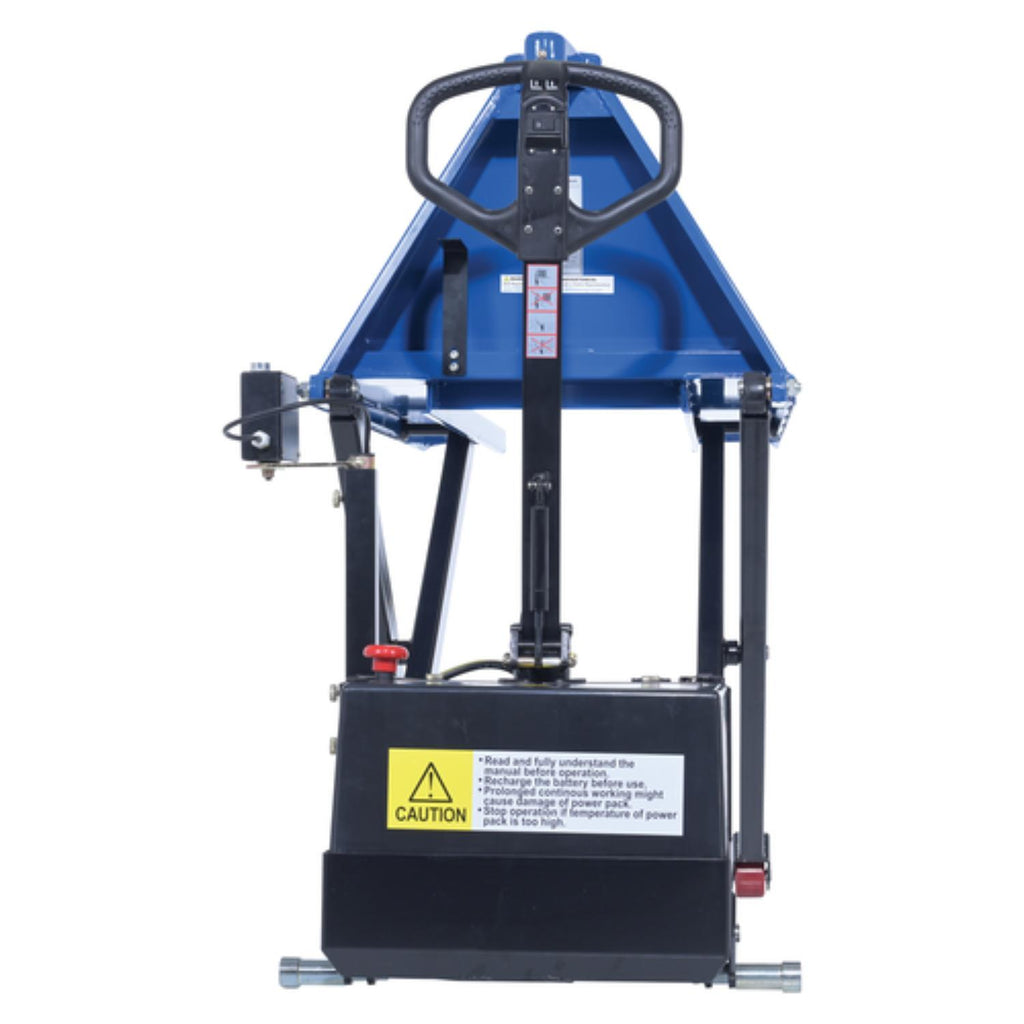

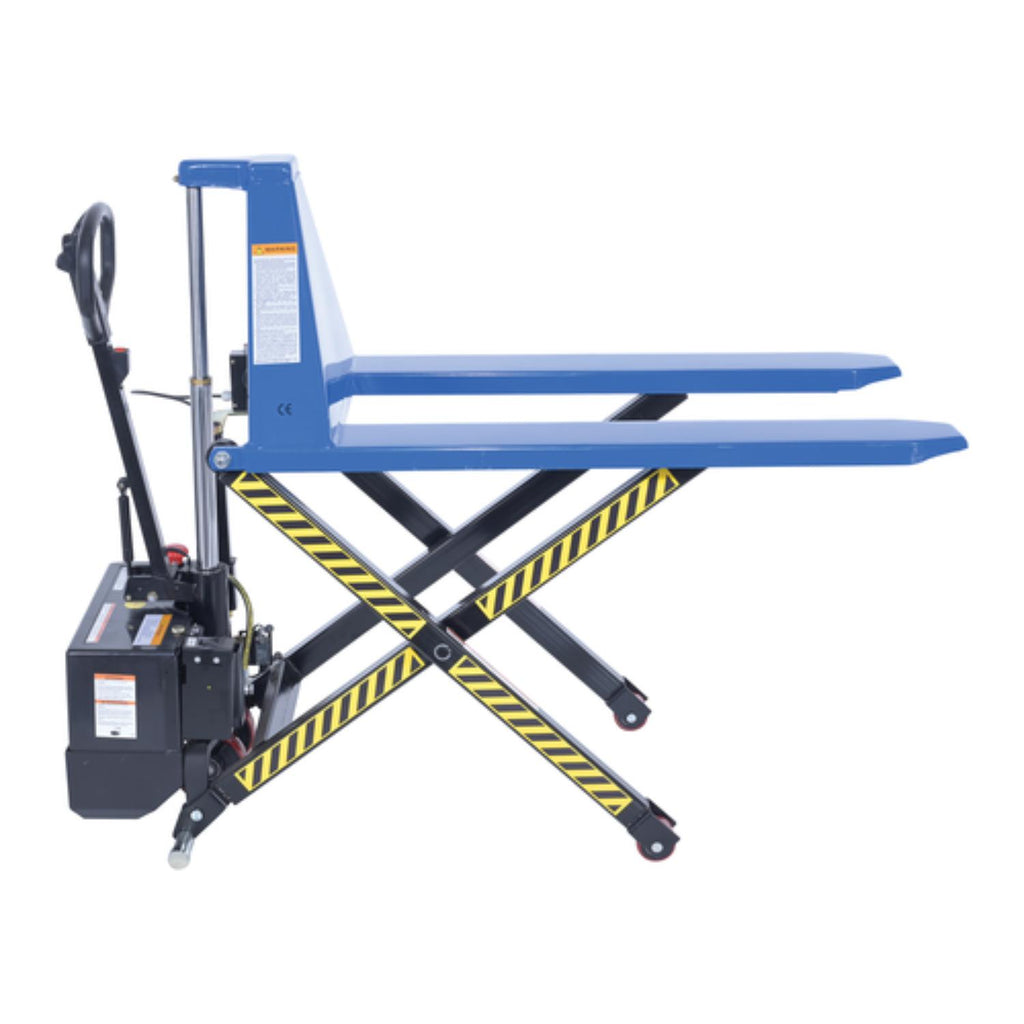

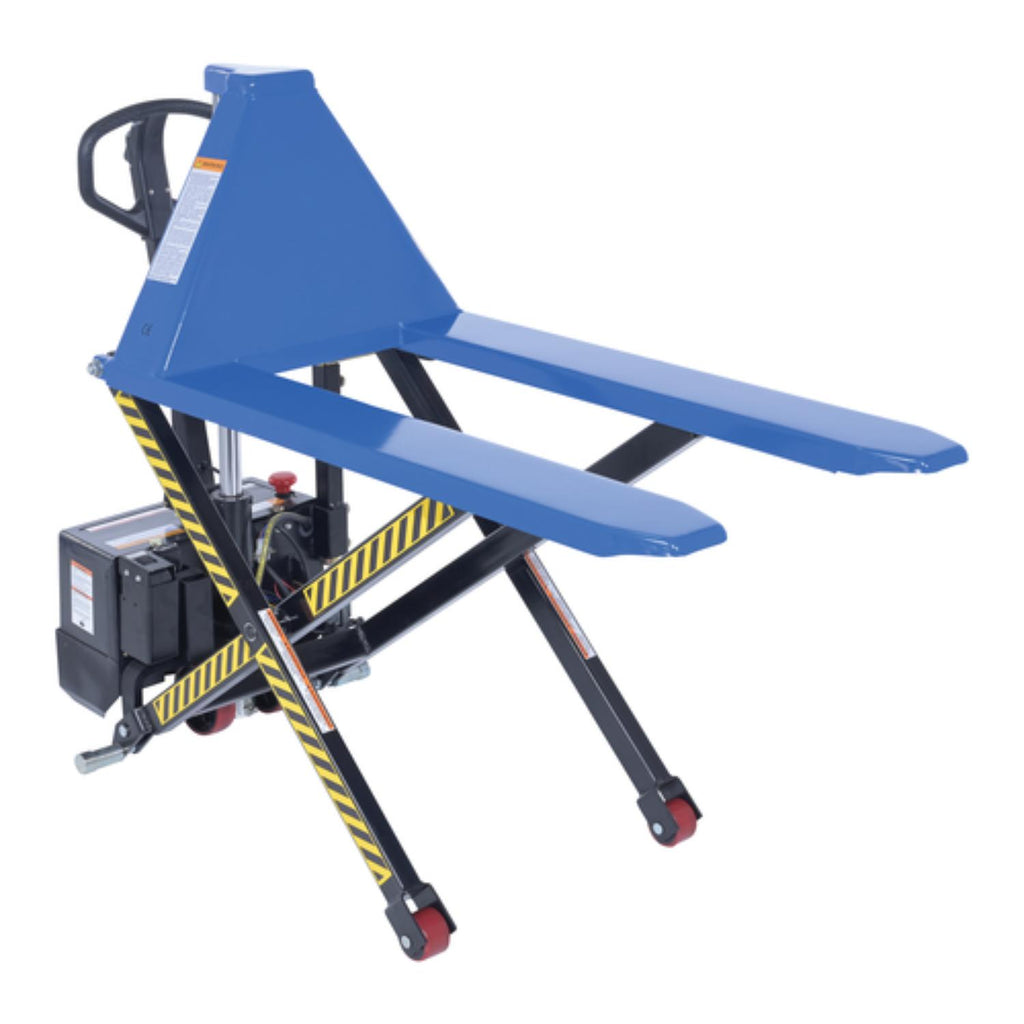

Whether your load is light, small, heavy, or large this tote lifter can manage the job! With its specifically designed structure, it is perfect for lifting open bottom skids, boxes, and baskets. Through a DC power supply, a simple rocker switch is used for raising and lowering. Not only that; but used in conjunction with the attached photo eye sensor, adjusting load heights has seldom been easier or more accurate. The photo eye sensor provides a visual representation of the tote lifters height while in the raising, lowering, or stationary process. An on-board battery charger is included to provide consistent power throughout the working day.
Features
- Automatic stabilizers engage when forks reach specific height
- Front rollers and two rear swivel casters allow for easy portability
- 12V DC battery included
- Built of steel with a powder coat finish
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Blue/Powder Coat |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 51.25 |
| Handle Material | Steel / Composite |
| Material | Steel |
| Lift Height Maximum | 31.5 |
| Maximum Travel Distance (in) | 28 |
| Maximum Amperage (A) | 140 |
| Power Source | Electric |
| Voltage (V) | 12 |
| Weight Capacity (lbs) | 3000 |
| Maximum Fork Height (in) | 31.5 |
| Depth (in) | 63 |
| Height (in) | 46.5 |
| Width (in) | 26.75 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 3.5 |
| Fork Width (in) | 27 |
| Fork Length (in) | 45 |
| Fork Thickness (in) | 6.5 |
| Load Center (in) | 20 |
| Maximum Adjustable Fork Width (in) | 26.75 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
