Description
Description

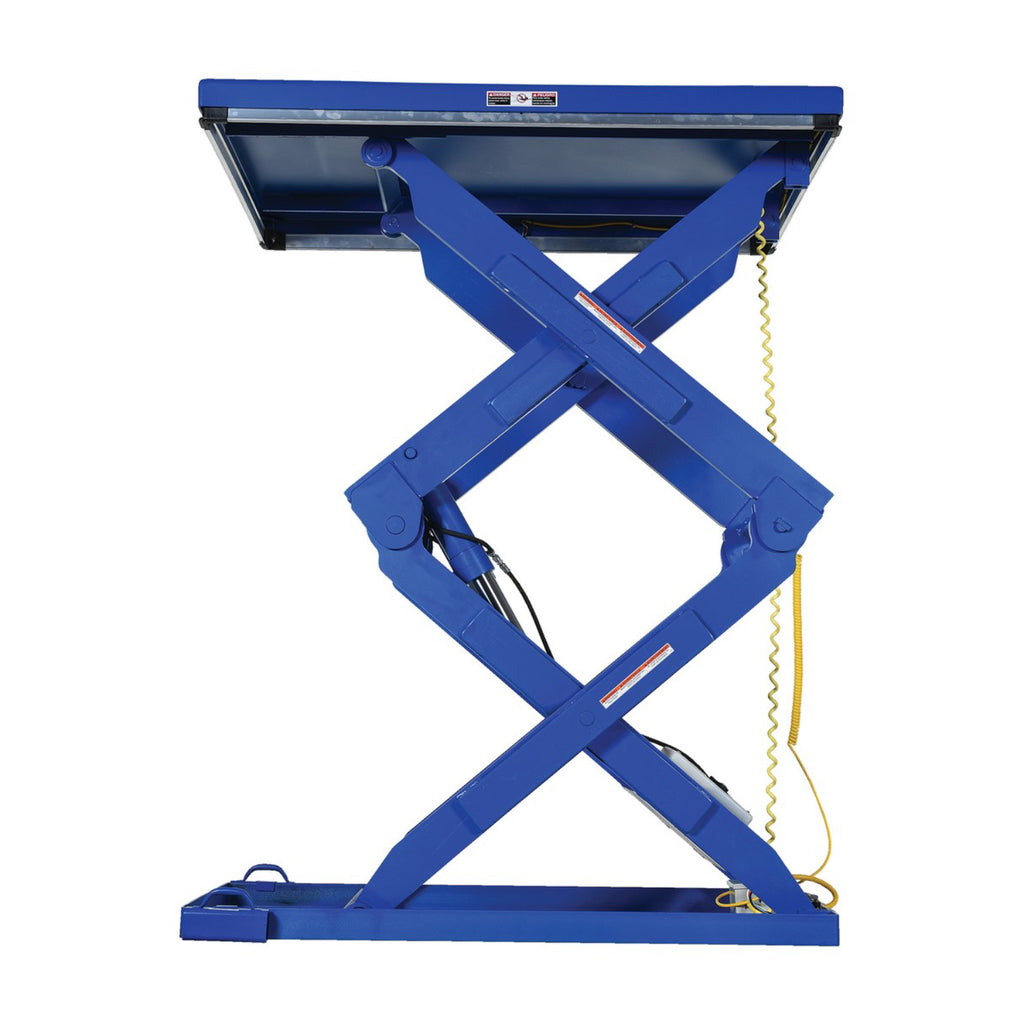

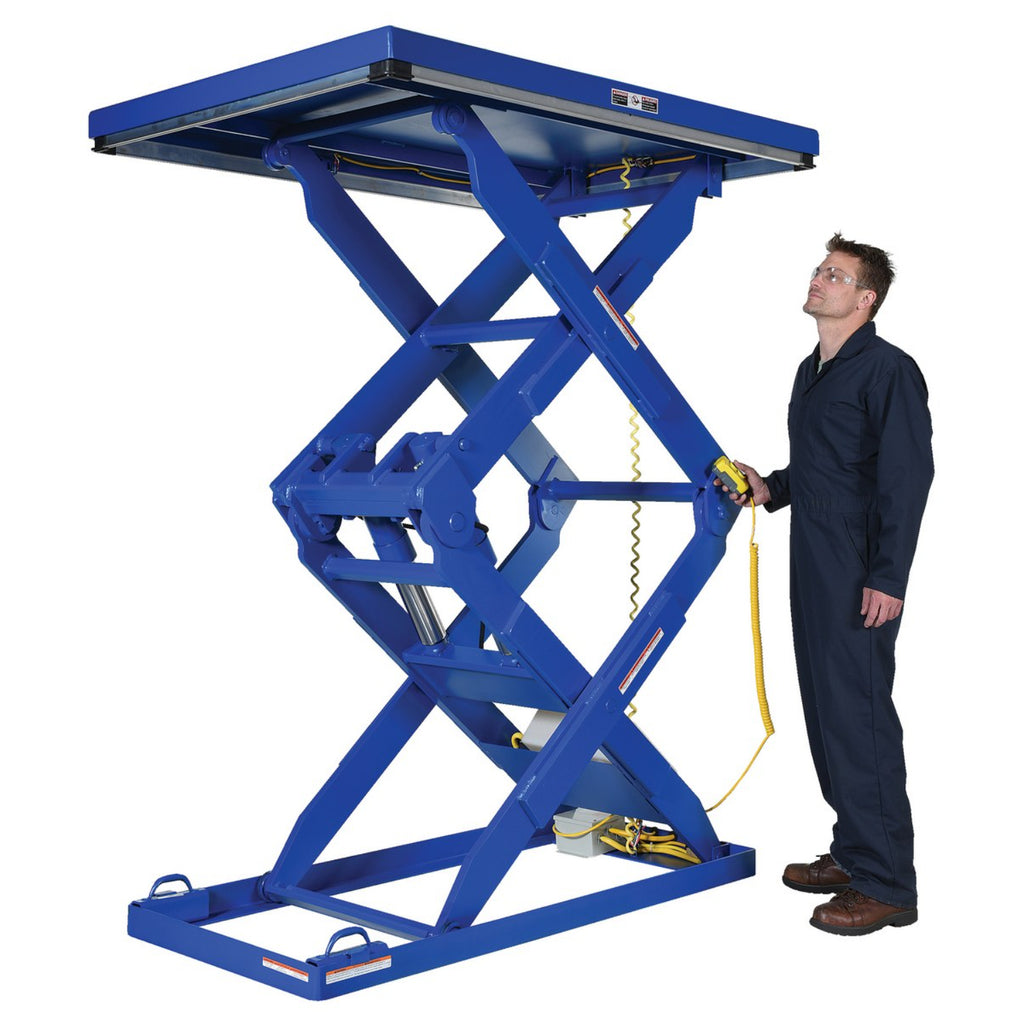

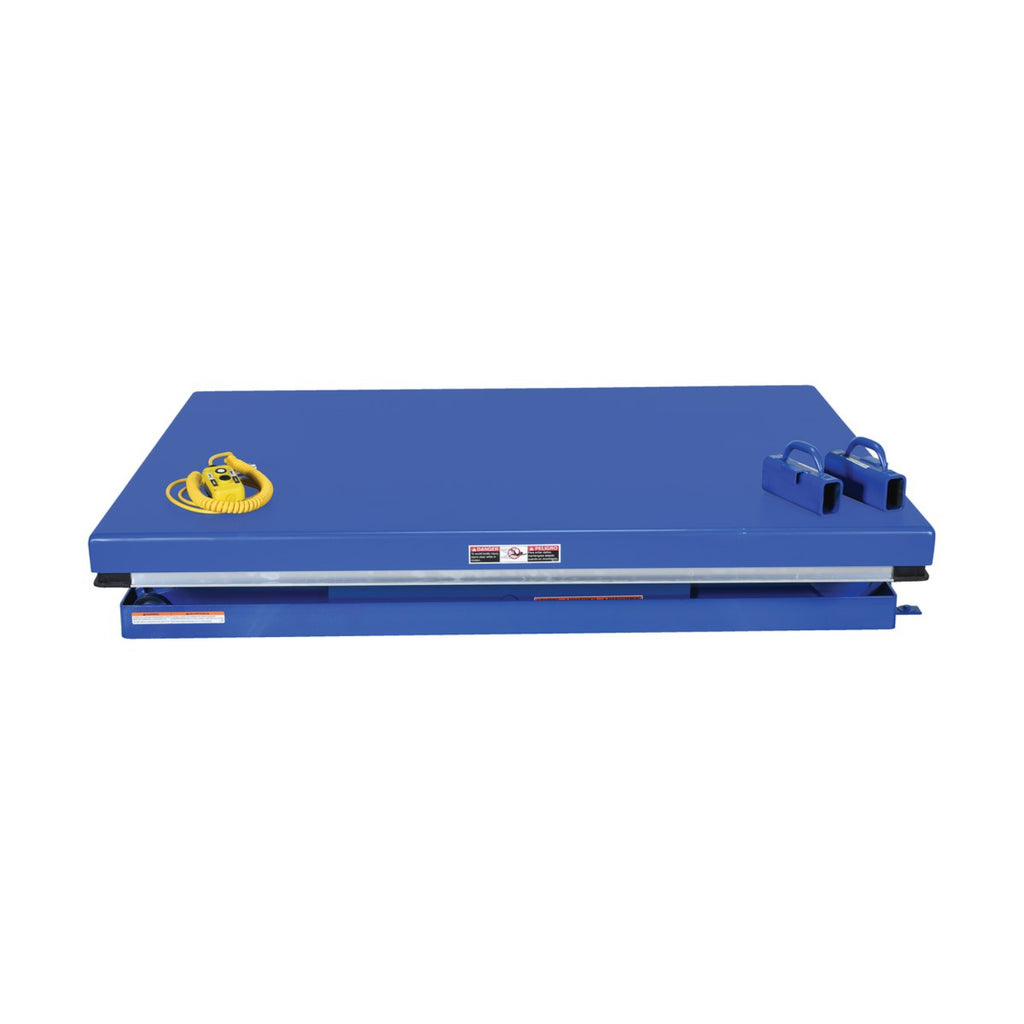

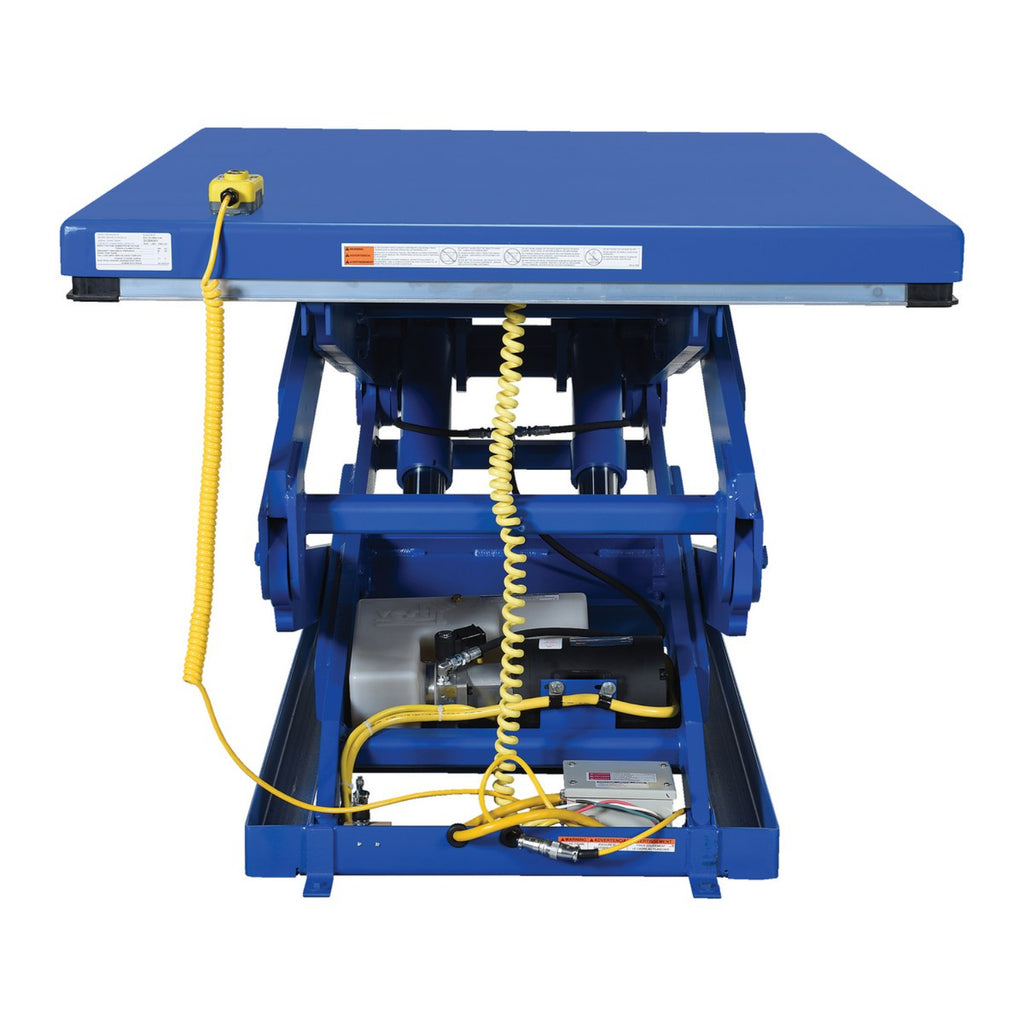

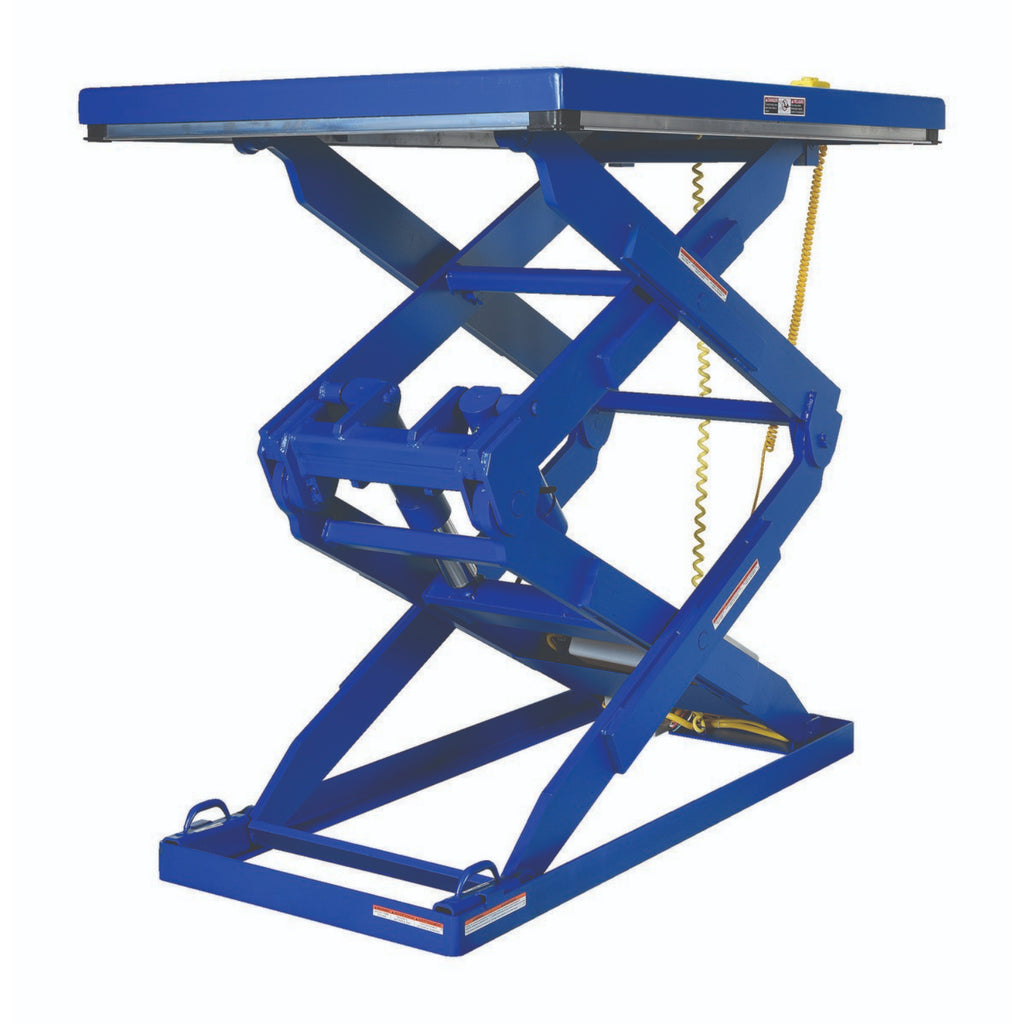

The double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available.
Features
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
Specifications
| Power Source | Electric - Corded |
| Platform Length (in) | 88 |
| Platform Width (in) | 48 |
| Platform Material | Steel |
| Maximum Height (in) | 84 |
| Minimum Height (in) | 12 |
| Weight Capacity (lbs) | 3000 |
| Color / Finish | Blue |
| Weight (lbs) | 1785 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 48 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Installation Hardware Included | Not Required |
| Additional Contents | Platform Length & Width Range Varies in Size |
| Overall Length (in) | 88 |
| Manufacturer Warranty | 1 Year |
| Overall Width (in) | 48 |
| Overall Height (in) | 84 |
| Maximum Travel Distance (in) | 72 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
- Cancelable: N
- Packaging is Returnable: N
