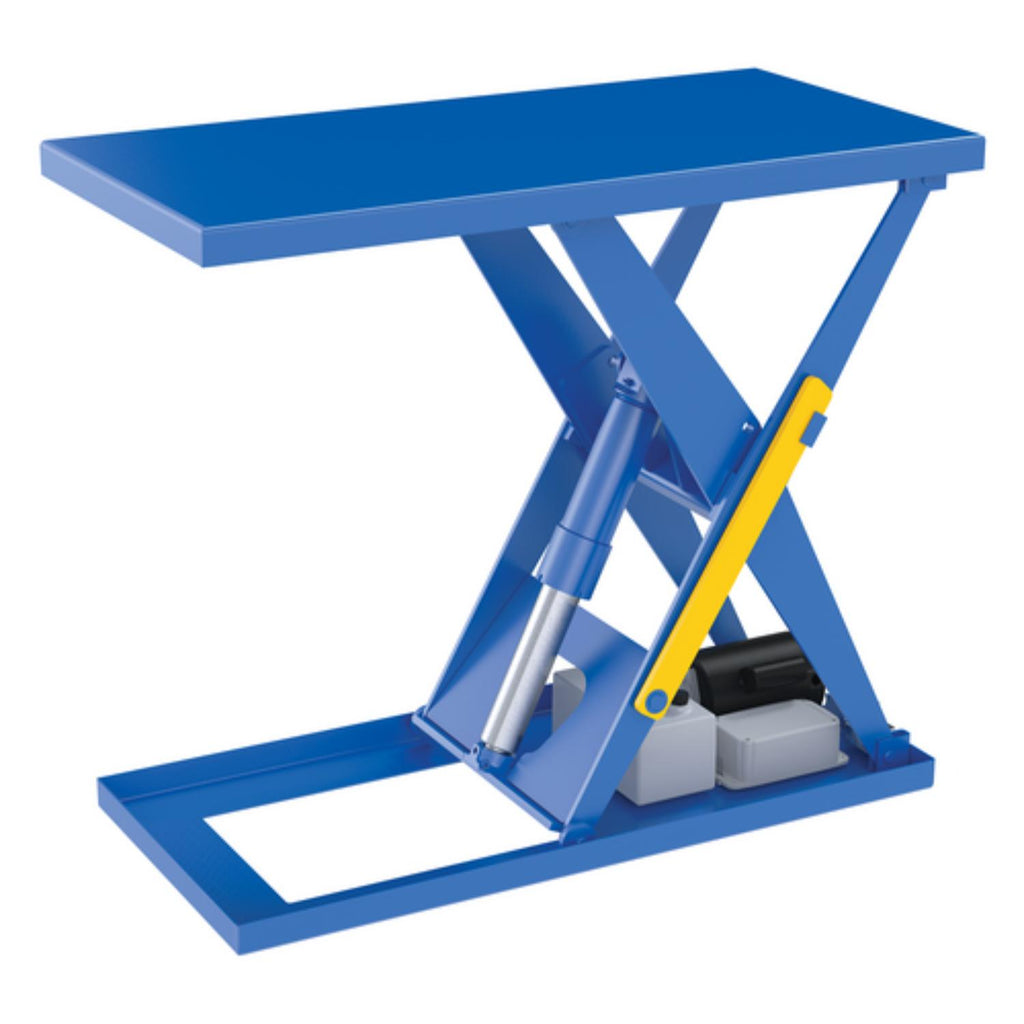

An electric hydraulic lift table is an efficient addition to a variety of manufacturing and shipping facilities. With an economical design, the 2,000 lb. capacity table lifts and supports items both large and small. The raising and lowering of the table is completed by a push button hand control that allows the user to maintain a safe distance from the actively moving table. An upper travel limit switch is engaged when the table reaches its maximum height, preventing any over extension. With safety always being the number one priority, an internal safety velocity fuse maintains platform height in the event of a hose or fitting failure.
Features
- Open design for loading and unloading from all four sides
- Welded steel construction
- Safety maintenance prop included
- Internal power unit
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 24 |
| Platform Width (in) | 48 |
| Platform Material | Steel |
| Maximum Height (in) | 41 |
| Minimum Height (in) | 8 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 295 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 14 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 48 |
| Overall Width (in) | 24 |
| Overall Height (in) | 41 |
| Maximum Travel Distance (in) | 33 |
| Manufacturer Warranty | 1 Year |
