Description
Description

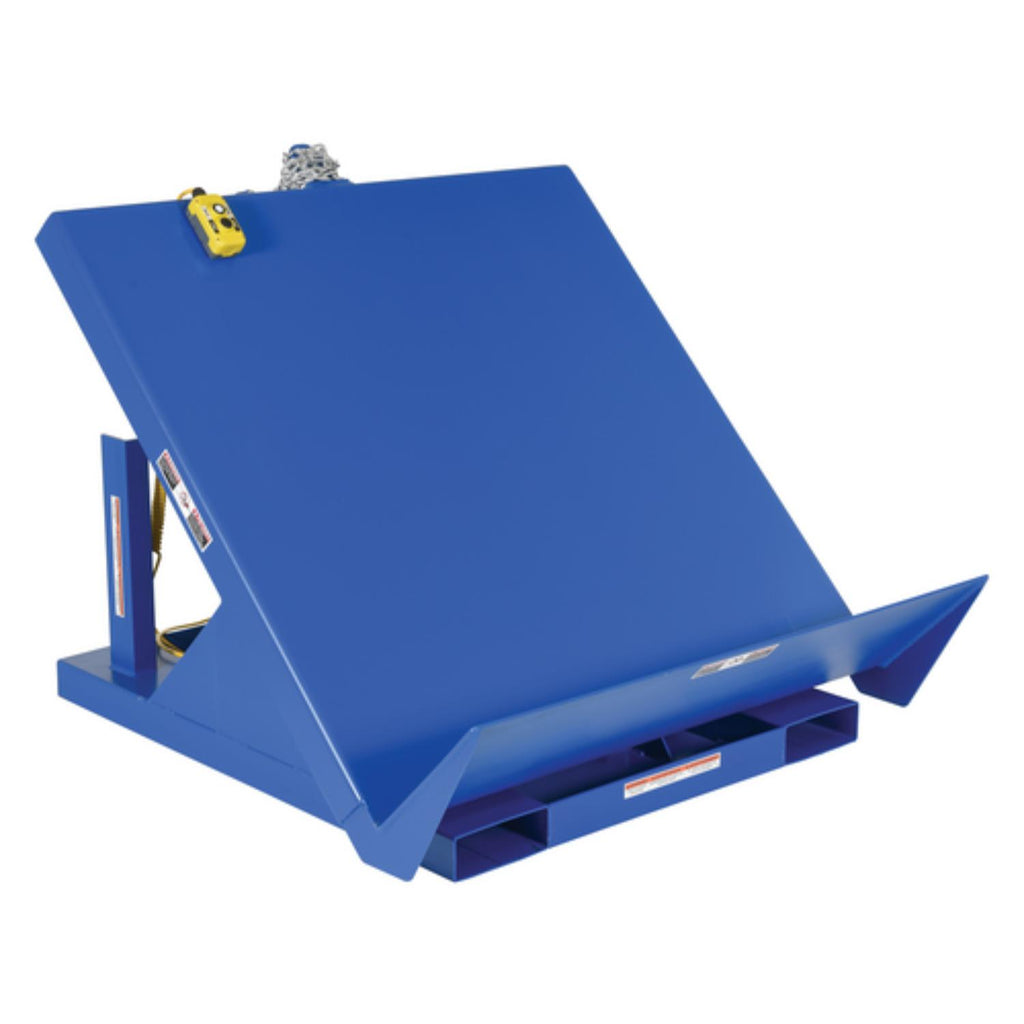

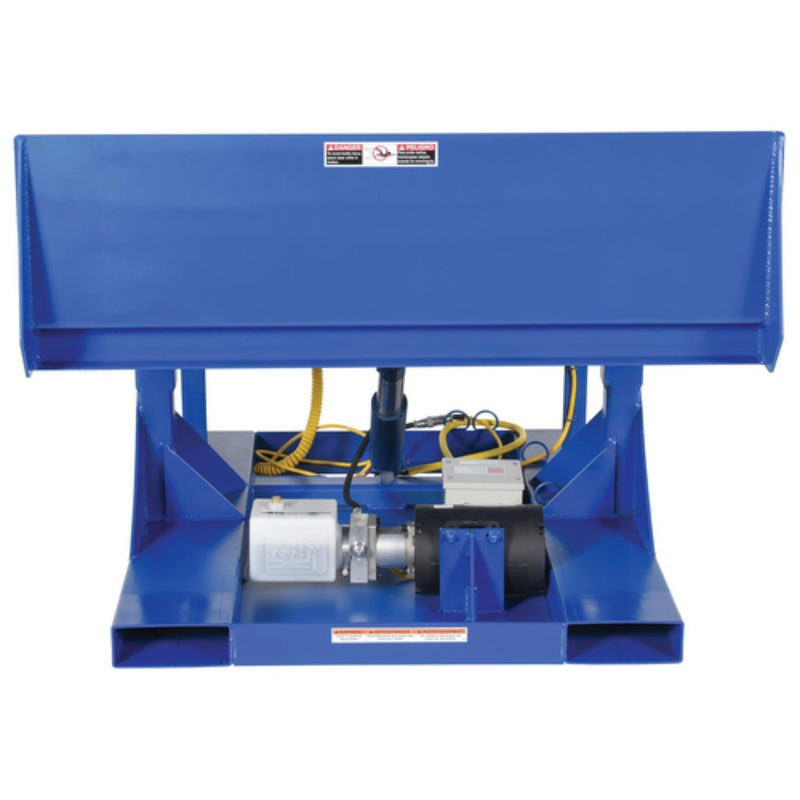

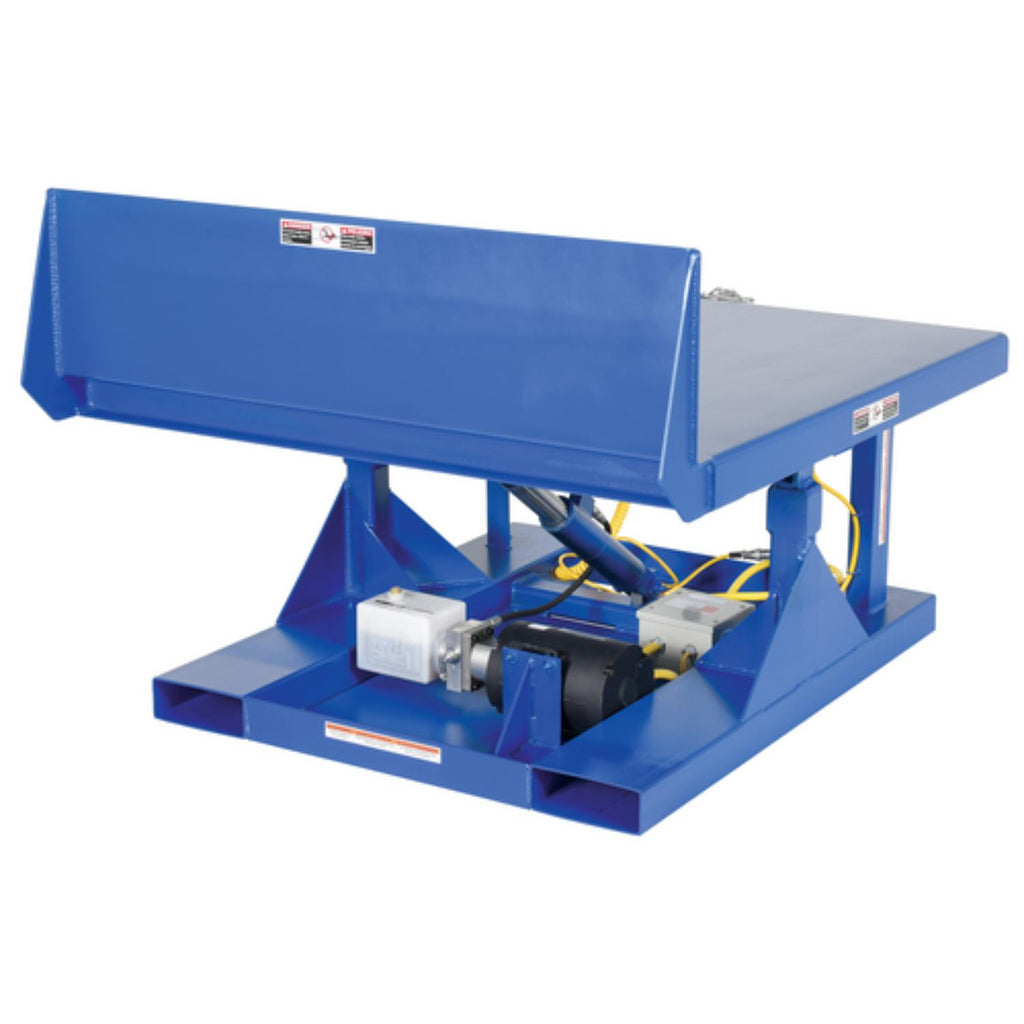

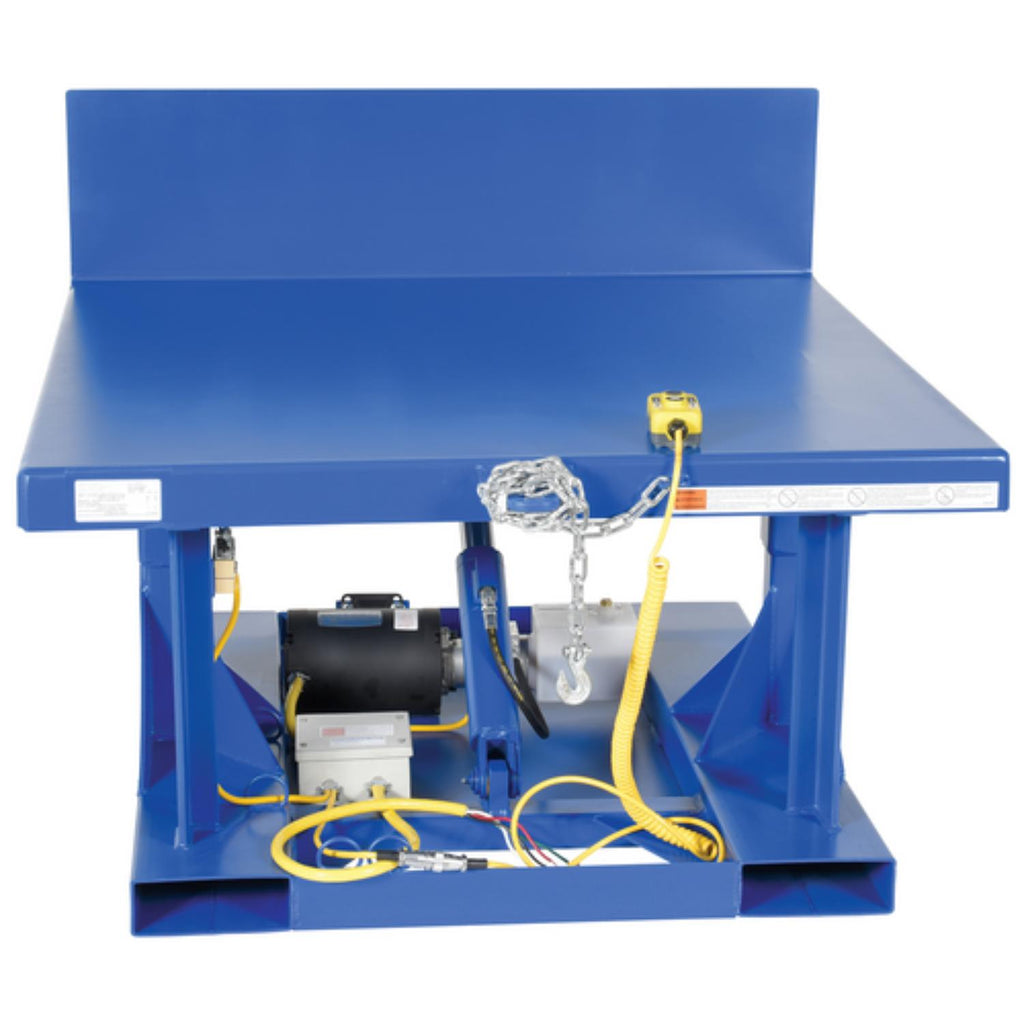

The efficiency master tilt table tilts pallets, crates, boxes, or baskets to facilitate easy container loading or unloading. The table features all welded steel construction for years of durability. The unique design minimizes pinch points to meet OSHA requirements. This tilt table is equipped with an industrial quality motor that delivers the best torque with minimal amperage draw for maximum life. Standard voltage is 460/3PH, with additional voltage options available. The tilt table has a standard push button hand control. Base includes fork pockets for portability with forklift.
Features
- Ergonomic design for minimal fatigue
- Welded steel construction provides long lasting rugged use
- A 45 degree tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 48 |
| Platform Width (in) | 48 |
| Platform Material | Steel |
| Height at Level (in) | 24 |
| Lip Height (in) | 12 |
| Maximum Tilt Angle (°) | 45 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 613 |
| Frame Material | Steel |
| Portable | Yes |
| Number of Casters / Wheels | No Wheels / Casters |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Power Cord Length (ft) | 2 |
| Operation Method | Hand Operated |
| Controller Cord Length (ft) | 8 |
| Voltage (V) | 460 |
| Installation Hardware Included | No |
| Additional Contents | Includes Safety Slot lock restraint and chain bracket; 24 Volt Hand Control; Fork Pockets 7-1/2 In. x 2-1/2 In.; Fork Pocket Center 30 In. |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
