Description
Description

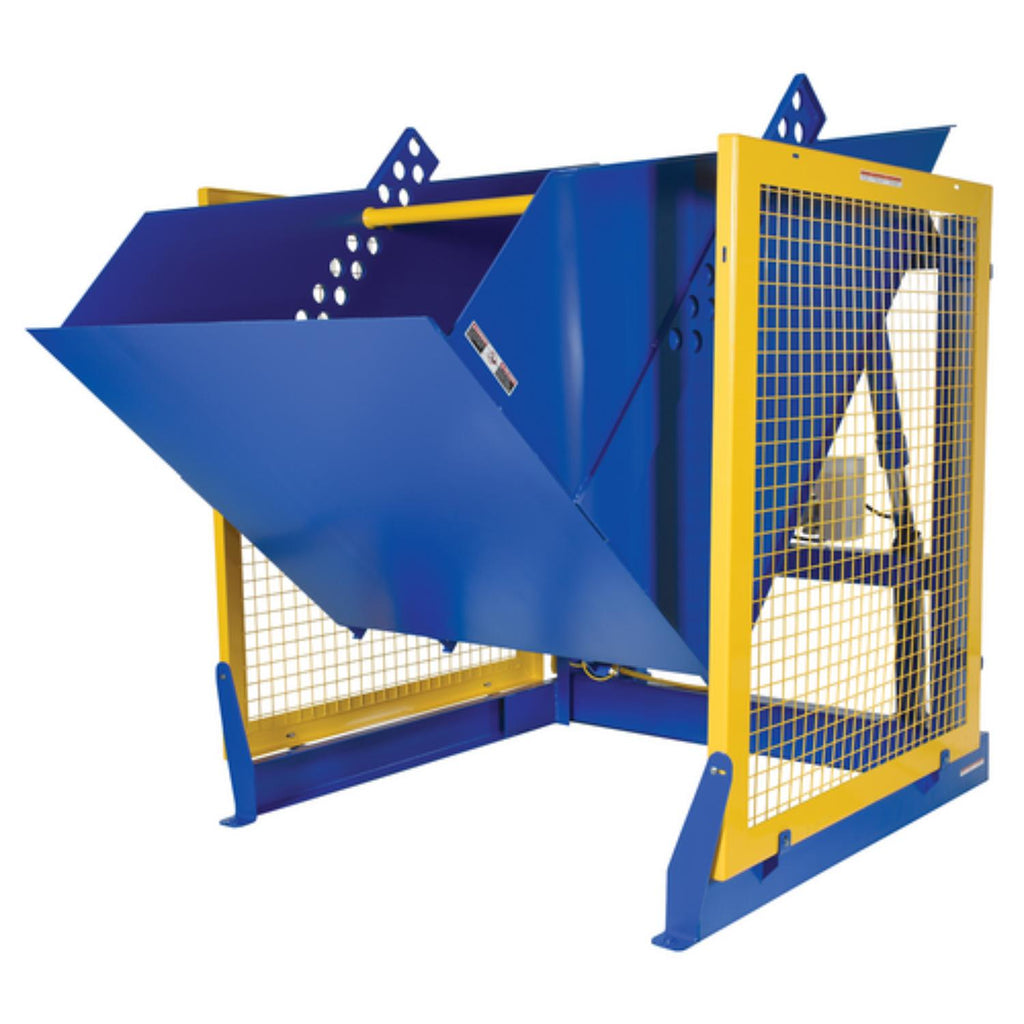

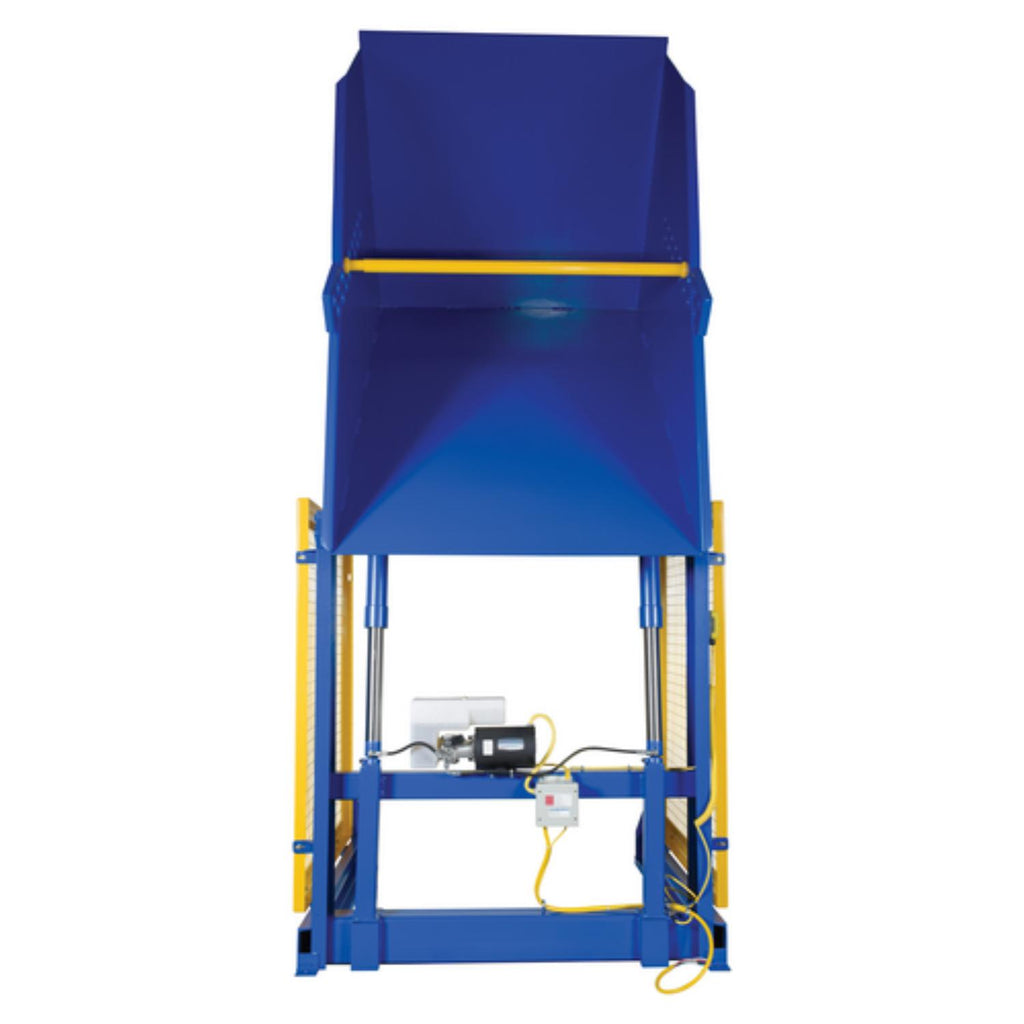

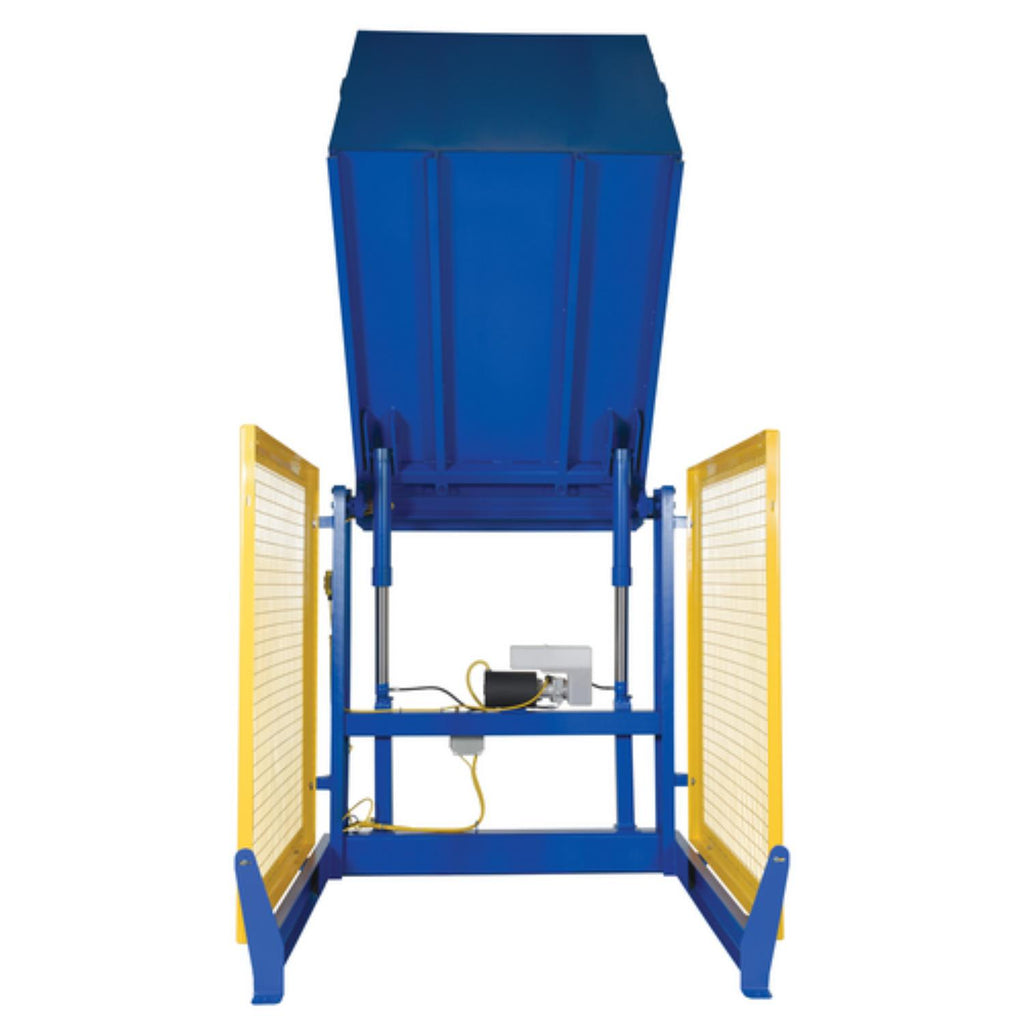

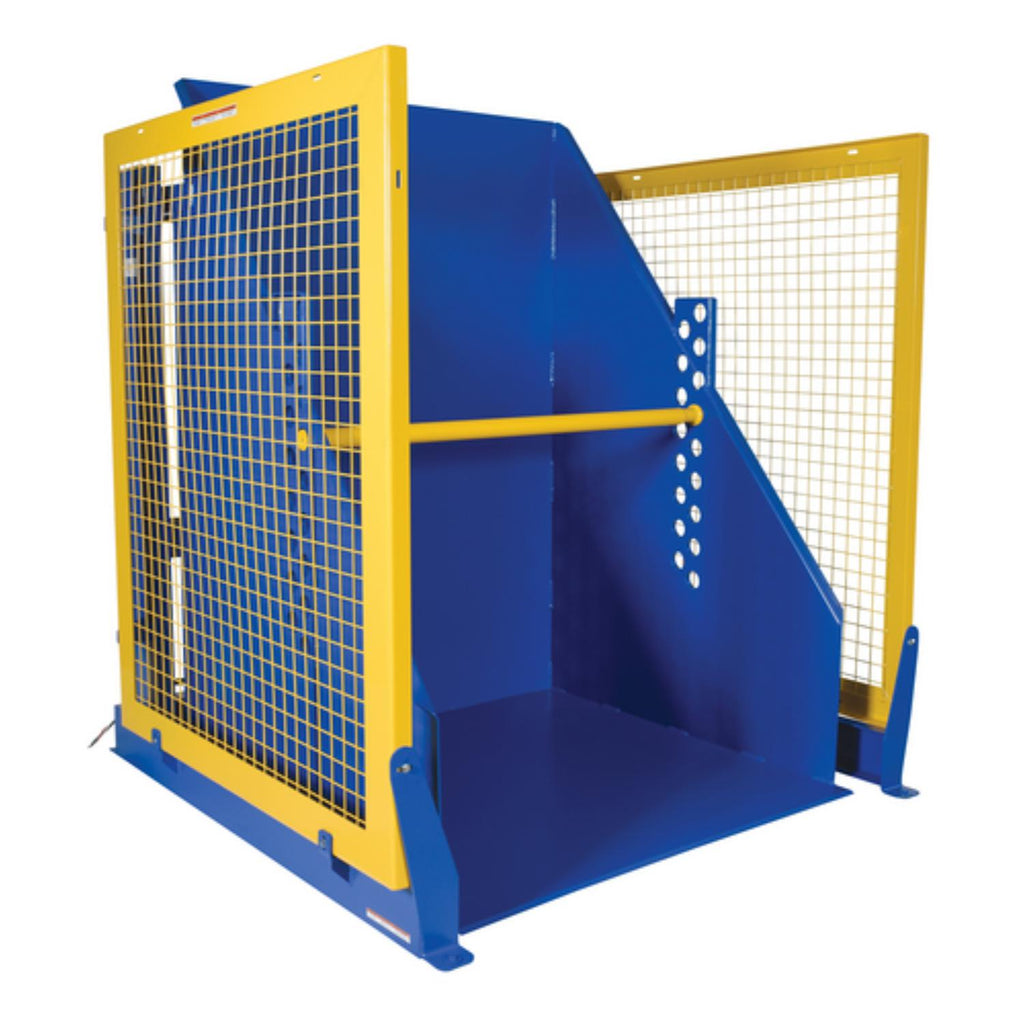

The electric/Hydraulic box dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.
Features
- Universal design will dump contents of many types and sizes of containers
- 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle

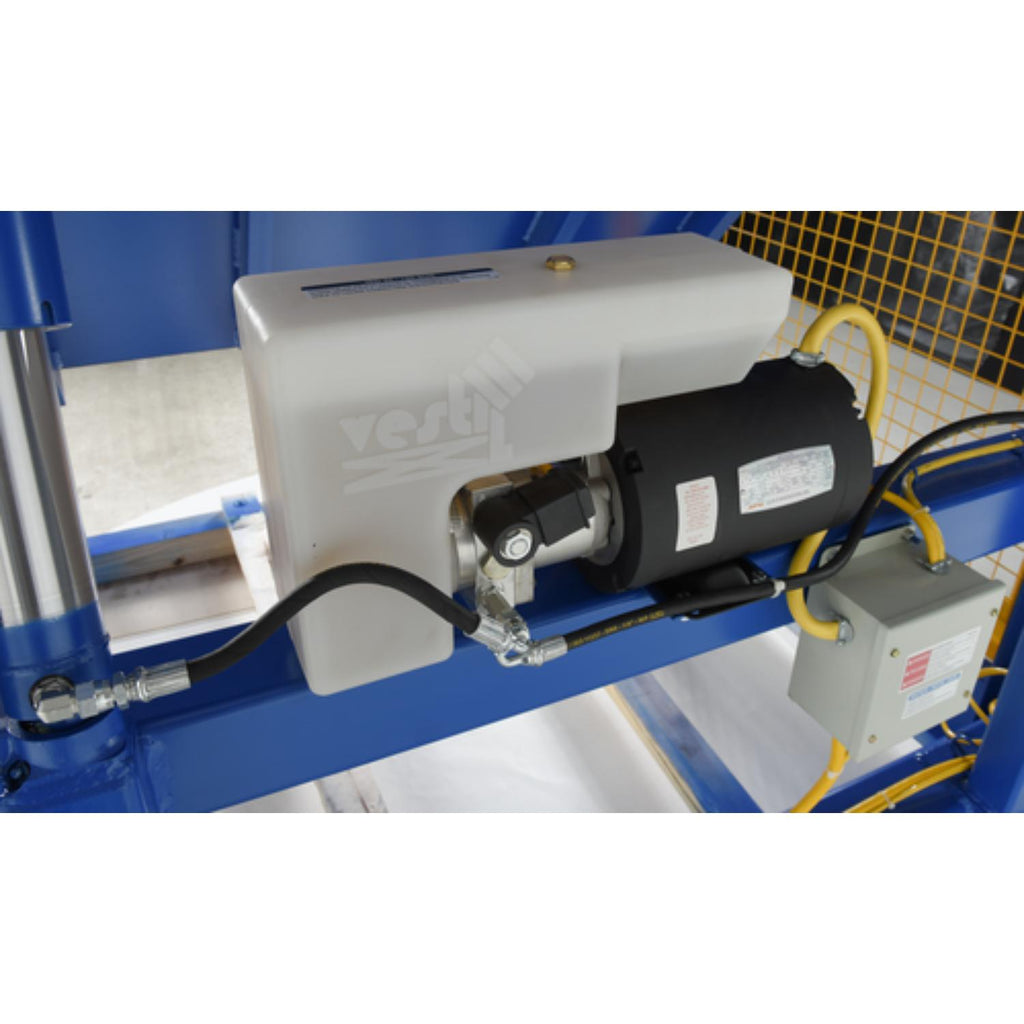

- Complete electric/hydraulic power unit to rotate chute at the push of a button
- Safety mesh screens included on each side of unit for added safety
Specifications
| Specification | Details |
|---|---|
| Weight Capacity (lbs) | 2000 |
| Overall Height (in) | 77 |
| Overall Length (in) | 68.5 |
| Overall Width (in) | 69 |
| Maximum Dump Height (in) | 60 |
| Level Height (in) | 77 |
| Rotated Height (in) | 149.5 |
| Dump Angle (°) | 45 |
| Platform Material | Steel |
| Platform Length (in) | 50 |
| Platform Width (in) | 52 |
| Phase | Three Phase |
| Horsepower (hp) | 2 |
| Voltage (V) | 460 |
| Power Cord Length (ft) | 2 |
| Weight (lbs) | 1934 |
| Installation Hardware Included | Yes |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
