Description

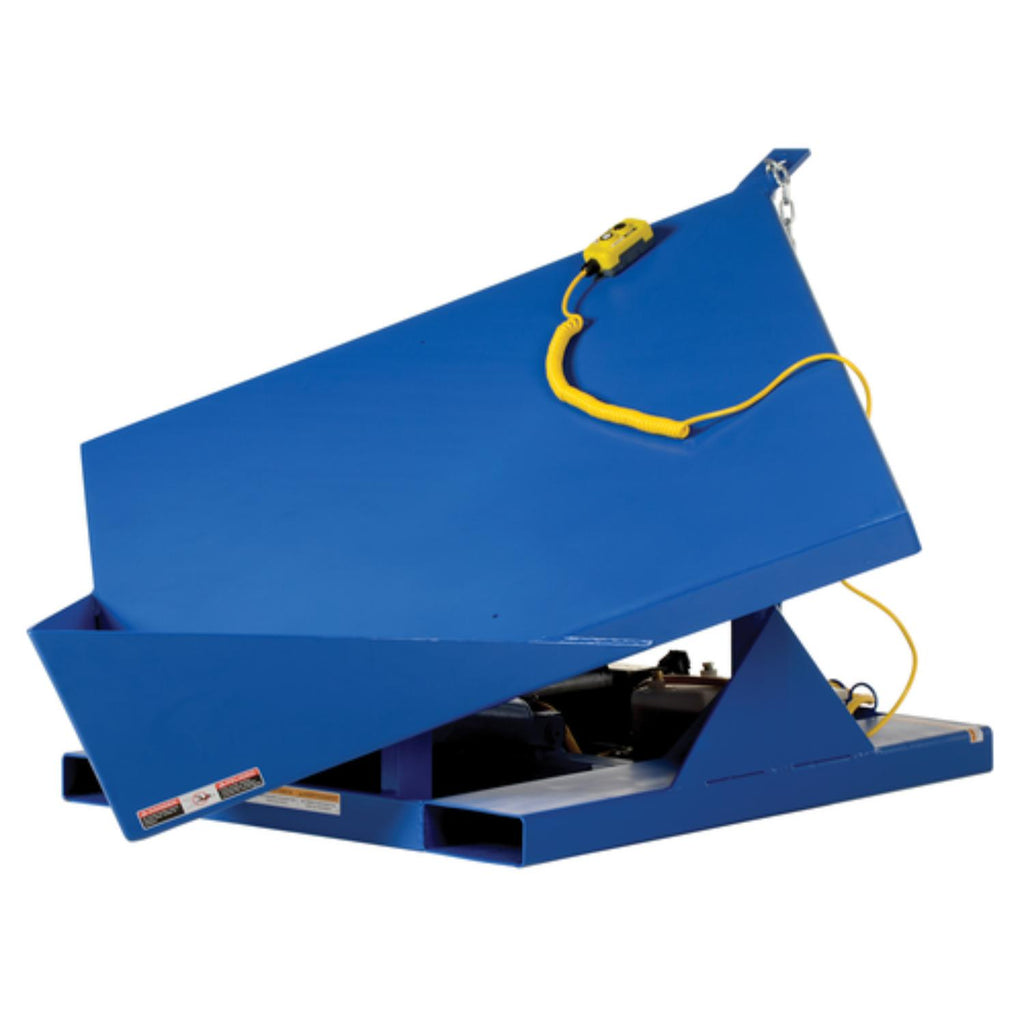

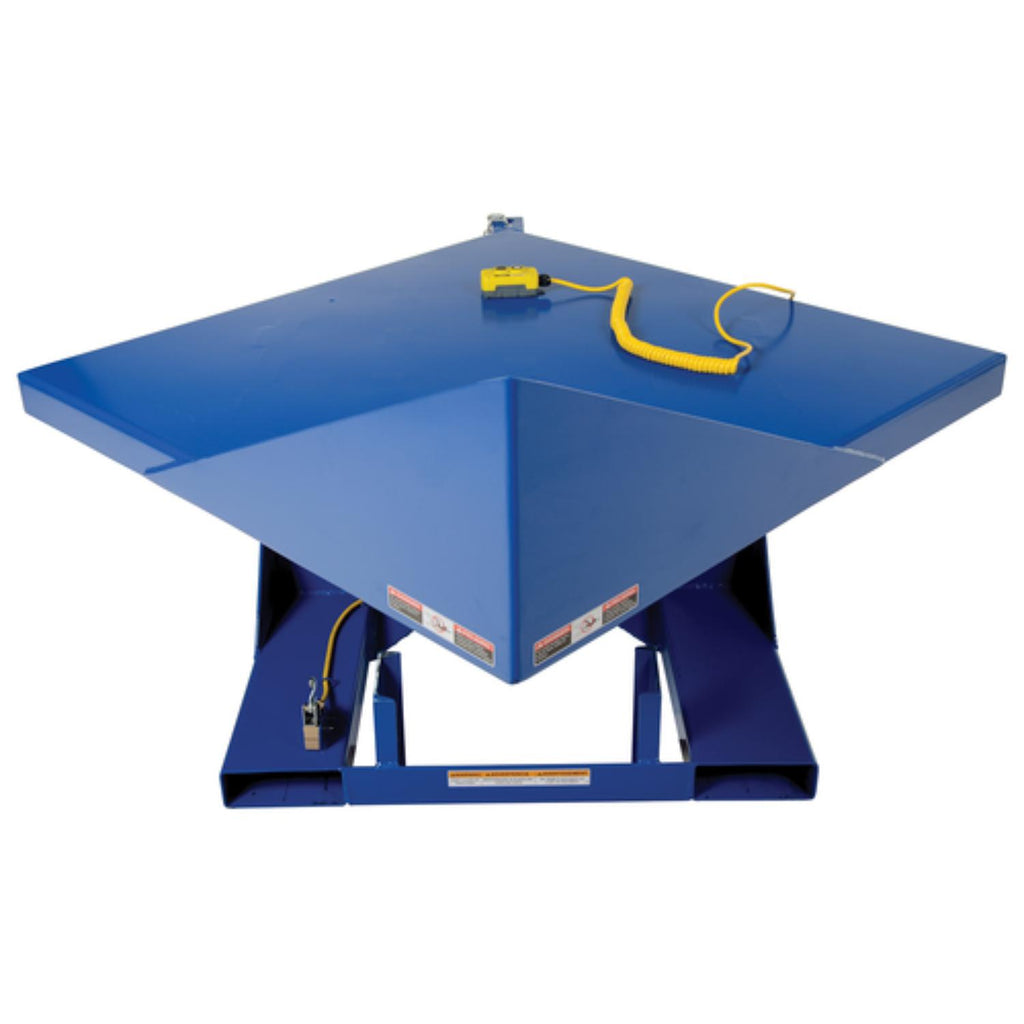

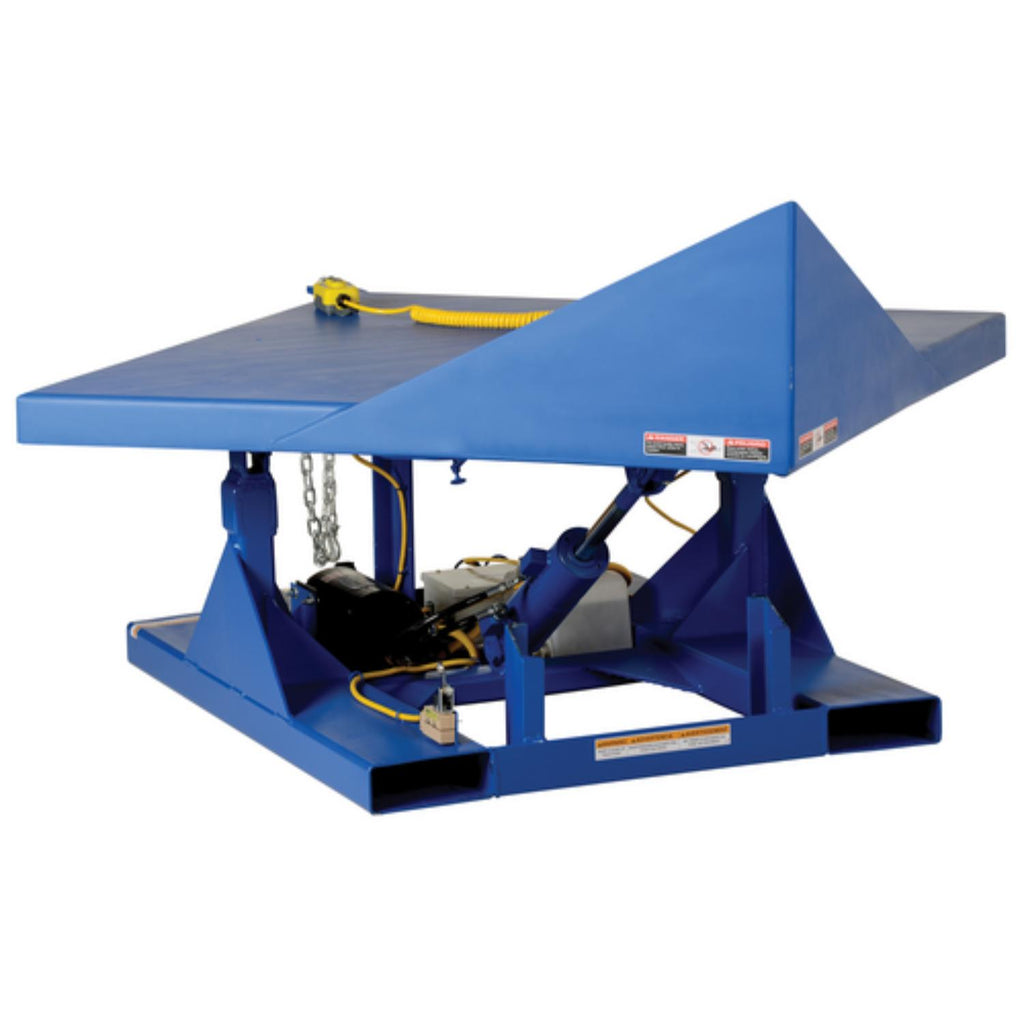

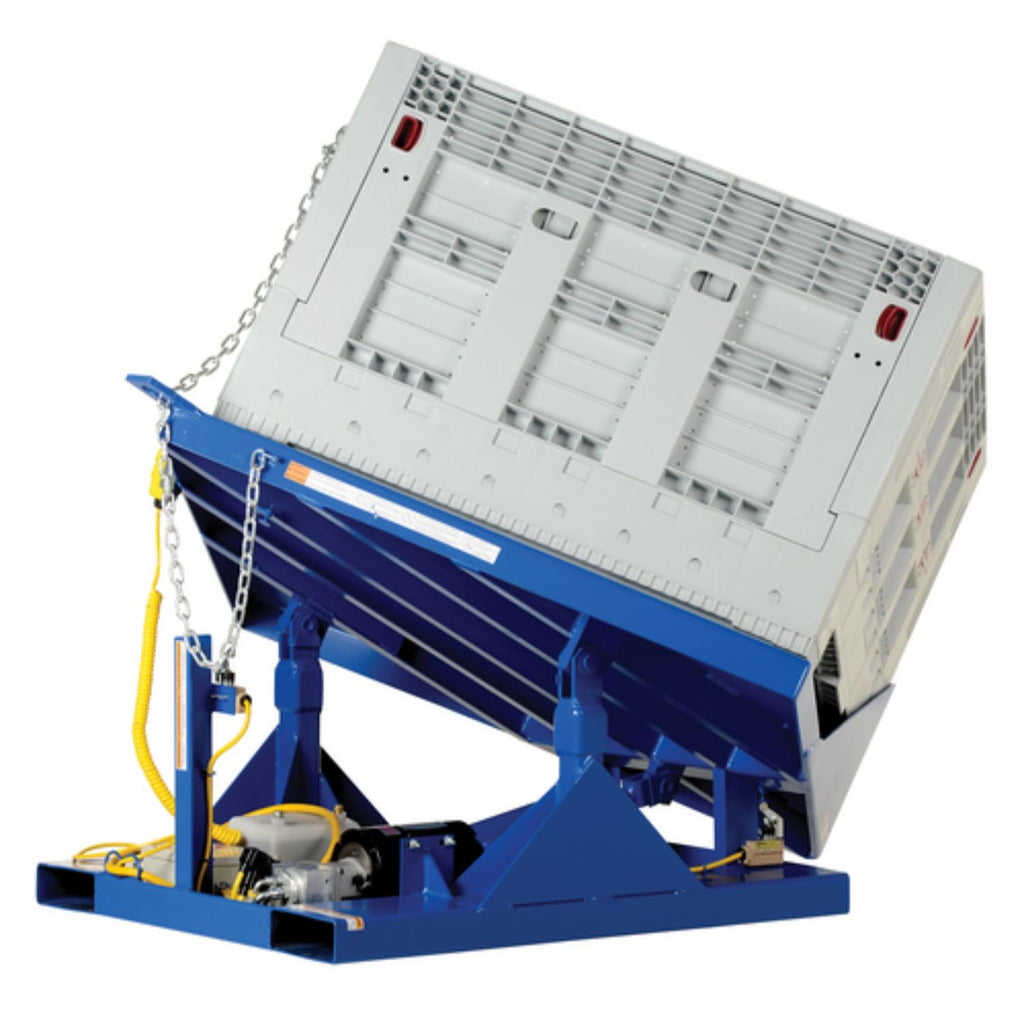

The electric/hydraulic corner tilter reduces repetitive motion injuries and fatigue while making your job easier and faster. It's designed to corner tilt pallets, crates, boxes, or baskets. The AC powered motor has a push button control with additional voltage options available.
Features
- The 29 degree tilt makes many packaging jobs easier and faster
- Built in fork tubes make portability easy with a fork truck
- Ergonomic design reduces repetitive motion injuries and fatigue
- Corner tilt design can tilt pallets, crates, boxes, and baskets
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Overall Height (in) | 36 |
| Overall Length (in) | 71.8125 |
| Overall Width (in) | 68 |
| Platform Length (in) | 48 |
| Platform Width (in) | 48 |
| Platform Material | Steel |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Weight (lbs) | 613 |
| Maximum Tilt Angle (°) | 29 |
| Cradle Height (in) | 24 |
| Operation Method | Push Button |
| Frame Material | Steel |
| Lifting Speed (sec/ft) | 7 |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
