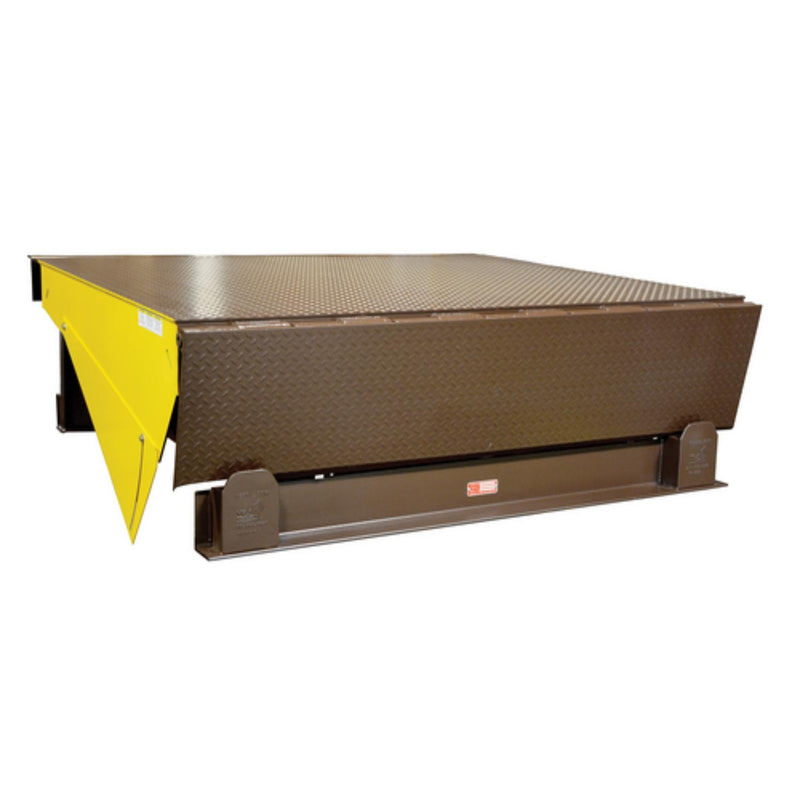

The electric hydraulic dock leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. It includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.
Features
- Hydraulic design is state of the art with simple push button operation
- When the deck is raised lip automatically extends for easy loading/unloading
- Control box includes a red emergency stop button for optimal safety
- Features telescopic steel toe guards on both sides for added safety
Specifications
| Specification | Details |
|---|---|
| Operating Method | Electric Hydraulic |
| Overall Width (in) | 72 |
| Overall Length (ft) | 8 |
| Weight Capacity (lbs) | 35000 |
| Weight (lbs) | 1945 |
| Dock Leveler Lip Projection (in) | 16 |
| Maximum Service Above Dock (in) | 12 |
| Maximum Service Below Dock (in) | 12 |
| Platform Material | Steel |
| Platform Length (in) | 4.5 |
| Platform Width (in) | 14 |
| Platform Thickness (in) | 0.25 |
| Color / Finish | Brown/Yellow |
| Bumper Projection (in) | 4.5 |
| Bumper Pad Width (in) | 14 |
| Bumper Pad Thickness (in) | 4.5 |
| Bumper Pad Height | 10 |
| Motor Horsepower (hp) | 2 |
| Electric Motor Voltage | 460 |
| Phase | Three Phase |
| Installation Method | Electrician Crew Installed |
| Installation Hardware Included | No |
| Additional Contents | Electrical Crew Must Install |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
