Description
Description

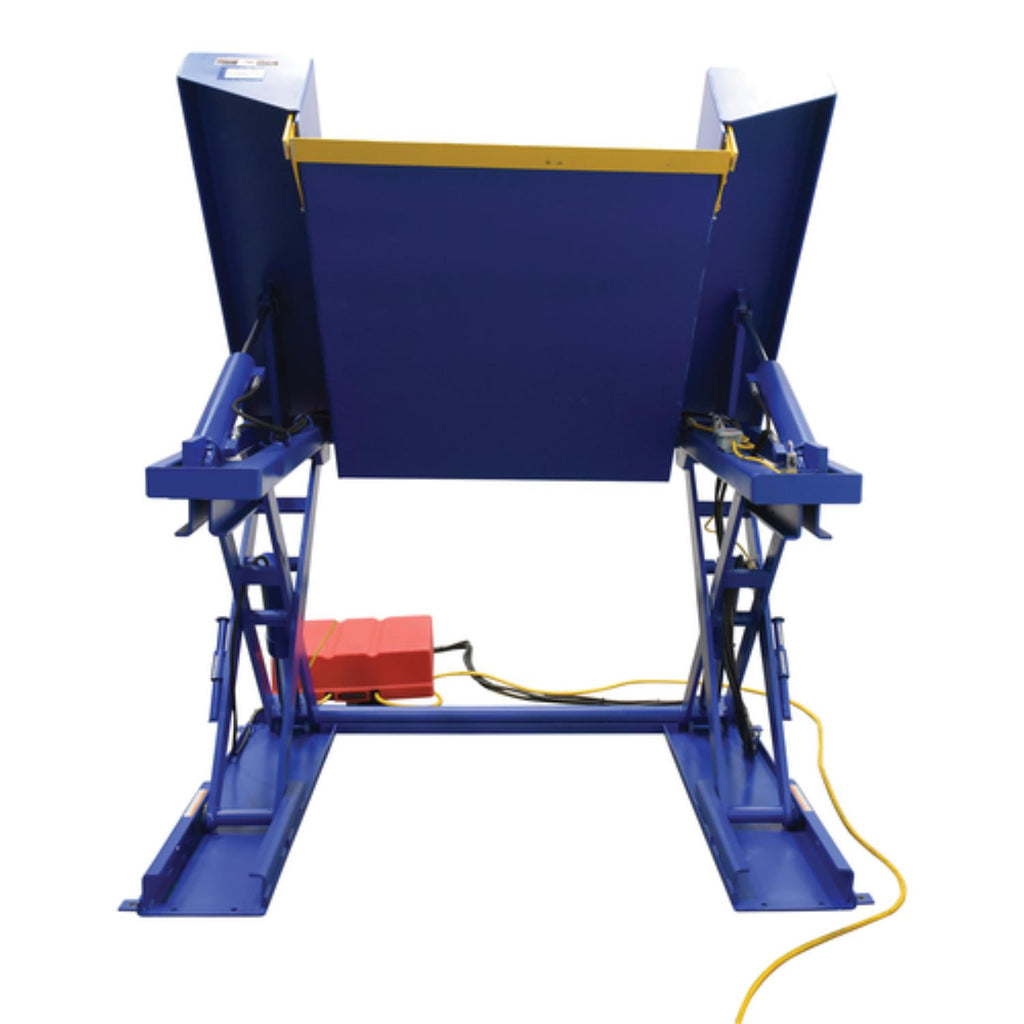

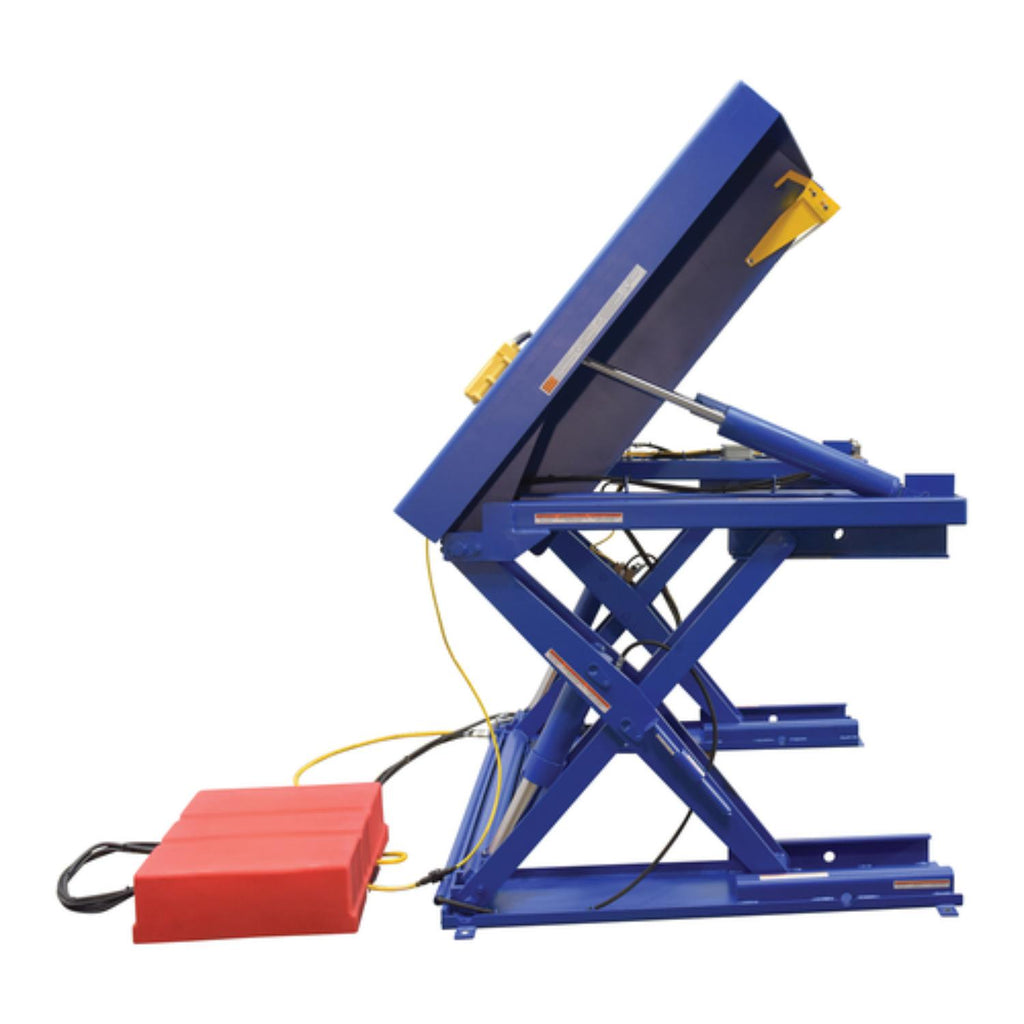

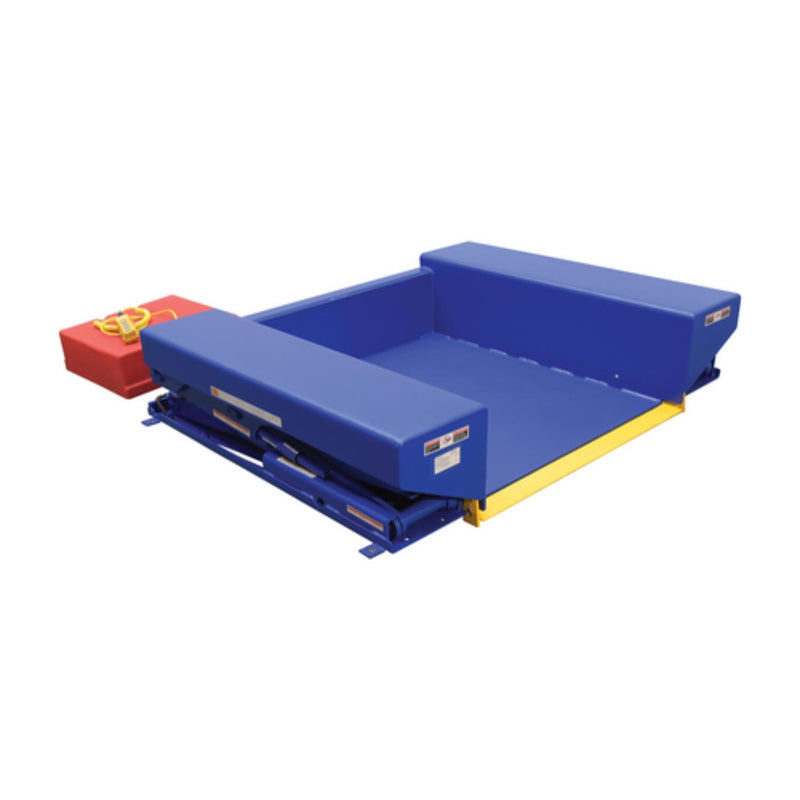

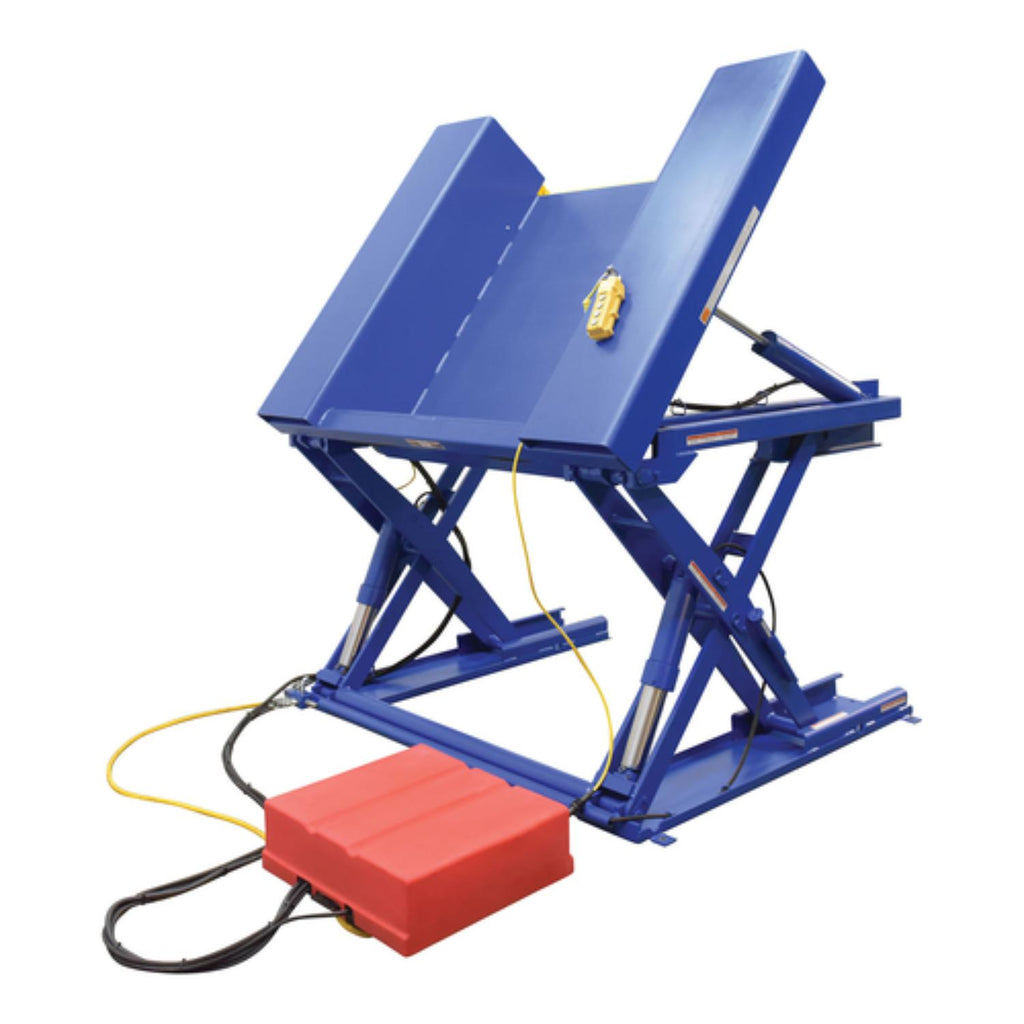

A ground lift and tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. A remote power unit with hand-held control is standard.
Features
- A variety of tilt angles for optimum ergonomic positions
- Large capacity for handling loads both big and small
- Simple installation for quick and immediate use
- Lowered height allows pallet and hand trucks to load and unload easily
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Material | Steel |
| Platform Length (in) | 52.75 |
| Platform Width (in) | 44 |
| Platform Thickness (in) | 0.5 |
| Maximum Height (in) | 34 |
| Minimum Height (in) | 0.5 |
| Maximum Travel Distance (in) | 34.8125 |
| Maximum Tilt Angle (°) | 45 |
| Lip Height (in) | 12 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Operation Method | Push Button |
| Overload Protection | Yes |
| Lifting Speed (sec/ft) | 32 |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Power Cord Length (ft) | 8 |
| Installation Hardware Included | Not Required |
| Weight (lbs) | 2181 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
