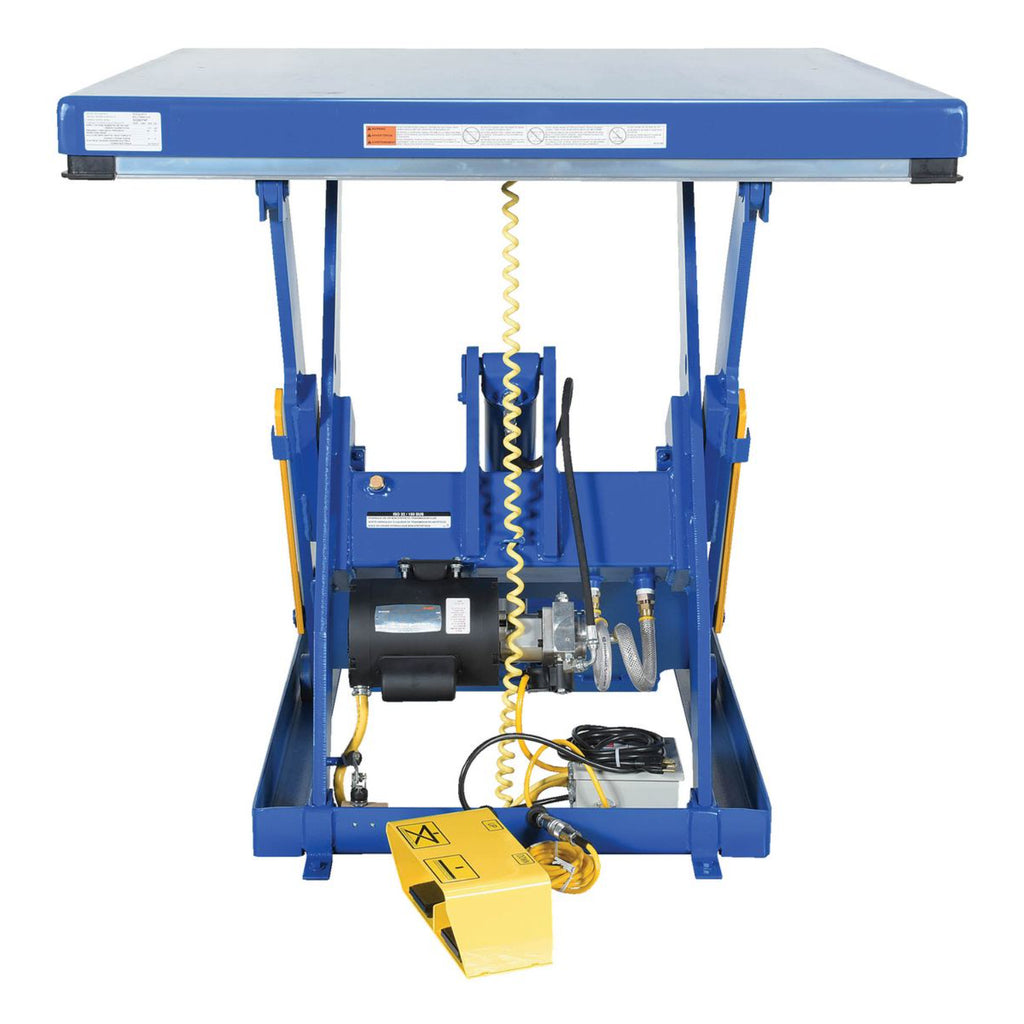

The electric hydraulic scissor lift table with foot control is used by all types of manufacturing and warehouse facilities. The unit lifts products to a desired height creating an ergonomically friendly workspace. The lift table is designed with steel construction for durability and longevity. Additional safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table as well as a foot control for lowering and raising the unit. An internal safety velocity fuse is included to maintain platform height in the event of hose or fitting failure. The standard 56 frame electric motor is fully enclosed with additional voltage options available.
Features
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
Specifications
| Uniform Capacity (lb.) | 2,000 |
| Voltage/Phase | 460/3 |
| Hydraulic Component Rating (psi) | 3000 |
| Raised Height (in.) | 43 |
| Travel Time (sec.) | 11 |
| Hertz | 60 |
| Cord Length (in.) | 96 |
| Lowered Height (in.) | 7 |
| Vertical Travel (in.) | 36 |
| Motor Horsepower | 2 |
| Push Button Hand Control | 24V AC |
| Platform Width/Length (in.) |
24-3/8 x 48-3/8 |
| Total Ship Wt.(lbs.) | 639 |
| Size |
24.375"W x 51"L x 7"H
|
| Color | Blue |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
- Cancelable: N
- Packaging is Returnable: N
