Description
Description

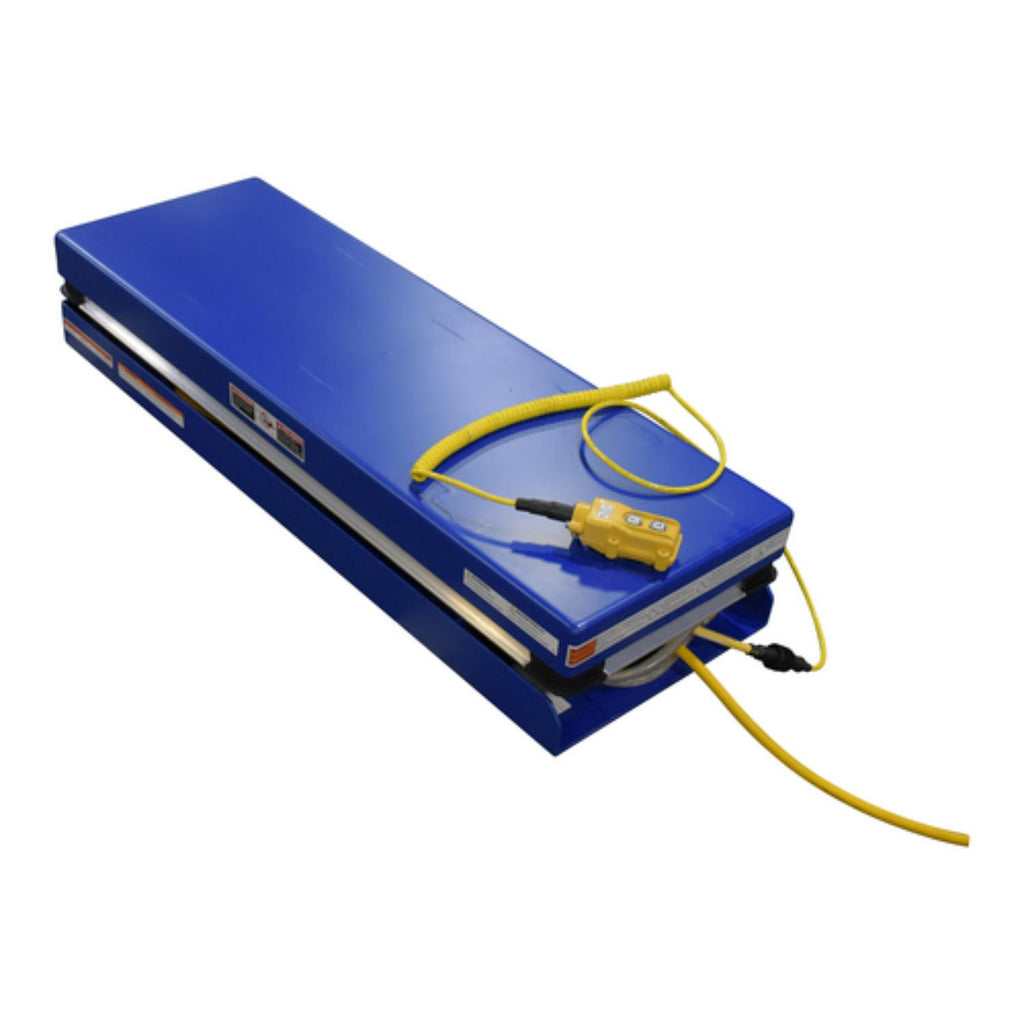

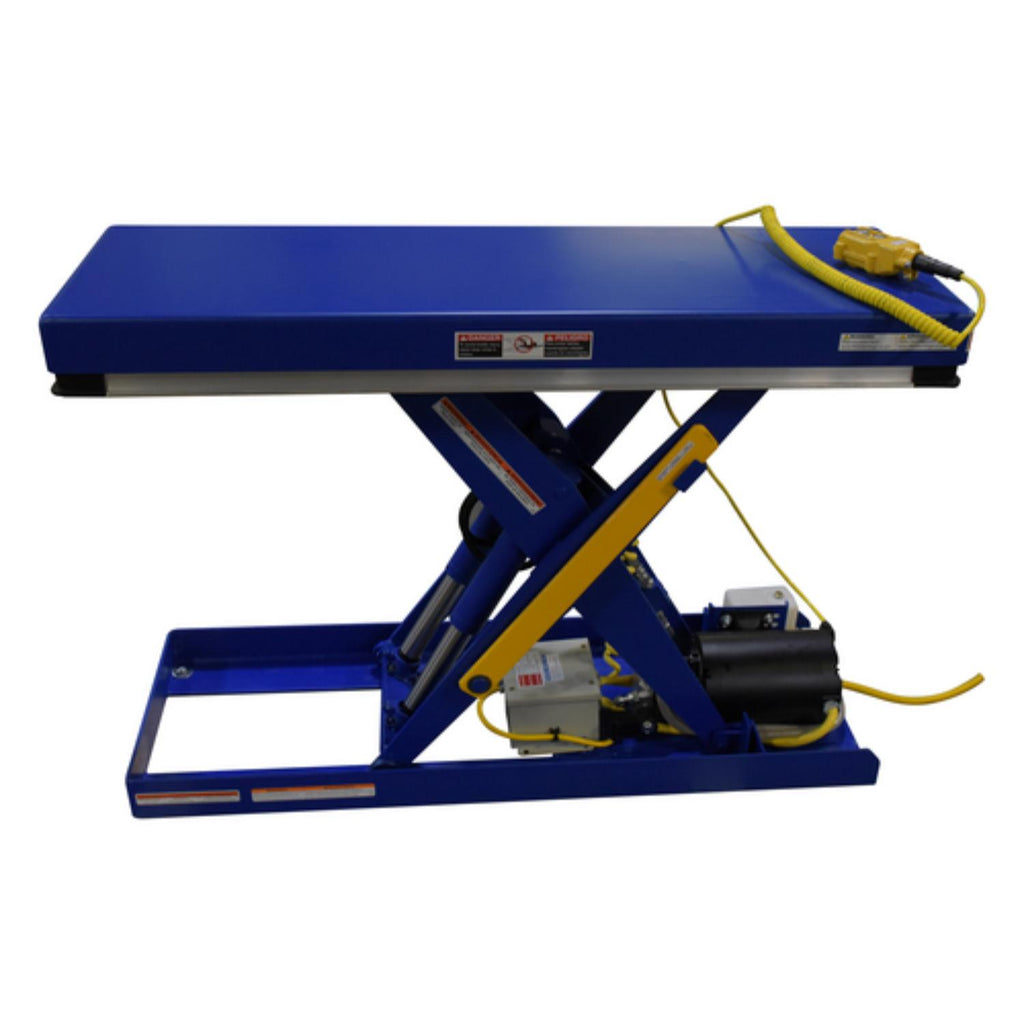

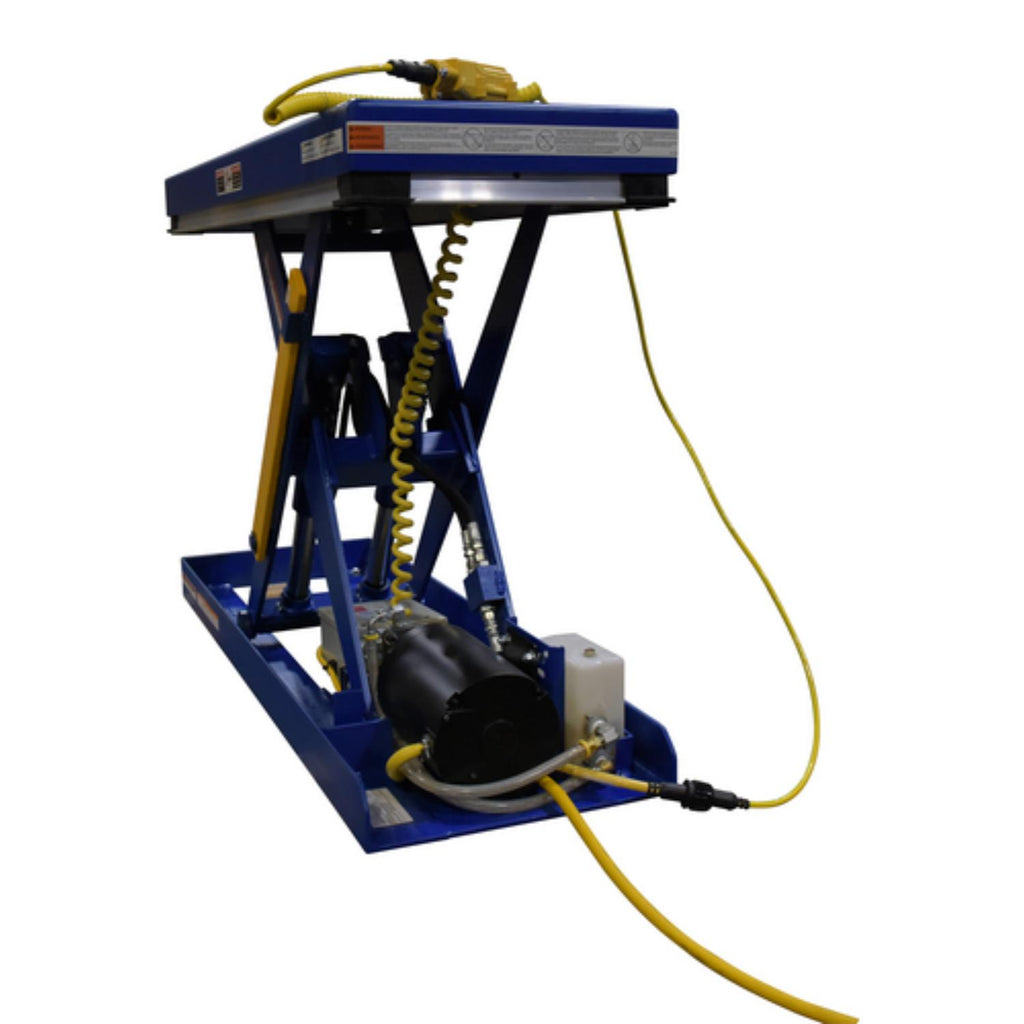

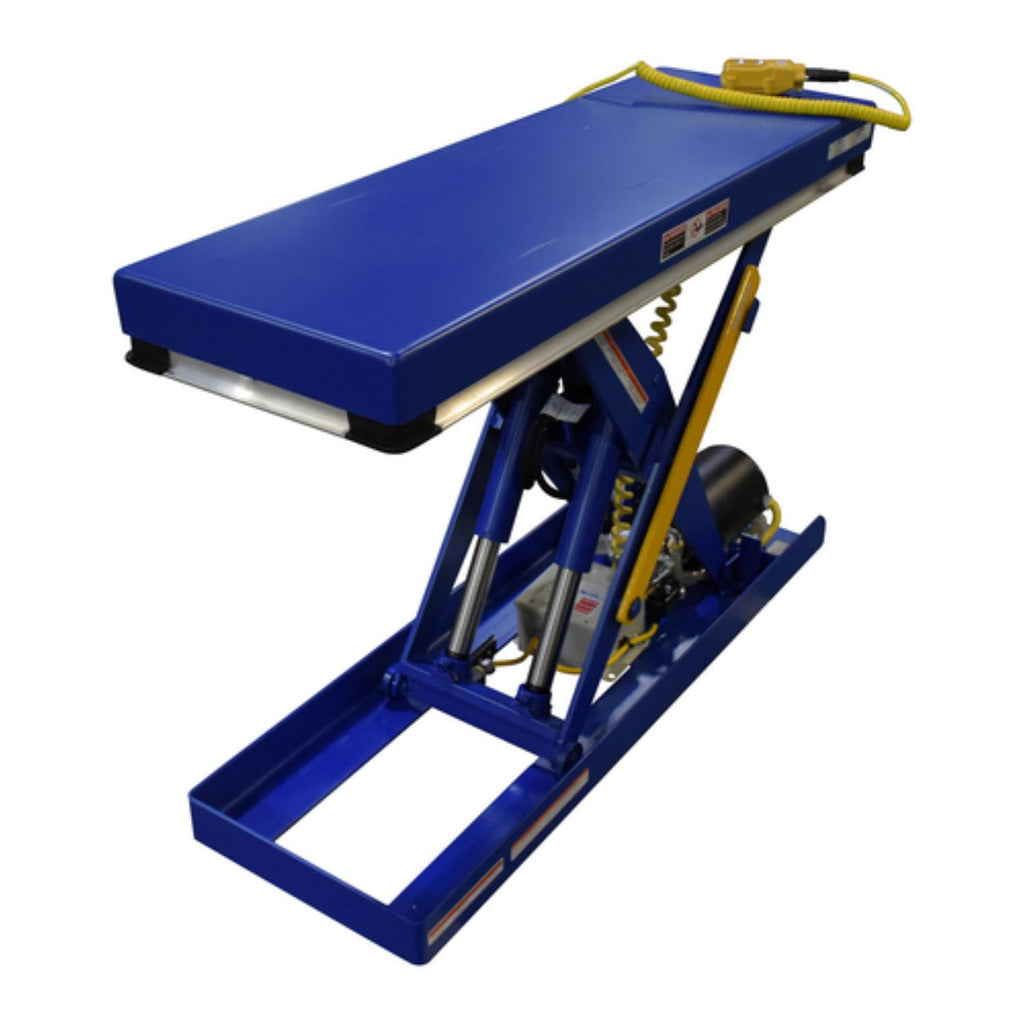

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points while lowering the table, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, maintenance prop, upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and a state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available.
Features
- Electric toe guard protects pinch points while lowering for maximum safety
- Internal safety velocity fuse maintains platform height in case of hose or fitting failure
- Displacement-style hydraulic cylinders for maximum strength
- Standard 56 frame electric motor is a fully enclosed with optional voltages available
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 48 |
| Platform Width (in) | 16 |
| Platform Material | Steel |
| Maximum Height (in) | 32 |
| Minimum Height (in) | 8 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 300 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Hand Operated |
| Lifting Speed (sec/ft) | 11 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 48.375 |
| Overall Width (in) | 16.375 |
| Overall Height (in) | 8 |
| Maximum Travel Distance (in) | 24 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
