Description
Description

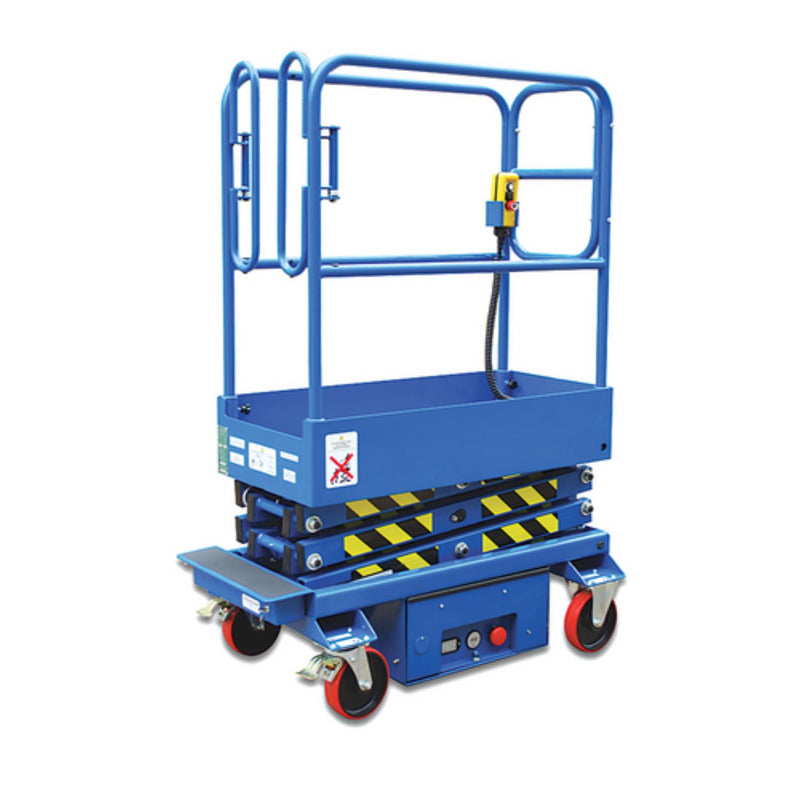

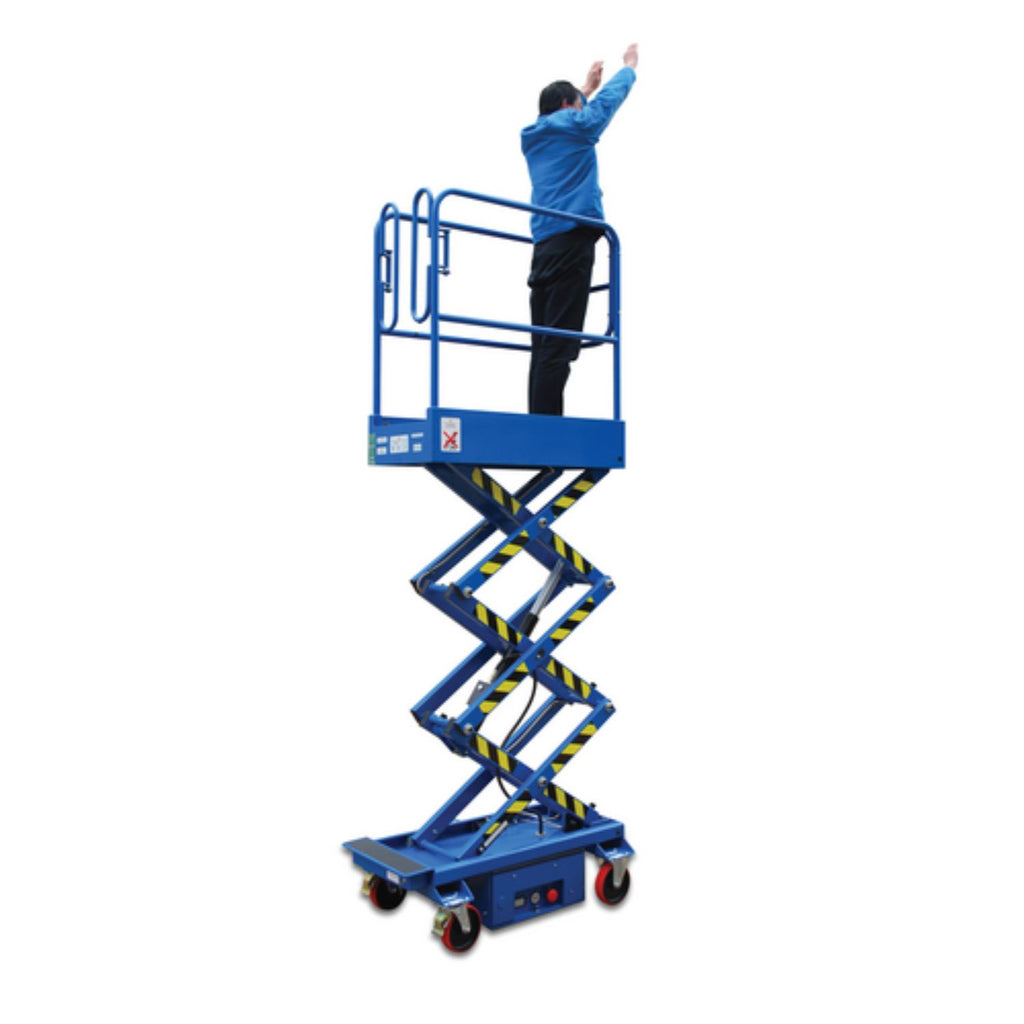

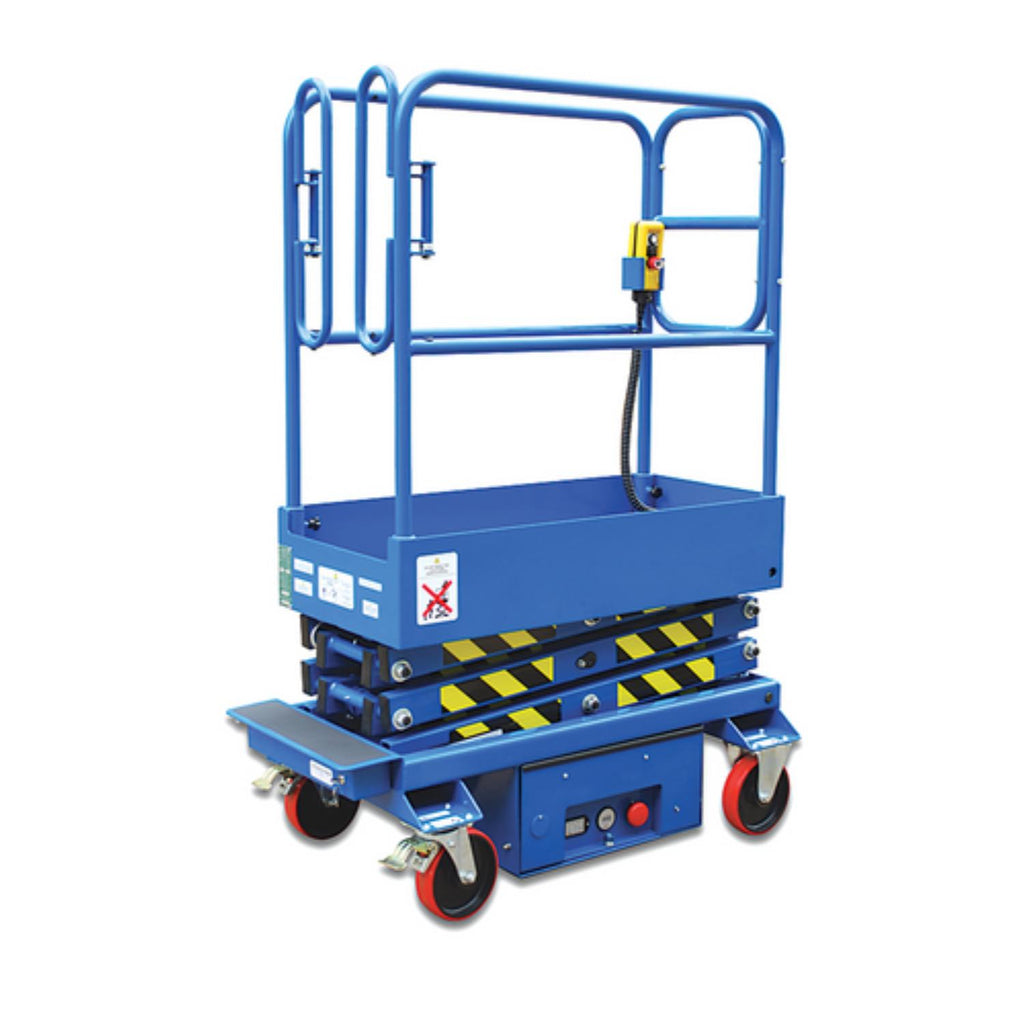

The electric order picker is made of all steel and allows personnel to access material stored in elevated locations faster, safer, and more efficiently than traditional means. Features includes bubble levels for proper leveling and safety stops to mechanically prevent the platform from lowering during maintenance. Compact, stable lifts are designed to maneuver in tight spaces and to provide simple, push-button elevator activation. A manual platform emergency lowering valve and slip-resistant deck are standard. The unit rolls on polyurethane swivel and fixed casters.
Features
- Order picker is electric and allows access to material stored in elevated locations
- Includes bubble levels for proper leveling and safety stops to prevent lowering
- Designed to maneuver in tight spaces and provide elevator activation
- Features a platform emergency lowering valve and a slip-resistant deck
Specifications
| Specification | Value |
|---|---|
| Maximum Working Height (ft) | 9.83 |
| Platform Maximum Height (ft) | 9.83 |
| Platform Maximum Length (ft) | 3.63 |
| Platform Minimum Length (ft) | 3.63 |
| Platform Railing Height (in) | 43.5 |
| Stock Tray Length (in) | 43 |
| Stock Tray Width (in) | 20 |
| Minimum Stored Height (ft) | 5.91 |
| Minimum Stored Length (ft) | 4.12 |
| Platform Width (ft) | 1.72 |
| Raise Time (sec) | 27 |
| Lowering Time (sec) | 33 |
| Lift Capacity (lbs) | 500 |
| Weight (lbs) | 715 |
| Color / Finish | Blue |
| Frame Material | Steel |
| Battery Voltage (V) | 12 |
| Battery Count | 1 |
| Battery Ampere-hour (Ah) | 80 |
| Ground Clearance (in) | 27 |
| Wheelbase (in) | 4 |
| Tire Size | 8"x2" |
| Toe Board Height (in) | 6 |
| Base Width (ft) | 2.56 |
| Base Length (ft) | 4.12 |
| Person Capacity | 1 |
| Horn Included | No |
| Hour Meter | No |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
