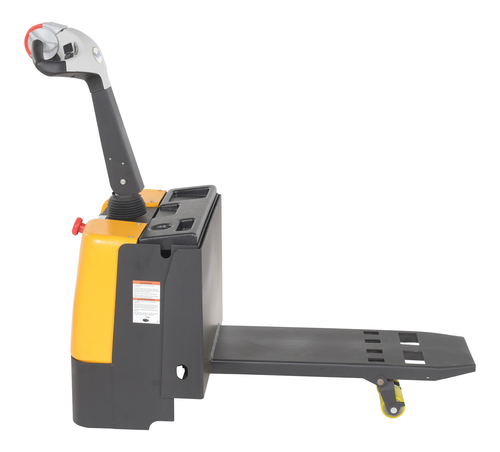

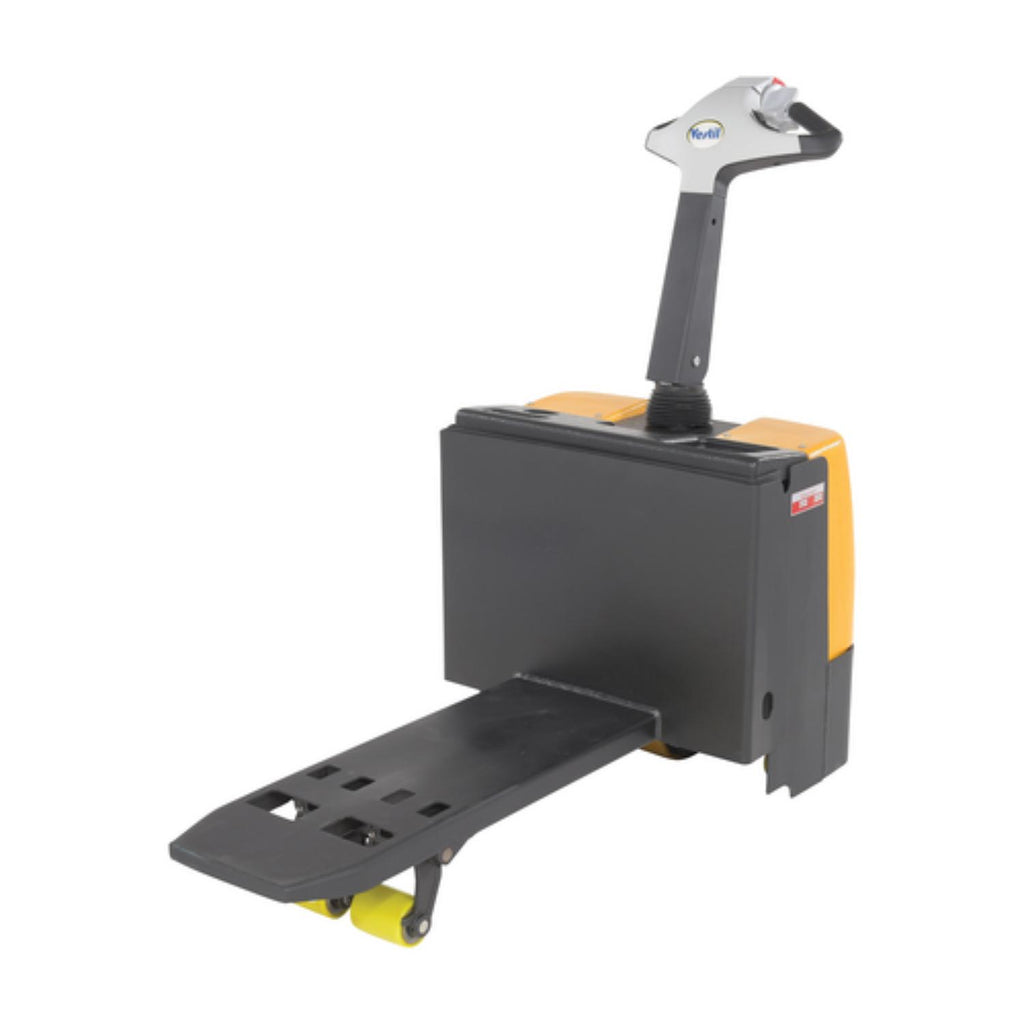

An electric pallet truck with a single fork is perfect for half and quarter sized pallets. DC powered with a short turning radius, this unit works well in crowded warehouse and shipping areas. Single handle steering control makes changing direction simple. Powered driving controls are located directly on the handle for user safety. 24V battery gives the truck a steady supply of power throughout its daily use. Powder coated black for a sleek look and a baked-in tough finish. Horn is also included.
Features
- Poly-on-steel casters
- DC powered
- 48" fork length
- Emergency reverse belly switch instantly reverses direction
Specifications
| Specification | Details |
|---|---|
| Assembly Required | None |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fully Welded Frame | Yes |
| Handle Length (in) | 46 |
| Handle Material | Steel |
| Material | Steel |
| Lift Height Maximum (in) | 7.625 |
| Maximum Travel Distance (in) | 4.525 |
| Maximum Amperage (A) | 10 |
| Power Source | Electric |
| Voltage (V) | 24 |
| Weight Capacity (lbs) | 2600 |
| Depth (in) | 65 |
| Height (in) | 46 |
| Width (in) | 25.25 |
| Wheel Material | Poly on Steel |
| Fork Lowered Height (in) | 3.1 |
| Fork Width (in) | 12 |
| Fork Length (in) | 32 |
| Fork Thickness (in) | 2.5 |
| Load Center (in) | 6 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
