Description
Description

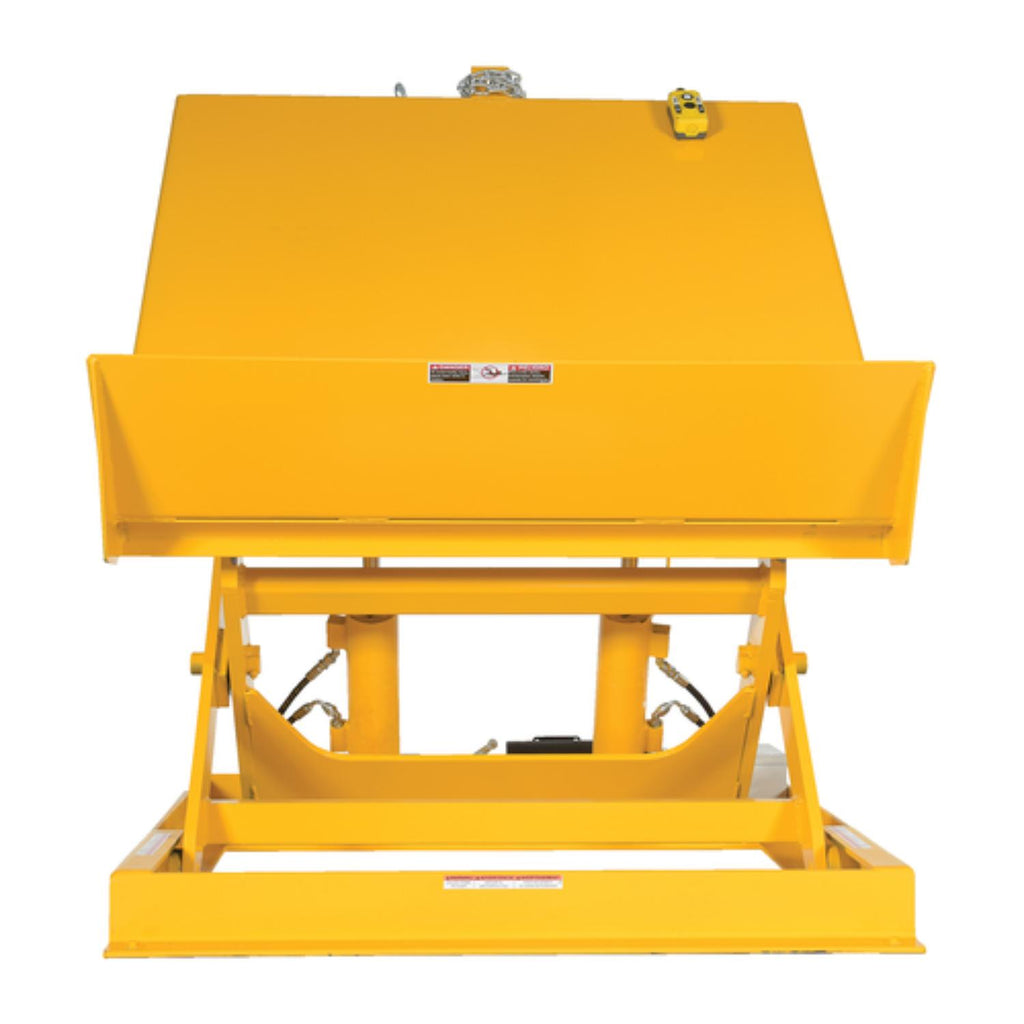

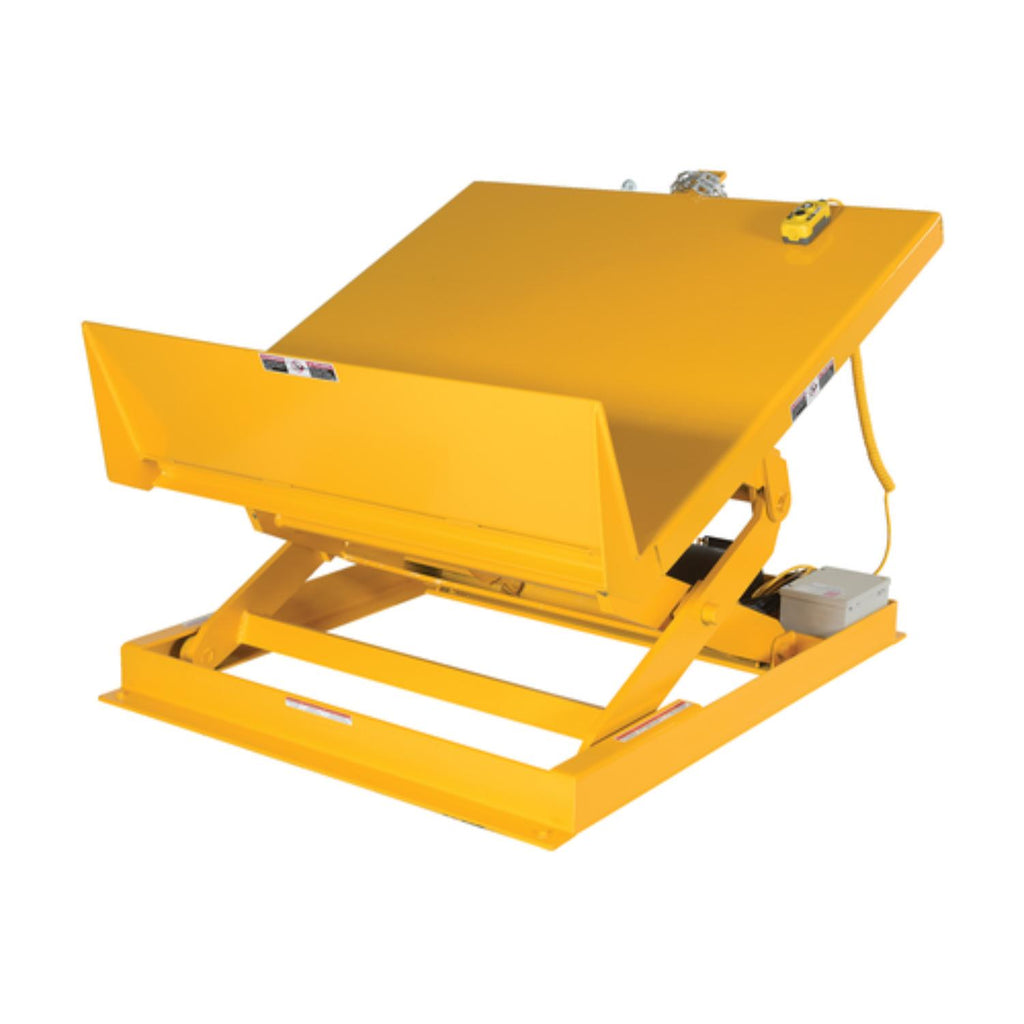

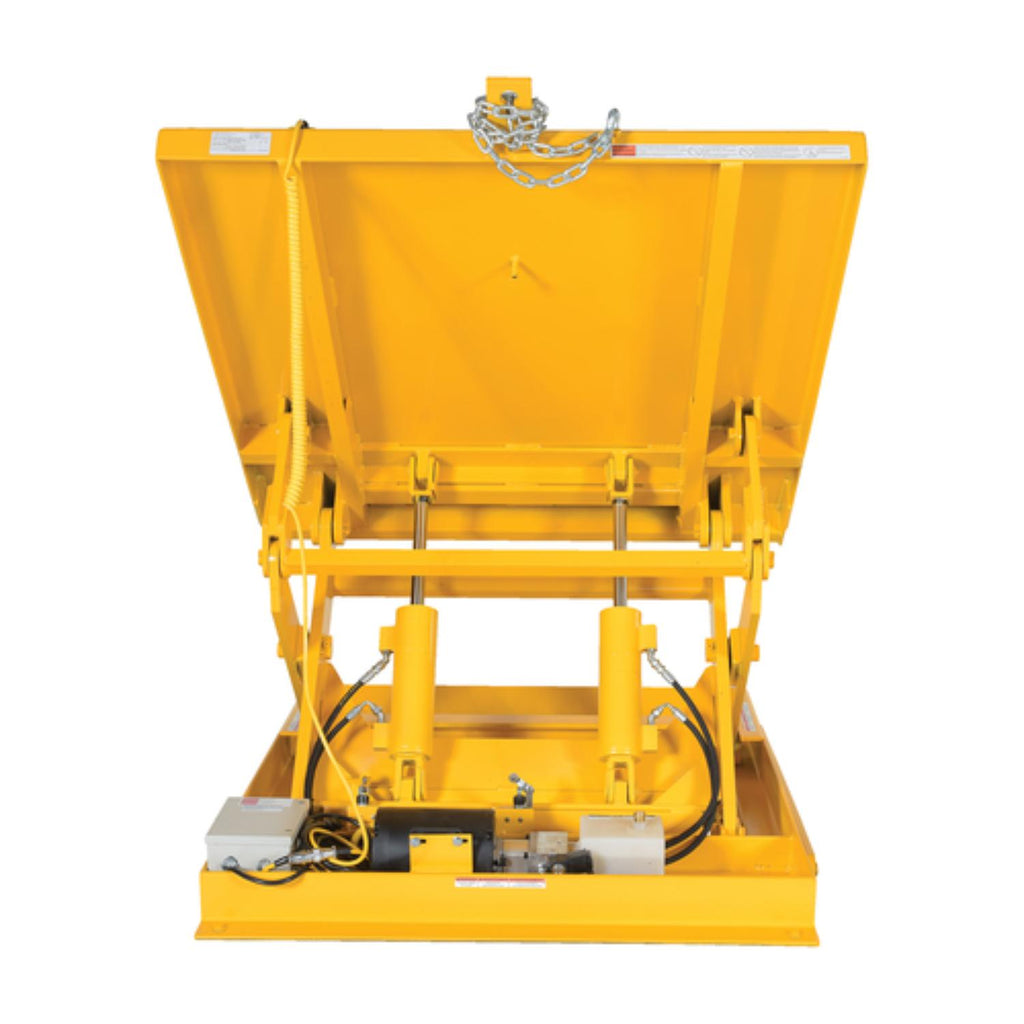

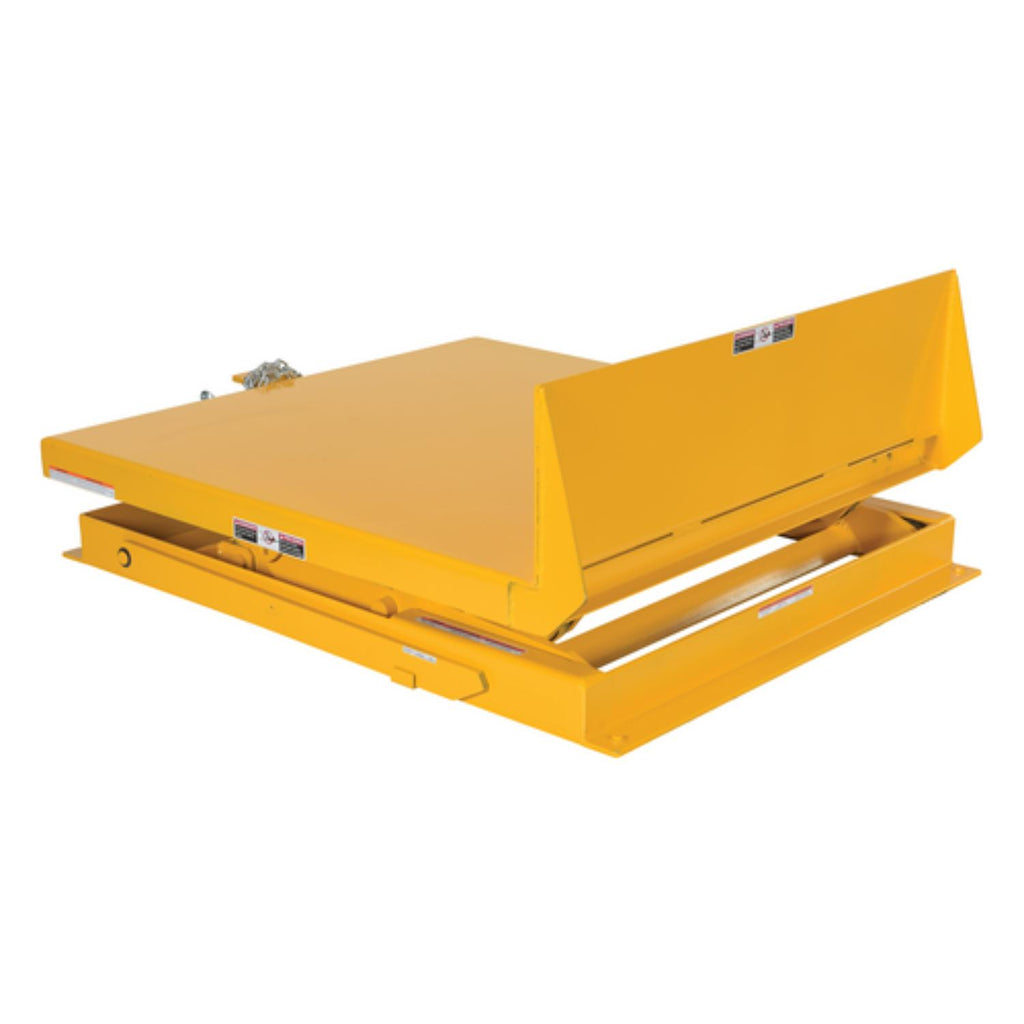

The lift & tilt workstation table allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers. The internal power unit includes electric motor, hydraulic pump, and control box. It includes a two-button hand held pendent control with optional voltages available. The welded steel construction has a yellow painted finish.
Features
- Ergonomic design minimizes bending and twisting
- Welded steel construction provides long lasting rugged use
- 44 Degrees tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Material | Steel |
| Platform Length | 48 inches |
| Platform Width | 48 inches |
| Platform Thickness | 3 inches |
| Maximum Height | 24 inches |
| Minimum Height | 10 inches |
| Maximum Travel Distance | 14 inches |
| Maximum Tilt Angle | 44° |
| Lip Height | 12 inches |
| Weight Capacity | 4000 lbs |
| Color / Finish | Yellow |
| Operation Method | Hand Operated |
| Overload Protection | Yes |
| Lifting Speed | 26 seconds per foot |
| Horsepower | 2 HP |
| Phase | Single Phase |
| Power Cord Length | 8 feet |
| Installation Hardware Included | Not Required |
| Weight | 982 lbs |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
