Description
Description

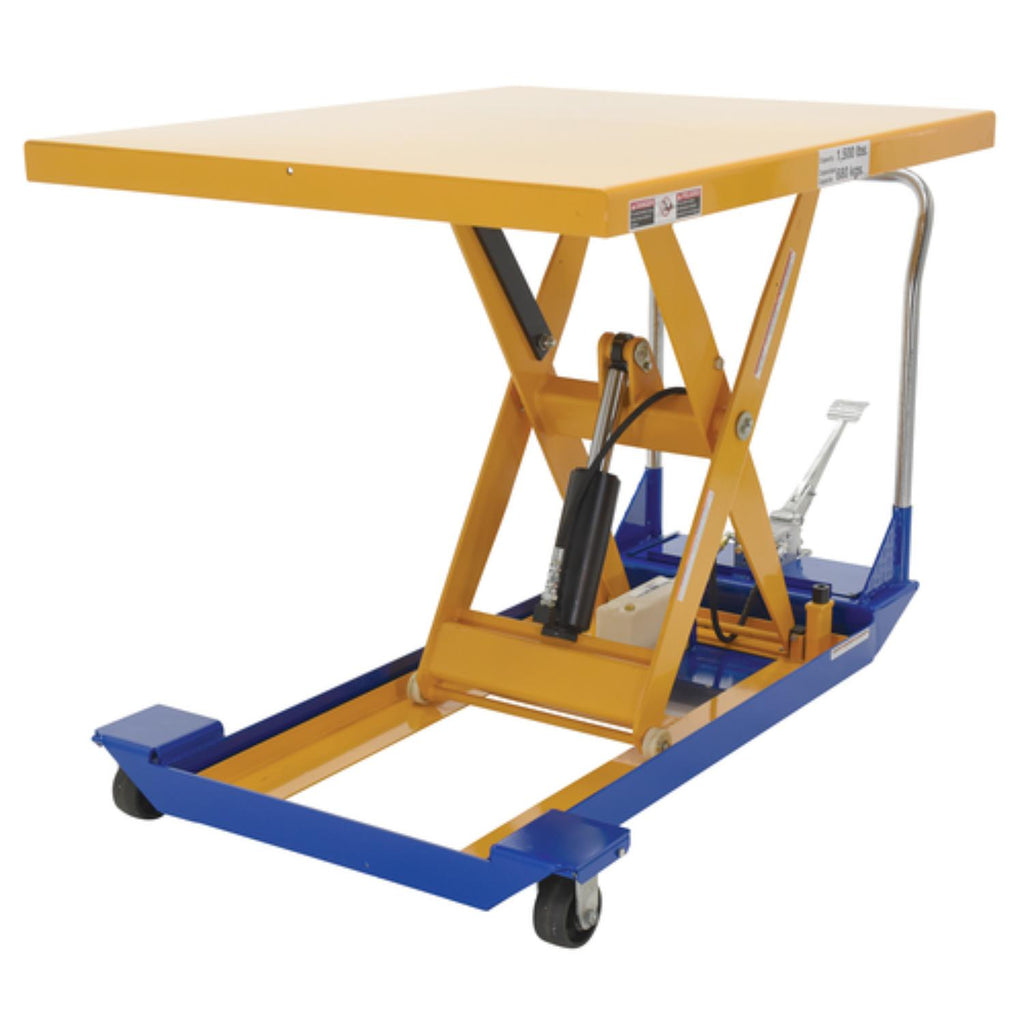

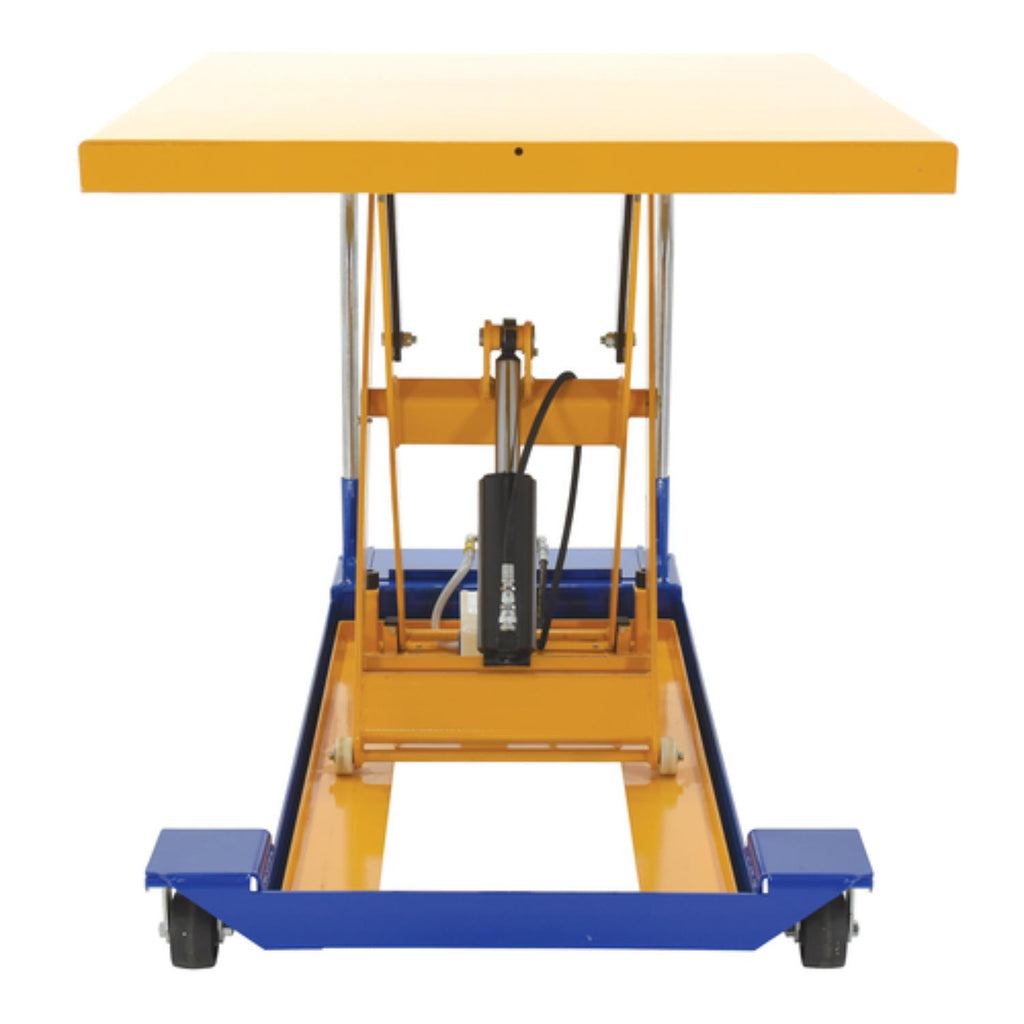

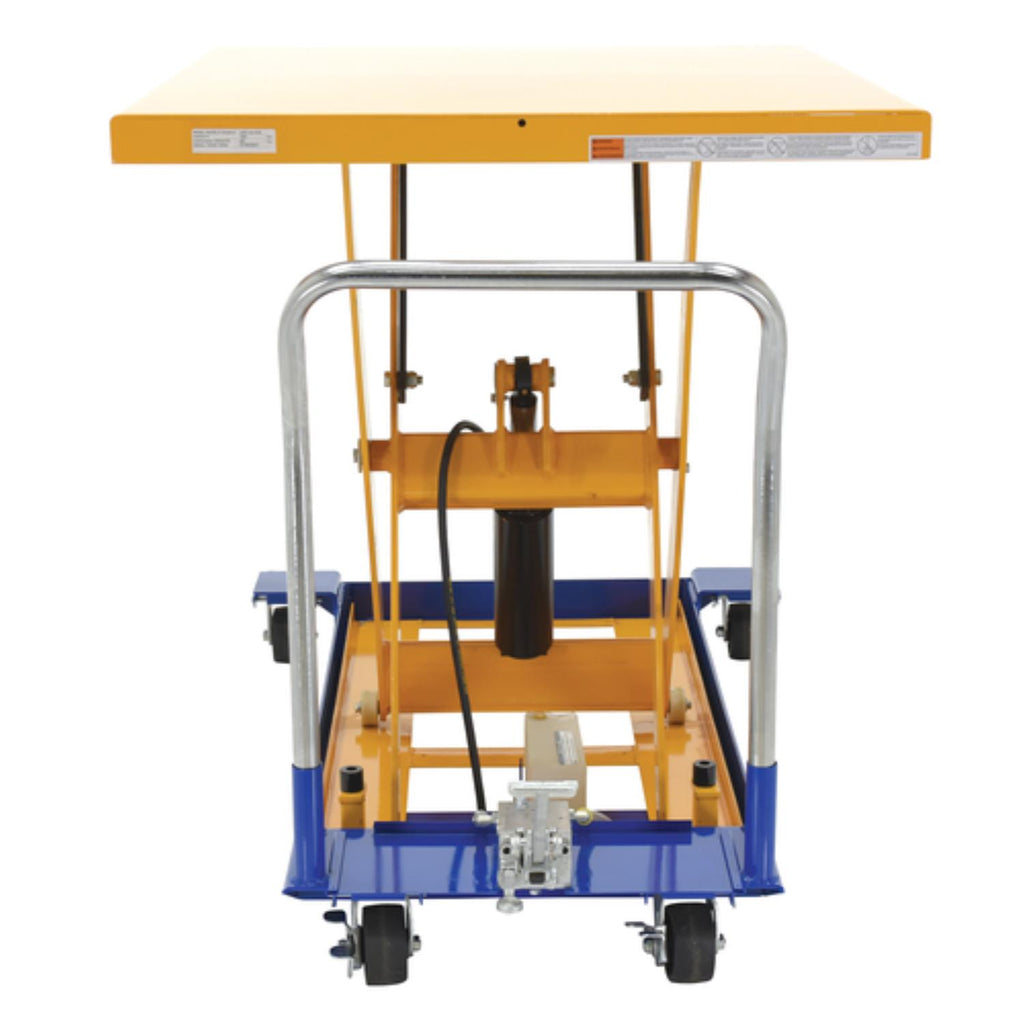

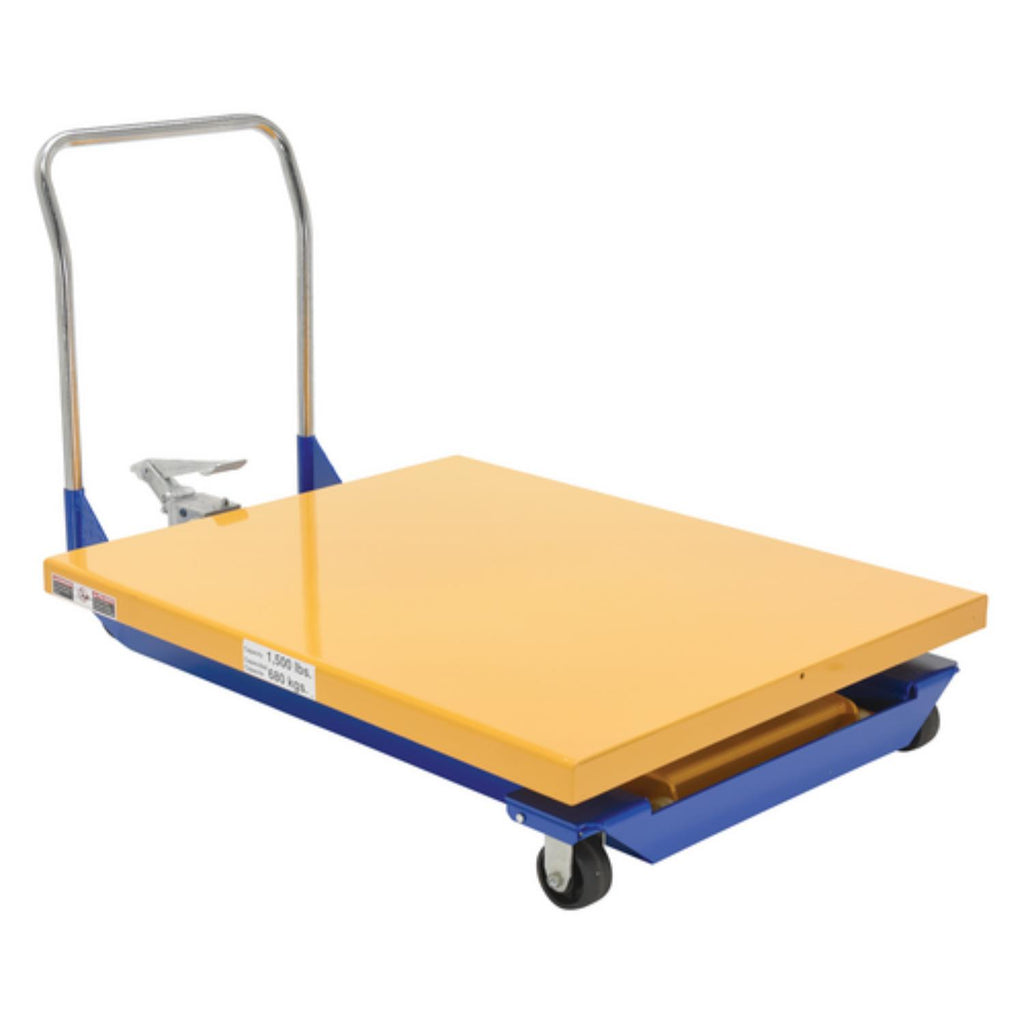

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The push handle is removable. Features an internal safety velocity fuse in each cylinder.
Features
- Solid steel constructions offers long lasting rugged use
- Push handle is removable for user convenience
- Phenolic casters with brakes make transportation easy
- Platform perimeter pinch-point guard is OSHA compliant
Specifications
| Specification | Values |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 48 |
| Platform Width (in) | 40 |
| Platform Material | Steel |
| Maximum Height (in) | 42.5 |
| Minimum Height (in) | 10.5 |
| Maximum Travel Distance (in) | 32 |
| Weight Capacity (lbs) | 1500 |
| Color / Finish | Blue/Yellow |
| Weight (lbs) | 417 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Number of Pumps on Low Setting | 63 |
| Number of Pumps on High Setting | 31 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Phenolic |
| Additional Contents | Includes (2) Rigid Casters with 2 In. Width, and (2) Swivel Casters with Brakes with 2 In. Width |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 69.5 |
| Overall Width (in) | 39.25 |
| Overall Height (in) | 37 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
