Description
Description

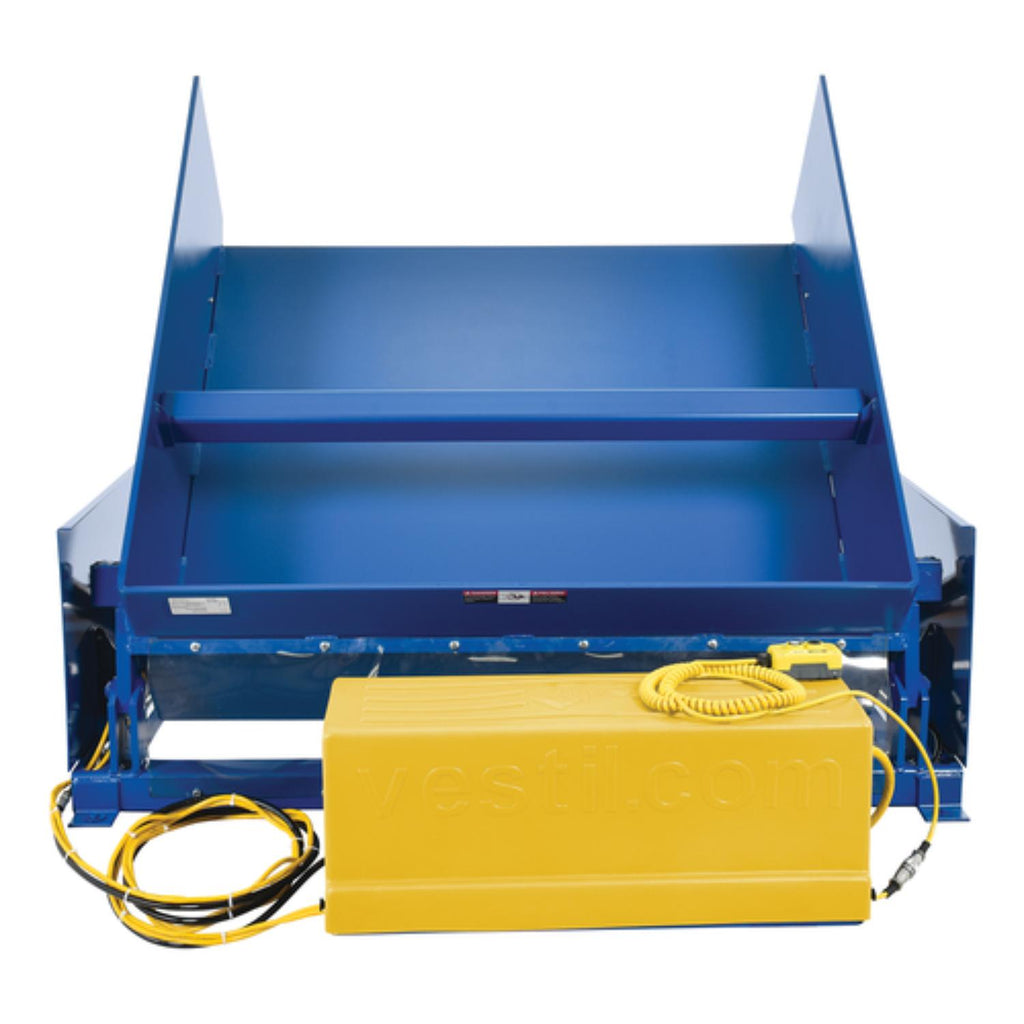

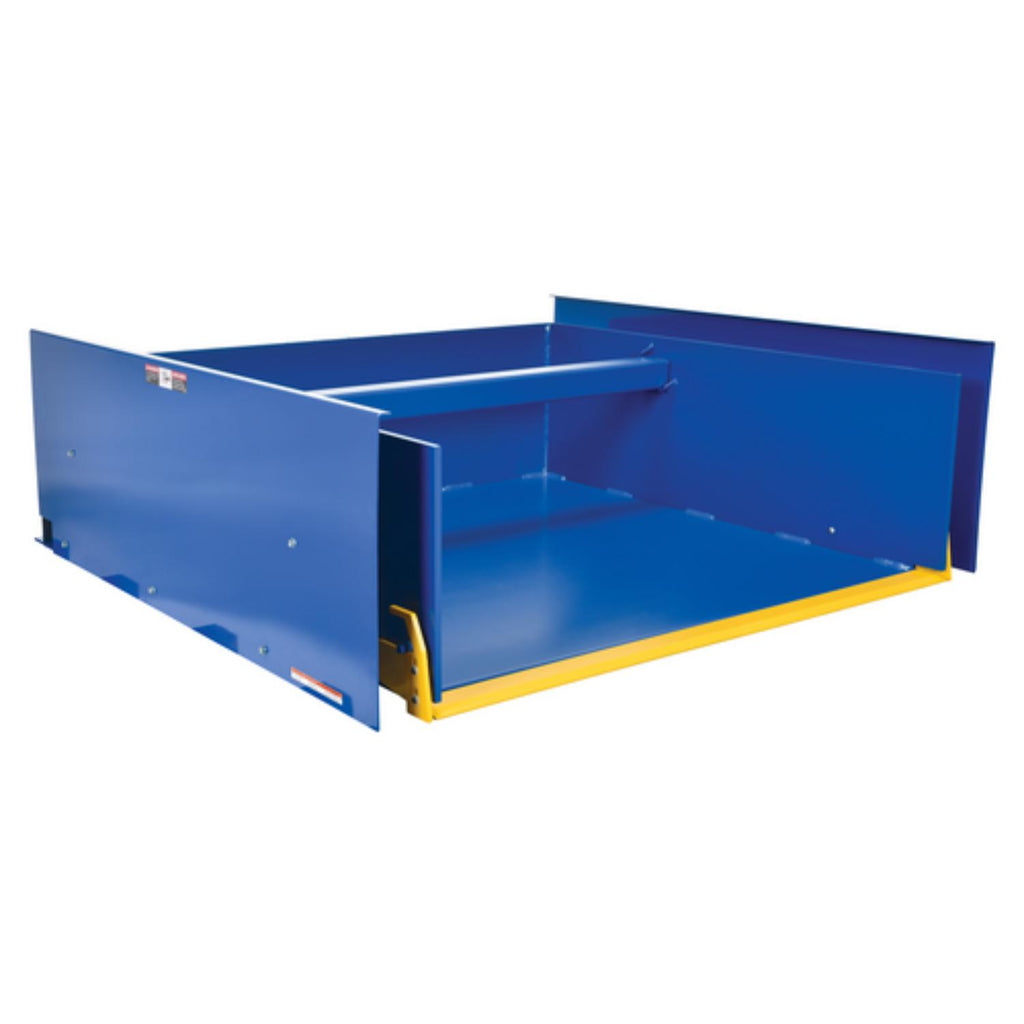

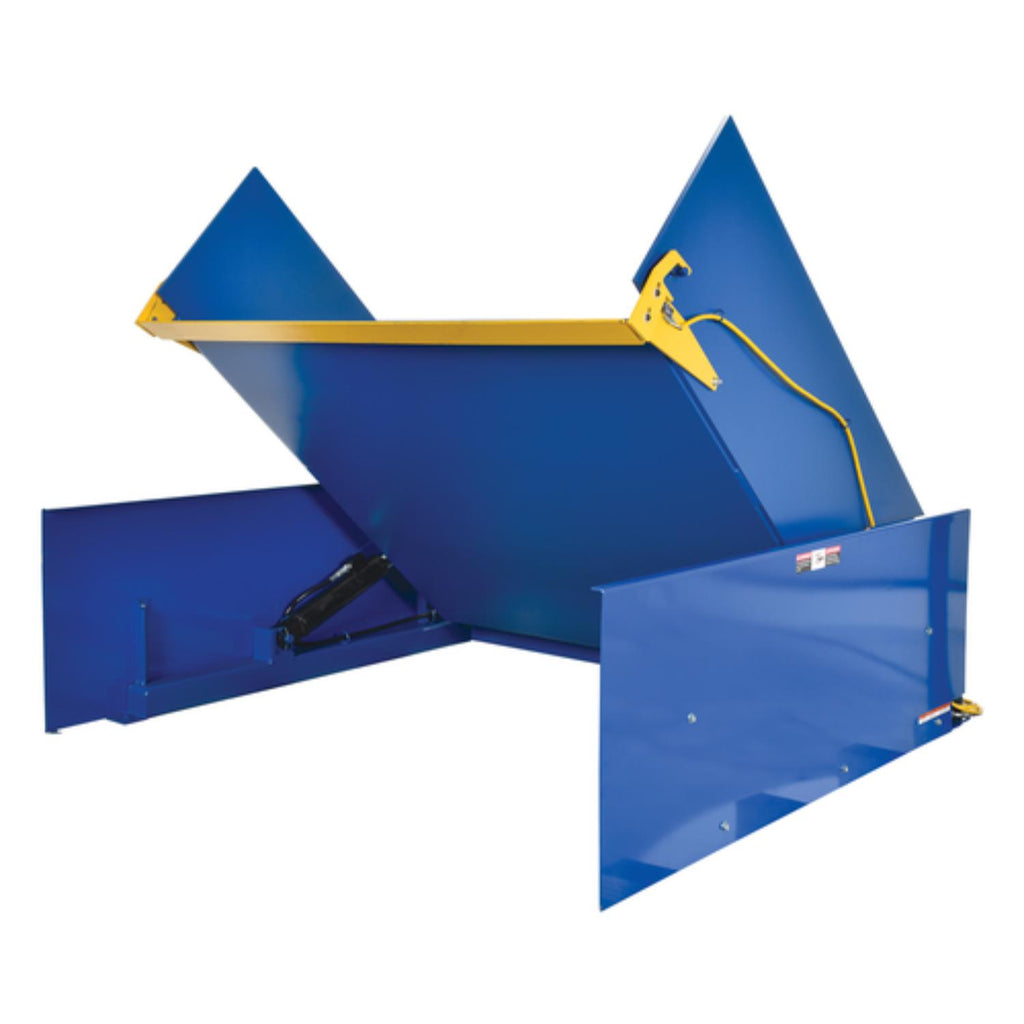

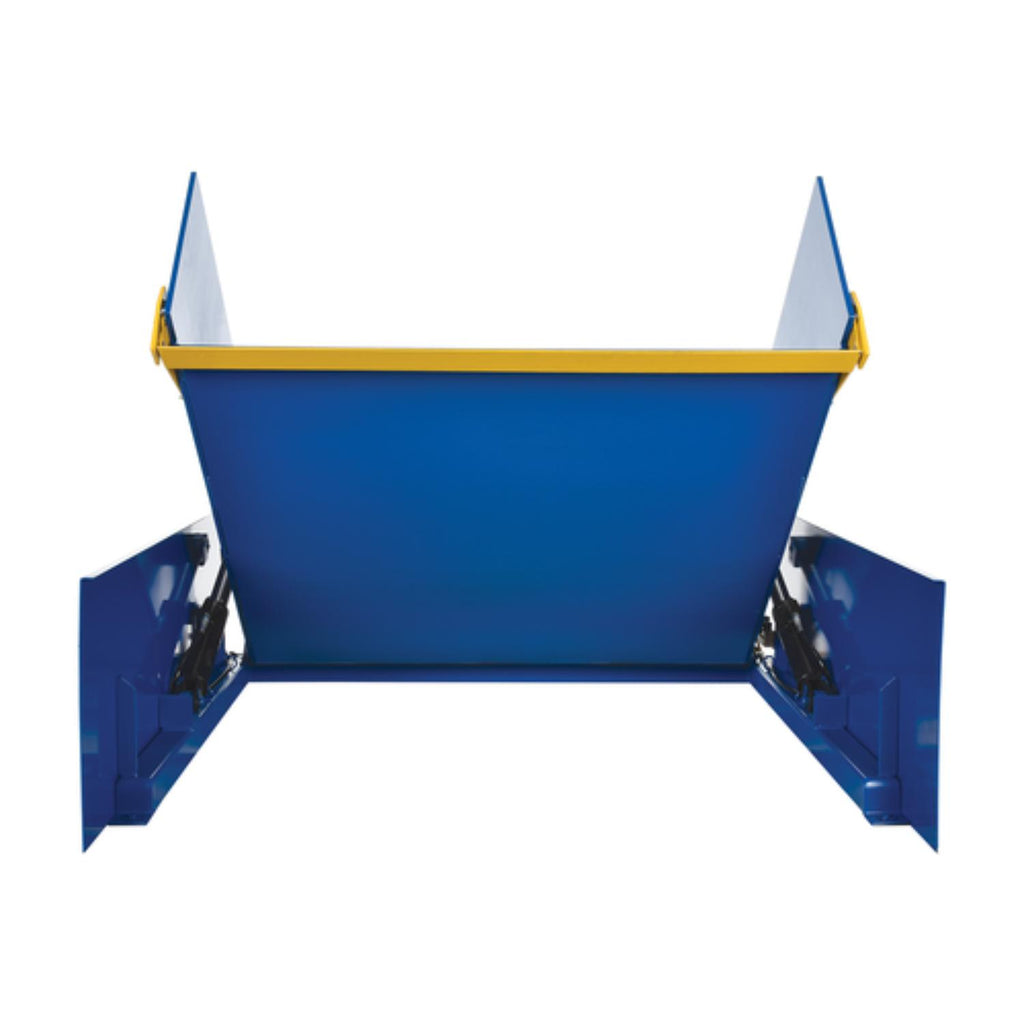

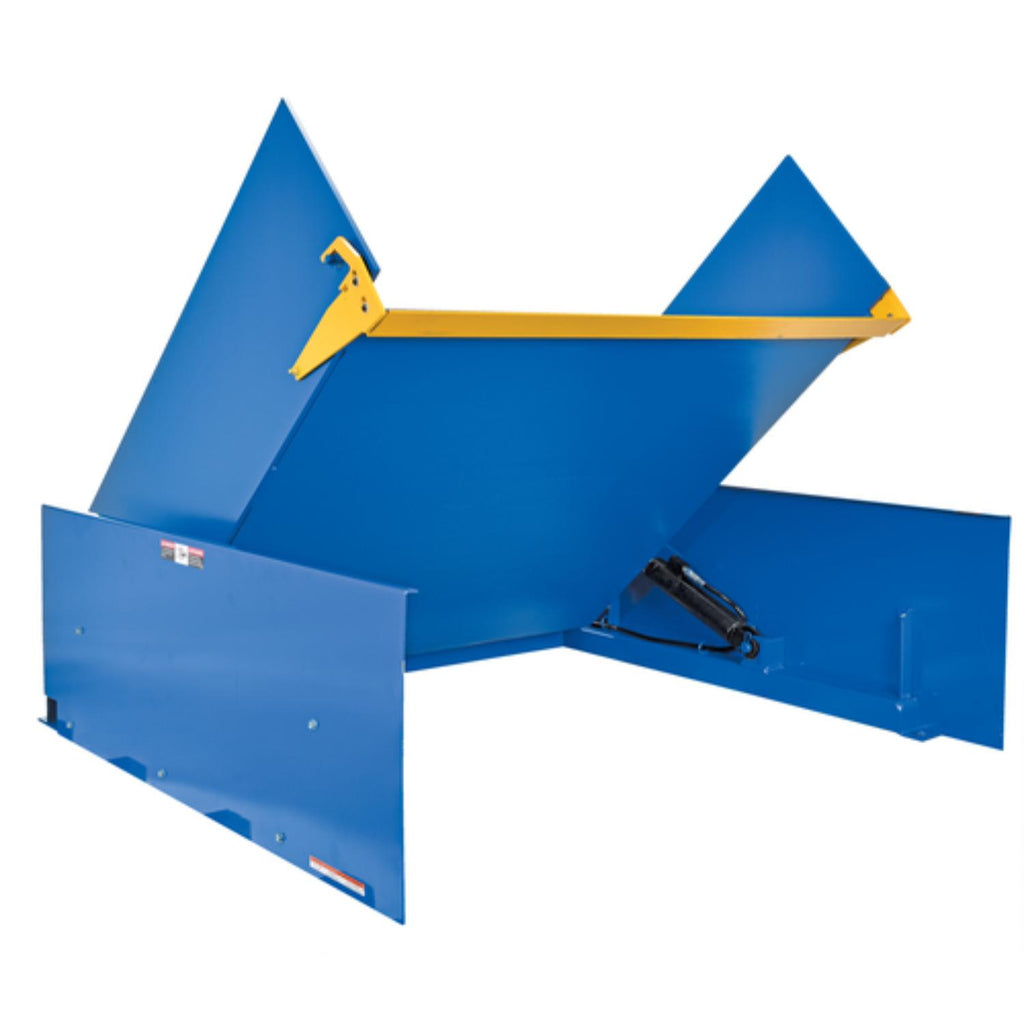

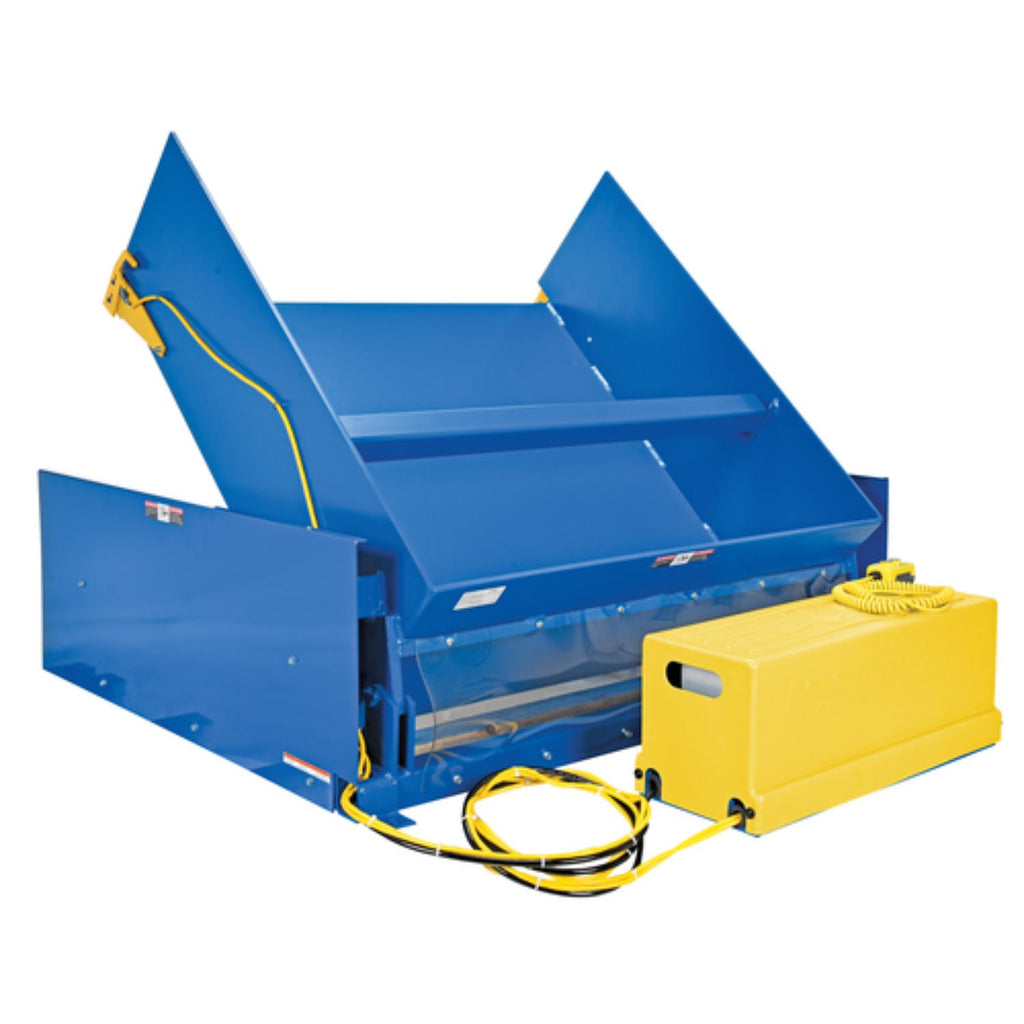

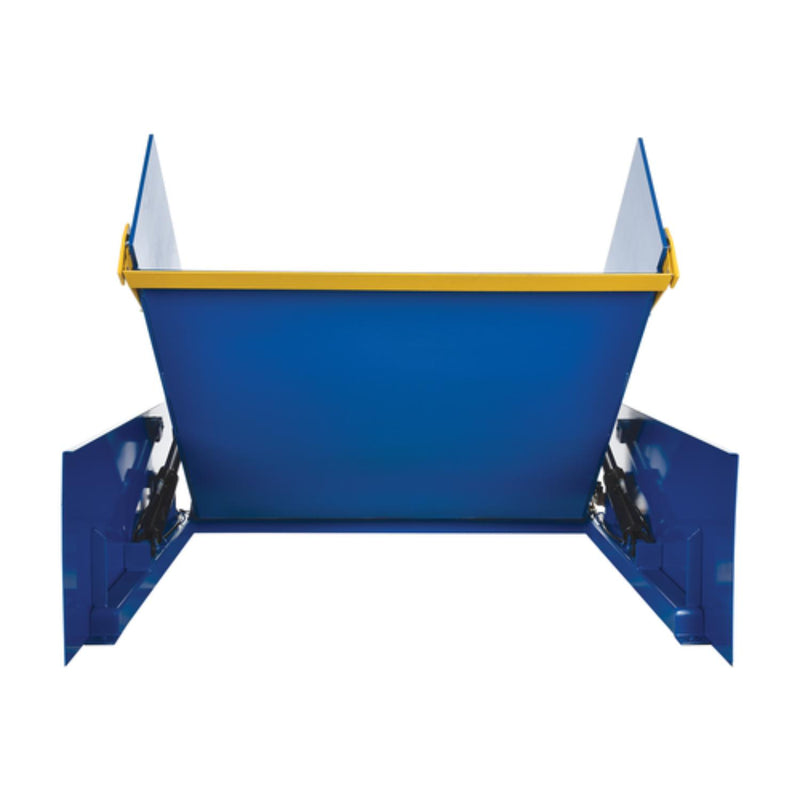

The ground tilter is the best product for tilting applications which require the use of pallet truck for loading and unloading. It is designed with worker safety in mind, pinch point guards are provided on loading side of the unit. The remote power unit comes with a protective cover.
Features
- Rotate containers up to 45 degrees from floor level
- Removable positioning bar used for smaller containers
- Increased height lip on tilt side of unit
- Hand pendant control included
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Overall Height (in) | 20.625 |
| Overall Length (in) | 59.25 |
| Overall Width (in) | 63.5 |
| Platform Length (in) | 49 |
| Platform Width (in) | 51 |
| Platform Material | Steel |
| Height at Level (in) | 0.5 |
| Maximum Tilt Angle (°) | 45 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Frame Material | Steel |
| Horsepower (hp) | 2 |
| Phase | Three Phase |
| Power Cord Length (ft) | 8 |
| Operation Method | Push Button |
| Voltage (V) | 460 |
| Weight (lbs) | 1143 |
| Installation Hardware Included | Not Required |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
