Description
Description

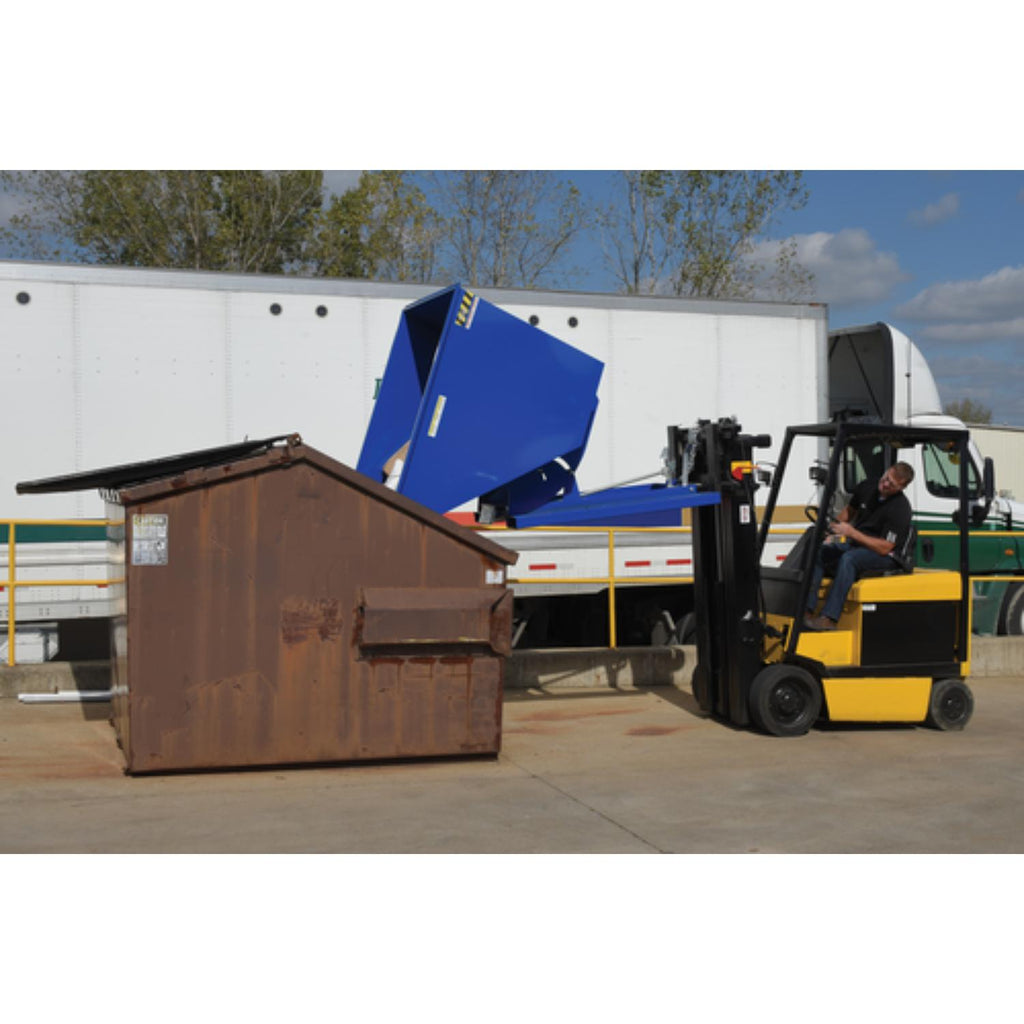

This Heavy Duty self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. The included safety restraint should be properly secured to a fork truck before dumping. (Length dimension is measured at top of chute.) Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process.
Features
- Automatic bumper release dumps when it contacts the side of the dumpster
- Returns to upright and locked position automatically
- Full-length fork tube provide a solid base
- Safety restraint secures the hopper to the fork truck
Specifications
| Specification | Value |
|---|---|
| Color / Finish | Blue |
| Material | Steel |
| Overall Width (in) | 81.75 |
| Overall Length (in) | 68.625 |
| Overall Height (in) | 51.8125 |
| Capacity (lbs) | 6000 |
| Volume (yd³) | 3 |
| Hopper Height (in) | 51.8125 |
| Hopper Length (in) | 68.625 |
| Hopper Width (in) | 81.75 |
| Compatible Fork Thickness (in) | 2.5 |
| Compatible Fork Width (in) | 7.5 |
| Fork Pocket - Center to Center (in) | 28 |
| Material Gauge | 8 |
| Weight (lbs) | 940 |
| Rotation (°) | 67 |
| Number of Casters / Wheels | No Wheels / Casters |
| Stackable | No |
| Lid Included | No |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
