Description
Description

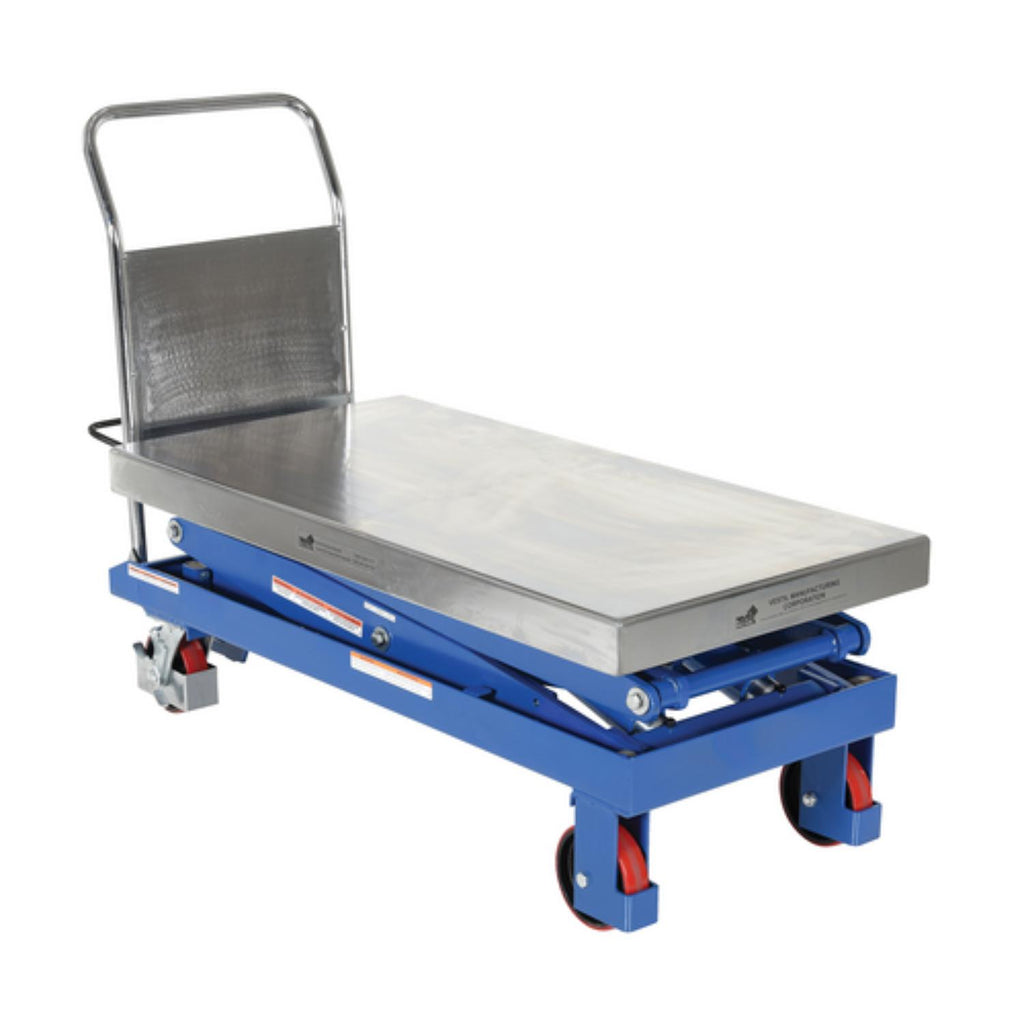

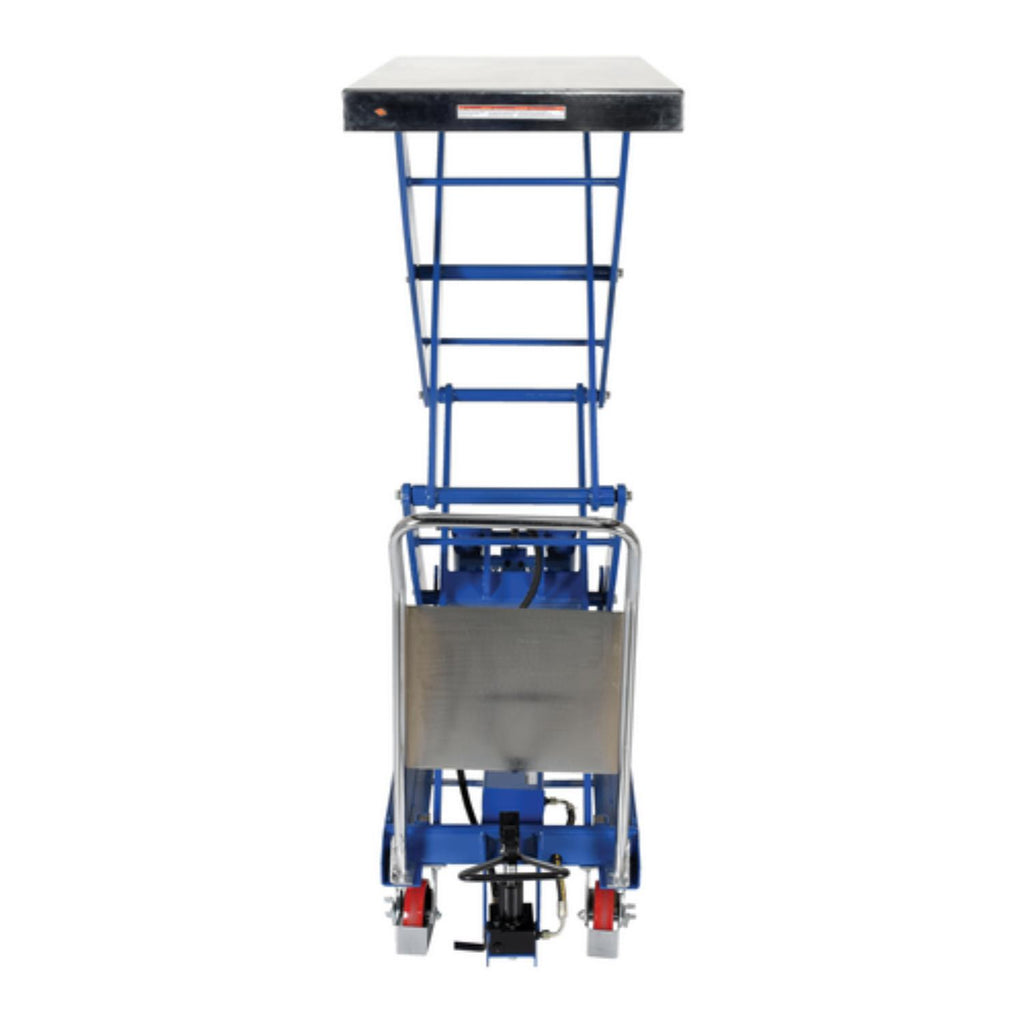

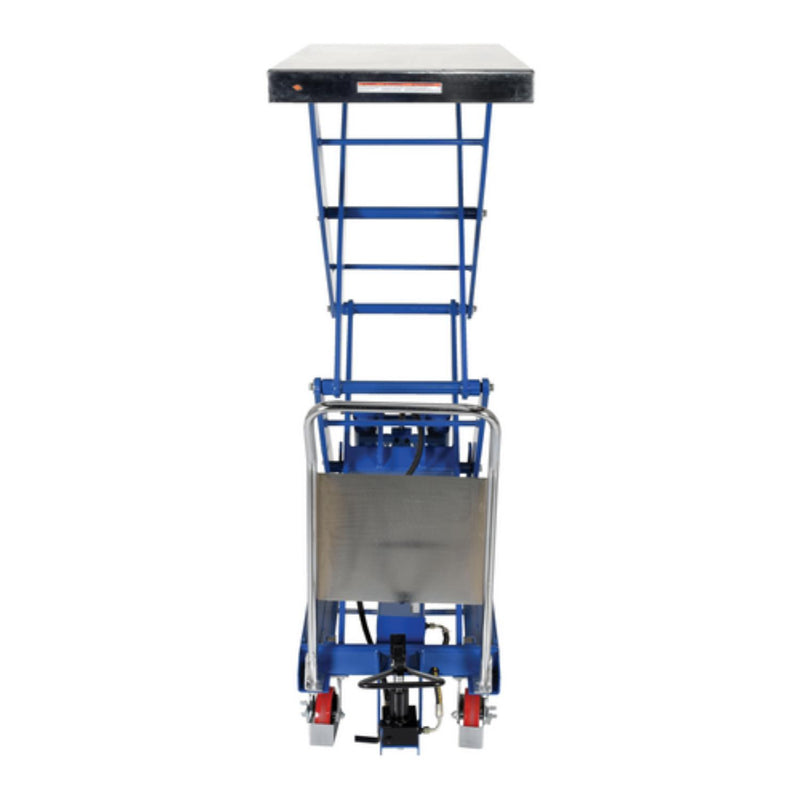

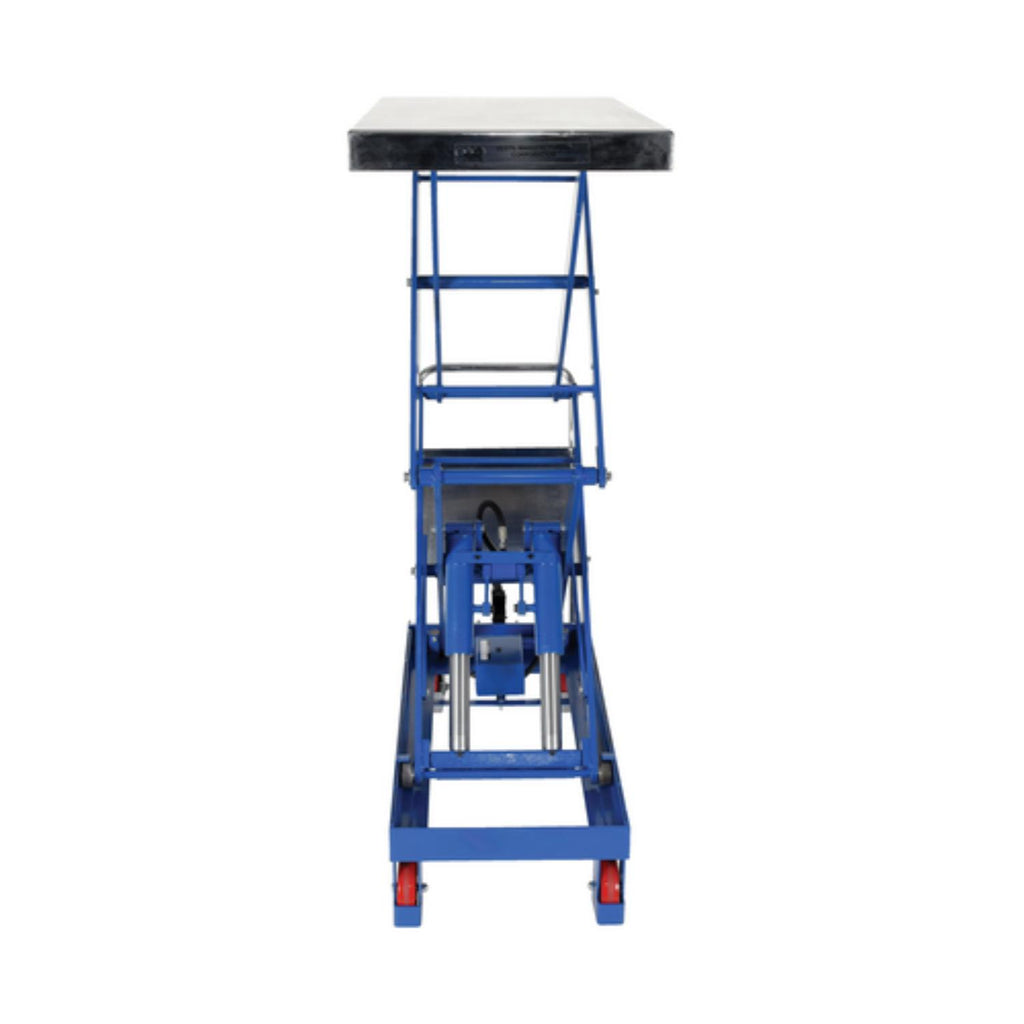

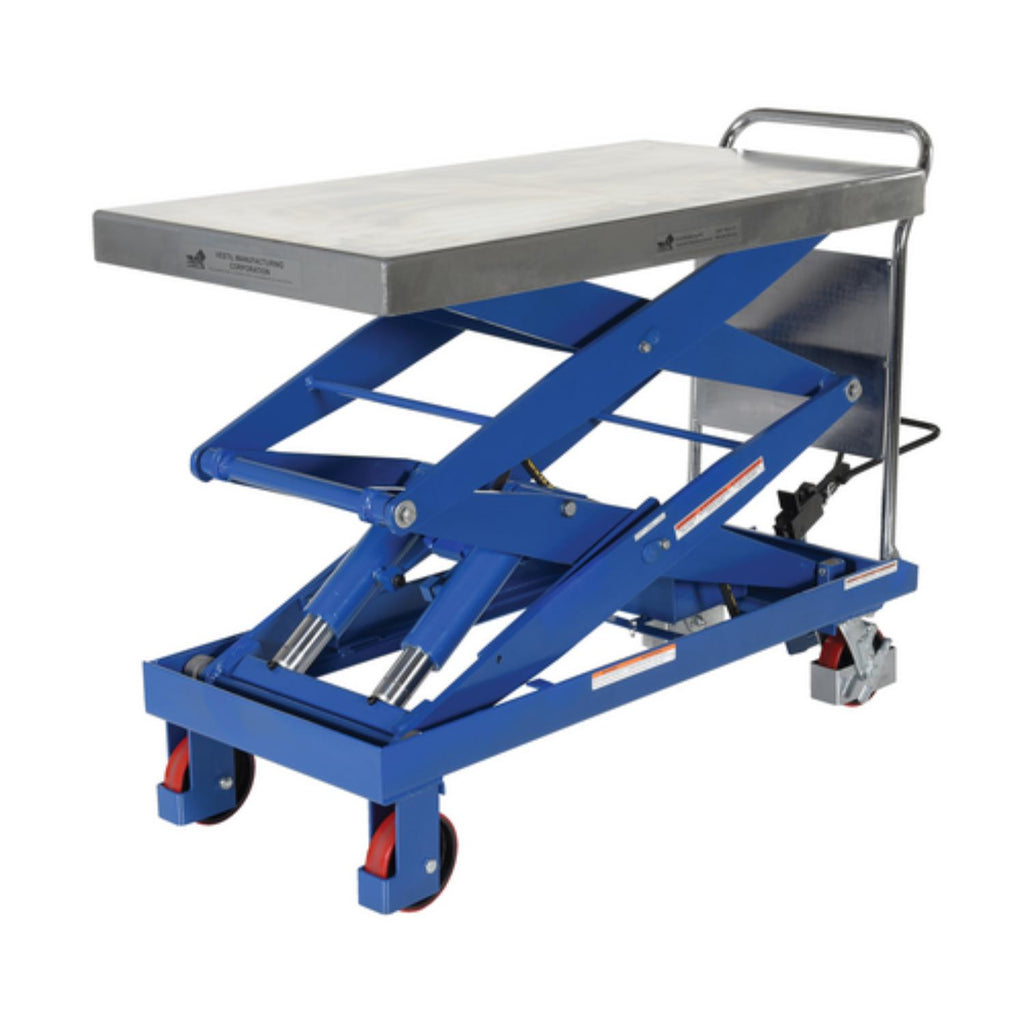

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.
Features
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 47.5 |
| Platform Width (in) | 24 |
| Platform Material | Steel |
| Maximum Height (in) | 68 |
| Minimum Height (in) | 19 |
| Maximum Travel Distance (in) | 49 |
| Weight Capacity (lbs) | 1500 |
| Color / Finish | Blue |
| Weight (lbs) | 543 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Number of Pumps on High Setting | 107 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 6 |
| Front Wheel Material | Poly on Steel |
| Additional Contents | Double Scissor - Includes (2) Rigid Casters (1.5" Width), and (2) Swivel Casters with Brakes (2" Width) |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 63 |
| Overall Width (in) | 24 |
| Overall Height (in) | 39.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
