Description
Description

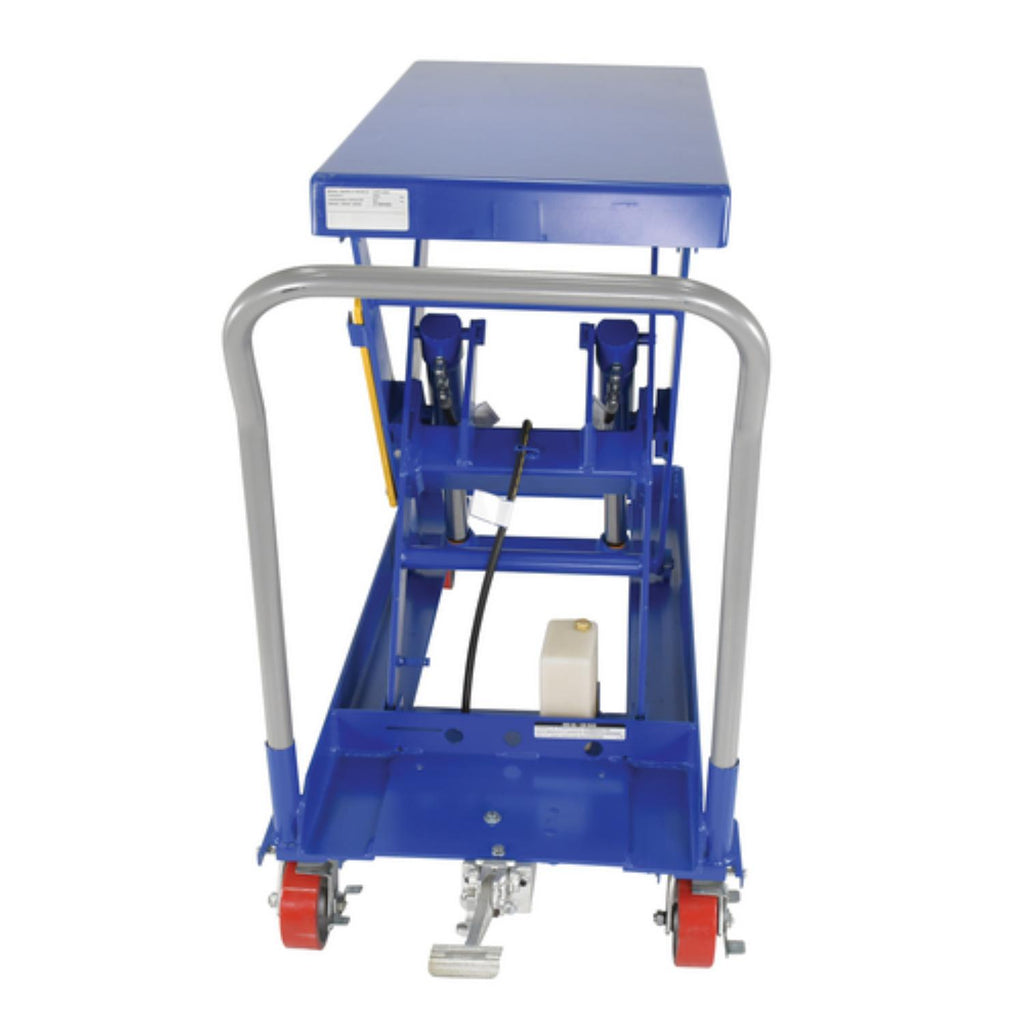

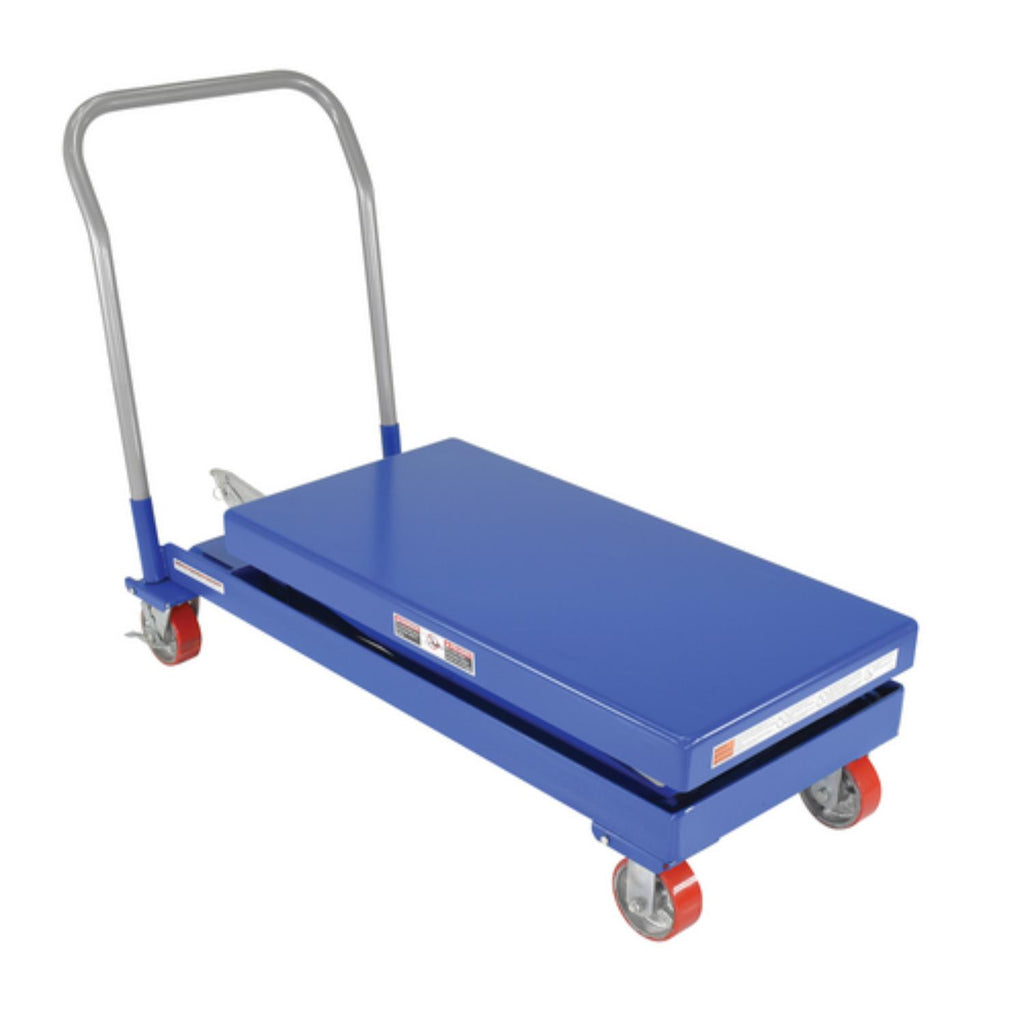

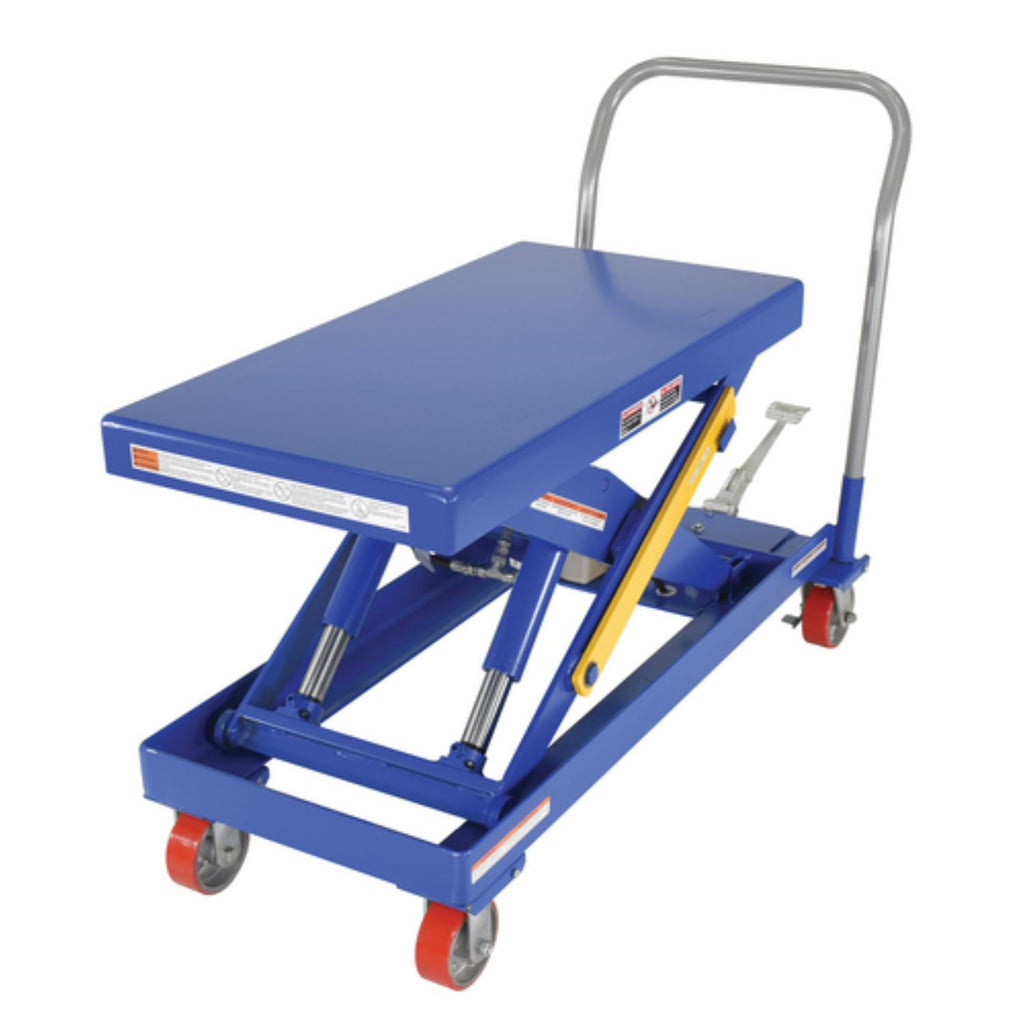

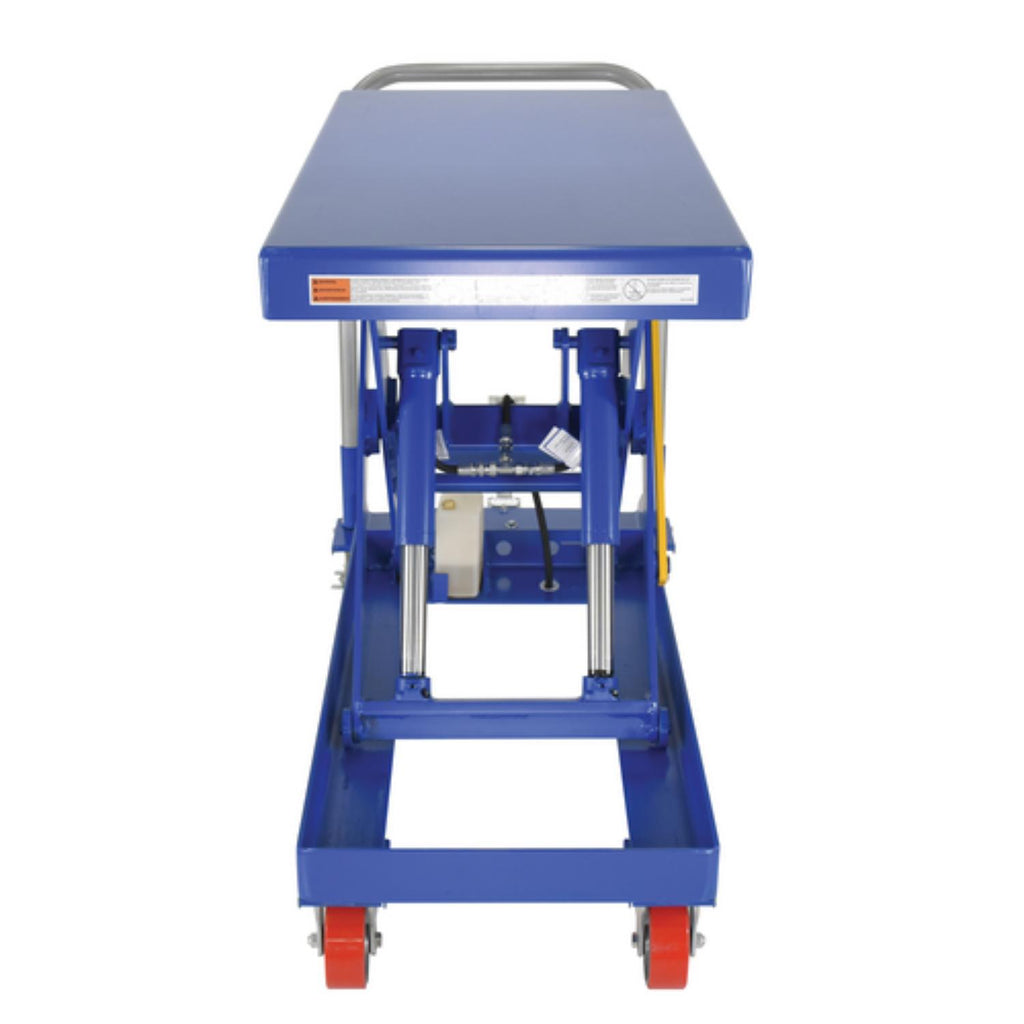

Hydraulic elevating carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2) rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model cart-200-alum which includes an aluminum platform surface.
Features
- Open design allows loading/unloading from 3 sides
- Attached casters allow rolling over rough terrain
- High handle height for proper ergonomic posture
- Steel construction offers long lasting rugged use
Specifications
| Specification | Value |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 40.375 |
| Platform Width (in) | 20.375 |
| Platform Material | Steel |
| Maximum Height (in) | 39 |
| Minimum Height (in) | 15 |
| Maximum Travel Distance (in) | 24 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 332 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 5 |
| Front Wheel Material | Poly on Steel |
| Additional Contents | Includes (2) Rigid Casters with 2" Width, and (2) Swivel Casters with Brakes with 2" Width |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 63.0625 |
| Overall Width (in) | 24.75 |
| Overall Height (in) | 39 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
