Description
Description

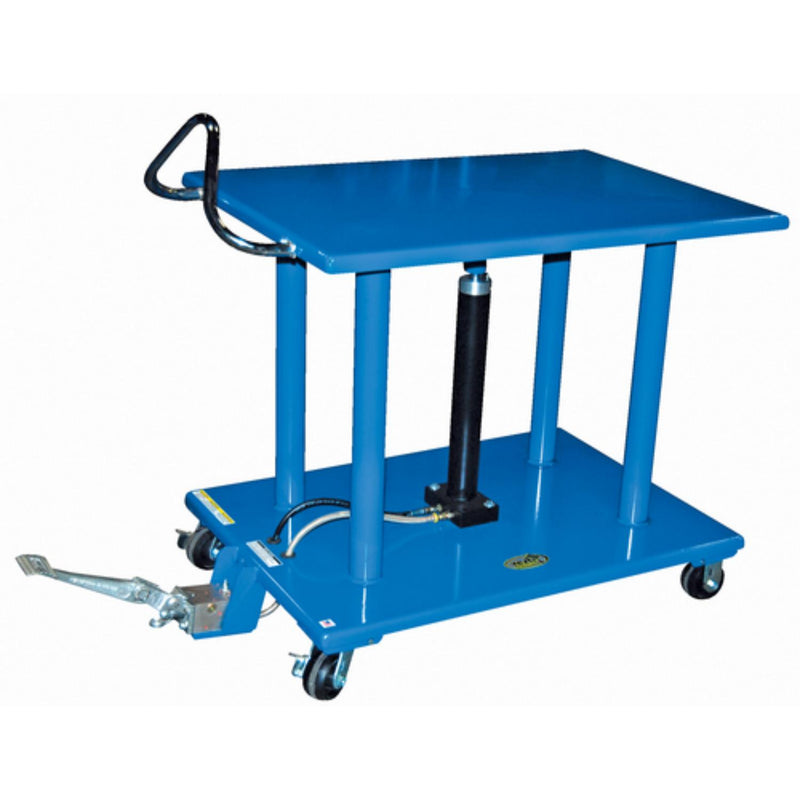

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four casters; two locking swivel with brakes and two rigid. The unit features a two-speed auto shifter for maximum operator convenience and safe platform lowering.
Features
- Heavy-duty construction is ideal for industrial work areas
- Telescopic posts stabilize loads during use
- Units feature two rigid and two swivel casters for easy portability
- Patented ergonomic push handle makes pushing the unit safe and easy
Specifications
| Specification | Values |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 48 |
| Platform Width (in) | 40 |
| Platform Material | Steel |
| Maximum Height (in) | 54 |
| Minimum Height (in) | 36 |
| Maximum Travel Distance (in) | 18 |
| Number of Posts | 4 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Weight (lbs) | 443 |
| Frame Material | Steel |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Phenolic |
| Installation Hardware Included | Not Required |
| Additional Contents | Includes (2) Rigid Casters 2 In. Wide, and (2) Swivel Locking Casters with Brakes 2 In. Wide |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 64.6875 |
| Overall Width (in) | 40 |
| Overall Height (in) | 41.0625 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
