Description
Description

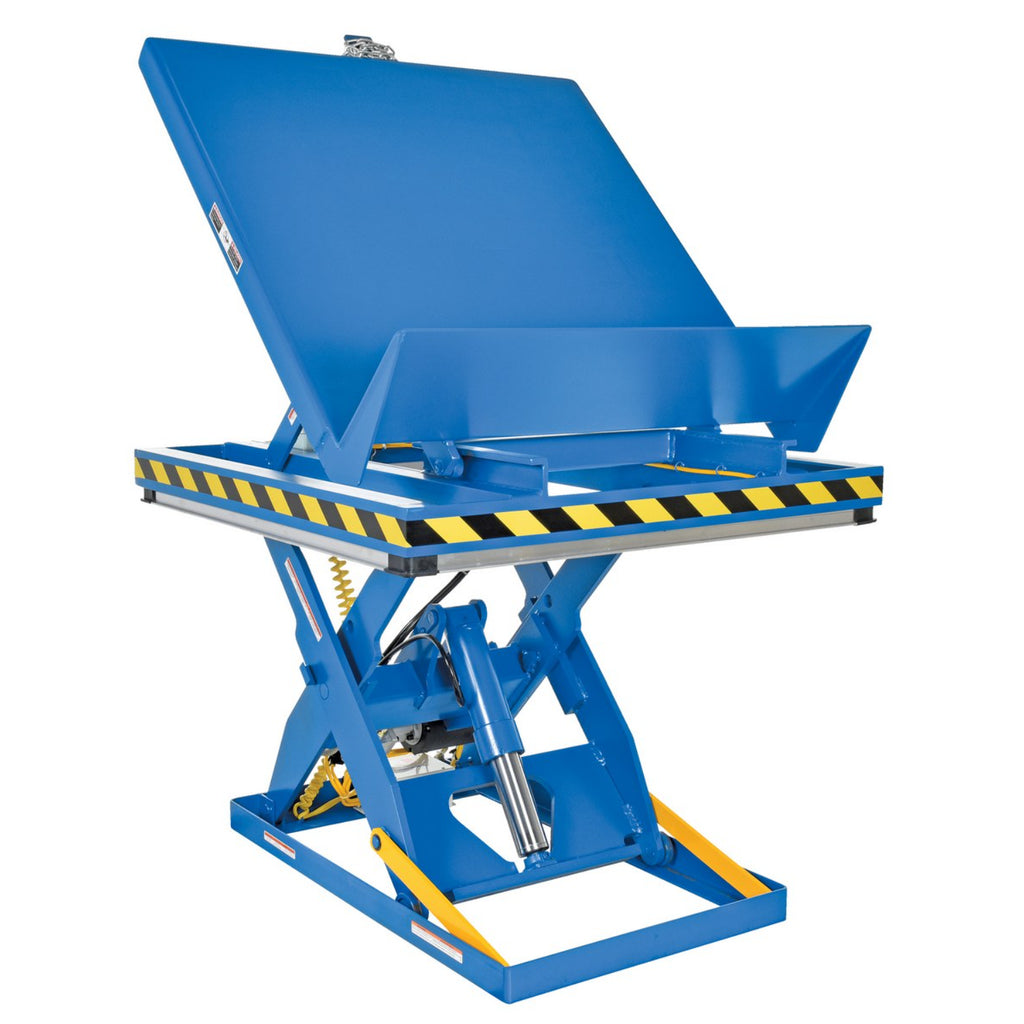

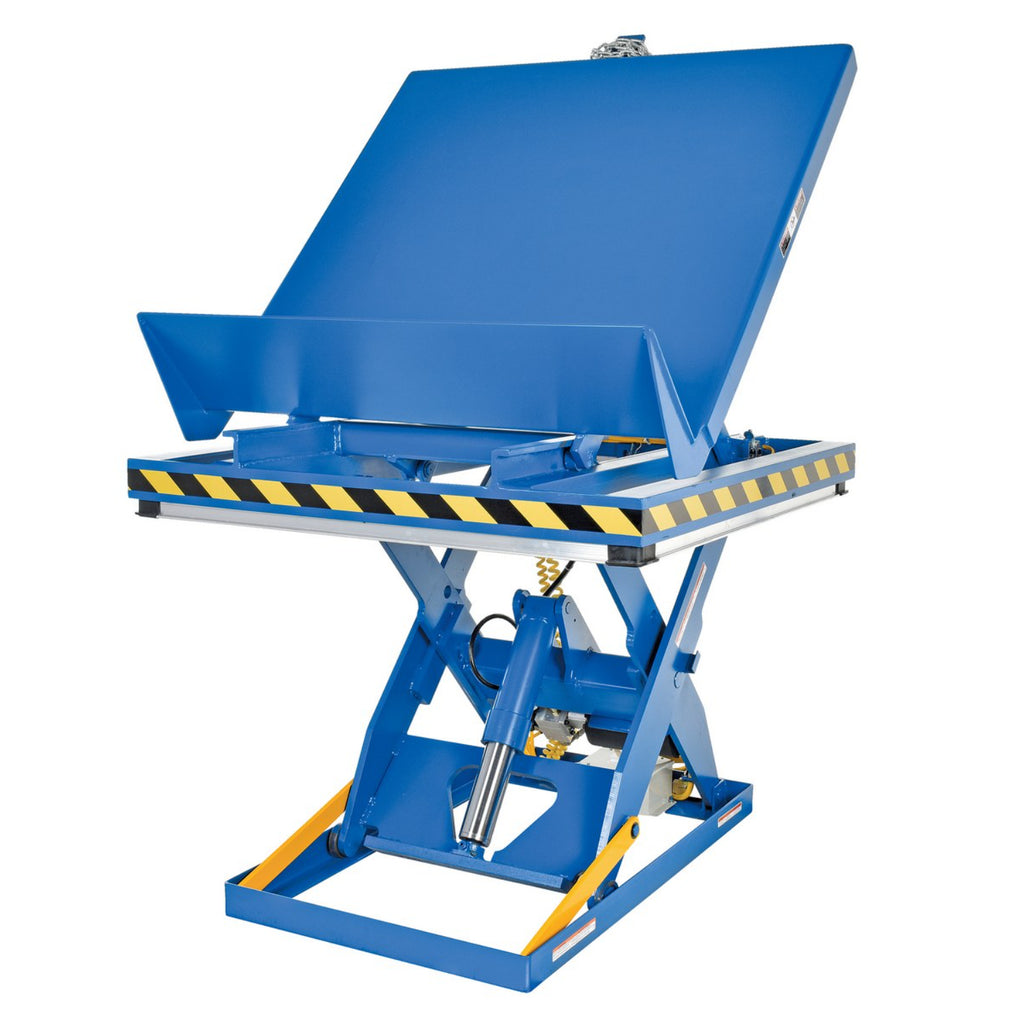

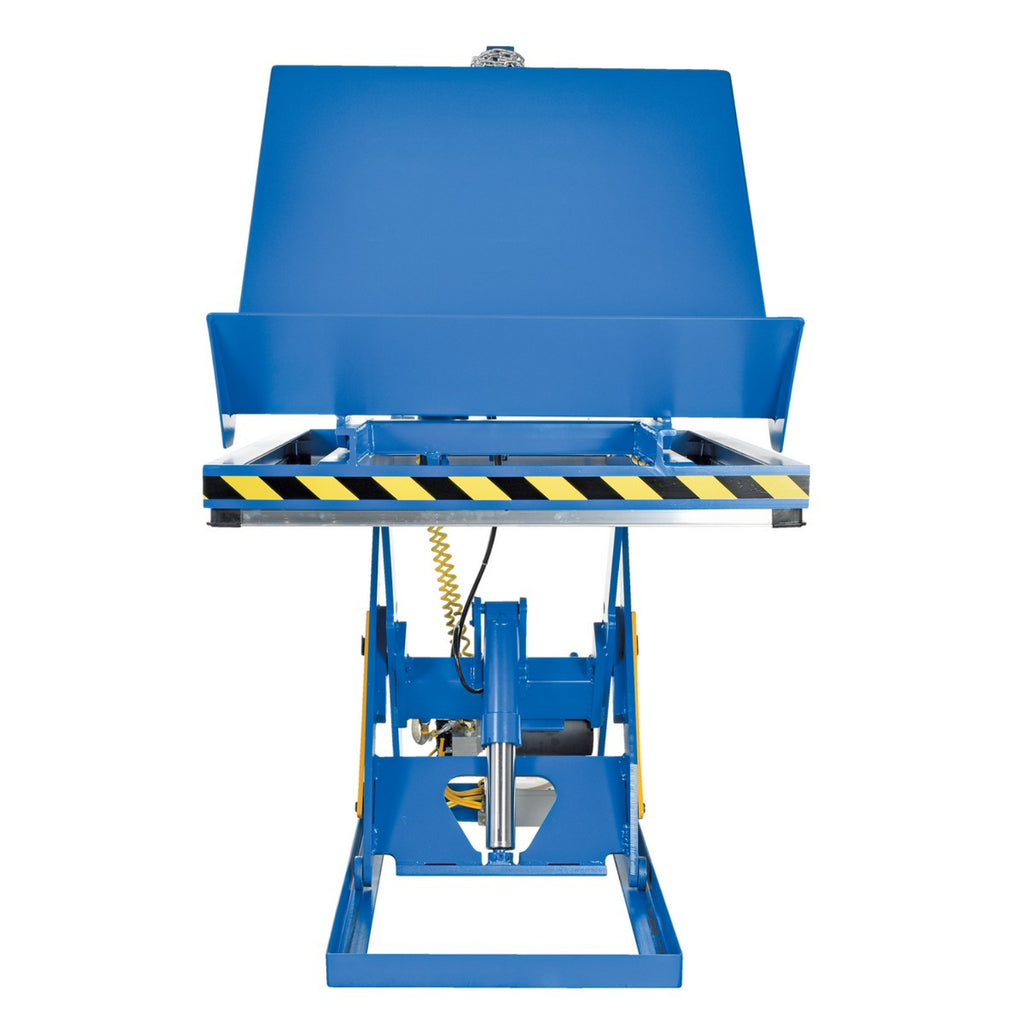

The lift and tilt scissor lift performs both lifting and tilting operations. There is a restraining chain and lip to keep the load in place during tilting. Safety features include an electric toe guard to protect workers from pinch points during lowering of table, velocity fuses to hold platform position in the event of a hose or fitting failure, four (4) push-button hand pendent control, upper limit switch to stop travel at maximum height and reduce motor wear, and maintenance prop. The end tilt is standard with a side tilt available. There is optional accordion skirting available for both the lifting and tilting portions of the table.
Features
- Restraining chain and lip keep the load in place during tilting
- Features entry-side electric toe guard to protect pinch points
- Includes velocity fuse to maintain platform height
- End tilt is standard with a side tilt available
Design Features:
- Steel Cradle is 12" high, open design allows loading/unloading from three sides.
- Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
- Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
- Slot lock and restraint chain.
- NEMA-4 hand control provides a weatherproof case for years of durability.
- Fused 24 Volt control helps to ensure operator safety.
- Perimeter pinch point guard
- Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
- Upper Travel limit switch is field adjustable
- 3000 PSI component rating on crimped hoses and fittings.
Specifications
| Feature | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 48 |
| Platform Width (in) | 48 |
| Platform Material | Steel |
| Maximum Height (in) | 47 |
| Minimum Height (in) | 11 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 1207 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 12 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 1.5 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 52 |
| Overall Width (in) | 48 |
| Overall Height (in) | 23 |
| Maximum Travel Distance (in) | 36 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
