Description
Description

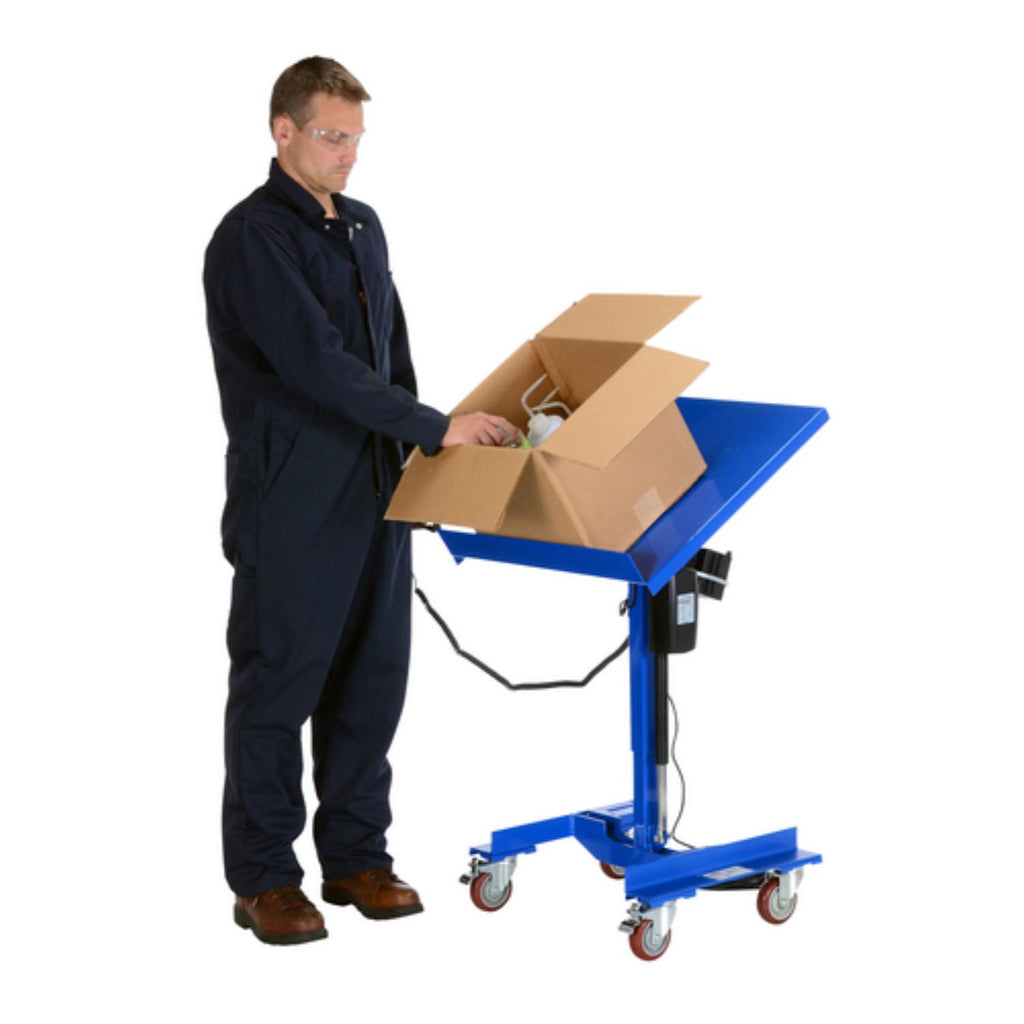

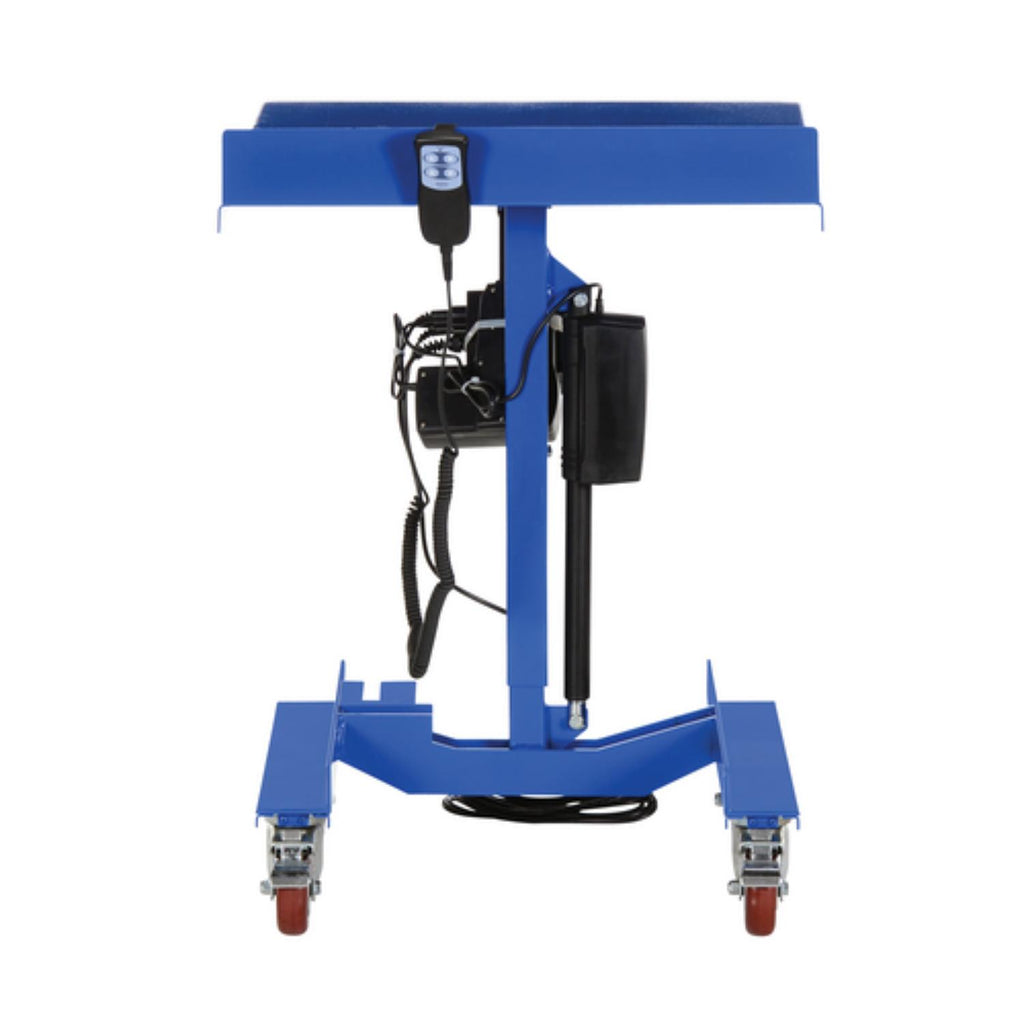

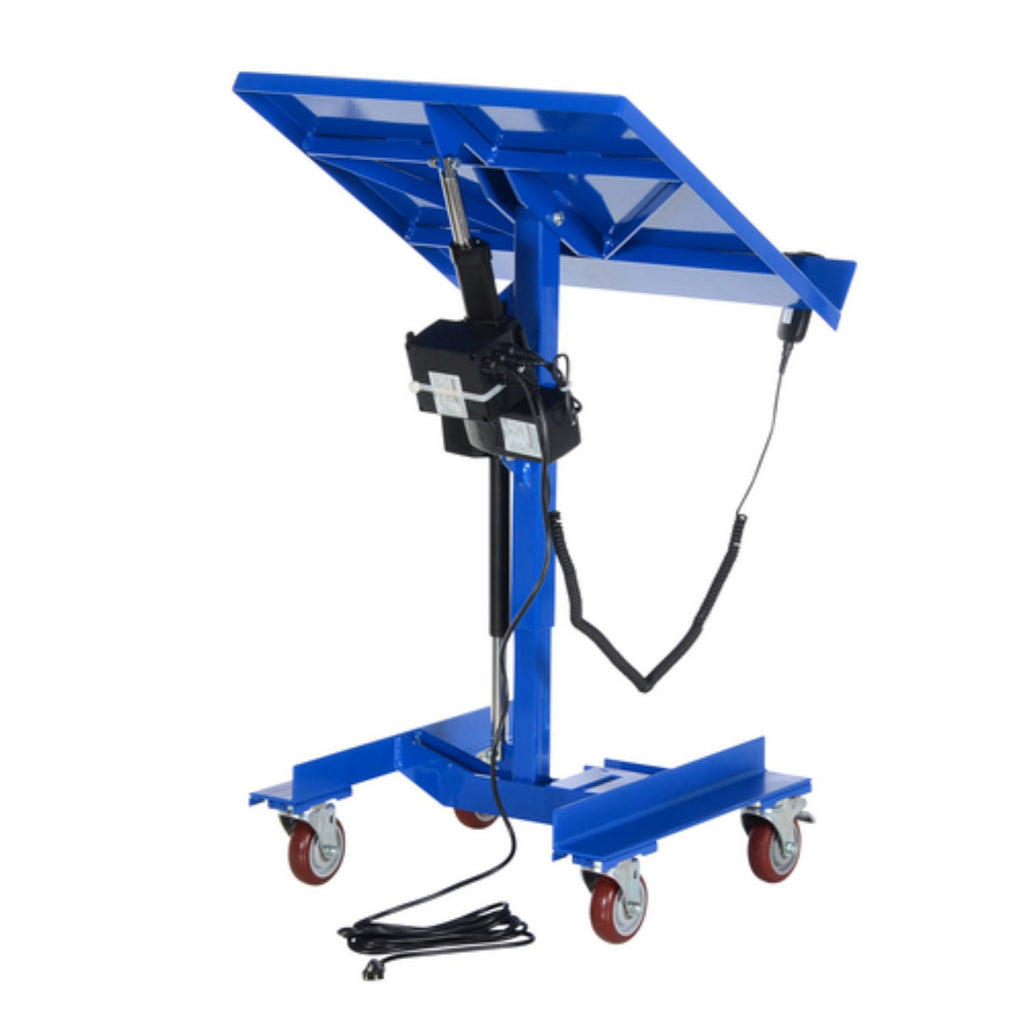

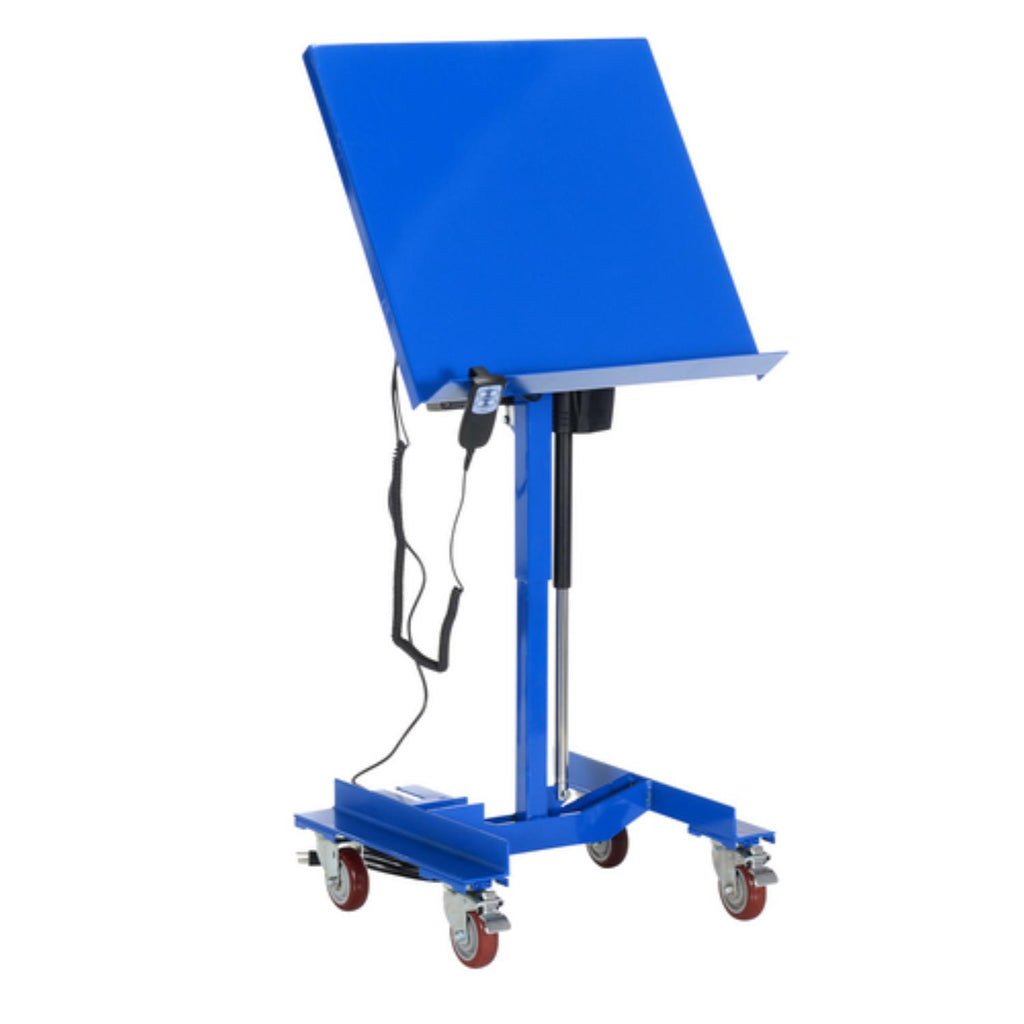

The mobile tilting work table is designed to bring work to an ergonomically correct position, helping to foster more comfortable and productive work environment. Working in a comfortable position also reduces fatigue and risk of injuries. The platform height and tilt angle are powered by an electric linear actuator with a hand control. The polyurethane swivel casters (two double locking) allow unit to be transported from one work area to another while loaded.
Features
- Highly maneuverable and flexible product design is ergonomic and user friendly
- Platform height and platform tilt is adjustable to fit best position for user
- Each unit includes four swivel casters (two with total locking brake) for maneuverability
- Welded steel construction provides long lasting use
Specifications
| Specification | Details |
|---|---|
| Power Source | Pneumatic |
| Overall Height (in) | 33.5625 |
| Overall Length (in) | 24 |
| Overall Width (in) | 24 |
| Platform Length (in) | 24 |
| Platform Width (in) | 24 |
| Maximum Height (in) | 42 |
| Minimum Height (in) | 33.5625 |
| Maximum Travel Distance (in) | 8.4375 |
| Maximum Tilt Angle (°) | 45 |
| Weight Capacity (lbs) | 300 |
| Color / Finish | Blue |
| Operation Method | Push Button |
| Handle Height (in) | 25 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Width (in) | 1.25 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Width (in) | 1.25 |
| Front Wheel Material | Polyurethane |
| Weight (lbs) | 135 |
| Manufacturer Warranty | 90 Days |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
