Description
Description

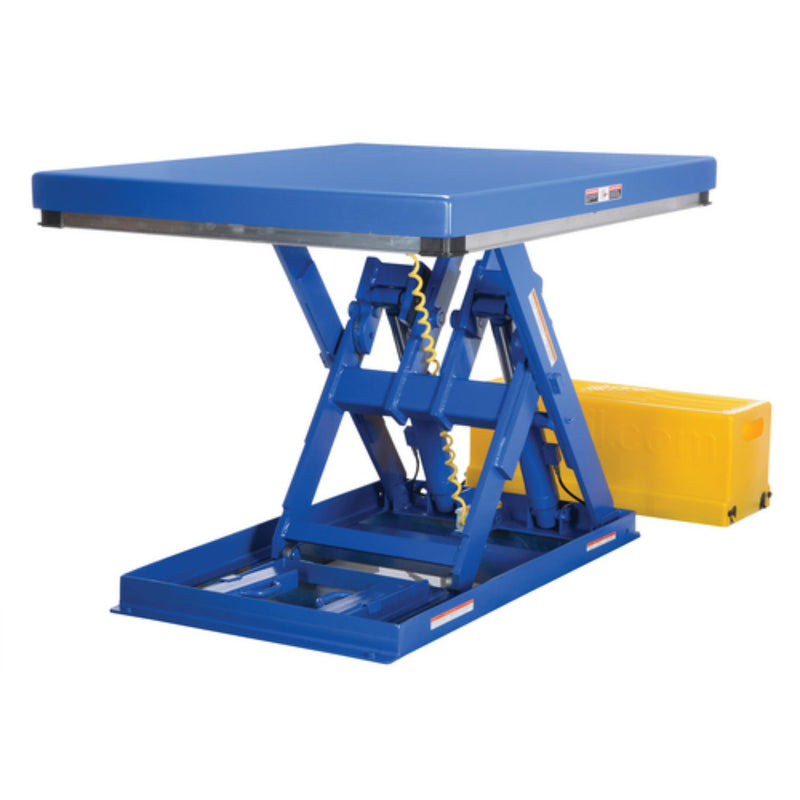

The low profile electric/hydraulic scissor lift table loads and unloads skids with a pallet truck without the need for a pit when using the optional approach ramp. The superior engineering features rugged durability with safety features that include an electric perimeter pinch point guard, emergency stop velocity fuse in cylinders, handheld control and maintenance supports. The remote power unit comes complete with a plastic cover to protect the motor from dust and debris.
Features
- Loads and unloads skids without the need for a pit
- Features entry-side electric toe guard to protect pinch points
- Includes velocity fuse to maintain platform height
- Plastic cover protects motor from dust and debris
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Corded |
| Platform Length (in) | 60 |
| Platform Width (in) | 60 |
| Platform Material | Steel |
| Maximum Height (in) | 39 |
| Minimum Height (in) | 3.25 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 909 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Lifting Speed (sec/ft) | 14 |
| Battery Charger Included | Not Required |
| Horsepower (hp) | 1.5 |
| Phase | Three Phase |
| Voltage (V) | 460 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 66 |
| Manufacturer Warranty | 1 Year |
| Overall Width (in) | 60 |
| Overall Height (in) | 3.25 |
| Maximum Travel Distance (in) | 35.75 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
