Description
Description

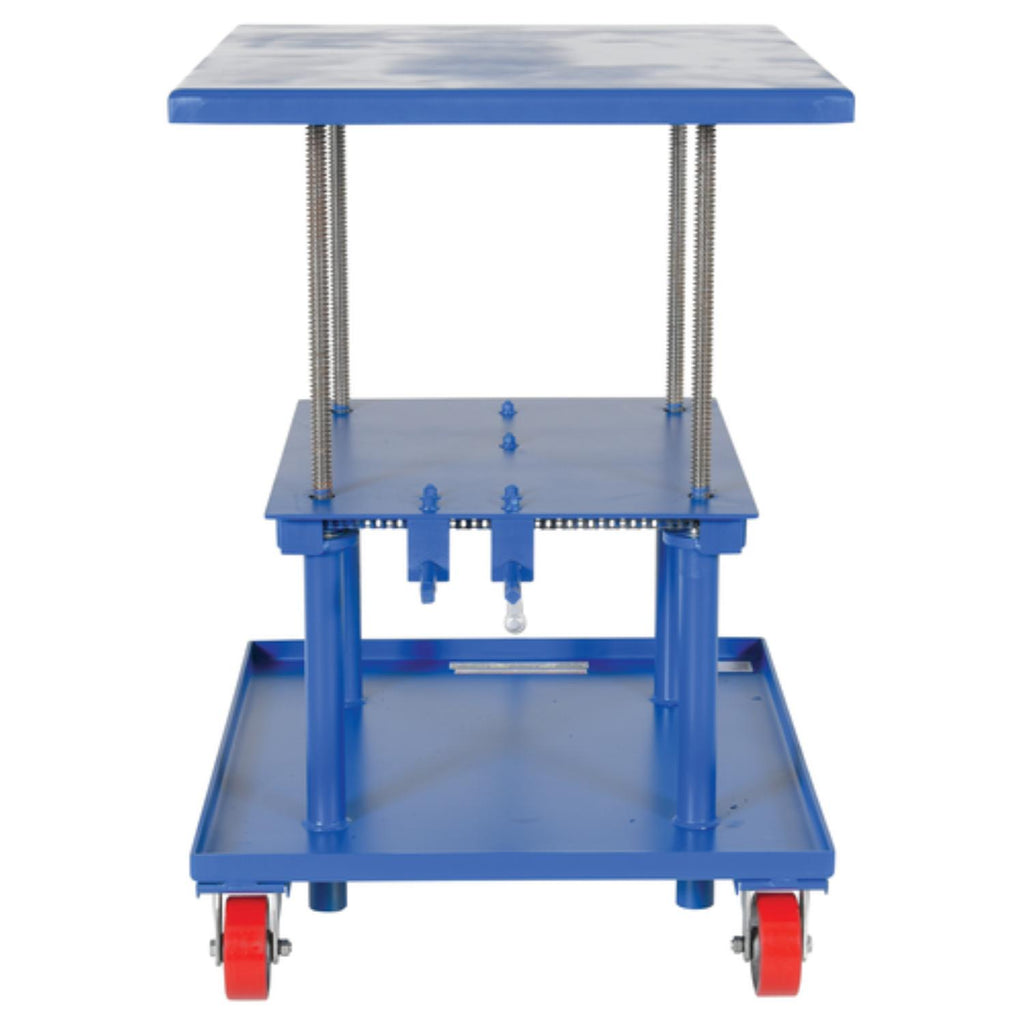

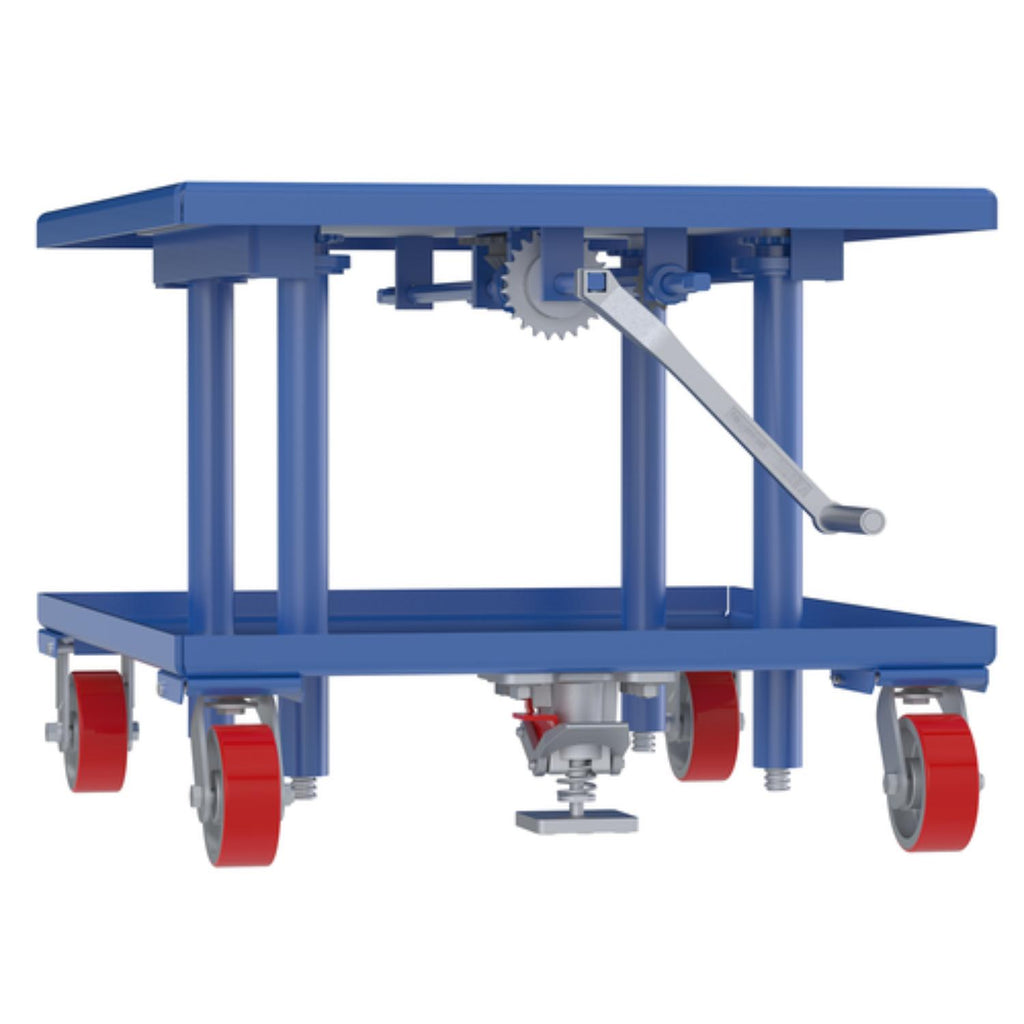

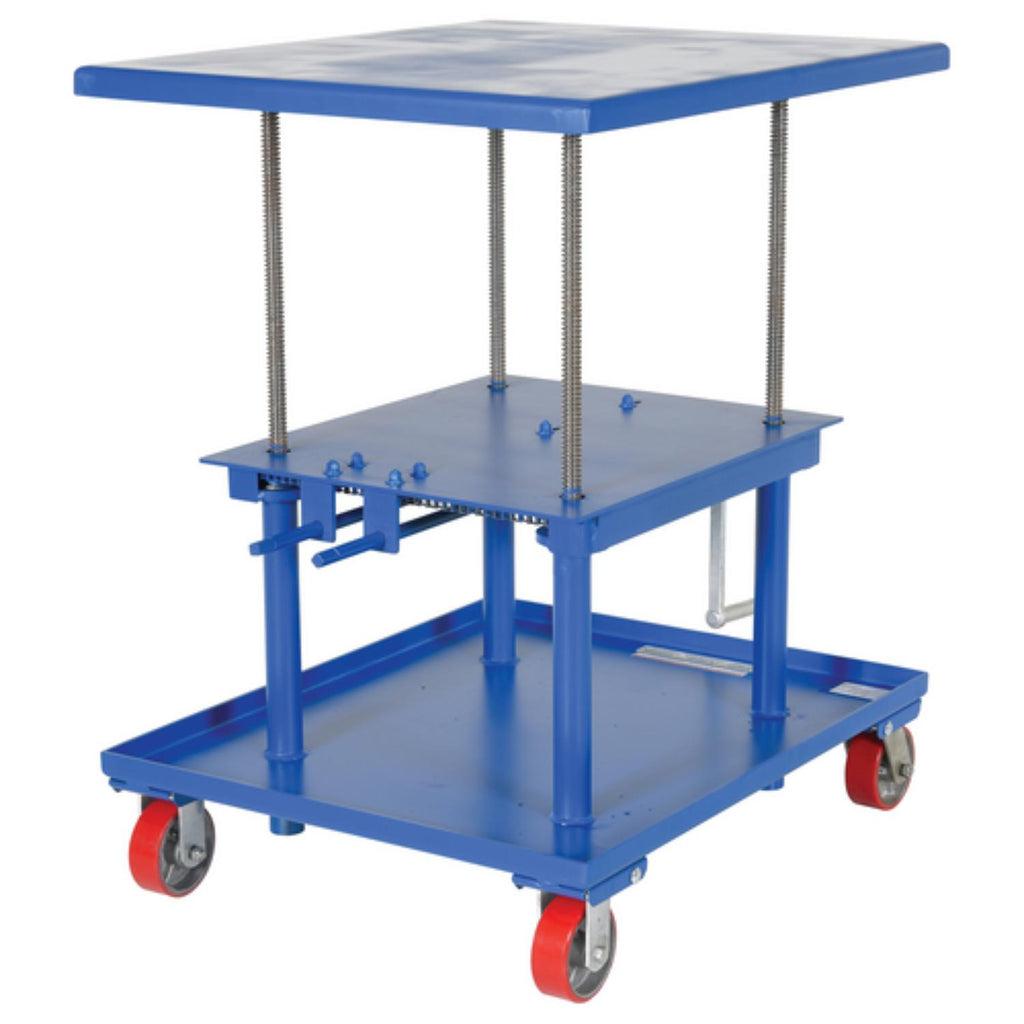

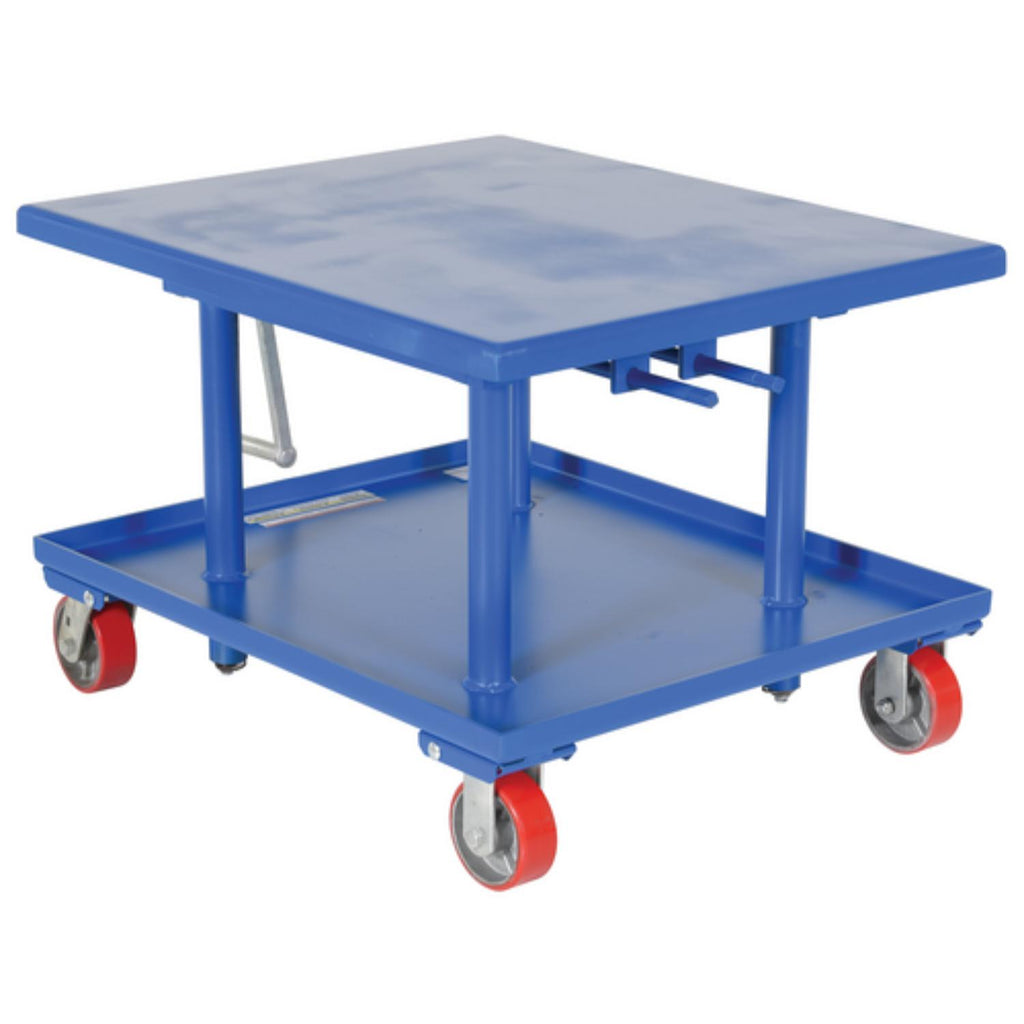

The mechanical post table is an adjustable portable table that is well suited for a wide variety of material handling applications. It moves smoothly on two rigid and two swivel poly-on-steel casters. Includes bolted on adjustable floor lock. Provides positive height adjustment without a downward shift. It features a two-speed manual gear mechanism to move heavy loads.
Features
- Mechanical screw operation allows precise positioning of platform
- Manual two-speed hand crank operation makes lifting and lowering quick and easy
- Two rigid and two swivel casters with floor lock allow the unit to roll smoothly
- Provides positive height adjustment without the downward shift
Specifications
| Specification | Values |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 36 |
| Platform Width (in) | 30 |
| Platform Material | Steel |
| Maximum Height (in) | 42.1875 |
| Minimum Height (in) | 23.9375 |
| Maximum Travel Distance (in) | 18.25 |
| Number of Posts | 4 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue |
| Weight (lbs) | 332 |
| Frame Material | Steel |
| Operation Method | Hand Operated |
| Number of Pumps on Low Setting | 146 |
| Number of Pumps on High Setting | 58 |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 5 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 5 |
| Front Wheel Material | Poly on Steel |
| Installation Hardware Included | Yes |
| Additional Contents | Includes (2) Rigid Casters 2 In. Wide, and (2) Swivel Locking Casters with Brakes 2 In. Wide |
| Manufacturer Warranty | 1 Year |
| Overall Length (in) | 37.875 |
| Overall Width (in) | 30 |
| Overall Height (in) | 23.9375 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
