Description
Description

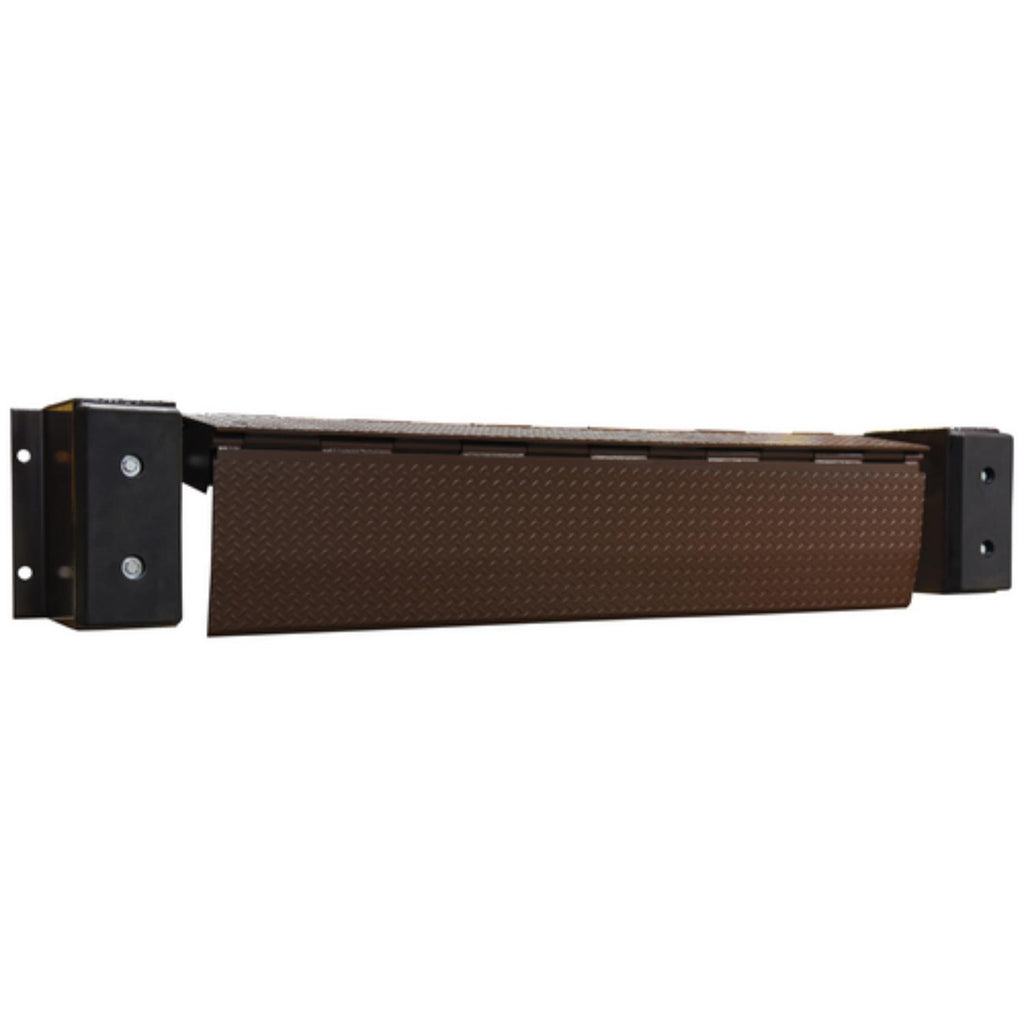

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is twenty-nine (29) inches. A steel dock edge, or approach ramp is required for proper installation. The mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.
Features
- Easy install allows unit to quickly mount to any loading dock with a steel dock edge
- Tread plate design offers a positive non-slip gripping action
- Concrete recess not required
- Solid steel construction offers long lasting reliable use
Specifications
| Specification | Value |
|---|---|
| Dock Leveler Operating Method | Actuation Handle/Mechanical |
| Overall Width (in) | 99 |
| Overall Length (ft) | 1.25 |
| Weight Capacity (lbs) | 30000 |
| Weight (lbs) | 672 |
| Dock Leveler Lip Projection (in) | 14.81 |
| Maximum Service Above Dock (in) | 5 |
| Maximum Service Below Dock (in) | 5 |
| Platform Material | Steel |
| Platform Length (in) | 29.8125 |
| Platform Width (in) | 72 |
| Platform Thickness (in) | 0.375 |
| Color / Finish | Brown |
| Bumper Projection (in) | 15 |
| Bumper Pad Width (in) | 8 |
| Bumper Pad Thickness (in) | 2 |
| Bumper Pad Height (in) | 18 |
| Installation Method | Permanent Installation to Face of Dock |
| Installation Hardware Included | Yes |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
