Description
Description

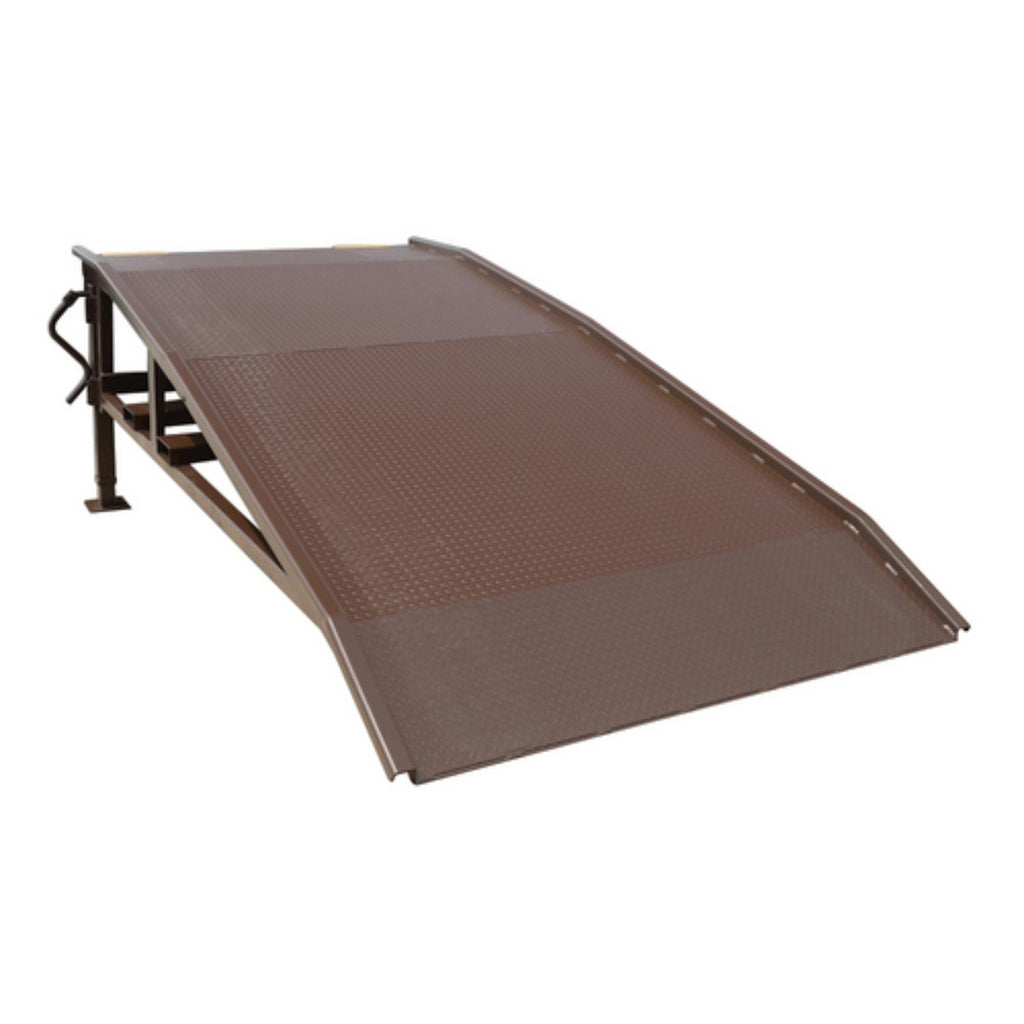

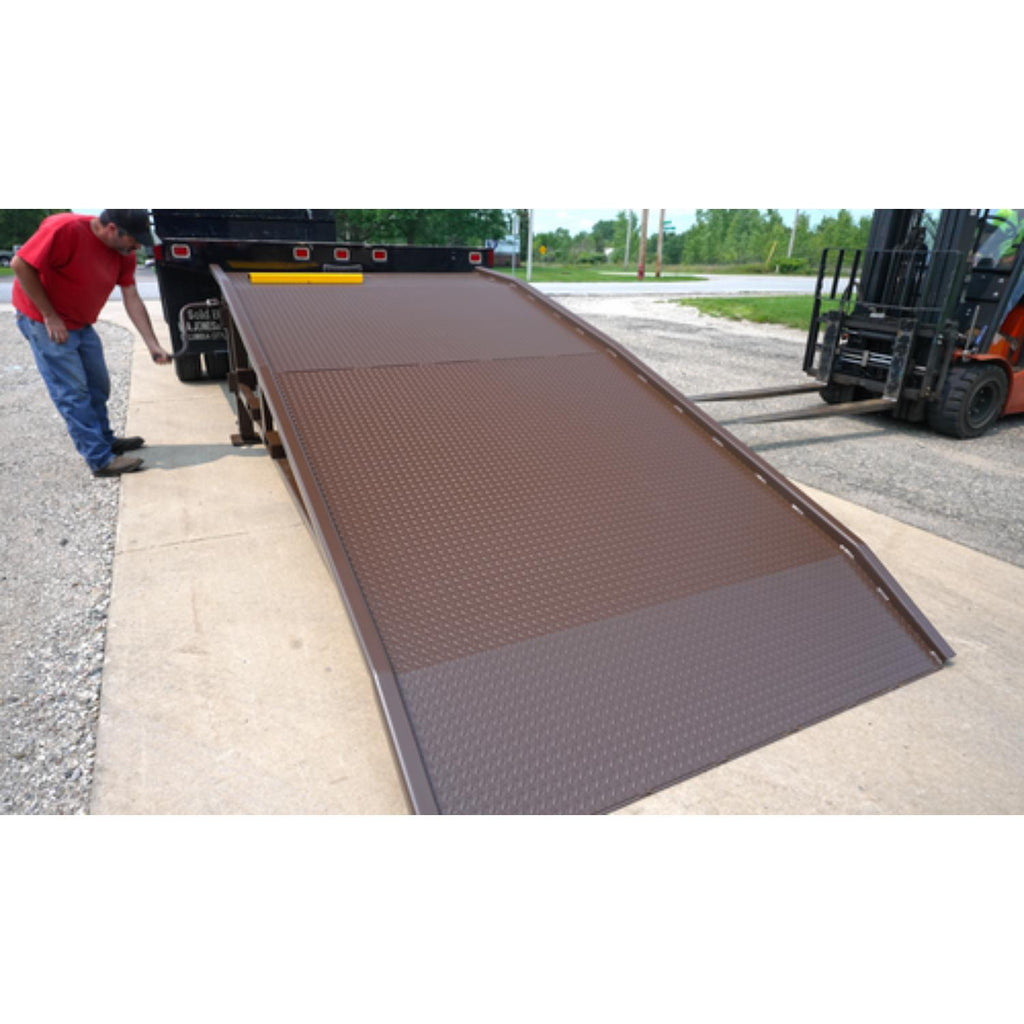

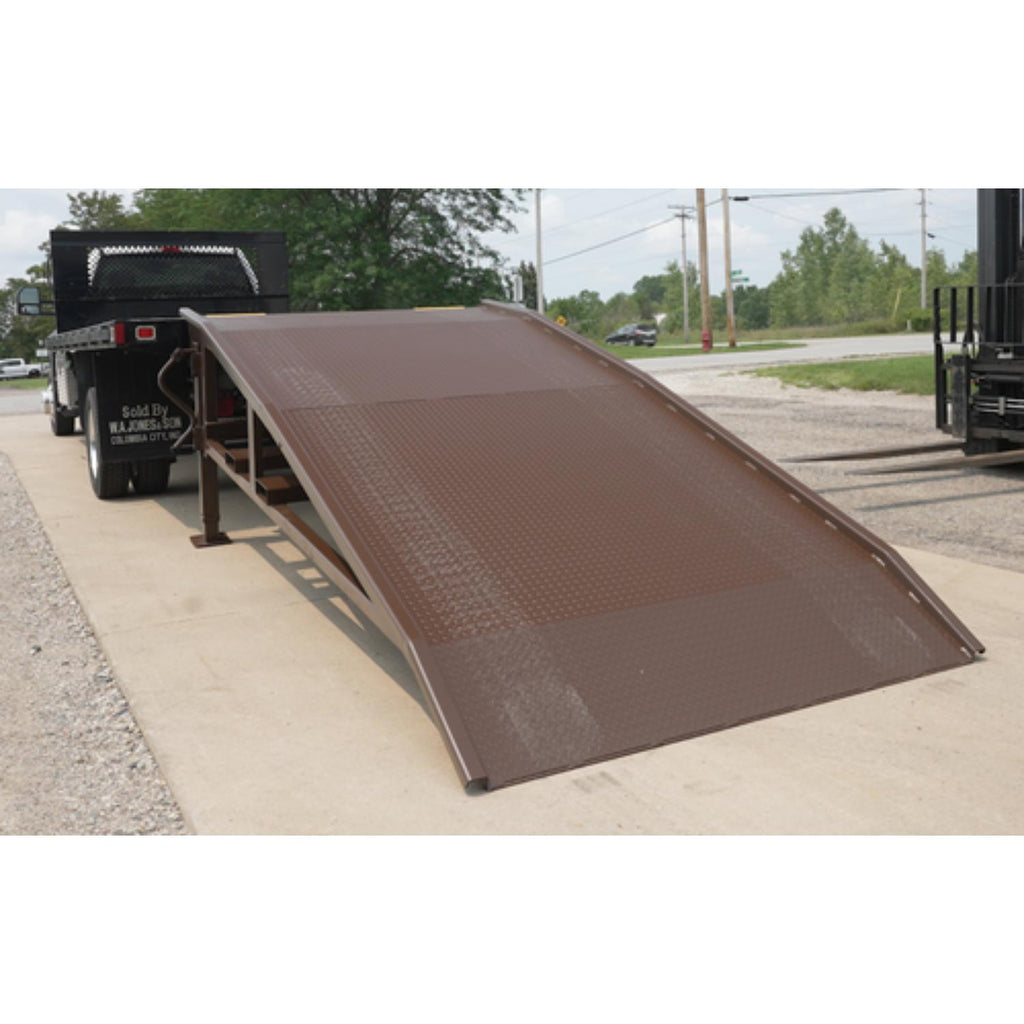

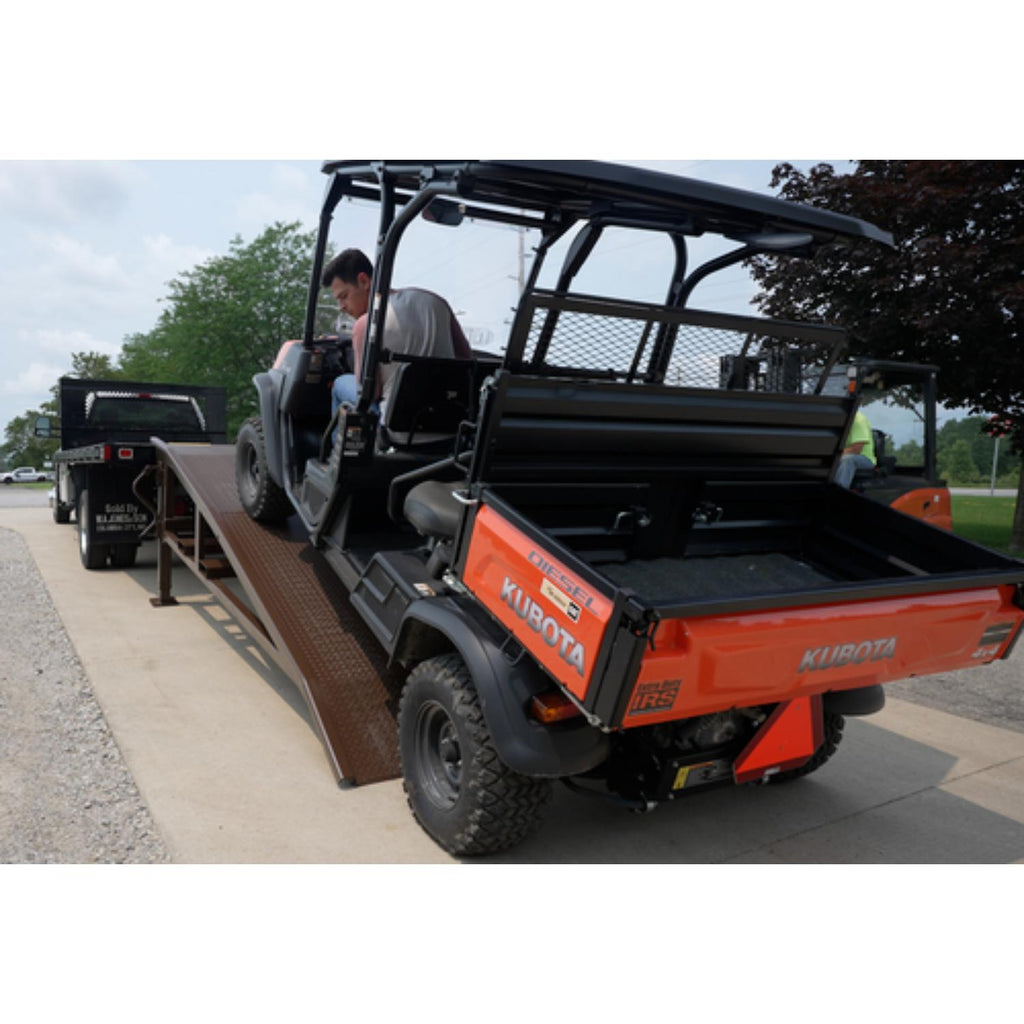

A mini yard ramp is the perfect solution for loading and unloading heavy loads. With a steel construction, the ramp can endure weights up to 5,000 lbs. the height may be adjusted to fit the users needs with a lowered height of 36" and a raised height of 60". A painted brown finish.
Features
- Built-in fork pockets
- Raised curbs for added safety
- Treaded platform design
- Manual hand crank raising and lowering
Specifications
| Specification | Details |
|---|---|
| Overall Width (in) | 93.375 |
| Overall Length (ft) | 14 |
| Weight Capacity (lbs) | 5000 |
| Maximum Height (in) | 60 |
| Minimum Height (in) | 36 |
| Height Adjustment Method | Hand Crank |
| Ramp Frame Material | Steel |
| Ramp Grate Material | Steel |
| Curb Height (in) | 1.875 |
| Distance Between Curbs (in) | 70.5 |
| Wheel Material | None |
| Wheel Diameter (in) | 0 |
| Wheel Width (in) | 0 |
| Color / Finish | Brown |
| Weight (lbs) | 1968 |
| Safety Chains | No |
| Tow Bar | No |
| Handrail Included | No |
| Additional Contents | Fork Truck Portable - Fork Pockets 7.5 In. x 3.5 In. with 24 In. Center |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
