Description
Description

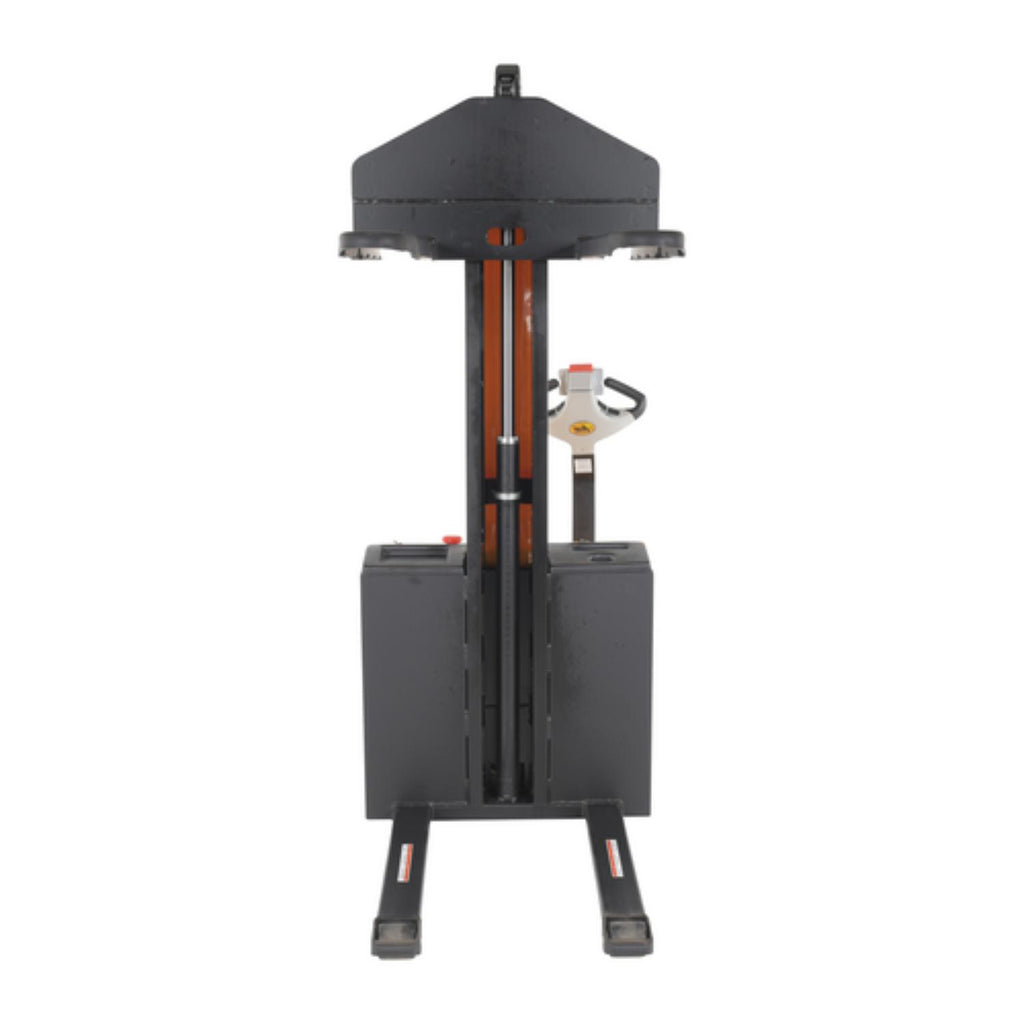

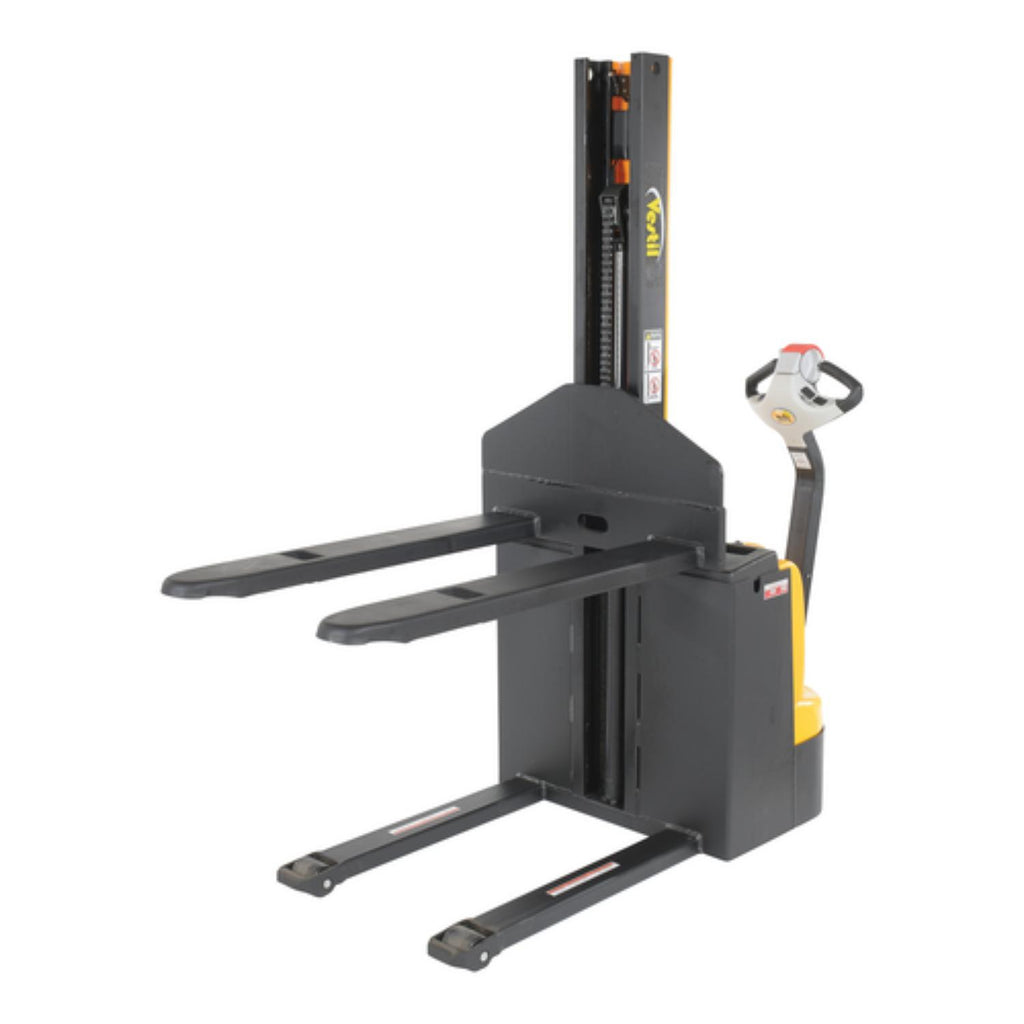

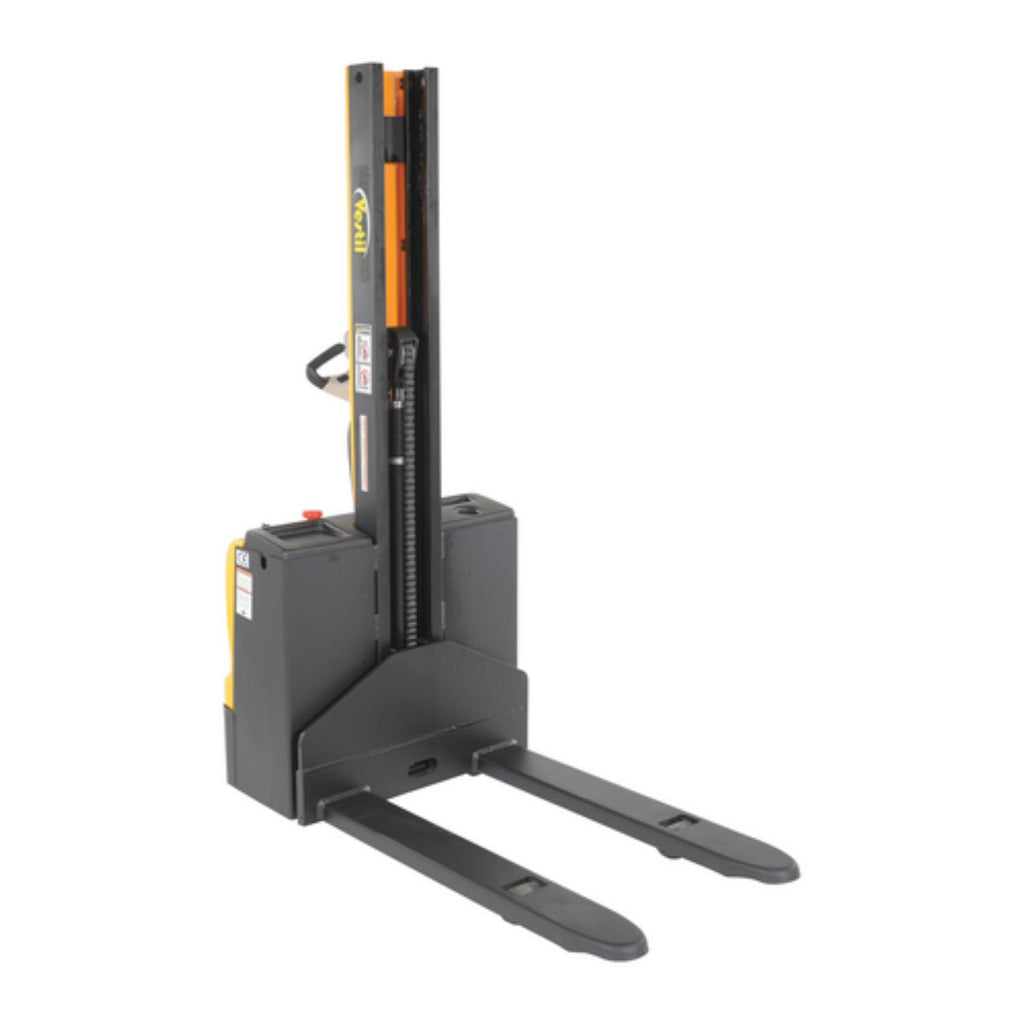

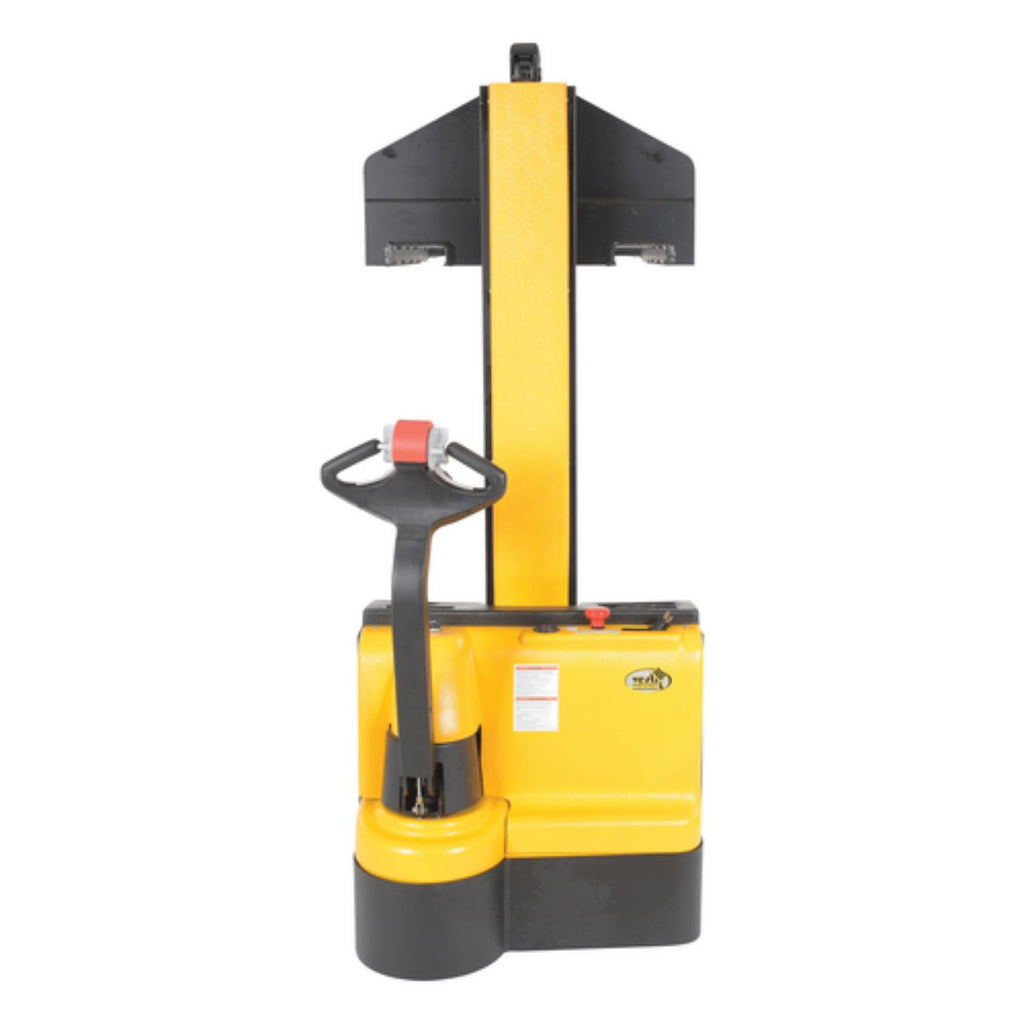

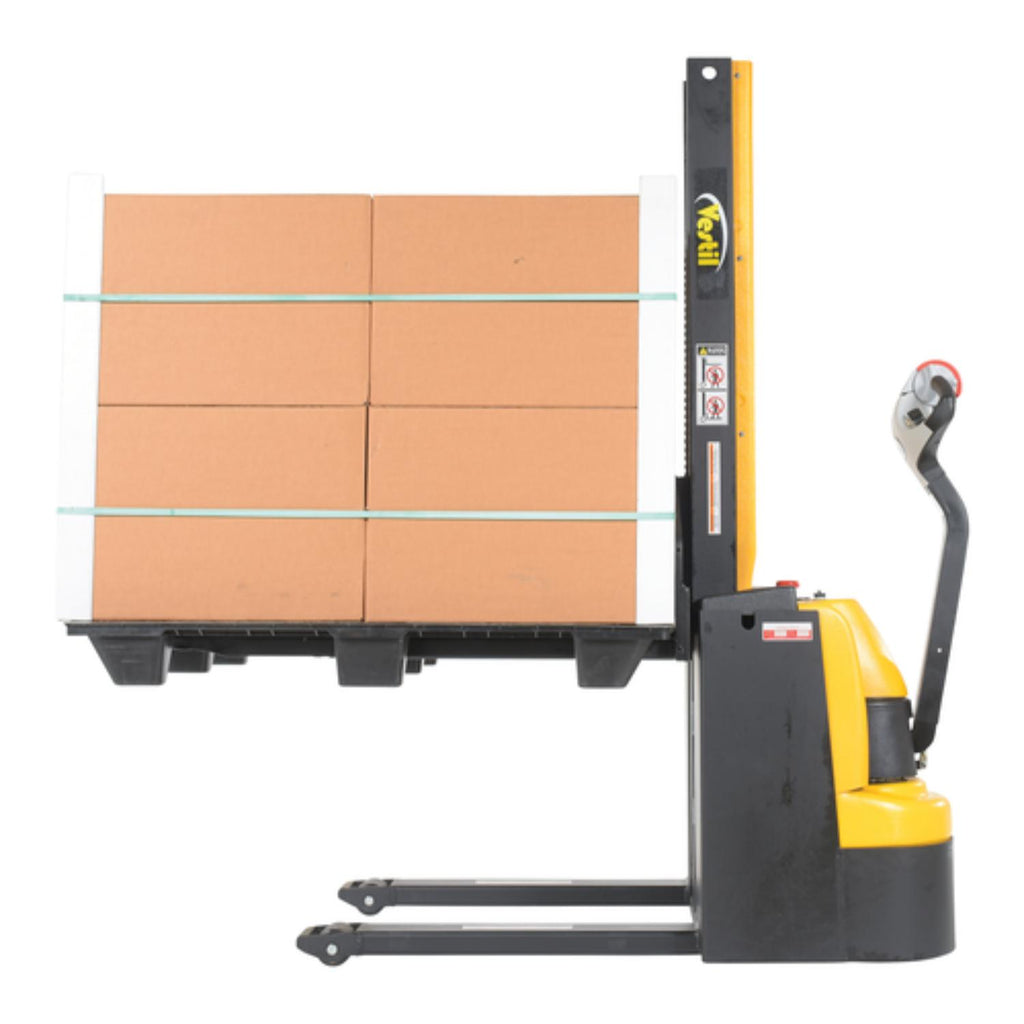

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.
Features
- Emergency reverse belly switch instantly reverses direction
- Stacker is an efficient solution to loading and unloading in closely confined areas
- Throttle design lifts and controls speed adjustments for ideal operation and optimal results
- Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Specifications
| Specification | Details |
|---|---|
| Power Source | Electric - Cordless |
| Maximum Lift Height (in) | 62 |
| Minimum Lift Height (in) | 3.375 |
| Maximum Travel Distance (in) | 58.625 |
| Weight Capacity (lbs) | 2200 |
| Color / Finish | Black/Yellow |
| Frame Material | Steel |
| Fork Length (in) | 42 |
| Fork Width (in) | 5.9 |
| Adjustable Forks | No |
| Minimum Width Between Forks (in) | 26.75 |
| Adjustable Legs | No |
| Leg Width (in) | 4 |
| Minimum Width Between Legs (in) | 26.75 |
| Battery Charger Included | Yes |
| Horsepower (hp) | 2 |
| Phase | Single Phase |
| Voltage (V) | 24 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 10 |
| Rear Wheel Material | Poly on Steel |
| Front Wheel Diameter (in) | 3 |
| Front Wheel Material | Poly on Steel |
| Weight (lbs) | 1100 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
