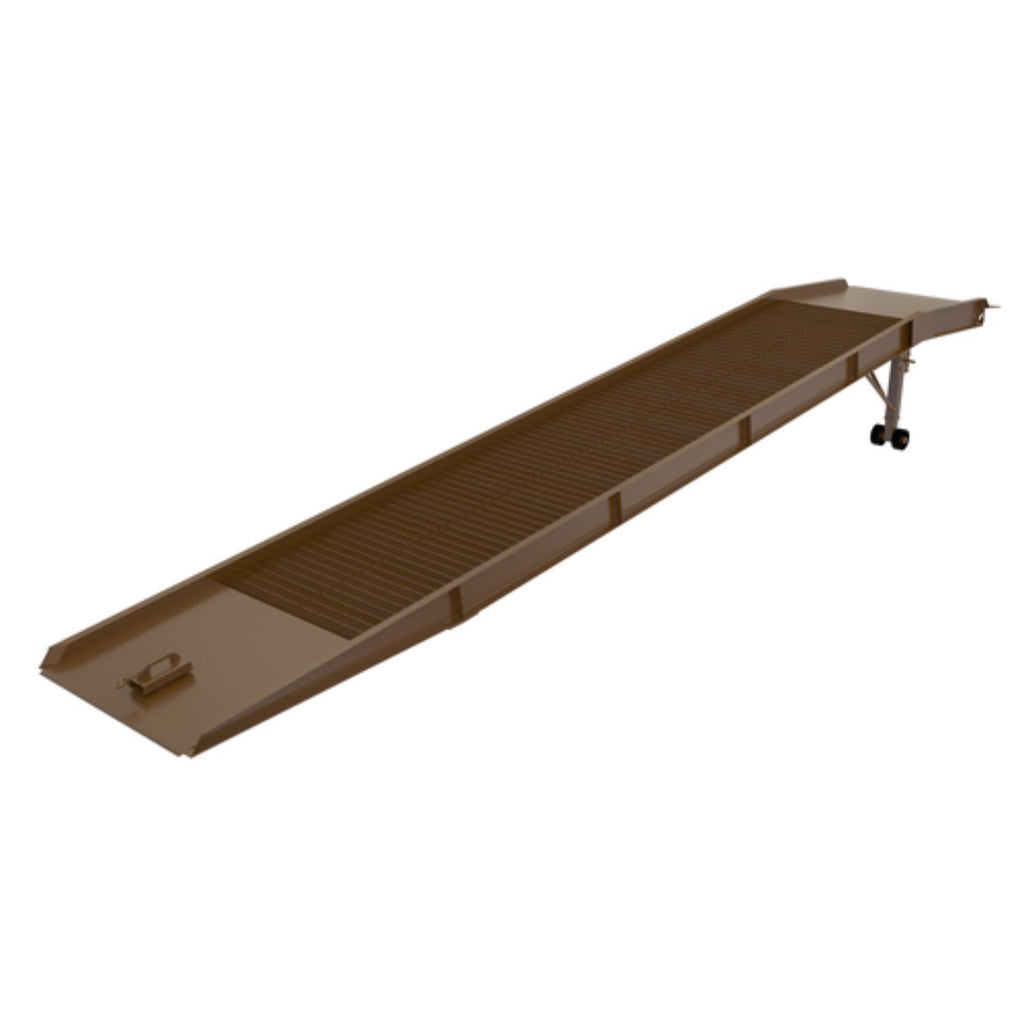

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.
Features
- Steel side curbs prevent fork truck run-off
- Overlap style lip with safety chains secures ramp to trailer
- Open grating design allows snow, ice and rain to fall through
- Manual two-speed crank easily adjusts to different dock heights
Specifications
| Specification | Details |
|---|---|
| Overall Width (in) | 90.375 |
| Overall Length (ft) | 432 |
| Weight Capacity (lbs) | 20000 |
| Maximum Height (in) | 62 |
| Minimum Height (in) | 45 |
| Height Adjustment Method | Hand Crank |
| Ramp Frame Material | Steel |
| Ramp Grate Material | Steel |
| Curb Height (in) | 4 |
| Distance Between Curbs (in) | 66 |
| Wheel Material | Steel |
| Wheel Diameter (in) | 8.625 |
| Wheel Width (in) | 3.625 |
| Color / Finish | Earth-Tone Brown |
| Weight (lbs) | 6275 |
| Safety Chains | Yes |
| Tow Bar | Yes |
| Handrail Included | No |
| Additional Contents | None |
| Manufacturer Warranty | 1 Year |
| Usable Lip Support Edge (in) | 13.87 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
