Description
Description

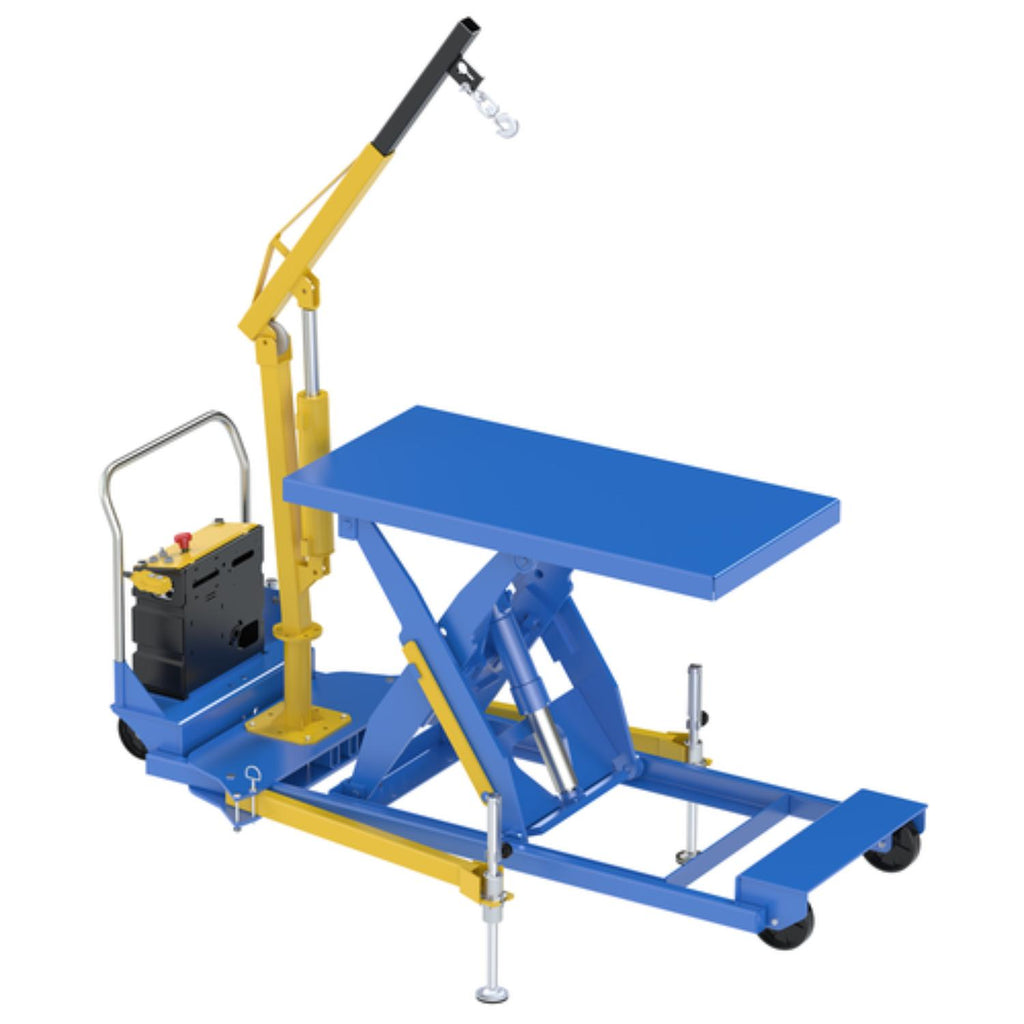

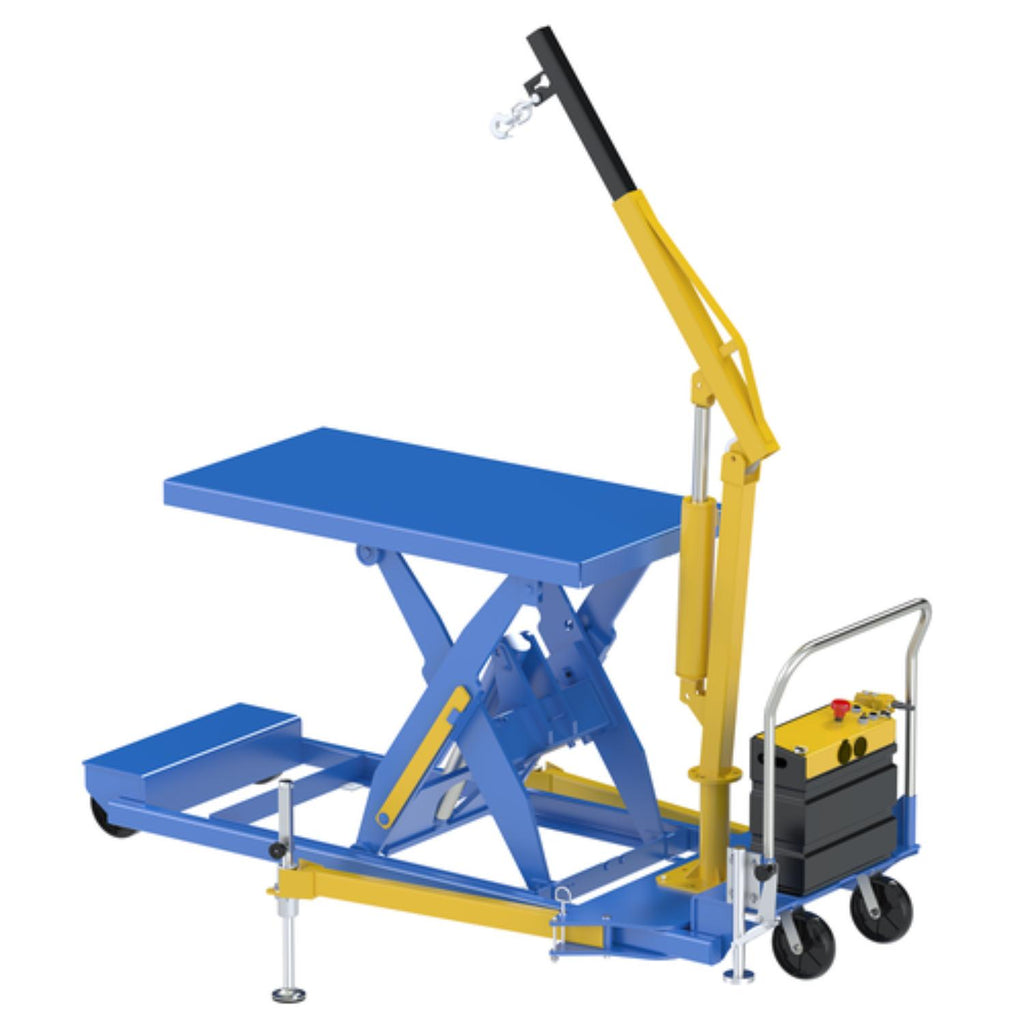

An electric hydraulic lift table is one of the most efficient ways to raise and lower heavy equipment, and now with a few upgrades, it's even better! A winch operated jib crane is now included to maneuver, lift, and lower oversized heavy products. This crane is built of a functional design that can be rotated into a specific position to fit the users needs. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle also enhances the workability of the unit. The casters, along with the removable handle, make a once stationary unit accessible throughout the entire workplace.
Features
- Electric toe guard included for pinch point safety
- Hand pendent included to keep a safe distance during use
- Adjustable outriggers
- Emergency safety-stop to ensure user protection
Specifications
| Specification | Value |
|---|---|
| Power Source | Battery-operated |
| Platform Length (in) | 60.375 |
| Platform Width (in) | 30.375 |
| Platform Material | Steel |
| Maximum Height (in) | 60 |
| Minimum Height (in) | 15 |
| Weight Capacity (lbs) | 2000 |
| Color / Finish | Blue / Liquid Paint |
| Weight (lbs) | 1195 |
| Frame Material | Steel |
| Scale Included | No |
| Controller Cord Length (ft) | 8 |
| Overload Protection | Yes |
| Operation Method | Hand Operated |
| Lifting Speed (sec/ft) | 7 |
| Battery Charger Included | Yes |
| Phase | Single Phase |
| Voltage (V) | 12 |
| Portable | Yes |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 4 |
| Rear Wheel Material | Glass Filled Nylon |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Glass Filled Nylon |
| Installation Hardware Included | Yes |
| Additional Contents | Battery Charger Included: 12V DC Power Unit w/ On-Board Charger & Battery Charge Indicator |
| Overall Length (in) | 82.6875 |
| Overall Width (in) | 122.25 |
| Overall Height (in) | 98.125 |
| Maximum Travel Distance (in) | 36 |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
