Description
Description

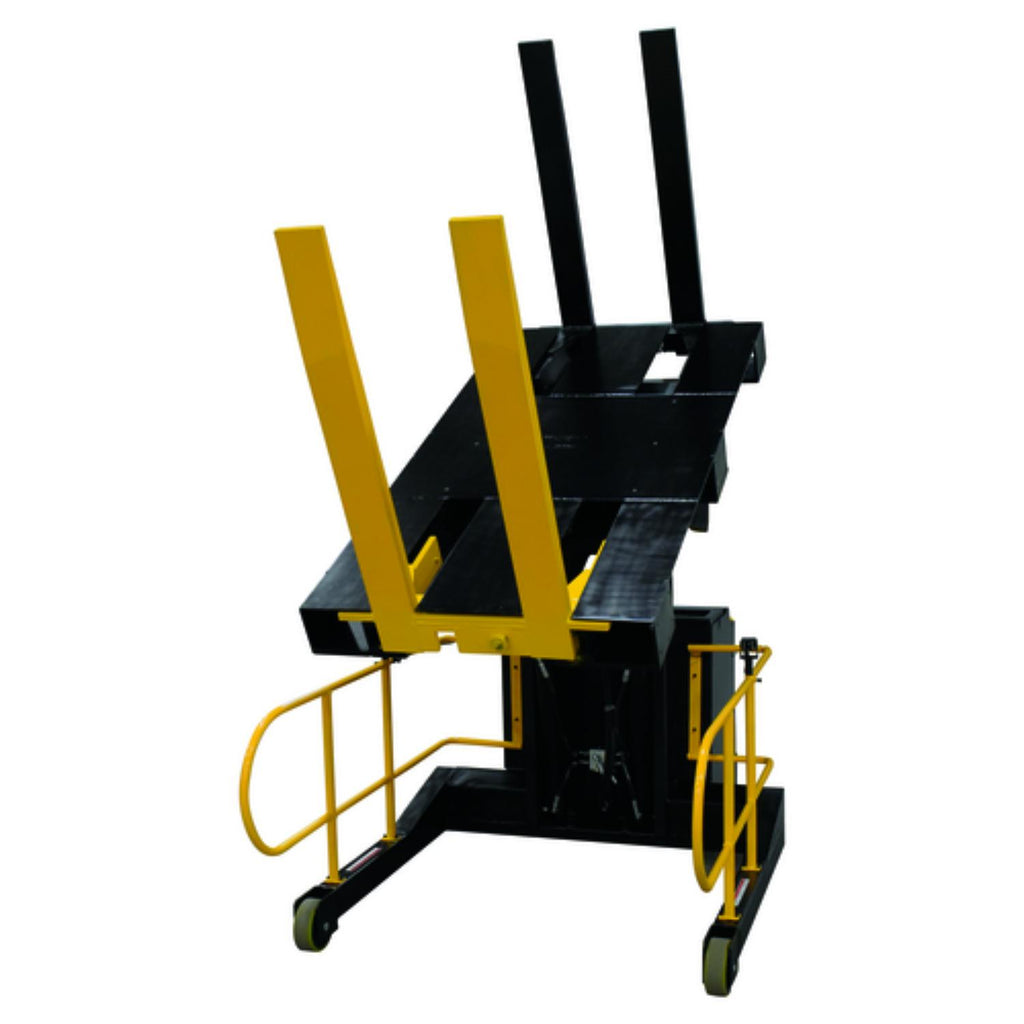

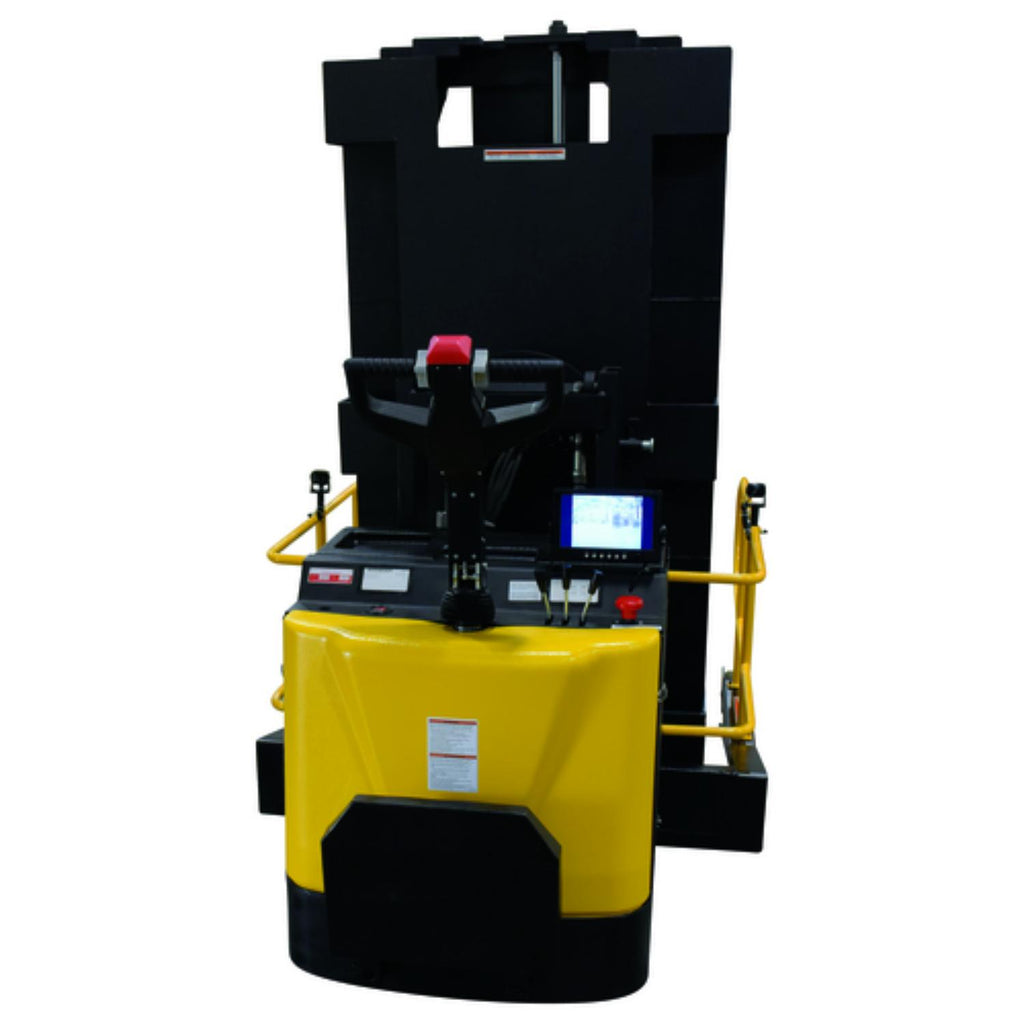

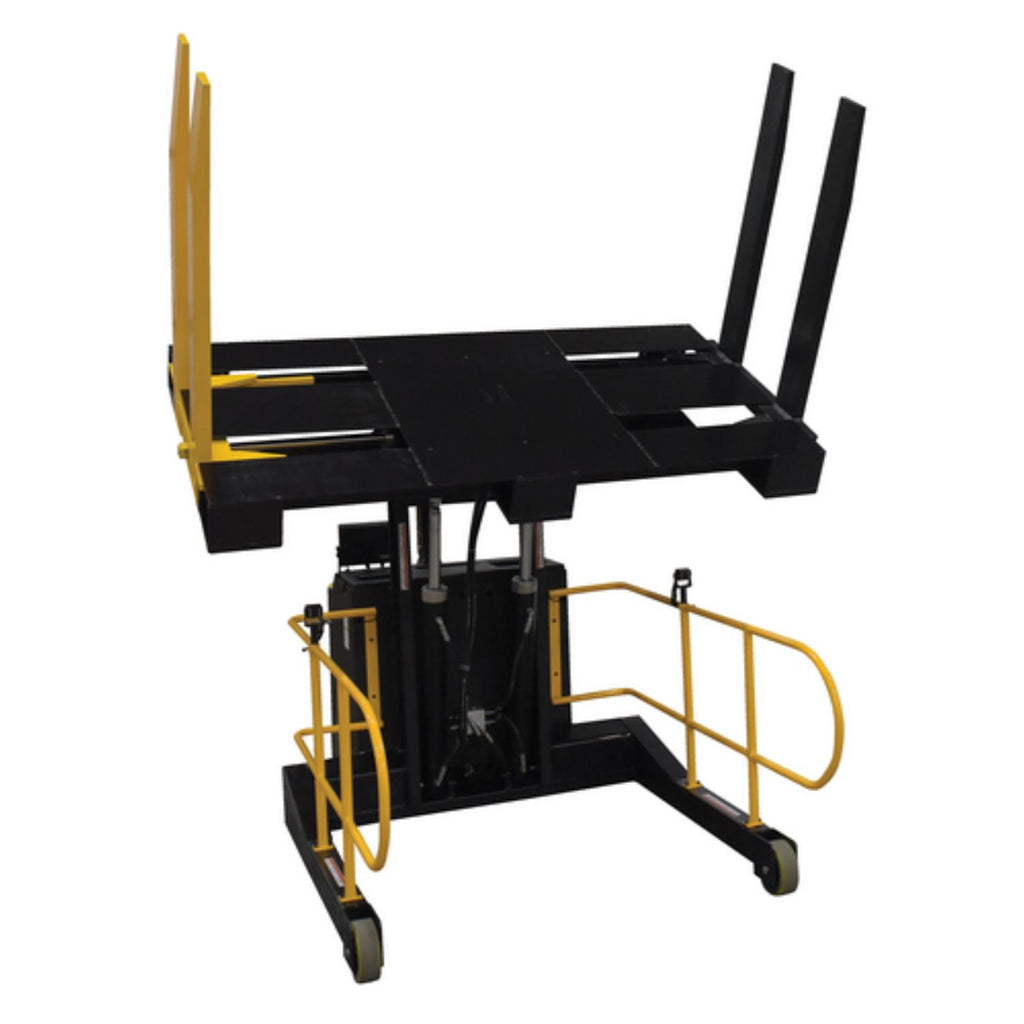

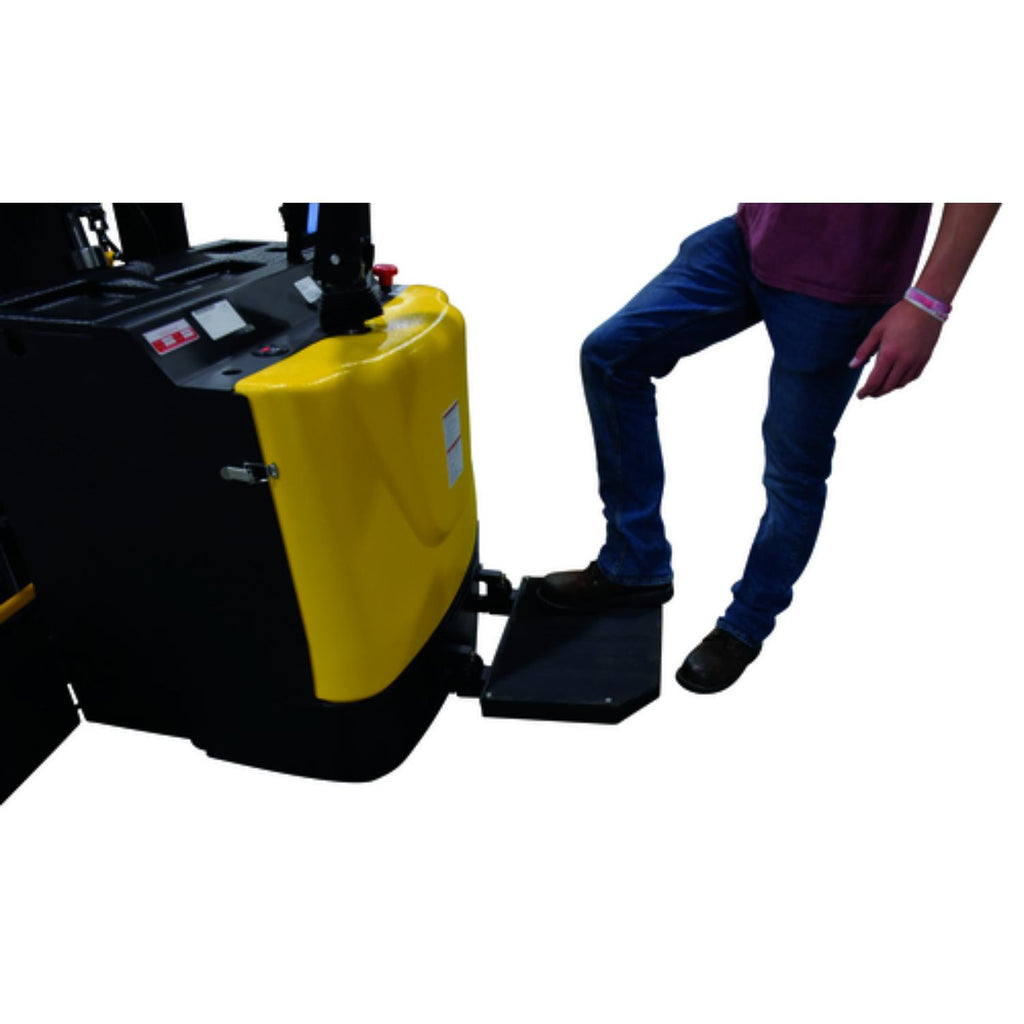

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.
Features

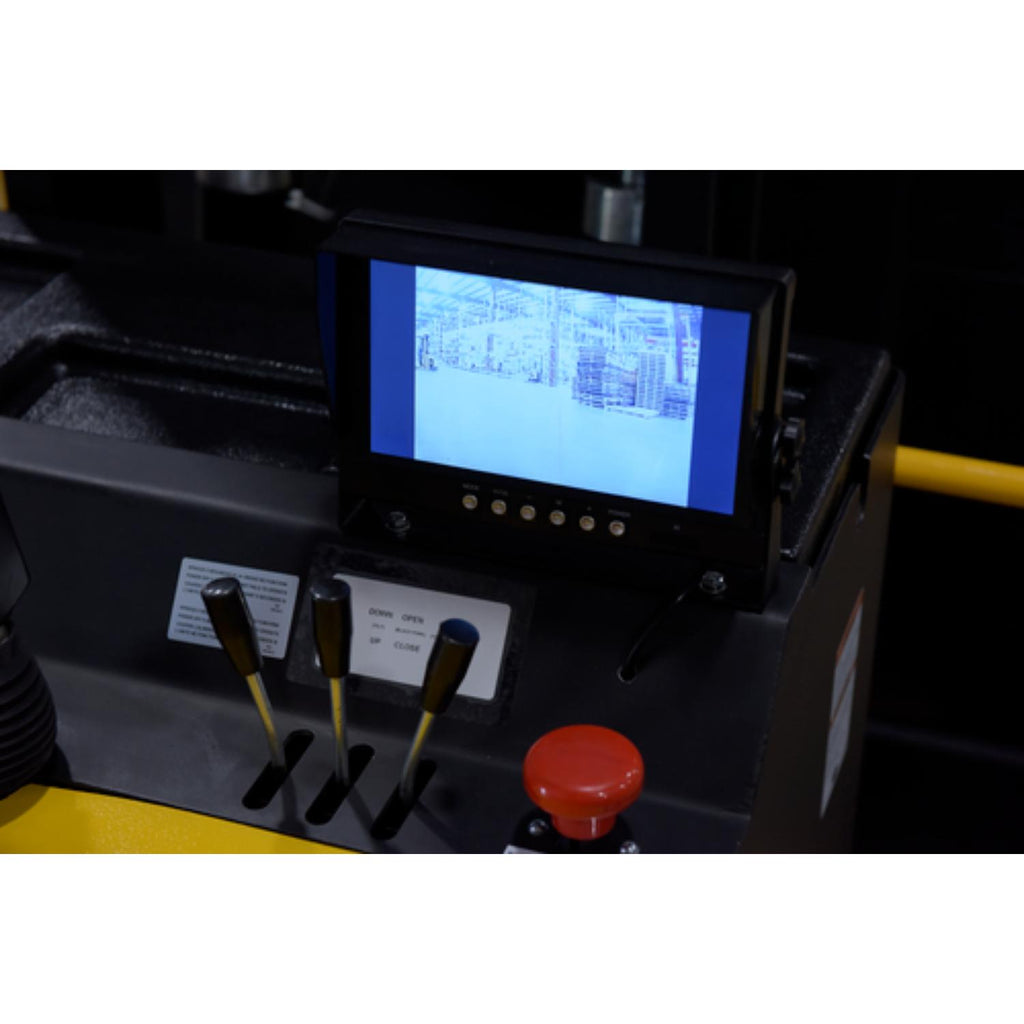

- Optional: side rails and camera
- Large capacity for handling loads both big and small
- Complimentary to a variety of sizes
- Powered lift makes operation safe and efficient
Specifications
| Specification | Details |
|---|---|
| Overall Length (in) | 56.5 |
| Overall Width (in) | 113 |
| Overall Height (in) | 82.5 |
| Weight Capacity (lbs) | 3000 |
| Color / Finish | Yellow/Black |
| Frame Material | Steel |
| Raise Time (sec) | 23 |
| Power Source | Electric - Cordless |
| Fork Height (in) | 3 |
| Fork Length (in) | 48 |
| Fork Width (in) | 6 |
| Minimum Width Between Forks (in) | 32 |
| Maximum Width Between Forks (in) | 76 |
| Portable | Yes |
| Number of Casters / Wheels | 6 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Material | Rubber |
| Front Wheel Diameter (in) | 4 |
| Front Wheel Material | Rubber |
| Weight (lbs) | 3178 |
| Battery Charger Included | Yes |
| Manufacturer Warranty | 1 Year |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
