Description
Description

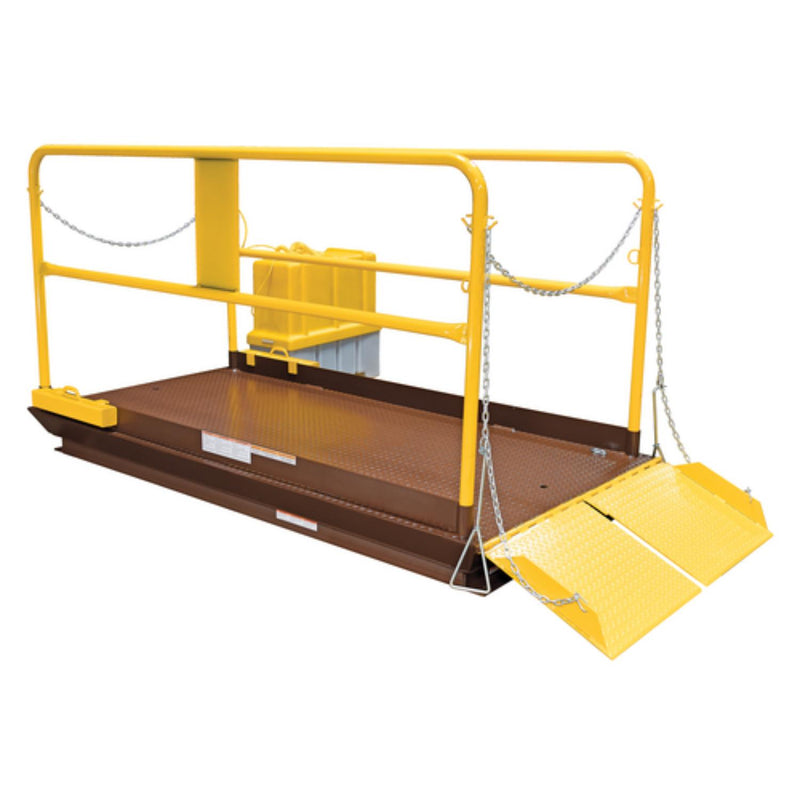

Save time and reduce man-hours where there are no docks with a truck scissor dock lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.
Features
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
Specifications
| Specification | Details |
|---|---|
| Overall Length (ft) | 118 |
| Overall Width (in) | 62 |
| Maximum Height (in) | 72 |
| Minimum Height (in) | 14 |
| Maximum Travel Distance (in) | 58 |
| Weight Capacity (lbs) | 12000 |
| Axle End Load Capacity (lbs) | 9750 |
| Axle Side Load Capacity (lbs) | 8500 |
| Weight (lbs) | 7269 |
| Platform Material | Steel |
| Platform Length (in) | 144 |
| Platform Width (in) | 84 |
| Platform Thickness (in) | 0.25 |
| Color / Finish | Brown/Yellow |
| Operation Method | Push Button |
| Overload Protection | Yes |
| Lifting Speed (sec/ft) | 4.3 |
| Handrail Design | Removable Handrail |
| Handrail Height (in) | 45 |
| Handrail Midrail Height (in) | 21 |
| Canopy Included | No |
| Horsepower (hp) | 6.5 |
| Motor Voltage (V) | 460 |
| Phase | Three Phase |
| Controller Cord Length (ft) | 20 |
| Power Cord Length (ft) | 8 |
| Installation Hardware Included | Not Required |
| Additional Contents | Meets OSHA (1910.28) and ANSI (29.1) Standards; Includes Removable 4 In. High Toeboard and 5 In. Beveled Toe Guard |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
