Description
Description

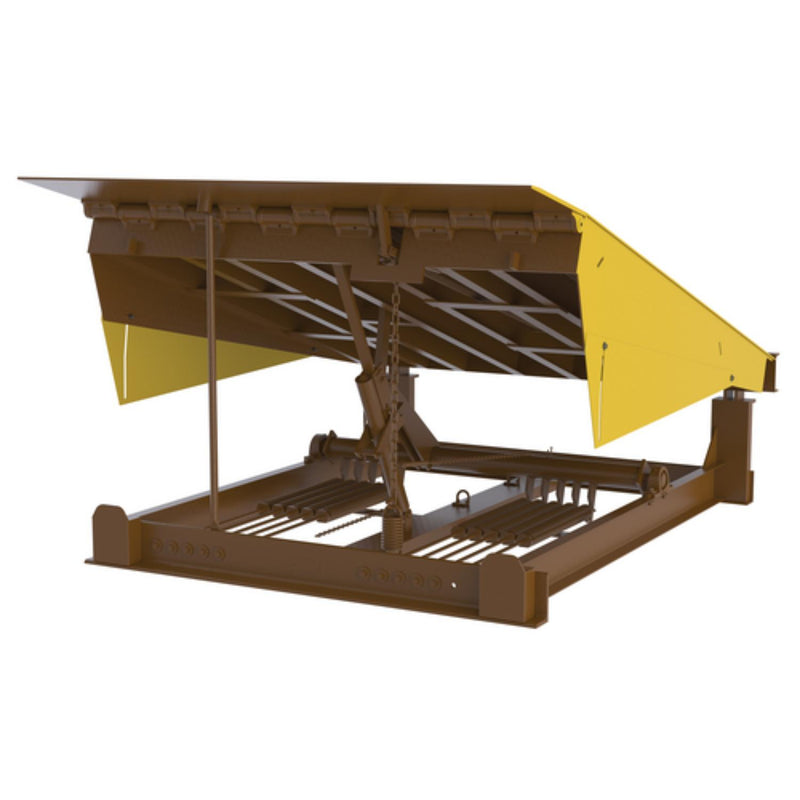

The mechanical dock leveler is constructed of heavy duty checkered plate deck steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation.
Features
- 2 laminated bumpers included
- Spring operated mechanical pull-chain makes use easy
- Telescopic side-mounted toe guards cover opening through the entire service range
- Complies with CS 202-56, OSHA and ANSI MH14.6
Specifications
| Specification | Value |
|---|---|
| Dock Leveler Operating Method | Pull Chain Operation/Mechanical |
| Overall Width (in) | 84 |
| Overall Length (ft) | 10.33 |
| Weight Capacity (lbs) | 50000 |
| Weight (lbs) | 3455 |
| Dock Leveler Lip Projection (in) | 16 |
| Maximum Service Above Dock (in) | 12 |
| Maximum Service Below Dock (in) | 12 |
| Platform Material | Steel |
| Platform Length (in) | 124 |
| Platform Width (in) | 84 |
| Platform Thickness (in) | 0.375 |
| Color / Finish | Brown/Yellow |
| Bumper Projection (in) | 4.5 |
| Bumper Pad Width (in) | 10 |
| Bumper Pad Thickness (in) | 4.5 |
| Bumper Pad Height (in) | 16.25 |
| Installation Method | Pit Installation |
| Installation Hardware Included | Yes |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
