Description
Description

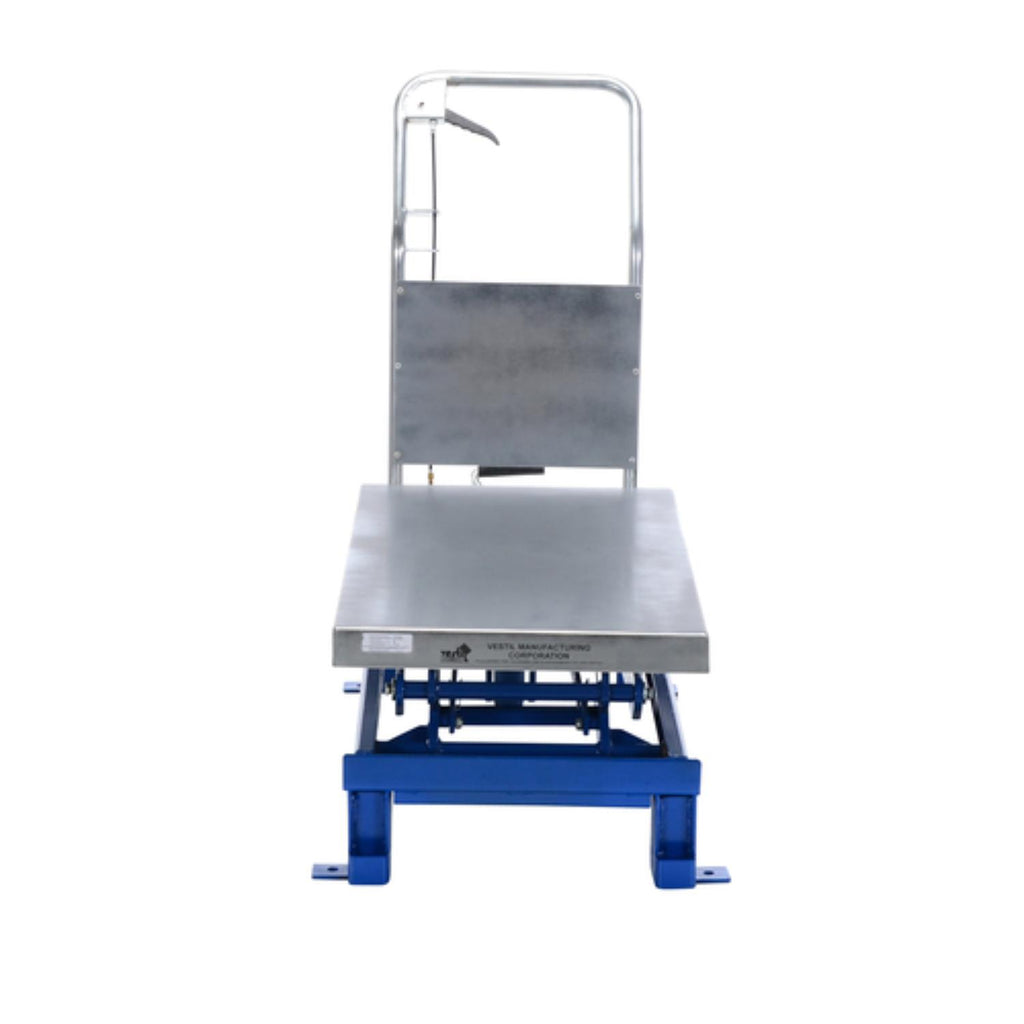

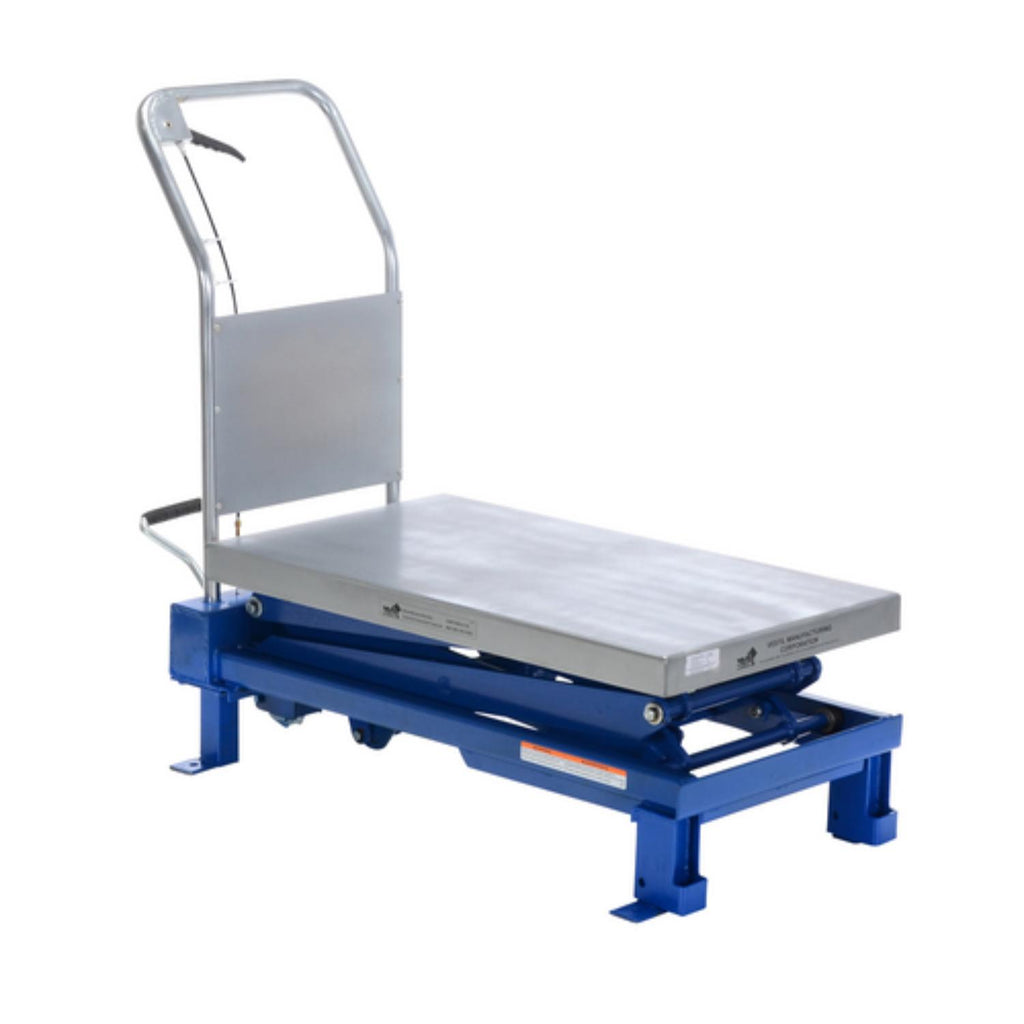

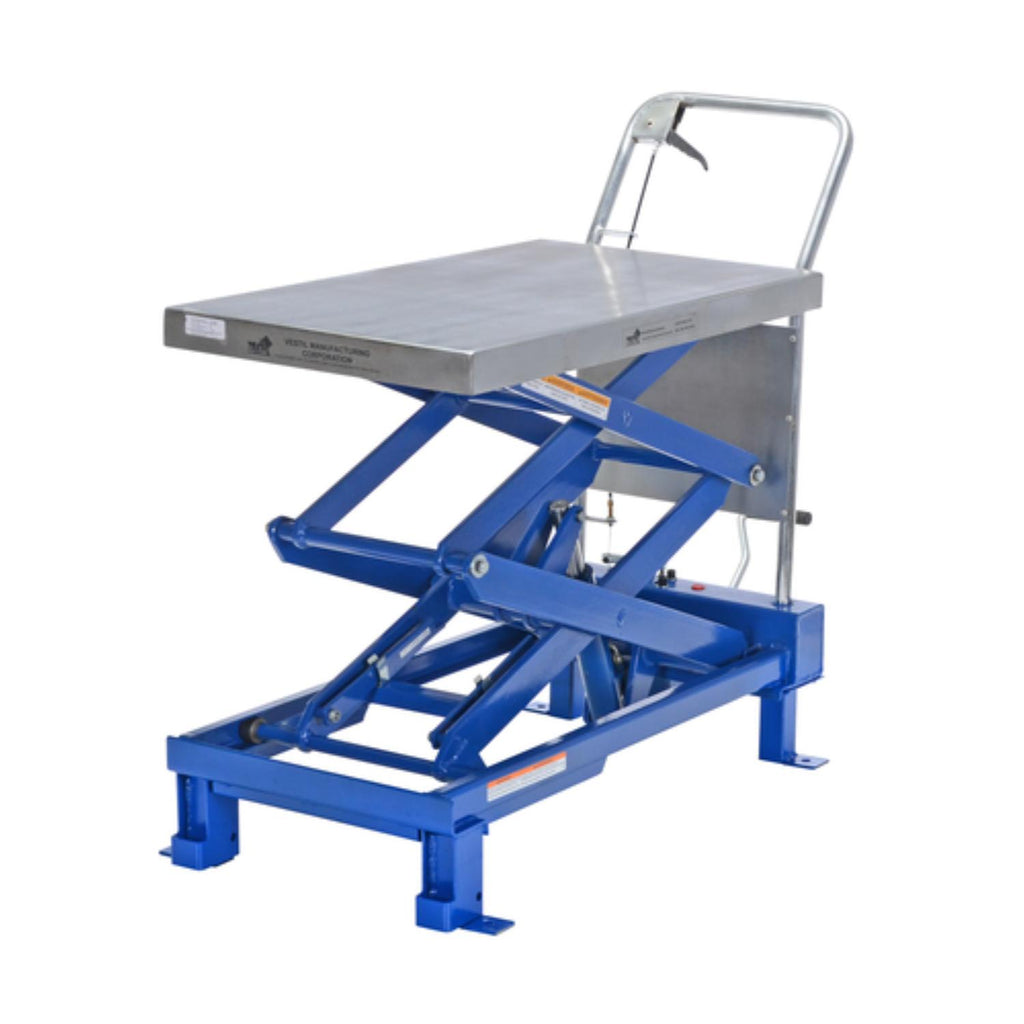

The Foot pump scissor lift table is used by all types of manufacturing and warehousing facilities. It features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. The unit has a rugged welded steel construction and a painted blue finish.
Features
- Variable-height design improves worker ergonomics
- Manual two-speed hydraulic foot pump quickly raises & lowers platform
- Unique platform design can be raised & lowered when loaded or unloaded
- Rugged steel construction provides long lasting rugged use
Specifications
| Specification | Details |
|---|---|
| Power Source | Manual |
| Platform Length (in) | 35.5 |
| Platform Width (in) | 20 |
| Platform Material | Steel |
| Maximum Height (in) | 52 |
| Minimum Height (in) | 15.4375 |
| Weight Capacity (lbs) | 800 |
| Color / Finish | Blue |
| Weight (lbs) | 258 |
| Frame Material | Steel |
| Scale Included | No |
| Operation Method | Foot Operated |
| Pump Speeds | 2 |
| Number of Pumps on Low Setting | 39 |
| Number of Pumps on High Setting | 12 |
| Portable | No |
| Number of Casters / Wheels | No Wheels / Casters |
| Overall Length (in) | 52.625 |
| Manufacturer Warranty | 1 Year |
| Overall Width (in) | 21.375 |
| Overall Height (in) | 39.5 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
