Description
Description

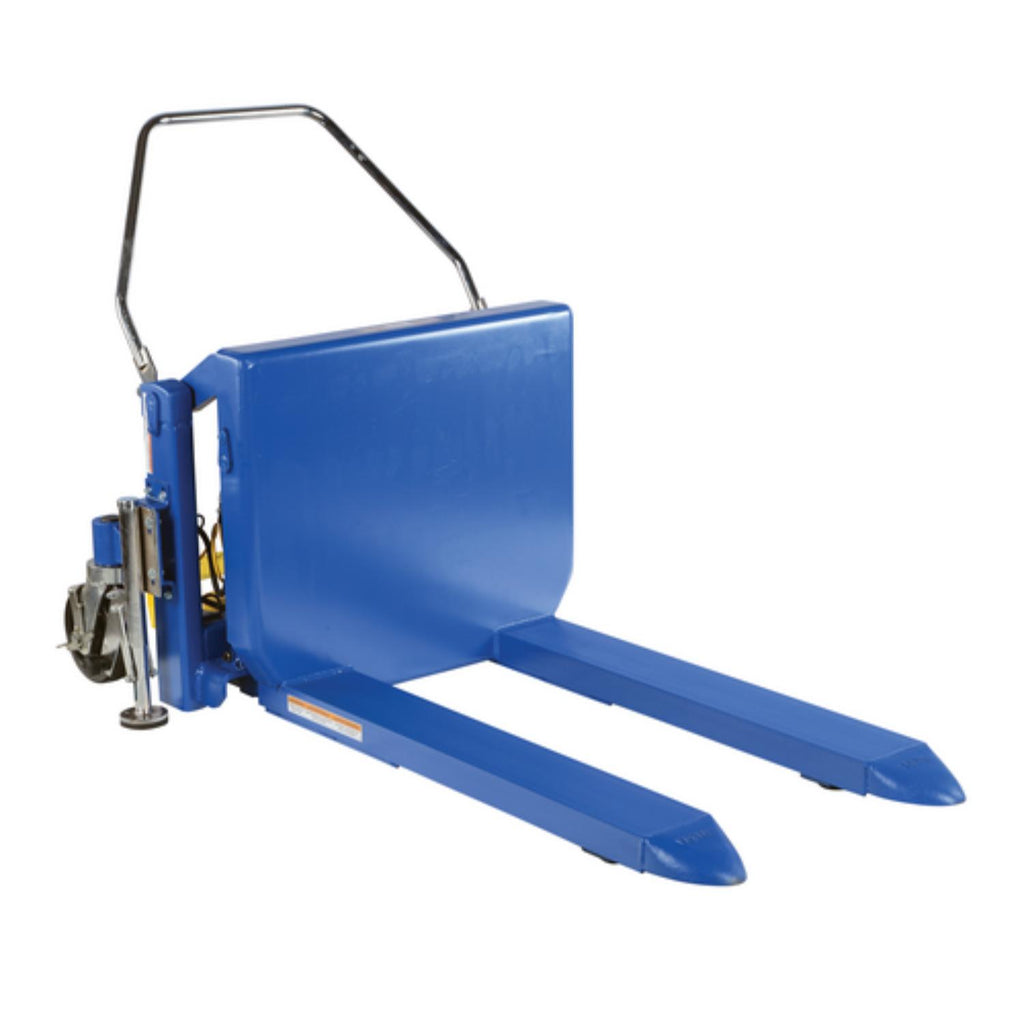

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with open bottom pallets or skids. The unit is powered by a DC electric motor that includes an on-board battery charger, battery charge indicator gauge and foot control.
Features
- Folding ergonomic handle
- Two rigid and two swivel casters provide smooth and efficient mobility

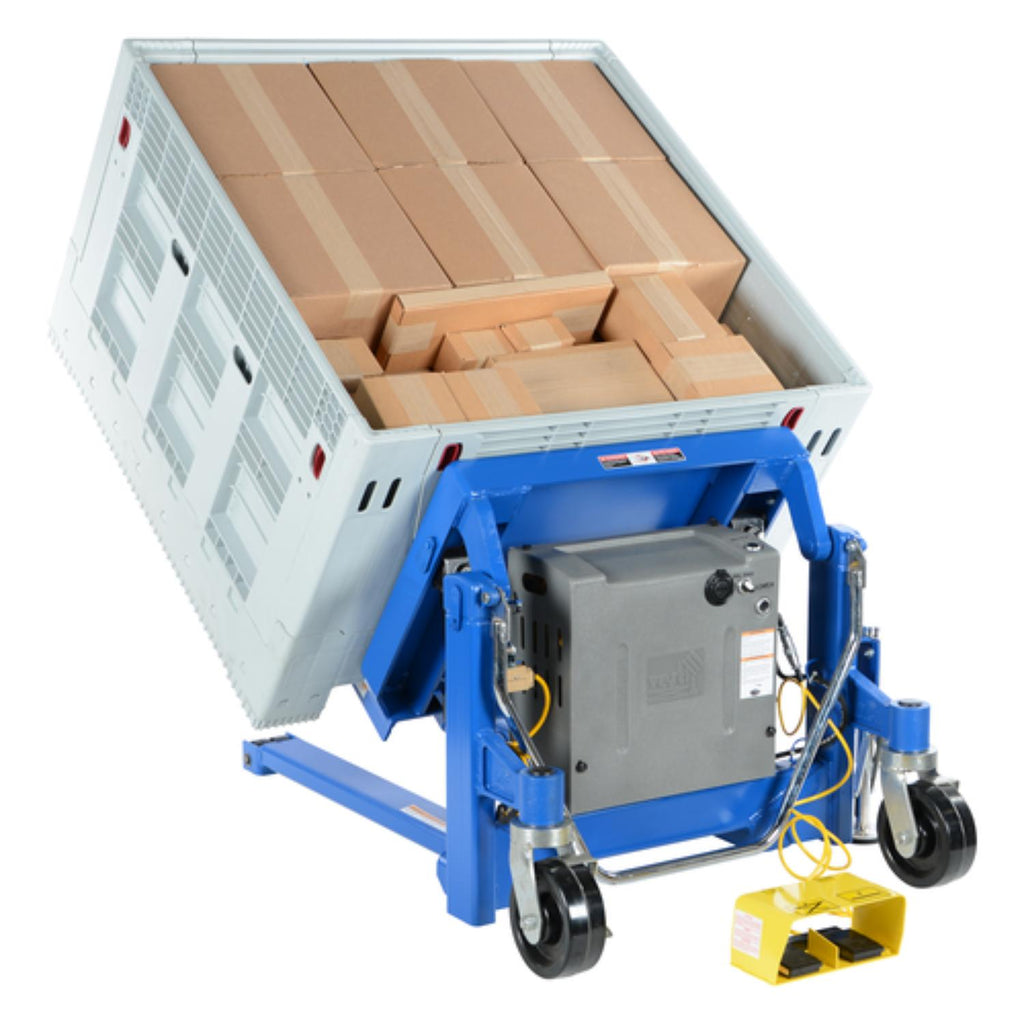

- 90 Degrees tilt angle allows for better ergonomic access
- Foot pedal control for quick lifting and lowering
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Cordless |
| Color / Finish | Blue |
| Weight Capacity (lbs) | 4000 |
| Overall Height (in) | 28.3125 |
| Overall Length (in) | 75.5625 |
| Overall Width (in) | 41.0625 |
| Maximum Height (in) | 33 |
| Minimum Height (in) | 3.625 |
| Maximum Travel Distance (in) | 29.375 |
| Overload Protection | Yes |
| Battery Charger Included | Yes |
| Phase | Not Applicable |
| Voltage (V) | 12 |
| Fork Height (in) | 3.5 |
| Fork Length (in) | 38.125 |
| Fork Width (in) | 6 |
| Minimum Width Between Forks (in) | 26 |
| Number of Casters / Wheels | 6 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Width (in) | 3 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 3 |
| Front Wheel Width (in) | 1.5 |
| Front Wheel Material | Phenolic |
| Weight (lbs) | 781 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
