Description
Description

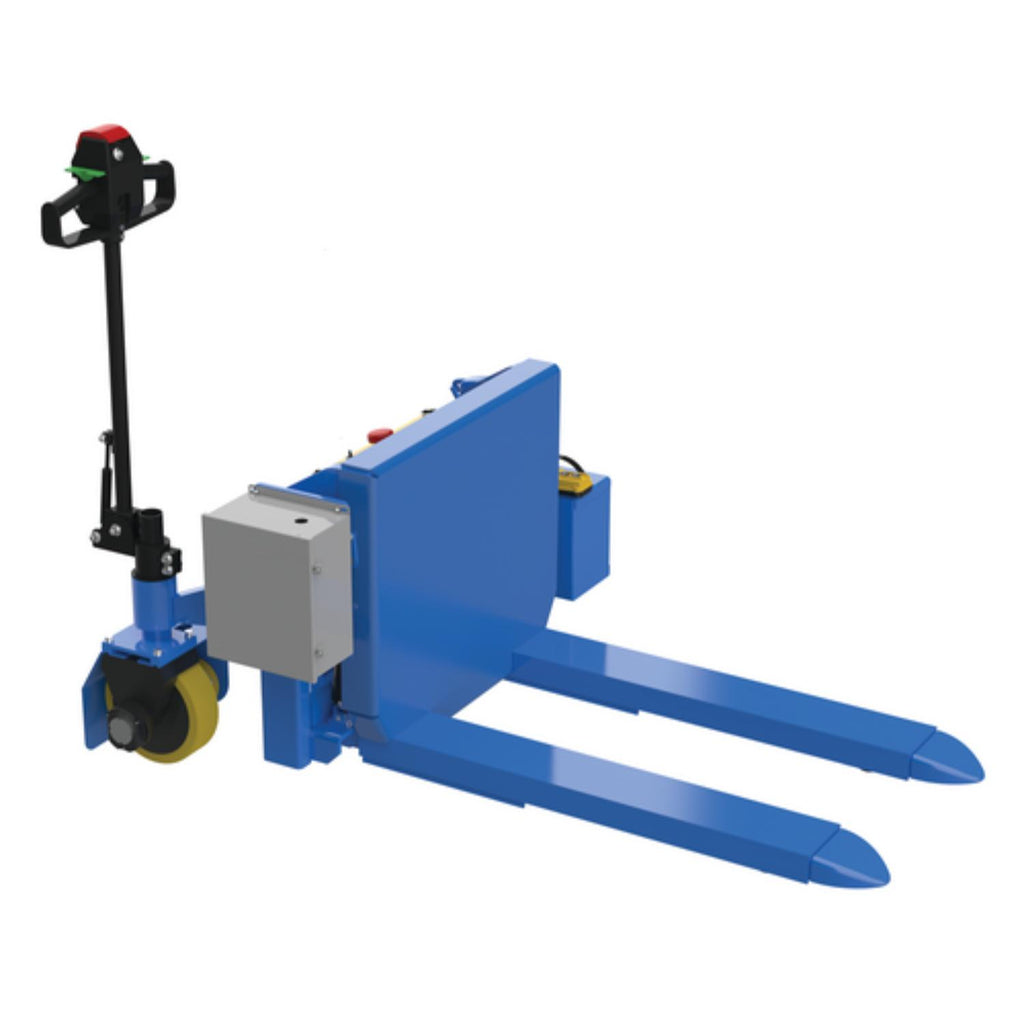

Lift and position filled tote boxes and baskets without the need of a fork truck or lift table using the new designed heavy duty tilt master. These tilters function as transporters by moving completed products from work station to work station without waiting for a fork truck. The unit has a thin profile to allow the user to get as close to the load as possible. The power traction drive system allows the unit to be controlled and maneuvered quickly and easily.
Features
- An ergonomically friendly design diminishes bending and twisting motion
- Constructed of steel for strength and durability
- The unit rolls on phenolic steering wheels
- 90 degree maximum tilt angle
Specifications
| Specification | Value |
|---|---|
| Power Source | Electric - Corded |
| Platform Material | Steel |
| Maximum Height (in) | 33 |
| Minimum Height (in) | 3.625 |
| Maximum Travel Distance (in) | 29.375 |
| Weight Capacity (lbs) | 4000 |
| Color / Finish | Blue |
| Weight (lbs) | 913 |
| Scale Included | No |
| Overload Protection | Yes |
| Operation Method | Push Button |
| Phase | Not Applicable |
| Voltage (V) | 24 |
| Portable | Yes |
| Number of Casters / Wheels | 6 |
| Rear Wheel Diameter (in) | 10 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 3 |
| Front Wheel Material | Phenolic |
| Installation Hardware Included | Not Required |
| Overall Length (in) | 75.5625 |
| Overall Width (in) | 52 |
| Overall Height (in) | 54 |
| Manufacturer Warranty | 1 Year |
| Maximum Speed (mph) | 2 |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
