Description
Description

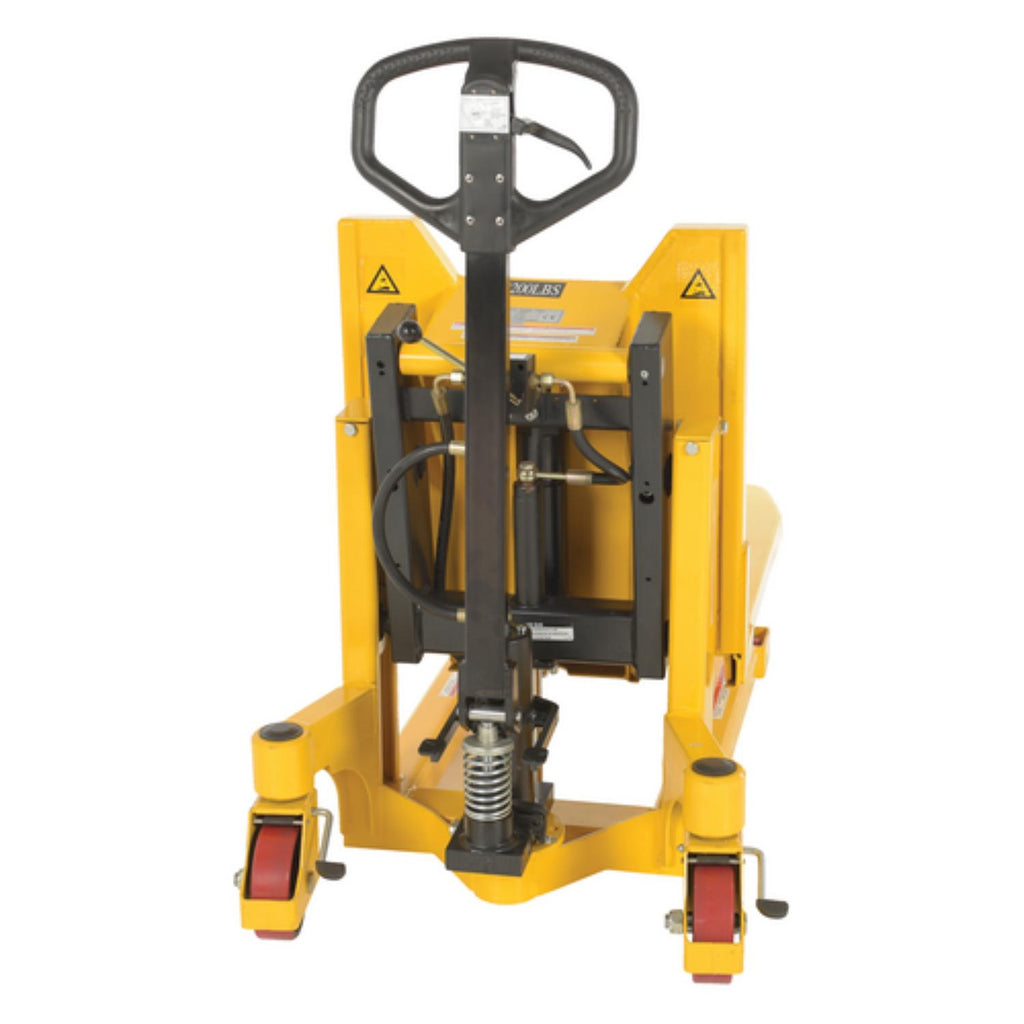

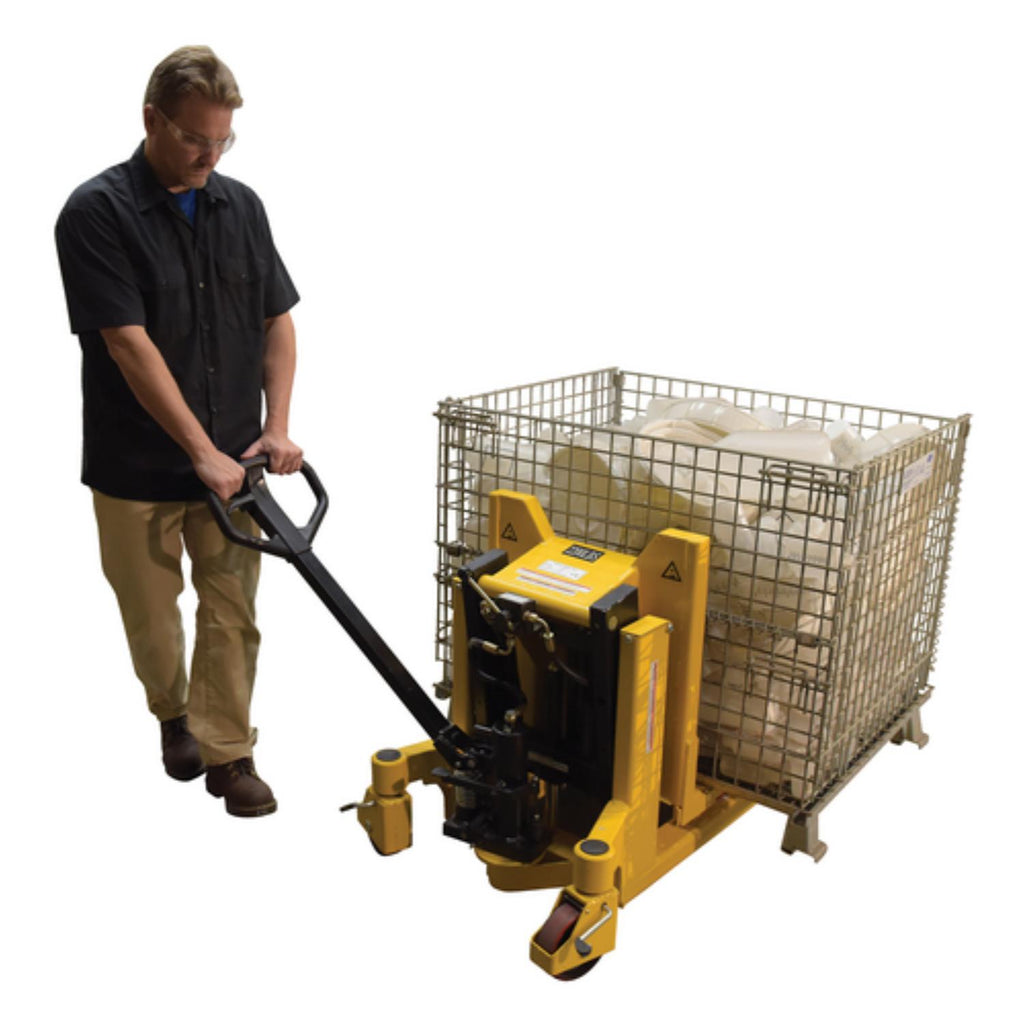

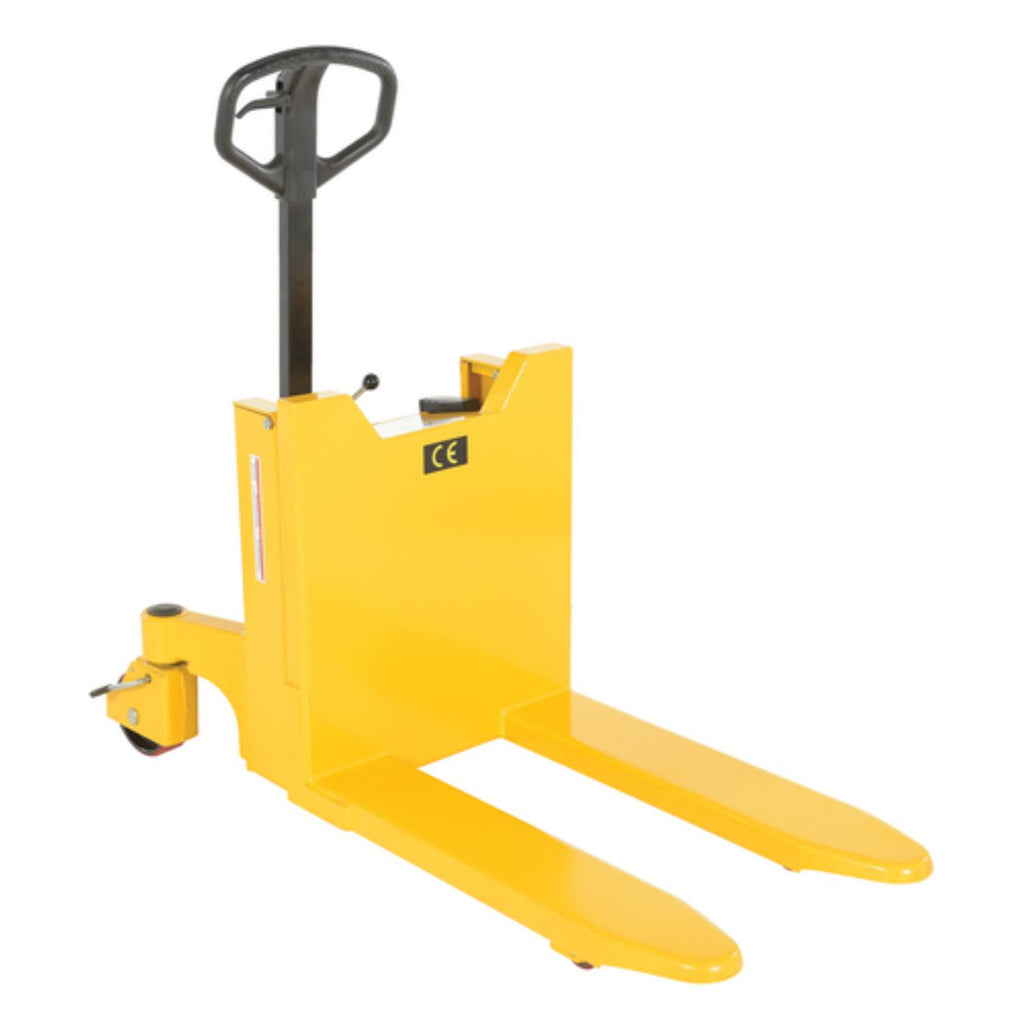

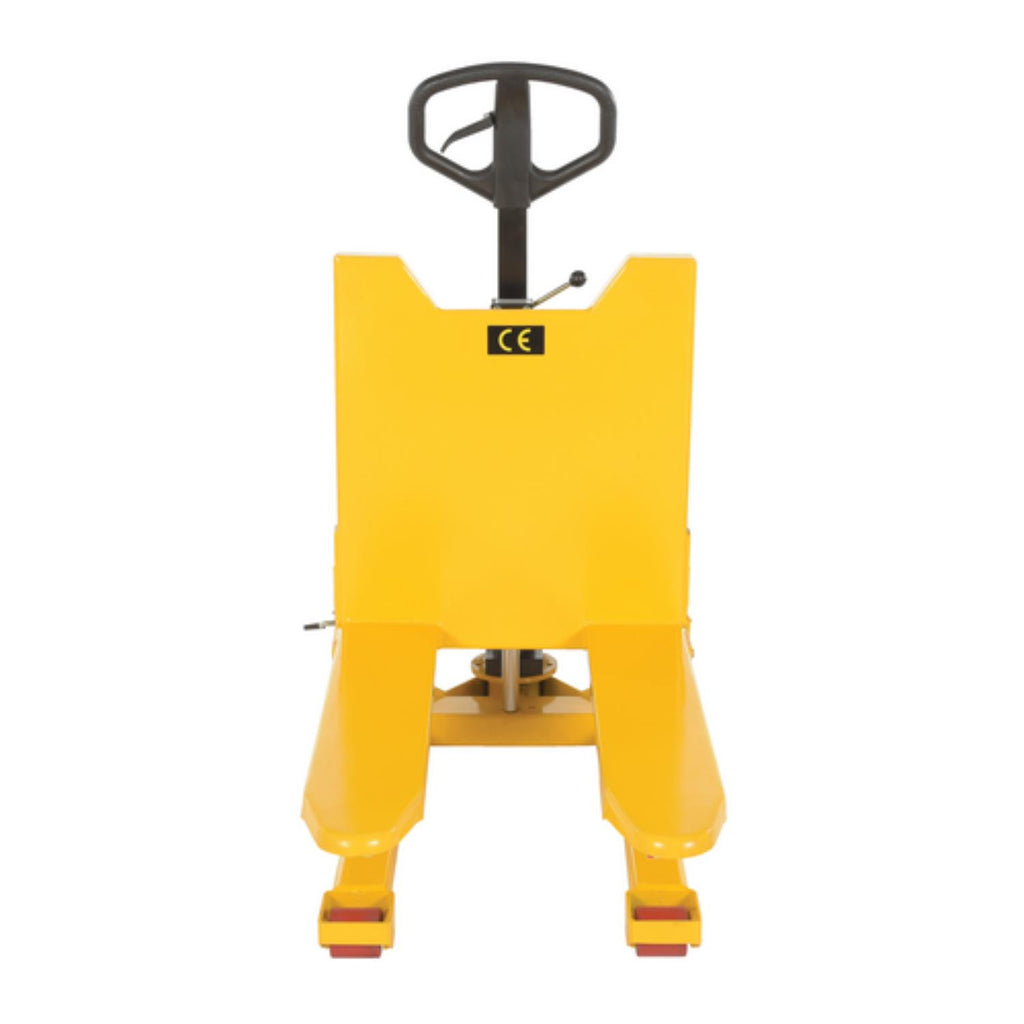

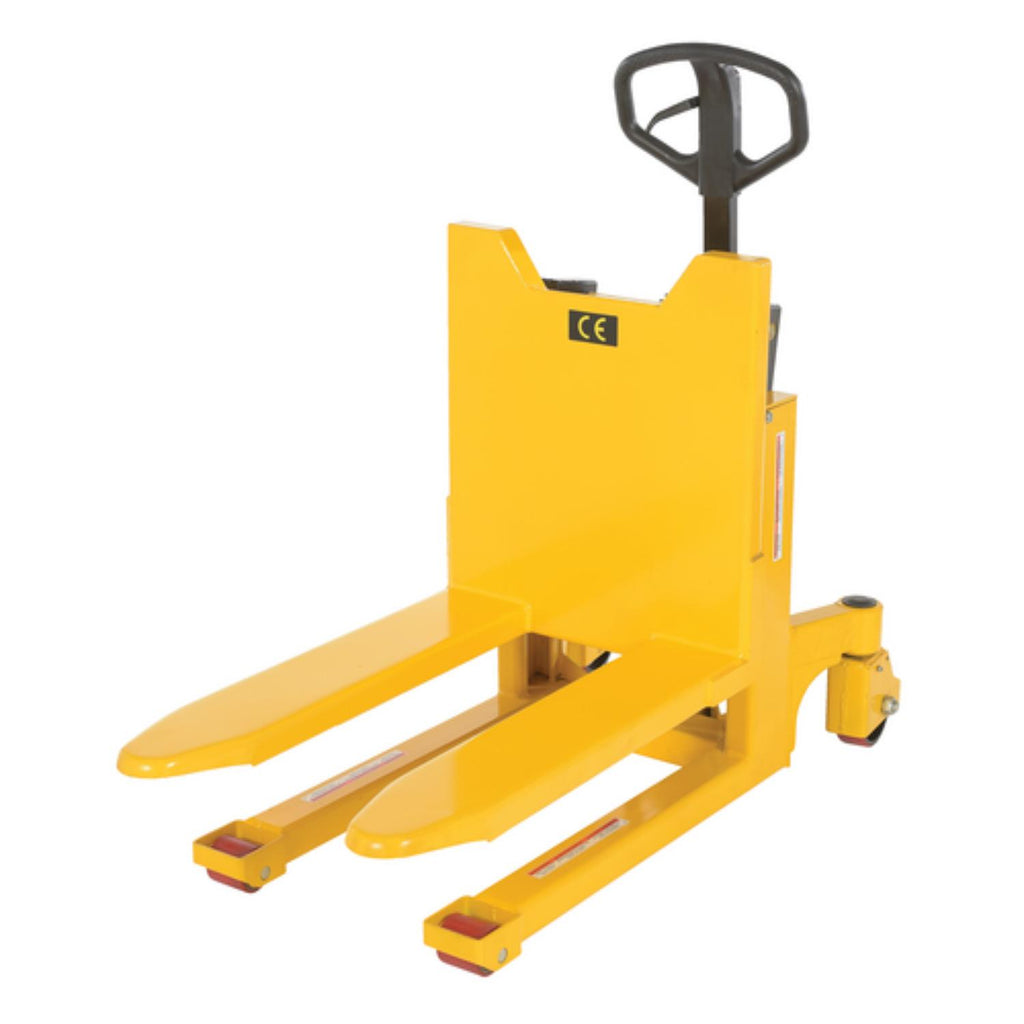

The manual tilt master lifts, tilts, and transports crates, boxes, pallets, with an open bottom. It's designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. The lift rolls smoothly on a polyurethane swivel caster with brake and foot protectors.
Features
- Will function as a transporter by moving completed products from work station to work station without waiting for a fork truck
- Two swivel casters provide smooth and efficient mobility
- 90 Degrees tilt angle allows for better ergonomic access
- Ergonomic push handle folds down when not needed for better access
Specifications
| Specification | Details |
|---|---|
| Power Source | Manual |
| Color / Finish | Yellow |
| Weight Capacity (lbs) | 2200 |
| Overall Height (in) | 46 |
| Overall Length (in) | 52 |
| Overall Width (in) | 25.25 |
| Maximum Height (in) | 11.25 |
| Minimum Height (in) | 3.5 |
| Maximum Travel Distance (in) | 7.75 |
| Overload Protection | No |
| Battery Charger Included | Not Required |
| Phase | Not Applicable |
| Fork Height (in) | 3.5 |
| Fork Length (in) | 31.5 |
| Fork Width (in) | 6.25 |
| Minimum Width Between Forks (in) | 22 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 6 |
| Rear Wheel Width (in) | 2 |
| Rear Wheel Material | Polyurethane |
| Front Wheel Diameter (in) | 2 |
| Front Wheel Width (in) | 2.5 |
| Front Wheel Material | Polyurethane |
| Weight (lbs) | 372 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
