Description
Description

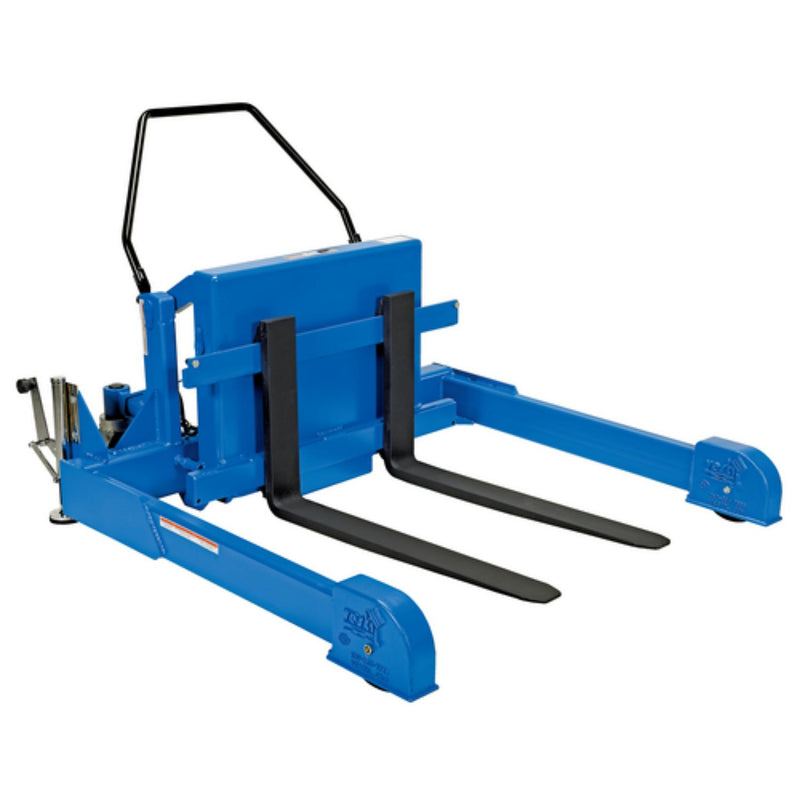

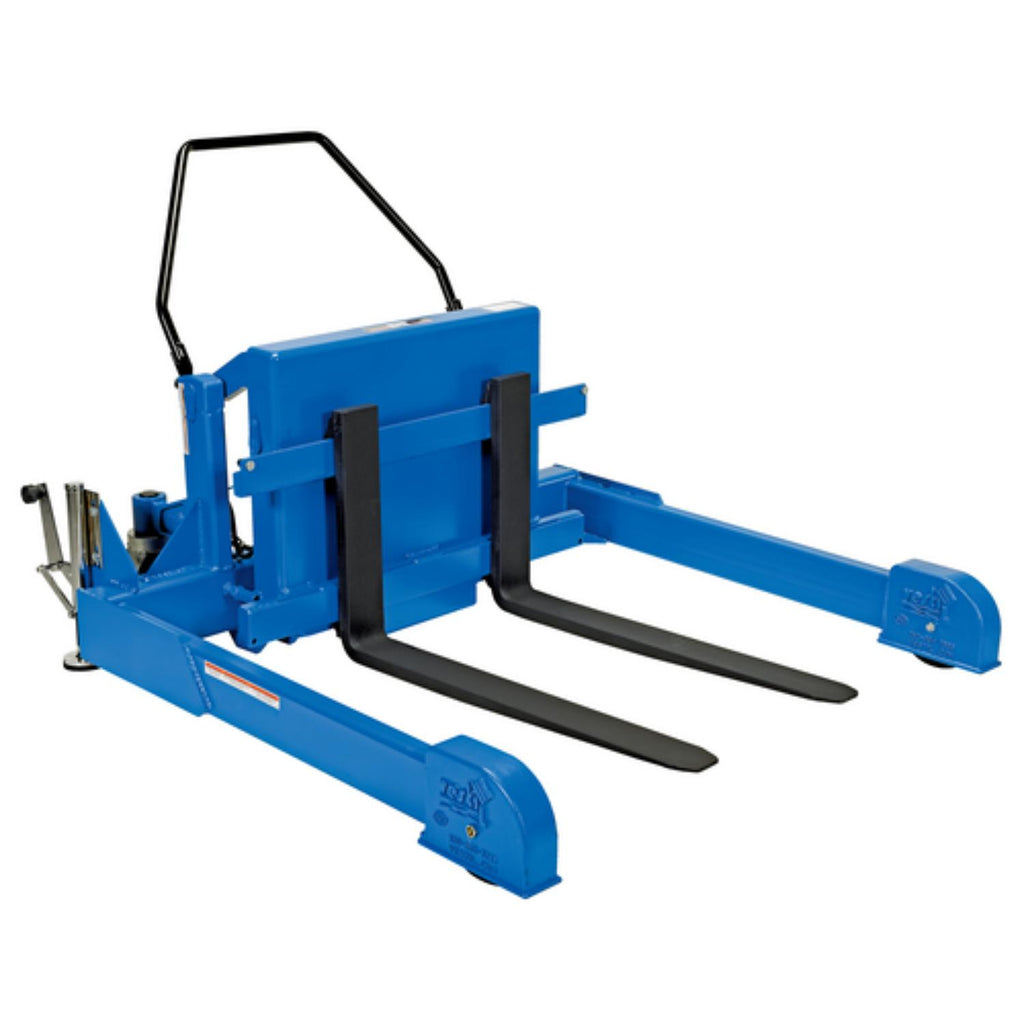

The tilt master straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet. The unit is powered by an air pneumatic motor.
Features
- Folding ergonomic handle
- Two rigid and two swivel casters provide smooth and efficient mobility
- 90 degree tilt angle allows for better ergonomic access
- Heel/toe foot treadle allows quick lifting and lowering
Specifications
| Specification | Value |
|---|---|
| Power Source | Pneumatic |
| Color / Finish | Blue |
| Weight Capacity (lbs) | 4000 |
| Overall Height (in) | 29.25 |
| Overall Length (in) | 72.8125 |
| Overall Width (in) | 57.25 |
| Maximum Height (in) | 37 |
| Minimum Height (in) | 3 |
| Maximum Travel Distance (in) | 34 |
| Overload Protection | Yes |
| Battery Charger Included | Not Required |
| Phase | Not Applicable |
| Fork Height (in) | 3 |
| Fork Length (in) | 35 |
| Fork Width (in) | 4 |
| Minimum Width Between Forks (in) | 0.5 |
| Maximum Width Between Forks (in) | 28.5 |
| Number of Casters / Wheels | 4 |
| Rear Wheel Diameter (in) | 8 |
| Rear Wheel Width (in) | 3 |
| Rear Wheel Material | Phenolic |
| Front Wheel Diameter (in) | 8 |
| Front Wheel Width (in) | 2 |
| Front Wheel Material | Glass Filled Nylon |
| Weight (lbs) | 893 |
| Manufacturer Warranty | 1 Year |
Documents
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
