Description
Description

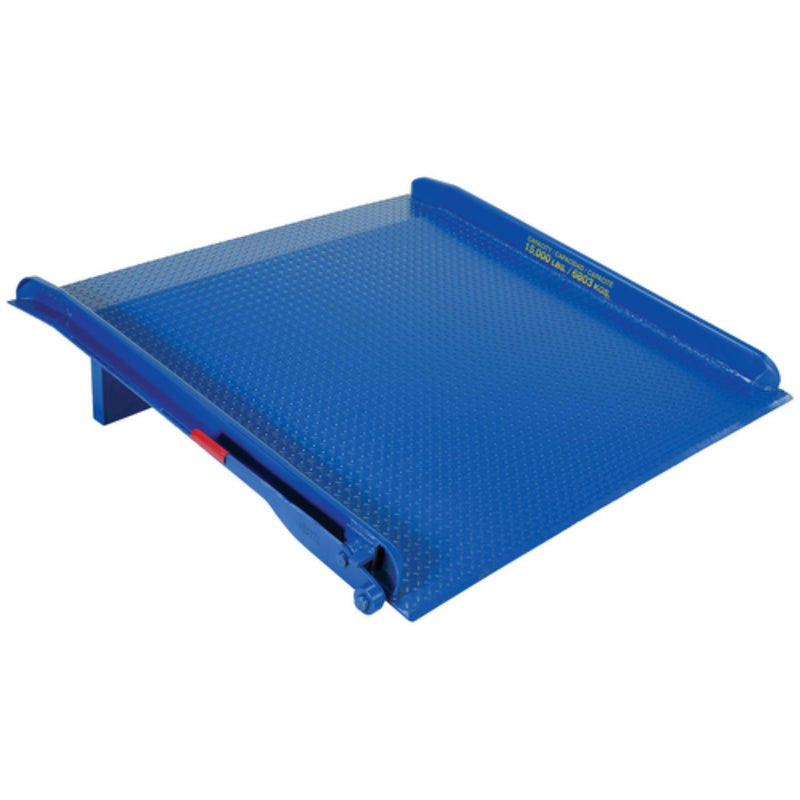

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.
Features
- Manufactured from high-strength steel tread plate for maximum durability
- Heavy-duty steel curbs are welded in place for maximum strength
- Includes patented lever lift for easy fork truck positioning
- Smooth transition provided by beveled entrance and exit
Specifications
| Specification | Details |
|---|---|
| Overall Width (in) | 62.5625 |
| Overall Length (ft) | 5.98 |
| Plate Thickness (in) | 0.375 |
| Weight Capacity (lbs) | 10000 |
| Color / Finish | Blue |
| Weight (lbs) | 537 |
| Dockboard Material | Steel |
| Height Differential (in) | 12 |
| Bevel Angle (°) | 11 |
| Manufacturer Warranty | 90 Days |
| Distance from Bend to Edge (in) | 9 |
| Distance from Leg to Edge (in) | 12 |
| Usable Width (in) | 55.5 |
Warranty
- Does this Product Have a Warranty?: Yes
- Manufacturer Warranty: 1 Year
- Warranty Type: Limited - Parts
- Manufacturer Warranty #2: 90 Days
- Warranty Type #2: Wearable Parts warranty
